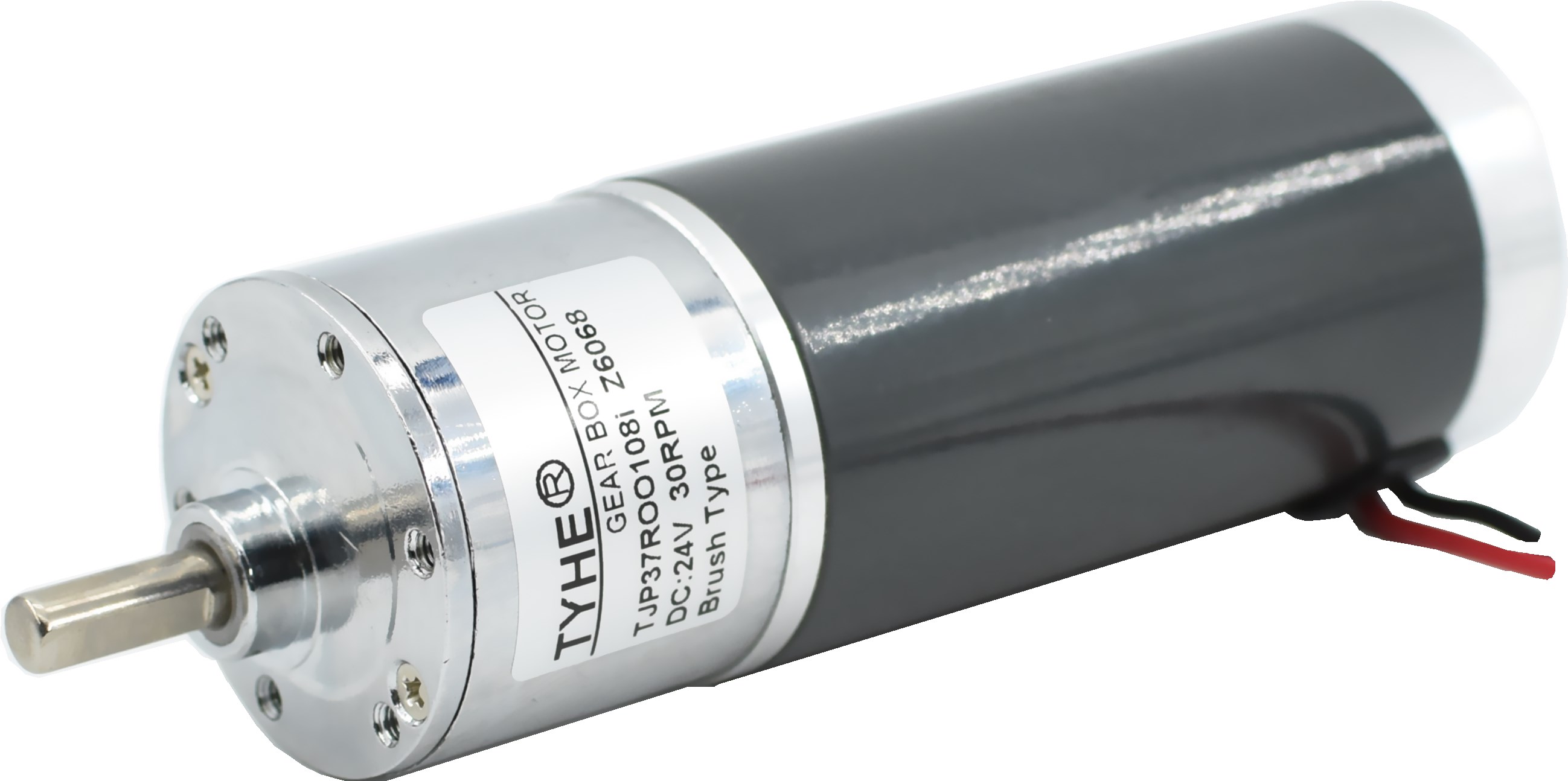

30v 36v 20kg Load 8mm Shaft High Torque Dc Motor 37mm 100rpm 120rpm

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJP37ROO
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

30v 36v 20kg Load 8mm Shaft High Torque Dc Motor 37mm 100rpm 120rpm

Manufacturer 37mm 12v 24v 30v 36v 37v 6 Volt 100rpm 50 Rpm 120rpm 30 Watt Pmdc 20kg Load 8mm Shaft High Torque Dc Motor

Products Description

Manufacturer 37mm 12v 24v 30v 36v 37v 6 volt 100rpm 50 rpm 120rpm 30 watt pmdc 20kg load 8mm shaft high torque dc gear motor

Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
ZY3879	12	4500	350	3600	1.23	24.50	9.24	62.83	73.50	7.00
ZY3879	12	5000	400	4000	1.35	24.50	10.26	63.34	73.50	7.50
ZY3879	12	8000	900	6400	2.65	29.70	19.90	62.59	89.10	13.00
ZY3879	24	3500	100	2800	0.48	24.90	7.30	63.37	74.70	3.30
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			12V-4500RPM Input				12V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
22.5	81	6.5	553.8	7.48	128.99	386.98	615.4	8.31	128.99	386.98
22.5	73	9.3	387.1	6.74	166.33	498.99	430.1	7.49	166.33	498.99
22.5	73	11.8	305.1	6.74	211.04	633.13	339.0	7.49	211.04	633.13
22.5	73	14.2	253.5	6.74	253.97	761.90	281.7	7.49	253.97	761.90
22.5	73	17.4	206.9	6.74	311.20	933.60	229.9	7.49	311.20	933.60
24.5	65.6	21.8	165.1	6.06	350.37	1051.11	183.5	6.73	350.37	1051.11
24.5	65.6	27.5	130.9	6.06	441.98	1325.94	145.5	6.73	441.98	1325.94
24.5	65.6	36.6	98.4	6.06	588.24	1764.71	109.3	6.73	588.24	1764.71
24.5	65.6	40.4	89.1	6.06	649.31	1947.93	99.0	6.73	649.31	1947.93
26.5	59	58.1	62.0	5.45	839.84	2500.00	68.8	6.05	839.84	2500.00
26.5	59	73.4	49.0	5.45	1061.00	2500.00	54.5	6.05	1061.00	2500.00
26.5	59	83	43.4	5.45	1199.77	2500.00	48.2	6.05	1199.77	2500.00
26.5	59	89	40.4	5.45	1286.50	2500.00	44.9	6.05	1286.50	2500.00
26.5	59	95	37.9	5.45	1373.23	2500.00	42.1	6.05	1373.23	2500.00
26.5	59	103	35.0	5.45	1488.87	2500.00	38.8	6.05	1488.87	2500.00
29.5	53	119	30.3	4.89	1545.22	2500.00	33.6	5.44	1545.22	2500.00
29.5	53	136	26.5	4.89	1765.96	2500.00	29.4	5.44	1765.96	2500.00
29.5	53	171	21.1	4.89	2220.44	2500.00	23.4	5.44	2220.44	2500.00
29.5	53	194	18.6	4.89	2500.00	2500.00	20.6	5.44	2500.00	2500.00
29.5	53	207	17.4	4.89	2500.00	2500.00	19.3	5.44	2500.00	2500.00
29.5	53	221	16.3	4.89	2500.00	2500.00	18.1	5.44	2500.00	2500.00
29.5	53	242	14.9	4.89	2500.00	2500.00	16.5	5.44	2500.00	2500.00
29.5	53	277	13.0	4.89	2500.00	2500.00	14.4	5.44	2500.00	2500.00
29.5	53	305	11.8	4.89	2500.00	2500.00	13.1	5.44	2500.00	2500.00
32.5	47.8	350	10.3	4.41	2500.00	2500.00	11.4	4.91	2500.00	2500.00
32.5	47.8	422	8.5	4.41	2500.00	2500.00	9.5	4.91	2500.00	2500.00
32.5	47.8	465	7.7	4.41	2500.00	2500.00	8.6	4.91	2500.00	2500.00
32.5	47.8	513	7.0	4.41	2500.00	2500.00	7.8	4.91	2500.00	2500.00
32.5	47.8	532	6.8	4.41	2500.00	2500.00	7.5	4.91	2500.00	2500.00
32.5	47.8	586	6.1	4.41	2500.00	2500.00	6.8	4.91	2500.00	2500.00
32.5	47.8	712	5.1	4.41	2500.00	2500.00	5.6	4.91	2500.00	2500.00
32.5	47.8	784	4.6	4.41	2500.00	2500.00	5.1	4.91	2500.00	2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			12V-8000RPM Input				24V-3500RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
22.5	81	6.5	984.6	16.12	156.37	469.11	430.8	5.91	131.10	393.30
22.5	73	9.3	688.2	14.53	201.63	604.90	301.1	5.33	169.05	507.14
22.5	73	11.8	542.4	14.53	255.84	767.51	237.3	5.33	214.49	643.47
22.5	73	14.2	450.7	14.53	307.87	923.61	197.2	5.33	258.11	774.34
22.5	73	17.4	367.8	14.53	377.25	1131.75	160.9	5.33	316.28	948.84
24.5	65.6	21.8	293.6	13.06	424.73	1274.20	128.4	4.79	356.09	1068.27
24.5	65.6	27.5	232.7	13.06	535.79	1607.36	101.8	4.79	449.20	1347.59
24.5	65.6	36.6	174.9	13.06	713.09	2139.26	76.5	4.79	597.84	1793.52
24.5	65.6	40.4	158.4	13.06	787.12	2361.36	69.3	4.79	659.91	1979.73
26.5	59	58.1	110.2	11.74	1018.09	2500.00	48.2	4.31	853.55	2500.00
26.5	59	73.4	87.2	11.74	1286.19	2500.00	38.1	4.31	1078.32	2500.00
26.5	59	83	77.1	11.74	1454.41	2500.00	33.7	4.31	1219.35	2500.00
26.5	59	89	71.9	11.74	1559.55	2500.00	31.5	4.31	1307.50	2500.00
26.5	59	95	67.4	11.74	1664.69	2500.00	29.5	4.31	1395.65	2500.00
26.5	59	103	62.1	11.74	1804.87	2500.00	27.2	4.31	1513.17	2500.00
29.5	53	119	53.8	10.55	1873.18	2500.00	23.5	3.87	1570.44	2500.00
29.5	53	136	47.1	10.55	2140.78	2500.00	20.6	3.87	1794.79	2500.00
29.5	53	171	37.4	10.55	2500.00	2500.00	16.4	3.87	2256.69	2500.00
29.5	53	194	33.0	10.55	2500.00	2500.00	14.4	3.87	2500.00	2500.00
29.5	53	207	30.9	10.55	2500.00	2500.00	13.5	3.87	2500.00	2500.00
29.5	53	221	29.0	10.55	2500.00	2500.00	12.7	3.87	2500.00	2500.00
29.5	53	242	26.4	10.55	2500.00	2500.00	11.6	3.87	2500.00	2500.00
29.5	53	277	23.1	10.55	2500.00	2500.00	10.1	3.87	2500.00	2500.00
29.5	53	305	21.0	10.55	2500.00	2500.00	9.2	3.87	2500.00	2500.00
32.5	47.8	350	18.3	9.51	2500.00	2500.00	8.0	3.49	2500.00	2500.00
32.5	47.8	422	15.2	9.51	2500.00	2500.00	6.6	3.49	2500.00	2500.00
32.5	47.8	465	13.8	9.51	2500.00	2500.00	6.0	3.49	2500.00	2500.00
32.5	47.8	513	12.5	9.51	2500.00	2500.00	5.5	3.49	2500.00	2500.00
32.5	47.8	532	12.0	9.51	2500.00	2500.00	5.3	3.49	2500.00	2500.00
32.5	47.8	586	10.9	9.51	2500.00	2500.00	4.8	3.49	2500.00	2500.00
32.5	47.8	712	9.0	9.51	2500.00	2500.00	3.9	3.49	2500.00	2500.00
32.5	47.8	784	8.2	9.51	2500.00	2500.00	3.6	3.49	2500.00	2500.00

2D drawing


Please let us know your requirements and we will provide you with transmission solutions.
