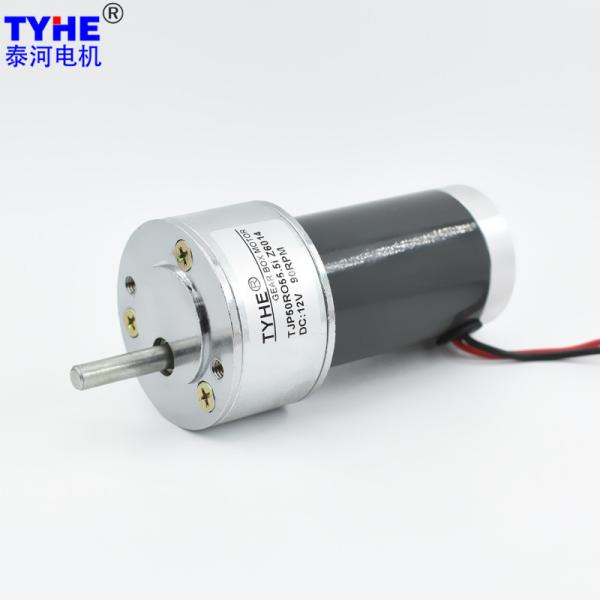

Reversible 50mm Dia 12V 24V DC Gear Motor 3500rpm 4nm 5nm 35kgfcm 25w

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJP50RO
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

Reversible 50mm Dia 12V 24V DC Gear Motor 3500rpm 4nm 5nm 35kgfcm 25w

Products Description

Reversible 50mm Diameter 12 v 24 volt 12v 3500rpm high speed high torque 4nm 5nm 35kgfcm 25w 20 watt dc metal gear motor with ce

Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
ZY3864	12	6000	380	4800	1.37	20.30	10.20	62.15	60.90	7.98
ZY3864	24	5000	160	4000	0.55	19.50	8.17	61.88	58.50	3.10
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters			12V-6000RPM Input				24V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
24.3	73	12.3	390.2	7.45	182.27	546.82	325.2	5.96	175.09	525.27
24.3	73	15.5	309.7	7.45	229.69	689.08	258.1	5.96	220.64	661.93
24.3	73	19	252.6	7.45	281.56	844.68	210.5	5.96	270.47	811.40
24.3	73	19.7	243.7	7.45	291.93	875.80	203.0	5.96	280.43	841.29
24.3	73	23.9	200.8	7.45	354.17	1062.52	167.4	5.96	340.22	1020.65
24.3	73	24.3	197.5	7.45	360.10	1080.31	164.6	5.96	345.91	1037.73
24.3	73	30.5	157.4	7.45	451.98	1355.94	131.1	5.96	434.17	1302.50
24.3	73	37.5	128.0	7.45	555.71	1667.14	106.7	5.96	533.81	1601.44
28.3	65.6	44	109.1	6.69	585.94	1757.82	90.9	5.36	562.85	1688.54
28.3	65.6	55	87.3	6.69	732.42	2197.27	72.7	5.36	703.56	2110.68
28.3	65.6	68	70.6	6.69	905.54	2716.63	58.8	5.36	869.86	2609.57
28.3	65.6	71	67.6	6.69	945.49	2836.48	56.3	5.36	908.23	2724.70
28.3	65.6	86	55.8	6.69	1145.24	3435.73	46.5	5.36	1100.11	3300.34
28.3	65.6	87	55.2	6.69	1158.56	3475.68	46.0	5.36	1112.90	3338.71
28.3	65.6	109	44.0	6.69	1451.53	4354.59	36.7	5.36	1394.33	4182.98
28.3	65.6	134	35.8	6.69	1784.45	5353.35	29.9	5.36	1714.13	5142.38
32.3	59	158	30.4	6.02	1892.37	5677.10	25.3	4.82	1817.79	5453.37
32.3	59	199	24.1	6.02	2383.42	7150.27	20.1	4.82	2289.50	6868.49
32.3	59	244	19.7	6.02	2922.39	8000.00	16.4	4.82	2807.22	8000.00
32.3	59	253	19.0	6.02	3030.18	8000.00	15.8	4.82	2910.77	8000.00
32.3	59	307	15.6	6.02	3676.94	8000.00	13.0	4.82	3532.04	8000.00
32.3	59	311	15.4	6.02	3724.85	8000.00	12.9	4.82	3578.06	8000.00
32.3	59	391	12.3	6.02	4683.01	8000.00	10.2	4.82	4498.46	8000.00
32.3	59	481	10.0	6.02	5760.94	8000.00	8.3	4.82	5533.91	8000.00
35.8	53	567	8.5	5.41	6100.35	8000.00	7.1	4.33	5859.95	8000.00
35.8	53	712	6.7	5.41	7660.41	8000.00	5.6	4.33	7358.52	8000.00
35.8	53	876	5.5	5.41	8000.00	8000.00	4.6	4.33	8000.00	8000.00
35.8	53	907	5.3	5.41	8000.00	8000.00	4.4	4.33	8000.00	8000.00
35.8	53	1101	4.4	5.41	8000.00	8000.00	3.6	4.33	8000.00	8000.00
35.8	53	1116	4.3	5.41	8000.00	8000.00	3.6	4.33	8000.00	8000.00
35.8	53	1401	3.4	5.41	8000.00	8000.00	2.9	4.33	8000.00	8000.00
35.8	53	1725	2.8	5.41	8000.00	8000.00	2.3	4.33	8000.00	8000.00

2D drawing


Please let us know your requirements and we will provide you with transmission solutions.
