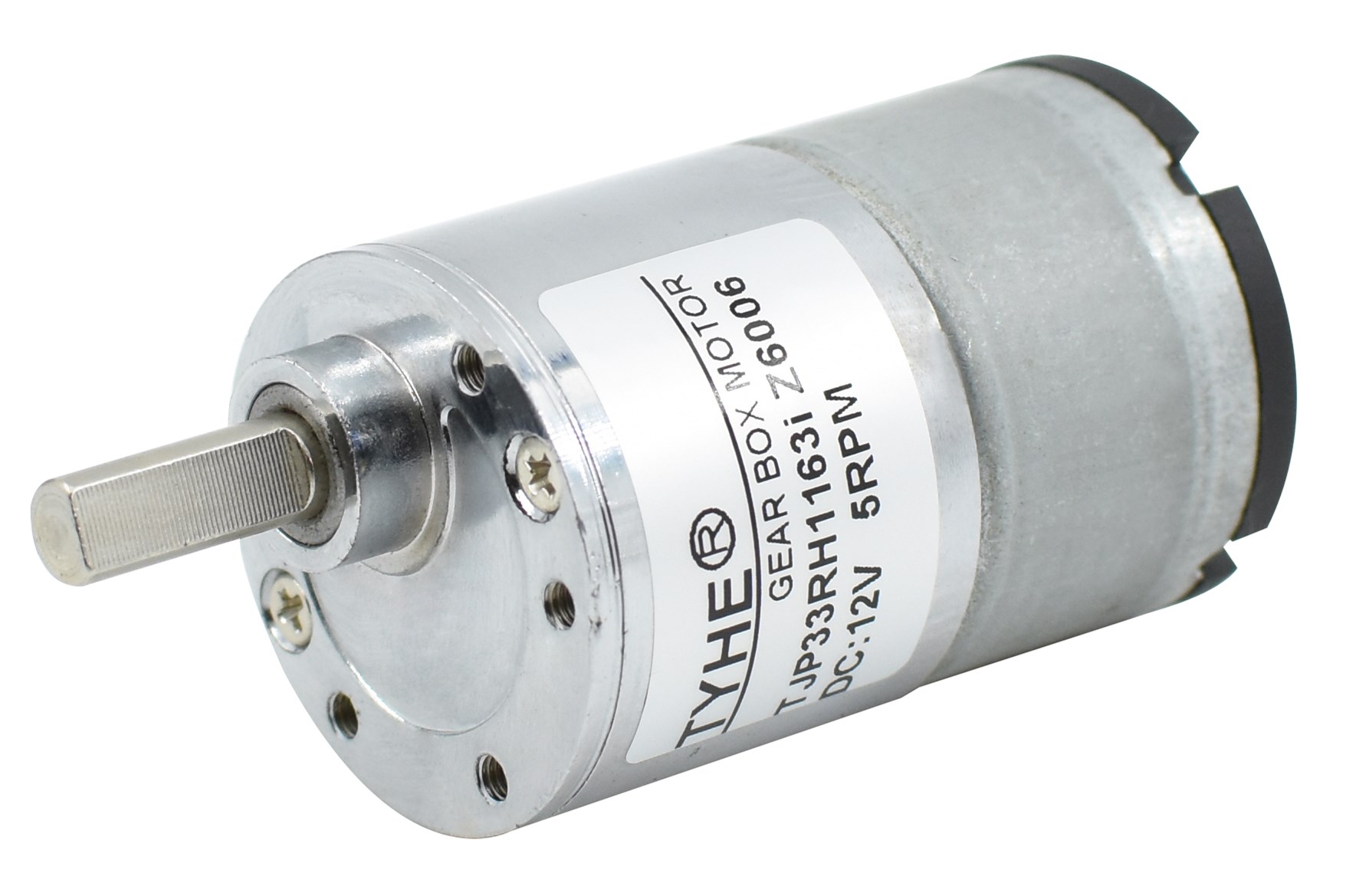

Smart Home PMDC Micro DC Gear Motor 33mm Diameter 2W 3V 24V 12v

Product Categories

Wenzhou Tyhe Motor Co., Ltd.

Contact Now

Smart Home PMDC Micro DC Gear Motor 33mm Diameter 2W 3V 24V 12v

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJP33RH
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

Smart Home PMDC Micro DC Gear Motor 33mm Diameter 2W 3V 24V 12v

Products Description

Smart Home High Torque 33mm Diameter 2w 3v 24v 12v Micro Dc Gear Motor For Kitchen Appliances

2D drawing


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
ZY3324	6	7000	80	5600	0.37	2.35	1.38	62.78	7.05	2.95
ZY3324	7	4000	30	3200	0.14	1.79	0.60	62.70	5.37	1.10
ZY3324	12	5500	38	4400	0.13	2.13	0.98	64.82	6.39	0.83
ZY3324	12	7300	64	5840	0.27	3.24	1.98	61.30	9.72	2.08
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			6V-7000RPM Input				7V-4000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
21.3	81	7.7	727.3	1.12	14.66	43.97	415.6	0.49	11.16	33.49
21.3	81	9.0	622.2	1.12	17.13	51.39	355.6	0.49	13.05	39.15
21.3	73	18.4	304.3	1.01	31.57	94.70	173.9	0.44	24.04	72.13
21.3	73	21.6	259.3	1.01	37.05	111.16	148.1	0.44	28.22	84.67
21.3	73	25.4	220.5	1.01	43.57	130.72	126.0	0.44	33.19	99.57
21.3	65.6	44.2	126.7	0.90	68.14	204.42	72.4	0.39	51.90	155.70
21.3	65.6	51.9	107.9	0.90	80.01	240.03	61.7	0.39	60.94	182.83
21.3	65.6	61.0	91.8	0.90	94.04	282.11	52.5	0.39	71.63	214.89
21.3	65.6	71.6	78.2	0.90	110.38	331.14	44.7	0.39	84.08	252.23
22.5	59	106.0	52.8	0.81	146.97	440.91	30.2	0.35	111.95	335.84
22.5	59	125.0	44.8	0.81	173.31	519.94	25.6	0.35	132.01	396.04
22.5	59	146.0	38.4	0.81	202.43	607.29	21.9	0.35	154.19	462.57
22.5	59	172.0	32.6	0.81	238.48	715.43	18.6	0.35	181.65	544.95
22.5	59	202.0	27.7	0.81	280.07	840.22	15.8	0.35	213.33	640.00
24.7	53	255.0	22.0	0.73	317.60	952.81	12.5	0.32	241.92	725.76
24.7	53	299.0	18.7	0.73	372.40	1117.21	10.7	0.32	283.66	850.98
24.7	53	351.0	16.0	0.73	437.17	1311.51	9.1	0.32	332.99	998.98
24.7	53	413.0	13.6	0.73	514.39	1543.17	7.7	0.32	391.81	1175.44
24.7	53	484.0	11.6	0.73	602.82	1808.47	6.6	0.32	459.17	1377.51
24.7	53	569.0	9.8	0.73	708.69	2000.00	5.6	0.32	539.81	1619.43
27.2	48	612.0	9.2	0.66	690.34	2000.00	5.2	0.29	525.83	1577.49
27.2	48	718.0	7.8	0.66	809.90	2000.00	4.5	0.29	616.91	1850.72
27.2	48	843.0	6.6	0.66	950.90	2000.00	3.8	0.29	724.31	2000.00
27.2	48	990.0	5.7	0.66	1116.72	2000.00	3.2	0.29	850.61	2000.00
27.2	48	1163.0	4.8	0.66	1311.86	2000.00	2.8	0.29	999.25	2000.00
27.2	48	1365.0	4.1	0.66	1539.72	2000.00	2.3	0.29	1172.81	2000.00
27.2	48	1603.0	3.5	0.66	1808.18	2000.00	2.0	0.29	1377.30	2000.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			12V-5500RPM Input				12V-7300RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
21.3	81	7.7	571.4	0.79	13.28	39.85	758.4	1.60	20.21	60.62
21.3	81	9.0	488.9	0.79	15.53	46.58	648.9	1.60	23.62	70.86
21.3	73	18.4	239.1	0.72	28.61	85.83	317.4	1.45	43.52	130.56
21.3	73	21.6	203.7	0.72	33.59	100.76	270.4	1.45	51.09	153.26
21.3	73	25.4	173.2	0.72	39.49	118.48	229.9	1.45	60.08	180.23
21.3	65.6	44.2	99.5	0.64	61.76	185.28	132.1	1.30	93.94	281.83
21.3	65.6	51.9	84.8	0.64	72.52	217.56	112.5	1.30	110.31	330.93
21.3	65.6	61.0	72.1	0.64	85.23	255.70	95.7	1.30	129.65	388.96
21.3	65.6	71.6	61.5	0.64	100.05	300.14	81.6	1.30	152.18	456.54
22.5	59	106.0	41.5	0.58	133.21	399.63	55.1	1.17	202.63	607.89
22.5	59	125.0	35.2	0.58	157.09	471.26	46.7	1.17	238.95	716.85
22.5	59	146.0	30.1	0.58	183.48	550.43	40.0	1.17	279.09	837.28
22.5	59	172.0	25.6	0.58	216.15	648.46	34.0	1.17	328.80	986.39
22.5	59	202.0	21.8	0.58	253.85	761.56	28.9	1.17	386.14	1158.43
24.7	53	255.0	17.3	0.52	287.87	863.61	22.9	1.05	437.89	1313.66
24.7	53	299.0	14.7	0.52	337.54	1012.62	19.5	1.05	513.44	1540.33
24.7	53	351.0	12.5	0.52	396.24	1188.73	16.6	1.05	602.74	1808.21
24.7	53	413.0	10.7	0.52	466.24	1398.71	14.1	1.05	709.20	2000.00
24.7	53	484.0	9.1	0.52	546.39	1639.16	12.1	1.05	831.12	2000.00
24.7	53	569.0	7.7	0.52	642.34	1927.03	10.3	1.05	977.09	2000.00
27.2	48	612.0	7.2	0.47	625.71	1877.13	9.5	0.95	951.78	2000.00
27.2	48	718.0	6.1	0.47	734.08	2000.00	8.1	0.95	1116.63	2000.00
27.2	48	843.0	5.2	0.47	861.88	2000.00	6.9	0.95	1311.03	2000.00
27.2	48	990.0	4.4	0.47	1012.18	2000.00	5.9	0.95	1539.65	2000.00
27.2	48	1163.0	3.8	0.47	1189.05	2000.00	5.0	0.95	1808.70	2000.00
27.2	48	1365.0	3.2	0.47	1395.58	2000.00	4.3	0.95	2000.00	2000.00
27.2	48	1603.0	2.7	0.47	1638.91	2000.00	3.6	0.95	2000.00	2000.00

Please let us know your requirements and we will provide you with transmission solutions.
