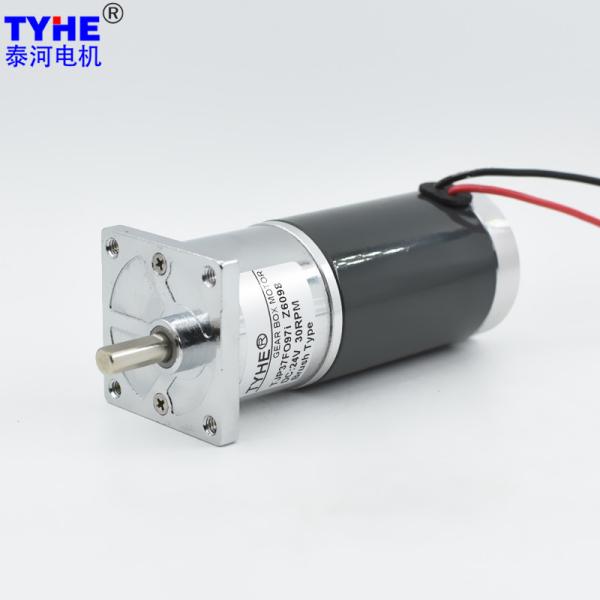

15kgcm 14.4V 24V DC Gear Motor 1000rpm 300rpm 15 Watt 1nm For Water Meter

Products Description

Customized 12v 24v 14.4v 36v 1000rpm 300rpm 15 Watt 15kgcm 1nm Electric High Torque Dc Gear Motor For Water Meter

2D drawing


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
ZY3864	12	4500	250	3600	0.95	19.50	7.35	64.82	58.50	5.70
ZY3864	12	5000	300	4000	1.10	19.70	8.25	62.51	59.10	6.50
ZY3864	24	5000	160	4000	0.55	19.50	8.17	61.88	58.50	3.10
ZY3864	24	6000	220	4800	0.86	24.70	12.41	60.29	74.10	5.28
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			12V-4500RPM Input				12V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.5	81	8.2	439.0	5.95	129.52	388.56	487.8	6.68	130.85	392.54
25.5	73	11.7	307.7	5.37	166.55	499.65	341.9	6.02	168.26	504.77
25.5	73	14.7	244.9	5.37	209.25	627.76	272.1	6.02	211.40	634.20
25.5	73	19.1	188.5	5.37	271.89	815.67	209.4	6.02	274.68	824.03
27.5	65.6	27.2	132.4	4.82	347.94	1043.83	147.1	5.41	351.51	1054.53
27.5	65.6	34.4	104.7	4.82	440.04	1320.13	116.3	5.41	444.56	1333.67
27.5	65.6	44.5	80.9	4.82	569.24	1707.73	89.9	5.41	575.08	1725.25
29.5	59	63.5	56.7	4.34	730.57	2191.70	63.0	4.87	738.06	2214.18
29.5	59	80.3	44.8	4.34	923.85	2500.00	49.8	4.87	933.33	2500.00
29.5	59	104.0	34.6	4.34	1196.52	2500.00	38.5	4.87	1208.79	2500.00
32.5	53	148.0	24.3	3.90	1529.58	2500.00	27.0	4.37	1545.27	2500.00
32.5	53	187.0	19.3	3.90	1932.65	2500.00	21.4	4.37	1952.47	2500.00
32.5	53	242.0	14.9	3.90	2500.00	2500.00	16.5	4.37	2500.00	2500.00
35.5	47.8	346.0	10.4	3.51	2500.00	2500.00	11.6	3.94	2500.00	2500.00
35.5	47.8	437.0	8.2	3.51	2500.00	2500.00	9.2	3.94	2500.00	2500.00
35.5	47.8	565.0	6.4	3.51	2500.00	2500.00	7.1	3.94	2500.00	2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			24V-5000RPM Input				24V-6000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.5	81	8.2	487.8	6.62	129.52	388.56	585.4	10.06	164.06	492.17
25.5	73	11.7	341.9	5.96	166.55	499.65	410.3	9.06	210.96	632.89
25.5	73	14.7	272.1	5.96	209.25	627.76	326.5	9.06	265.06	795.17
25.5	73	19.1	209.4	5.96	271.89	815.67	251.3	9.06	344.39	1033.18
27.5	65.6	27.2	147.1	5.36	347.94	1043.83	176.5	8.14	440.73	1322.18
27.5	65.6	34.4	116.3	5.36	440.04	1320.13	139.5	8.14	557.39	1672.17
27.5	65.6	44.5	89.9	5.36	569.24	1707.73	107.9	8.14	721.04	2163.13
29.5	59	63.5	63.0	4.82	730.57	2191.70	75.6	7.32	925.39	2500.00
29.5	59	80.3	49.8	4.82	923.85	2500.00	59.8	7.32	1170.21	2500.00
29.5	59	104.0	38.5	4.82	1196.52	2500.00	46.2	7.32	1515.59	2500.00
32.5	53	148.0	27.0	4.33	1529.58	2500.00	32.4	6.58	1937.47	2500.00
32.5	53	187.0	21.4	4.33	1932.65	2500.00	25.7	6.58	2448.02	2500.00
32.5	53	242.0	16.5	4.33	2500.00	2500.00	19.8	6.58	2500.00	2500.00
35.5	47.8	346.0	11.6	3.90	2500.00	2500.00	13.9	5.93	2500.00	2500.00
35.5	47.8	437.0	9.2	3.90	2500.00	2500.00	11.0	5.93	2500.00	2500.00
35.5	47.8	565.0	7.1	3.90	2500.00	2500.00	8.5	5.93	2500.00	2500.00

Please let us know your requirements and we will provide you with transmission solutions.
