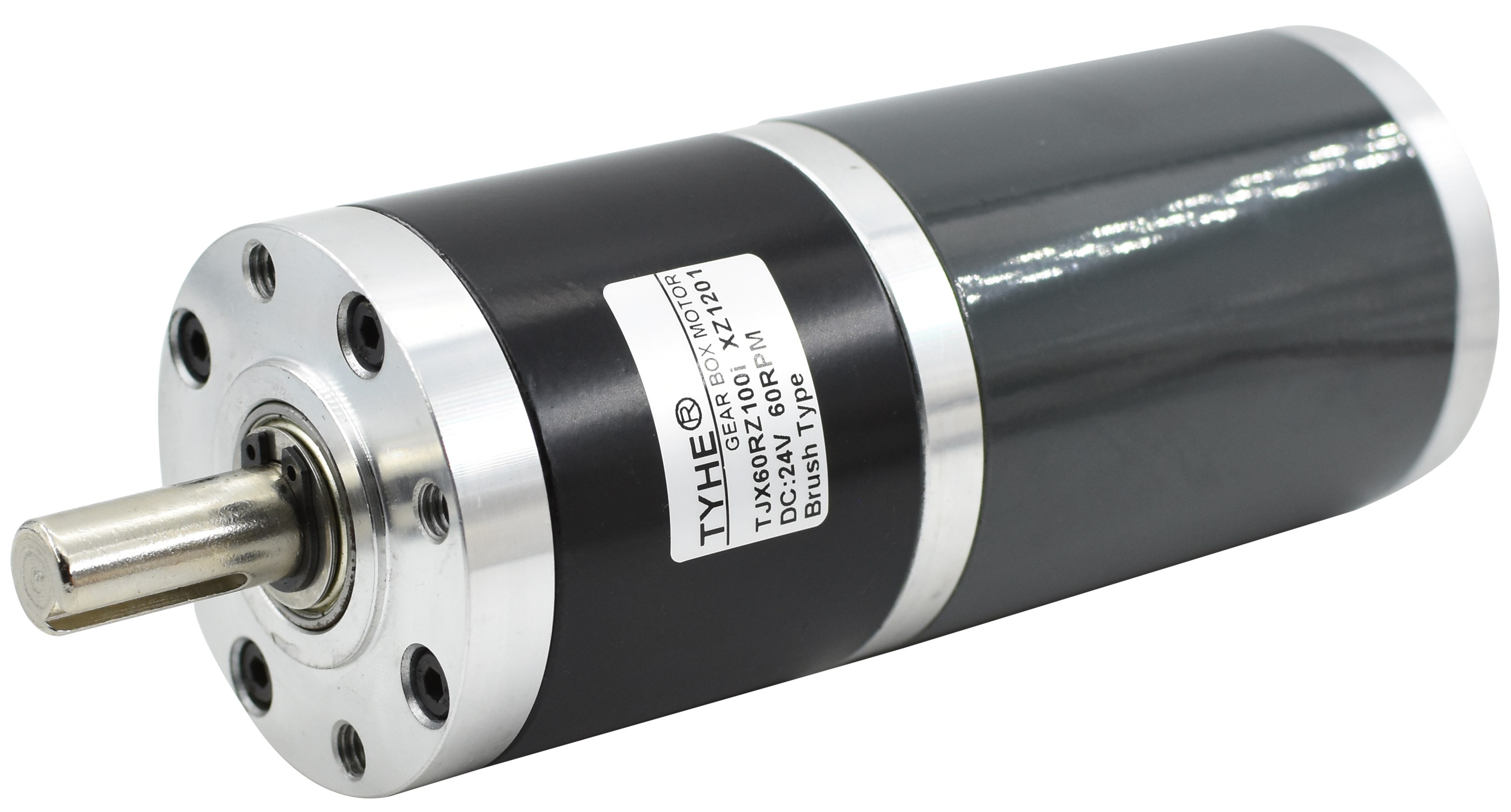

Speed Adjustable 60mm DC Planetary Geared Motor 24V 11500rpm

Products Description

Speed Adjustable 60mm Diameter 12v High Torque 11500rpm Electric Dc Planetary Geared Motor For Grass Cutter

2D drawing


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
ZY6095	24	5000	700	4000	3.80	138.53	58.02	63.62	415.59	33.00
ZY6095	24	6000	1000	4800	5.42	158.52	79.67	61.29	475.56	47.00
ZY6095	24	7000	1300	5600	7.03	175.85	103.12	61.09	527.55	61.00
ZY6095	24	10000	1800	8000	9.37	170.52	142.84	63.54	511.56	80.00
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters			24V-5000RPM Input				24V-6000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
38.3	90	3.7	1081.1	52.22	461.30	1383.91	1297.3	71.71	527.87	1583.61
38.3	90	5.2	769.2	52.22	648.32	1944.96	923.1	71.71	741.87	2225.62
51.4	81	13.7	292.0	47.00	1537.27	4611.80	350.4	64.54	1759.10	5277.29
51.4	81	19.2	208.3	47.00	2154.42	6463.26	250.0	64.54	2465.30	7395.91
51.4	81	26.9	148.7	47.00	3018.43	9055.29	178.4	64.54	3453.99	10361.98
51.4	81	35.0	114.3	47.00	3927.33	11781.98	137.1	64.54	4494.04	13482.13
64.6	73	51.0	78.4	42.36	5157.47	15472.42	94.1	58.16	5901.70	17705.10
64.6	73	71.0	56.3	42.36	7180.01	21540.03	67.6	58.16	8216.09	24648.27
64.6	73	100.0	40.0	42.36	10112.69	30338.07	48.0	58.16	11571.96	34715.88
64.6	73	139.0	28.8	42.36	14056.64	42169.92	34.5	58.16	16085.02	48255.07
80	65.6	189.0	21.2	38.06	17175.50	50000.00	25.4	52.27	19653.94	50000.00
80	65.6	264.0	15.2	38.06	23991.18	50000.00	18.2	52.27	27453.13	50000.00
80	65.6	369.0	10.8	38.06	33533.13	50000.00	13.0	52.27	38371.99	50000.00
80	65.6	514.0	7.8	38.06	46710.10	50000.00	9.3	52.27	50000.00	50000.00
80	65.6	721.0	5.5	38.06	50000.00	50000.00	6.7	52.27	50000.00	50000.00
95	59	699.0	5.7	34.23	50000.00	50000.00	6.9	47.01	50000.00	50000.00
95	59	977.0	4.1	34.23	50000.00	50000.00	4.9	47.01	50000.00	50000.00
95	59	1367.0	2.9	34.23	50000.00	50000.00	3.5	47.01	50000.00	50000.00
95	59	1911.0	2.1	34.23	50000.00	50000.00	2.5	47.01	50000.00	50000.00
95	59	2672.0	1.5	34.23	50000.00	50000.00	1.8	47.01	50000.00	50000.00
95	59	3736.0	1.1	34.23	50000.00	50000.00	1.3	47.01	50000.00	50000.00
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters			24V-7000RPM Input				24V-10000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
38.3	90	3.7	1513.5	92.80	585.58	1756.74	2162.2	128.56	567.83	1703.49
38.3	90	5.2	1076.9	92.80	822.98	2468.93	1538.5	128.56	798.03	2394.10
51.4	81	13.7	408.8	83.52	1951.41	5854.22	583.9	115.70	1892.26	5676.78
51.4	81	19.2	291.7	83.52	2734.82	8204.46	416.7	115.70	2651.93	7955.78
51.4	81	26.9	208.2	83.52	3831.60	11494.79	297.4	115.70	3715.46	11146.38
51.4	81	35.0	160.0	83.52	4985.35	14956.04	228.6	115.70	4834.24	14502.73
64.6	73	51.0	109.8	75.27	6546.90	19640.69	156.9	104.28	6348.46	19045.38
64.6	73	71.0	78.9	75.27	9114.31	27342.92	112.7	104.28	8838.05	26514.15
64.6	73	100.0	56.0	75.27	12837.05	38511.15	80.0	104.28	12447.96	37343.88
64.6	73	139.0	40.3	75.27	17843.50	50000.00	57.6	104.28	17302.66	50000.00
80	65.6	189.0	29.6	67.64	21802.59	50000.00	42.3	93.71	21141.75	50000.00
80	65.6	264.0	21.2	67.64	30454.41	50000.00	30.3	93.71	29531.34	50000.00
80	65.6	369.0	15.2	67.64	42566.95	50000.00	21.7	93.71	41276.75	50000.00
80	65.6	514.0	10.9	67.64	50000.00	50000.00	15.6	93.71	50000.00	50000.00
80	65.6	721.0	7.8	67.64	50000.00	50000.00	11.1	93.71	50000.00	50000.00
95	59	699.0	8.0	60.84	50000.00	50000.00	11.4	84.28	50000.00	50000.00
95	59	977.0	5.7	60.84	50000.00	50000.00	8.2	84.28	50000.00	50000.00
95	59	1367.0	4.1	60.84	50000.00	50000.00	5.9	84.28	50000.00	50000.00
95	59	1911.0	2.9	60.84	50000.00	50000.00	4.2	84.28	50000.00	50000.00
95	59	2672.0	2.1	60.84	50000.00	50000.00	3.0	84.28	50000.00	50000.00
95	59	3736.0	1.5	60.84	50000.00	50000.00	2.1	84.28	50000.00	50000.00

Please let us know your requirements and we will provide you with transmission solutions.
