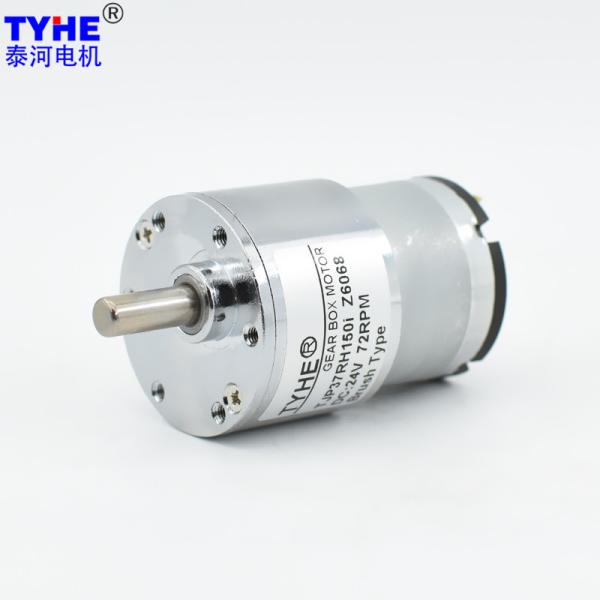

Permanent Magnet 12v Dc Gear Motor 300rpm 250rpm 100rpm 1Nm 2 Watt For Robot

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJP37RH
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

Permanent Magnet 12v Dc Gear Motor 300rpm 250rpm 100rpm 1Nm 2 Watt For Robot

Products Description

Mini 37mm Permanent Magnet 300rpm 250rpm 3v 5 Volt 8 Volt 12v 100rpm 1 Nm 2 Watt Dc Gear Motor For Robot

2D drawing

Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
ZY3324	6	7000	80	5600	0.37	2.35	1.38	62.78	7.05	2.95
ZY3324	7	4000	30	3200	0.14	1.79	0.60	62.70	5.37	1.10
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			6V-7000RPM Input				7V-4000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
22.5	81	6.5	861.5	1.12	12.37	37.12	492.3	0.49	9.42	28.27
22.5	81	7.6	736.8	1.12	14.47	43.40	421.1	0.49	11.02	33.06
22.5	73	9.3	602.2	1.01	15.95	47.86	344.1	0.44	12.15	36.46
22.5	73	11.8	474.6	1.01	20.24	60.73	271.2	0.44	15.42	46.26
22.5	73	15.2	368.4	1.01	26.08	78.23	210.5	0.44	19.86	59.59
22.5	73	20.4	274.5	1.01	35.00	104.99	156.9	0.44	26.66	79.97
24.5	65.6	27.5	203.6	0.90	42.39	127.18	116.4	0.39	32.29	96.87
24.5	65.6	35.6	157.3	0.90	54.88	164.64	89.9	0.39	41.80	125.41
24.5	65.6	41.6	134.6	0.90	64.13	192.39	76.9	0.39	48.85	146.55
24.5	65.6	57.7	97.1	0.90	88.95	266.85	55.5	0.39	67.75	203.26
26.5	59	73.4	76.3	0.81	101.77	305.31	43.6	0.35	77.52	232.55
26.5	59	83	67.5	0.81	115.08	345.24	38.6	0.35	87.66	262.97
26.5	59	97	57.7	0.81	134.49	403.47	33.0	0.35	102.44	307.33
26.5	59	111	50.5	0.81	153.90	461.70	28.8	0.35	117.23	351.68
26.5	59	119	47.1	0.81	164.99	494.98	26.9	0.35	125.68	377.03
26.5	59	130	43.1	0.81	180.25	540.74	24.6	0.35	137.29	411.88
29.5	53	194	28.9	0.73	241.63	724.88	16.5	0.32	184.05	552.14
29.5	53	226	24.8	0.73	281.48	844.45	14.2	0.32	214.41	643.22
29.5	53	259	21.6	0.73	322.58	967.75	12.4	0.32	245.71	737.14
29.5	53	277	20.2	0.73	345.00	1035.01	11.6	0.32	262.79	788.37
29.5	53	303	18.5	0.73	377.39	1132.16	10.6	0.32	287.46	862.37
29.5	53	316	17.7	0.73	393.58	1180.73	10.1	0.32	299.79	899.37
29.5	53	346	16.2	0.73	430.94	1292.83	9.2	0.32	328.25	984.75
29.5	53	382	14.7	0.73	475.78	1427.34	8.4	0.32	362.40	1087.21
32.5	47.8	452	12.4	0.66	507.73	1523.19	7.1	0.29	386.74	1160.22
32.5	47.8	528	10.6	0.66	593.10	1779.31	6.1	0.29	451.77	1355.30
32.5	47.8	604	9.3	0.66	678.47	2035.42	5.3	0.29	516.79	1550.38
32.5	47.8	665	8.4	0.66	746.99	2240.98	4.8	0.29	568.99	1706.96
32.5	47.8	733	7.6	0.66	823.38	2470.14	4.4	0.29	627.17	1881.51
32.5	47.8	808	6.9	0.66	907.63	2500.00	4.0	0.29	691.34	2074.02
32.5	47.8	890	6.3	0.66	999.74	2500.00	3.6	0.29	761.50	2284.51
32.5	43	1232	4.5	0.59	1244.94	2500.00	2.6	0.26	948.27	2500.00
32.5	43	1408	4.0	0.59	1422.78	2500.00	2.3	0.26	1083.74	2500.00
32.5	43	1552	3.6	0.59	1568.30	2500.00	2.1	0.26	1194.57	2500.00
32.5	43	1711	3.3	0.59	1728.97	2500.00	1.9	0.26	1316.96	2500.00
32.5	43	2077	2.7	0.59	2098.81	2500.00	1.5	0.26	1598.67	2500.00


Please let us know your requirements and we will provide you with transmission solutions.
