37mm Metal Gearbox 12v Dc Gear Motor For Commercial Unit 80Rpm 30Rpm 25w 30w

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJP37FO
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

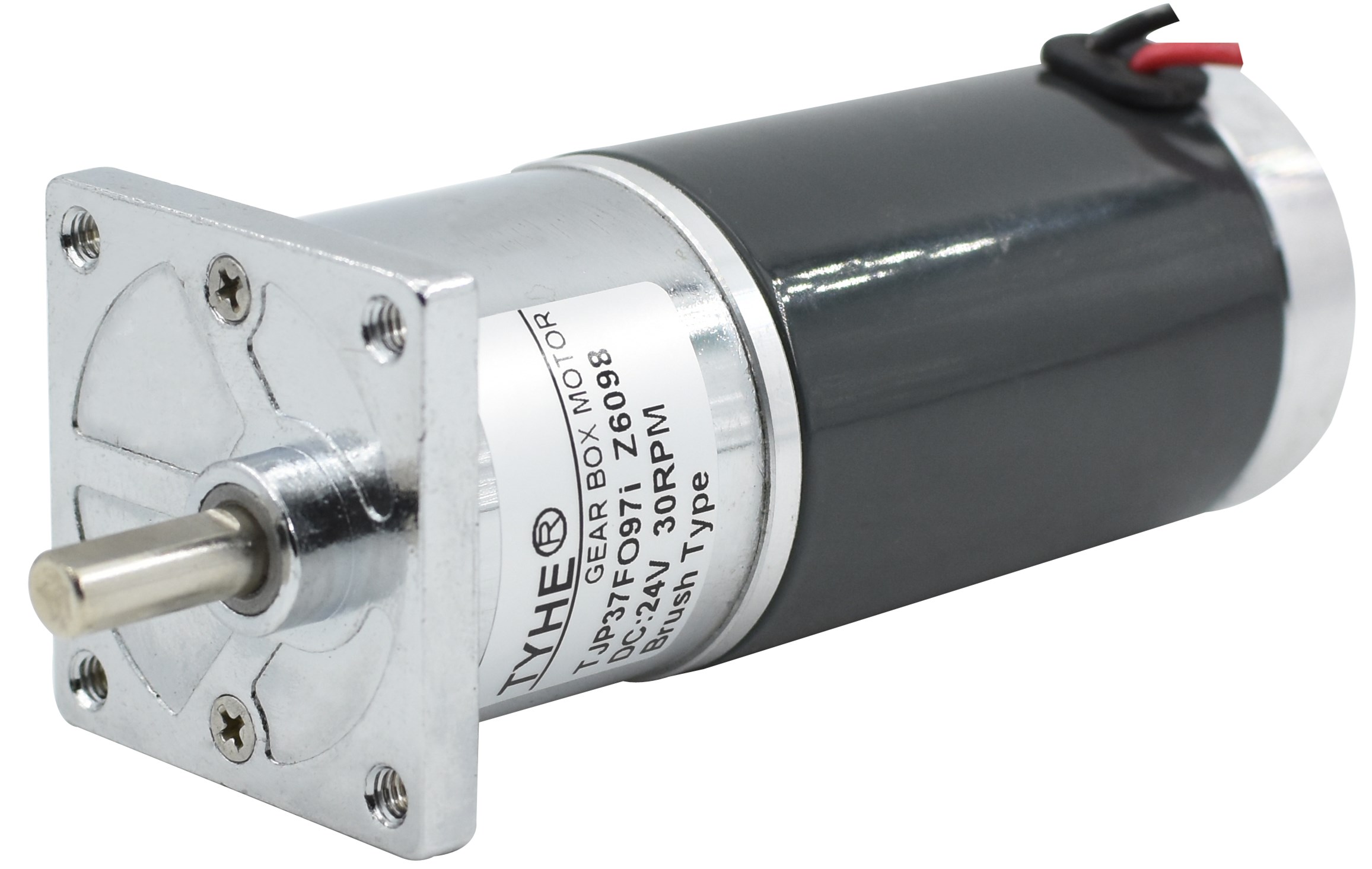

37mm Metal Gearbox 12v Dc Gear Motor For Commercial Unit 80Rpm 30Rpm 25w 30w

Powerful 37mm Metal Gearbox Low 12v 80 Rpm 30rpm Large Torque 20kgf 25w 30w Dc Gear Motor For Commercial Unit With Rohs

Products Description

Powerful 37mm metal gearbox low 12v 24v rpm 30rpm large torque 20kgf 25w 30w dc gear motor for commercial unit with rohs

2D drawing

Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
ZY3864	12	4500	250	3600	0.95	19.50	7.35	64.82	58.50	5.70
ZY3864	12	5000	300	4000	1.10	19.70	8.25	62.51	59.10	6.50
ZY3864	24	5000	160	4000	0.55	19.50	8.17	61.88	58.50	3.10
ZY3864	24	6000	220	4800	0.86	24.70	12.41	60.29	74.10	5.28
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			12V-4500RPM Input				12V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.5	81	8.2	439.0	5.95	129.52	388.56	487.8	6.68	130.85	392.54
25.5	73	11.7	307.7	5.37	166.55	499.65	341.9	6.02	168.26	504.77
25.5	73	14.7	244.9	5.37	209.25	627.76	272.1	6.02	211.40	634.20
25.5	73	19.1	188.5	5.37	271.89	815.67	209.4	6.02	274.68	824.03
27.5	65.6	27.2	132.4	4.82	347.94	1043.83	147.1	5.41	351.51	1054.53
27.5	65.6	34.4	104.7	4.82	440.04	1320.13	116.3	5.41	444.56	1333.67
27.5	65.6	44.5	80.9	4.82	569.24	1707.73	89.9	5.41	575.08	1725.25
29.5	59	63.5	56.7	4.34	730.57	2191.70	63.0	4.87	738.06	2214.18
29.5	59	80.3	44.8	4.34	923.85	2500.00	49.8	4.87	933.33	2500.00
29.5	59	104.0	34.6	4.34	1196.52	2500.00	38.5	4.87	1208.79	2500.00
32.5	53	148.0	24.3	3.90	1529.58	2500.00	27.0	4.37	1545.27	2500.00
32.5	53	187.0	19.3	3.90	1932.65	2500.00	21.4	4.37	1952.47	2500.00
32.5	53	242.0	14.9	3.90	2500.00	2500.00	16.5	4.37	2500.00	2500.00
35.5	47.8	346.0	10.4	3.51	2500.00	2500.00	11.6	3.94	2500.00	2500.00
35.5	47.8	437.0	8.2	3.51	2500.00	2500.00	9.2	3.94	2500.00	2500.00
35.5	47.8	565.0	6.4	3.51	2500.00	2500.00	7.1	3.94	2500.00	2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			24V-5000RPM Input				24V-6000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.5	81	8.2	487.8	6.62	129.52	388.56	585.4	10.06	164.06	492.17
25.5	73	11.7	341.9	5.96	166.55	499.65	410.3	9.06	210.96	632.89
25.5	73	14.7	272.1	5.96	209.25	627.76	326.5	9.06	265.06	795.17
25.5	73	19.1	209.4	5.96	271.89	815.67	251.3	9.06	344.39	1033.18
27.5	65.6	27.2	147.1	5.36	347.94	1043.83	176.5	8.14	440.73	1322.18
27.5	65.6	34.4	116.3	5.36	440.04	1320.13	139.5	8.14	557.39	1672.17
27.5	65.6	44.5	89.9	5.36	569.24	1707.73	107.9	8.14	721.04	2163.13
29.5	59	63.5	63.0	4.82	730.57	2191.70	75.6	7.32	925.39	2500.00
29.5	59	80.3	49.8	4.82	923.85	2500.00	59.8	7.32	1170.21	2500.00
29.5	59	104.0	38.5	4.82	1196.52	2500.00	46.2	7.32	1515.59	2500.00
32.5	53	148.0	27.0	4.33	1529.58	2500.00	32.4	6.58	1937.47	2500.00
32.5	53	187.0	21.4	4.33	1932.65	2500.00	25.7	6.58	2448.02	2500.00
32.5	53	242.0	16.5	4.33	2500.00	2500.00	19.8	6.58	2500.00	2500.00
35.5	47.8	346.0	11.6	3.90	2500.00	2500.00	13.9	5.93	2500.00	2500.00
35.5	47.8	437.0	9.2	3.90	2500.00	2500.00	11.0	5.93	2500.00	2500.00
35.5	47.8	565.0	7.1	3.90	2500.00	2500.00	8.5	5.93	2500.00	2500.00


Please let us know your requirements and we will provide you with transmission solutions.
