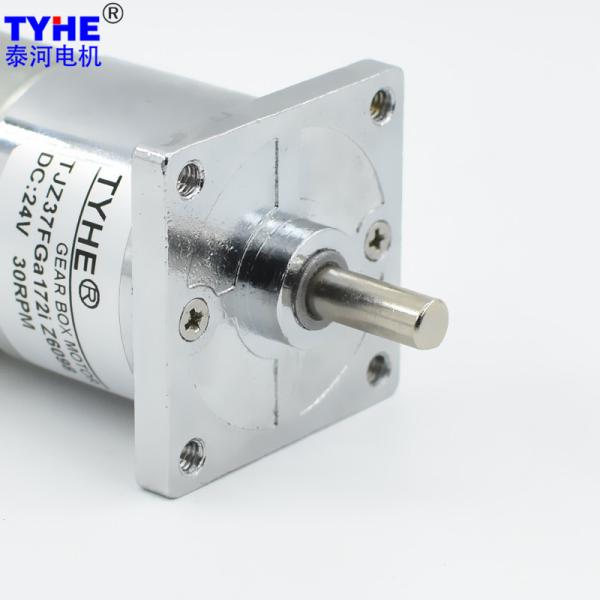

Small 37mm Gearbox 12V DC Gear Motor 1600rpm 10Rpm 200rpm 1.5nm 2nm 1nm Torque

Products Description

Good price small 37mm gearbox 6volt 12 v 24v 10kg cm 1600rpm 10 rpm 200rpm 1.5nm 2nm 1nm torque dc gear motor

2D drawing

Model	End cover dimensions	Motor type	Regular Shaft	Weight
TJZ37FGa	φ37mm	RS530	6mm-D cut	260g


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
RS530	12	3500	60	2800	0.21	5.30	1.55	61.91	15.90	1.43
RS530	12	5000	160	4000	0.49	8.90	3.73	62.86	26.70	3.05
RS530	24	5000	80	4000	0.25	9.12	3.82	62.83	27.36	1.60
RS530	24	7500	72	6000	0.37	9.25	5.81	64.63	27.75	3.20
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			12V-3500RPM Input				12V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
22.5	81	4.6	608.7	1.26	19.75	59.24	869.6	3.02	33.16	99.48
22.5	81	5.9	474.6	1.26	25.33	75.99	678.0	3.02	42.53	127.60
22.5	81	6.9	405.8	1.26	29.62	88.87	579.7	3.02	49.74	149.23
22.5	73	8.4	333.3	1.13	32.50	97.50	476.2	2.72	54.57	163.72
22.5	73	10.6	264.2	1.13	41.01	123.03	377.4	2.72	68.87	206.60
22.5	73	13.5	207.4	1.13	52.23	156.69	296.3	2.72	87.71	263.13
22.5	73	16.0	175.0	1.13	61.90	185.71	250.0	2.72	103.95	311.86
24.5	65.6	19.3	145.1	1.02	67.10	201.31	207.3	2.45	112.68	338.04
24.5	65.6	24.4	114.8	1.02	84.83	254.50	163.9	2.45	142.46	427.37
24.5	65.6	31.6	88.6	1.02	109.87	329.60	126.6	2.45	184.49	553.48
24.5	65.6	37.0	75.7	1.02	128.64	385.92	108.1	2.45	216.02	648.06
26.5	59	45.0	62.2	0.92	140.72	422.15	88.9	2.20	236.30	708.89
26.5	59	57.0	49.1	0.92	178.24	534.72	70.2	2.20	299.31	897.92
26.5	59	73.6	38.0	0.92	230.15	690.44	54.3	2.20	386.47	1159.42
26.5	59	86.0	32.6	0.92	268.92	806.77	46.5	2.20	451.59	1354.76
26.5	59	95.0	29.5	0.92	297.07	891.20	42.1	2.20	498.85	1496.54
29.5	53	105.0	26.7	0.82	294.95	884.84	38.1	1.98	495.29	1485.86
29.5	53	133.0	21.1	0.82	373.60	1120.79	30.1	1.98	627.36	1882.08
29.5	53	172.0	16.3	0.82	483.15	1449.44	23.3	1.98	811.32	2433.97
29.5	53	201.0	13.9	0.82	564.61	1693.83	19.9	1.98	948.12	2500.00
29.5	53	221.0	12.7	0.82	620.79	1862.37	18.1	1.98	1042.46	2500.00
29.5	53	244.0	11.5	0.82	685.40	2056.19	16.4	1.98	1150.95	2500.00
32.5	47.8	245.0	11.4	0.74	620.68	1862.05	16.3	1.78	1042.28	2500.00
32.5	47.8	310.0	9.0	0.74	785.35	2356.06	12.9	1.78	1318.80	2500.00
32.5	47.8	401.0	7.0	0.74	1015.89	2500.00	10.0	1.78	1705.93	2500.00
32.5	47.8	469.0	6.0	0.74	1188.16	2500.00	8.5	1.78	1995.22	2500.00
32.5	47.8	516.0	5.4	0.74	1307.23	2500.00	7.8	1.78	2195.17	2500.00
32.5	47.8	569.0	4.9	0.74	1441.50	2500.00	7.0	1.78	2420.64	2500.00
32.5	47.8	627.0	4.5	0.74	1588.44	2500.00	6.4	1.78	2500.00	2500.00
32.5	43	1093.0	2.6	0.67	2490.95	2500.00	3.7	1.60	2500.00	2500.00
32.5	43	1205.0	2.3	0.67	2500.00	2500.00	3.3	1.60	2500.00	2500.00
32.5	43	1328.0	2.1	0.67	2500.00	2500.00	3.0	1.60	2500.00	2500.00
32.5	43	1463.0	1.9	0.67	2500.00	2500.00	2.7	1.60	2500.00	2500.00
32.5	43	1613.0	1.7	0.67	2500.00	2500.00	2.5	1.60	2500.00	2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			24V-5000RPM Input				24V-7500RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
22.5	81	4.6	869.6	3.09	33.98	101.94	1304.3	4.71	34.47	103.40
22.5	81	5.9	678.0	3.09	43.58	130.75	1016.9	4.71	44.21	132.62
22.5	81	6.9	579.7	3.09	50.97	152.92	869.6	4.71	51.70	155.09
22.5	73	8.4	476.2	2.79	55.92	167.77	714.3	4.24	56.72	170.16
22.5	73	10.6	377.4	2.79	70.57	211.71	566.0	4.24	71.58	214.73
22.5	73	13.5	296.3	2.79	89.88	269.63	444.4	4.24	91.16	273.48
22.5	73	16.0	250.0	2.79	106.52	319.56	375.0	4.24	108.04	324.12
24.5	65.6	19.3	207.3	2.51	115.47	346.40	310.9	3.81	117.11	351.34
24.5	65.6	24.4	163.9	2.51	145.98	437.94	245.9	3.81	148.06	444.18
24.5	65.6	31.6	126.6	2.51	189.05	567.16	189.9	3.81	191.75	575.25
24.5	65.6	37.0	108.1	2.51	221.36	664.08	162.2	3.81	224.52	673.55
26.5	59	45.0	88.9	2.25	242.14	726.41	133.3	3.43	245.59	736.76
26.5	59	57.0	70.2	2.25	306.71	920.12	105.3	3.43	311.08	933.23
26.5	59	73.6	54.3	2.25	396.03	1188.08	81.5	3.43	401.67	1205.02
26.5	59	86.0	46.5	2.25	462.75	1388.25	69.8	3.43	469.35	1408.04
26.5	59	95.0	42.1	2.25	511.18	1533.53	63.2	3.43	518.46	1555.39
29.5	53	105.0	38.1	2.02	507.53	1522.58	57.1	3.08	514.76	1544.29
29.5	53	133.0	30.1	2.02	642.87	1928.61	45.1	3.08	652.03	1956.10
29.5	53	172.0	23.3	2.02	831.38	2494.14	34.9	3.08	843.23	2500.00
29.5	53	201.0	19.9	2.02	971.55	2500.00	29.9	3.08	985.40	2500.00
29.5	53	221.0	18.1	2.02	1068.23	2500.00	27.1	3.08	1083.45	2500.00
29.5	53	244.0	16.4	2.02	1179.40	2500.00	24.6	3.08	1196.21	2500.00
32.5	47.8	245.0	16.3	1.83	1068.04	2500.00	24.5	2.78	1083.27	2500.00
32.5	47.8	310.0	12.9	1.83	1351.40	2500.00	19.4	2.78	1370.67	2500.00
32.5	47.8	401.0	10.0	1.83	1748.10	2500.00	15.0	2.78	1773.02	2500.00
32.5	47.8	469.0	8.5	1.83	2044.54	2500.00	12.8	2.78	2073.68	2500.00
32.5	47.8	516.0	7.8	1.83	2249.43	2500.00	11.6	2.78	2281.49	2500.00
32.5	47.8	569.0	7.0	1.83	2480.48	2500.00	10.5	2.78	2500.00	2500.00
32.5	47.8	627.0	6.4	1.83	2500.00	2500.00	9.6	2.78	2500.00	2500.00
32.5	43	1093.0	3.7	1.64	2500.00	2500.00	5.5	2.50	2500.00	2500.00
32.5	43	1205.0	3.3	1.64	2500.00	2500.00	5.0	2.50	2500.00	2500.00
32.5	43	1328.0	3.0	1.64	2500.00	2500.00	4.5	2.50	2500.00	2500.00
32.5	43	1463.0	2.7	1.64	2500.00	2500.00	4.1	2.50	2500.00	2500.00
32.5	43	1613.0	2.5	1.64	2500.00	2500.00	3.7	2.50	2500.00	2500.00

Please let us know your requirements and we will provide you with transmission solutions.
