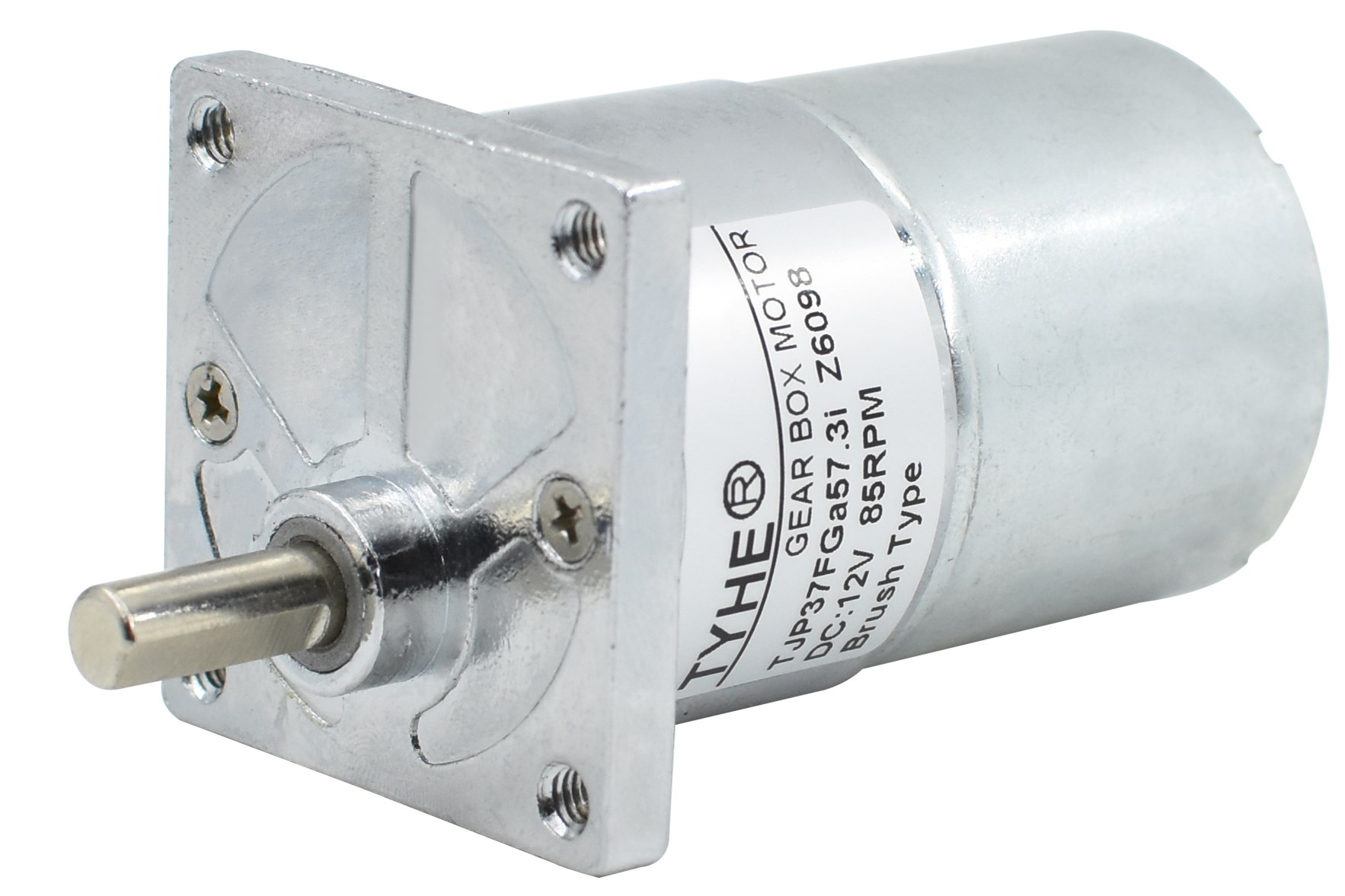

15 Watt Brushless Dc Geared Motor For Massage Chair Low Noise 6v 12v 24v 500 Rpm

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJP37FGa
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

15 Watt Brushless Dc Geared Motor For Massage Chair Low Noise 6v 12v 24v 500 Rpm

Products Description

37mm low noise motor high speed 6v 12v 24v 20w 500 rpm 0.5mn 0.6nm 15 watt brushless dc geared motor for massage chair

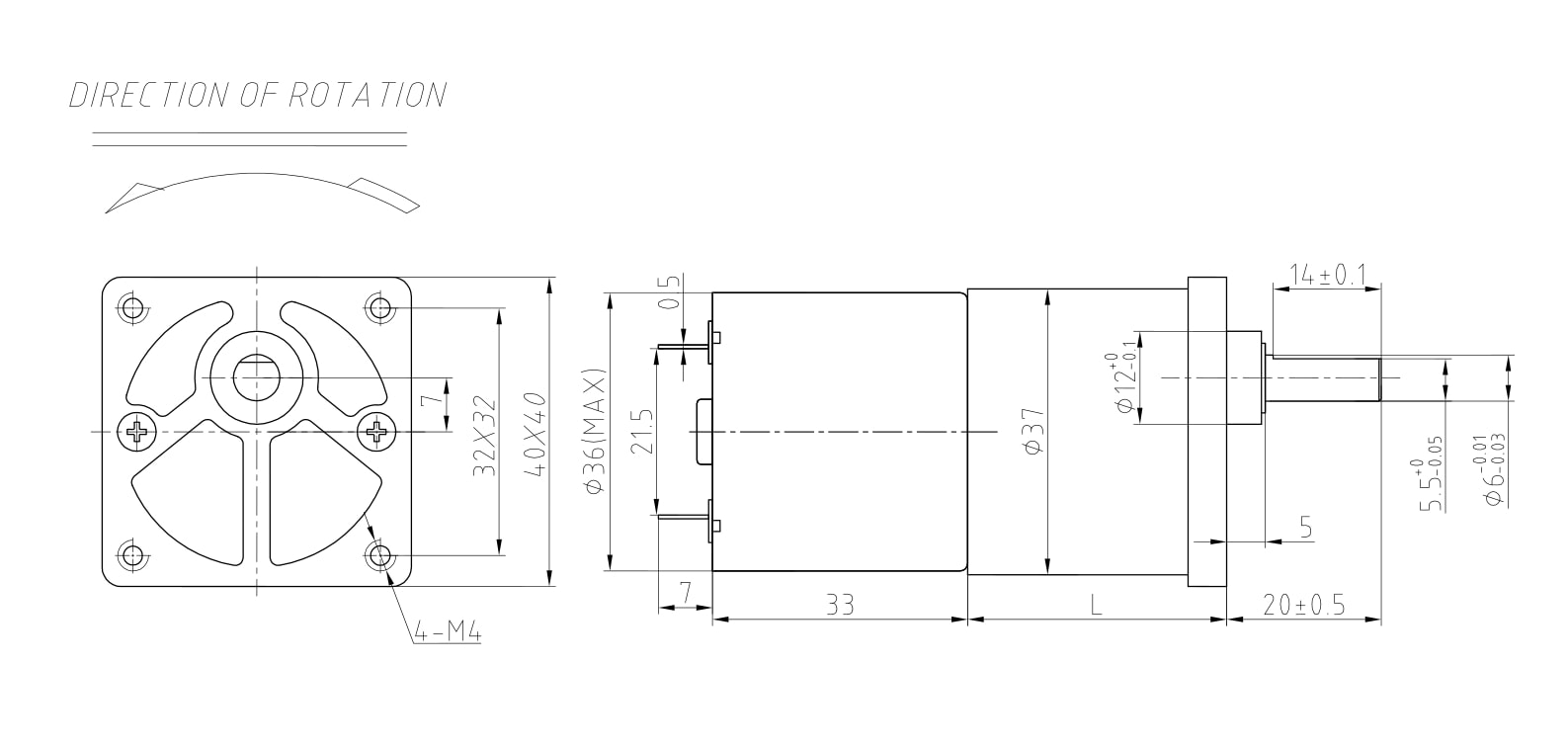

2D drawing

Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
RS530	12	3500	60	2800	0.21	5.30	1.55	61.91	15.90	1.43
RS530	12	5000	160	4000	0.49	8.90	3.73	62.86	26.70	3.05
RS530	24	5000	80	4000	0.25	9.12	3.82	62.83	27.36	1.60
RS530	24	7500	72	6000	0.37	9.25	5.81	64.63	27.75	3.20
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			12V-3500RPM Input				12V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.5	81	8.2	341.5	1.26	35.20	105.61	487.8	3.02	59.11	177.34
25.5	81	9.5	294.7	1.26	40.78	122.35	421.1	3.02	68.49	205.46
25.5	73	14.7	190.5	1.13	56.87	170.62	272.1	2.72	95.51	286.52
25.5	73	22.3	125.6	1.13	86.28	258.84	179.4	2.72	144.88	434.65
25.5	73	24.5	114.3	1.13	94.79	284.37	163.3	2.72	159.18	477.53
27.5	65.6	27.2	102.9	1.02	94.57	283.71	147.1	2.45	158.80	476.41
27.5	65.6	34.4	81.4	1.02	119.60	358.81	116.3	2.45	200.84	602.52
27.5	65.6	44.5	62.9	1.02	154.72	464.15	89.9	2.45	259.81	779.43
27.5	65.6	52.0	53.8	1.02	180.79	542.38	76.9	2.45	303.60	910.79
27.5	65.6	57.0	49.1	1.02	198.18	594.53	70.2	2.45	332.79	998.37
27.5	65.6	63.0	44.4	1.02	219.04	657.12	63.5	2.45	367.82	1103.46
29.5	59	80.3	34.9	0.92	251.10	753.29	49.8	2.20	421.66	1264.97
29.5	59	104.0	26.9	0.92	325.21	975.62	38.5	2.20	546.10	1638.31
29.5	59	121.0	23.1	0.92	378.37	1135.10	33.1	2.20	635.37	1906.11
29.5	59	134.0	20.9	0.92	419.02	1257.05	29.9	2.20	703.63	2110.90
29.5	59	147.0	19.0	0.92	459.67	1379.01	27.2	2.20	771.90	2315.69
29.5	59	162.0	17.3	0.92	506.57	1519.72	24.7	2.20	850.66	2500.00
32.5	53	187.0	15.0	0.82	525.28	1575.85	21.4	1.98	882.08	2500.00
32.5	53	242.0	11.6	0.82	679.78	2039.33	16.5	1.98	1141.51	2500.00
32.5	53	283.0	9.9	0.82	794.95	2384.84	14.1	1.98	1334.91	2500.00
32.5	53	312.0	9.0	0.82	876.41	2500.00	12.8	1.98	1471.70	2500.00
32.5	53	344.0	8.1	0.82	966.30	2500.00	11.6	1.98	1622.65	2500.00
32.5	53	379.0	7.4	0.82	1064.61	2500.00	10.6	1.98	1787.74	2500.00
32.5	53	417.0	6.7	0.82	1171.35	2500.00	9.6	1.98	1966.99	2500.00
35.5	47.8	437.0	6.4	0.74	1107.10	2500.00	9.2	1.78	1859.09	2500.00
35.5	47.8	565.0	5.0	0.74	1431.37	2500.00	7.1	1.78	2403.62	2500.00
35.5	47.8	660.0	4.2	0.74	1672.04	2500.00	6.1	1.78	2500.00	2500.00
35.5	47.8	728.0	3.8	0.74	1844.32	2500.00	5.5	1.78	2500.00	2500.00
35.5	47.8	802.0	3.5	0.74	2031.79	2500.00	5.0	1.78	2500.00	2500.00
35.5	47.8	884.0	3.2	0.74	2239.53	2500.00	4.5	1.78	2500.00	2500.00
35.5	47.8	974.0	2.9	0.74	2467.53	2500.00	4.1	1.78	2500.00	2500.00
35.5	47.8	1073.0	2.6	0.74	2500.00	2500.00	3.7	1.78	2500.00	2500.00
32.5	43	1540.0	1.8	0.67	2500.00	2500.00	2.6	1.60	2500.00	2500.00
32.5	43	1698.0	1.6	0.67	2500.00	2500.00	2.4	1.60	2500.00	2500.00
32.5	43	1871.0	1.5	0.67	2500.00	2500.00	2.1	1.60	2500.00	2500.00
32.5	43	2062.0	1.4	0.67	2500.00	2500.00	1.9	1.60	2500.00	2500.00
32.5	43	2272.0	1.2	0.67	2500.00	2500.00	1.8	1.60	2500.00	2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			24V-5000RPM Input				24V-7500RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.5	81	8.2	487.8	3.09	60.58	181.73	731.7	4.71	61.44	184.32
25.5	81	9.5	421.1	3.09	70.18	210.54	631.6	4.71	71.18	213.54
25.5	73	14.7	272.1	2.79	97.87	293.60	408.2	4.24	99.26	297.79
25.5	73	22.3	179.4	2.79	148.46	445.39	269.1	4.24	150.58	451.74
25.5	73	24.5	163.3	2.79	163.11	489.33	244.9	4.24	165.44	496.31
27.5	65.6	27.2	147.1	2.51	162.73	488.19	220.6	3.81	165.05	495.15
27.5	65.6	34.4	116.3	2.51	205.81	617.42	174.4	3.81	208.74	626.22
27.5	65.6	44.5	89.9	2.51	266.23	798.69	134.8	3.81	270.03	810.08
27.5	65.6	52.0	76.9	2.51	311.10	933.30	115.4	3.81	315.54	946.61
27.5	65.6	57.0	70.2	2.51	341.02	1023.05	105.3	3.81	345.88	1037.63
27.5	65.6	63.0	63.5	2.51	376.91	1130.73	95.2	3.81	382.28	1146.85
29.5	59	80.3	49.8	2.25	432.08	1296.23	74.7	3.43	438.24	1314.71
29.5	59	104.0	38.5	2.25	559.60	1678.81	57.7	3.43	567.58	1702.74
29.5	59	121.0	33.1	2.25	651.08	1953.23	49.6	3.43	660.36	1981.07
29.5	59	134.0	29.9	2.25	721.03	2163.08	44.8	3.43	731.31	2193.92
29.5	59	147.0	27.2	2.25	790.98	2372.93	40.8	3.43	802.25	2406.76
29.5	59	162.0	24.7	2.25	871.69	2500.00	37.0	3.43	884.12	2500.00
32.5	53	187.0	21.4	2.02	903.88	2500.00	32.1	3.08	916.77	2500.00
32.5	53	242.0	16.5	2.02	1169.73	2500.00	24.8	3.08	1186.41	2500.00
32.5	53	283.0	14.1	2.02	1367.91	2500.00	21.2	3.08	1387.41	2500.00
32.5	53	312.0	12.8	2.02	1508.08	2500.00	19.2	3.08	1529.58	2500.00
32.5	53	344.0	11.6	2.02	1662.76	2500.00	17.4	3.08	1686.46	2500.00
32.5	53	379.0	10.6	2.02	1831.93	2500.00	15.8	3.08	1858.05	2500.00
32.5	53	417.0	9.6	2.02	2015.61	2500.00	14.4	3.08	2044.34	2500.00
35.5	47.8	437.0	9.2	1.83	1905.04	2500.00	13.7	2.78	1932.20	2500.00
35.5	47.8	565.0	7.1	1.83	2463.04	2500.00	10.6	2.78	2498.15	2500.00
35.5	47.8	660.0	6.1	1.83	2500.00	2500.00	9.1	2.78	2500.00	2500.00
35.5	47.8	728.0	5.5	1.83	2500.00	2500.00	8.2	2.78	2500.00	2500.00
35.5	47.8	802.0	5.0	1.83	2500.00	2500.00	7.5	2.78	2500.00	2500.00
35.5	47.8	884.0	4.5	1.83	2500.00	2500.00	6.8	2.78	2500.00	2500.00
35.5	47.8	974.0	4.1	1.83	2500.00	2500.00	6.2	2.78	2500.00	2500.00
35.5	47.8	1073.0	3.7	1.83	2500.00	2500.00	5.6	2.78	2500.00	2500.00
32.5	43	1540.0	2.6	1.64	2500.00	2500.00	3.9	2.50	2500.00	2500.00
32.5	43	1698.0	2.4	1.64	2500.00	2500.00	3.5	2.50	2500.00	2500.00
32.5	43	1871.0	2.1	1.64	2500.00	2500.00	3.2	2.50	2500.00	2500.00
32.5	43	2062.0	1.9	1.64	2500.00	2500.00	2.9	2.50	2500.00	2500.00
32.5	43	2272.0	1.8	1.64	2500.00	2500.00	2.6	2.50	2500.00	2500.00


Please let us know your requirements and we will provide you with transmission solutions.
