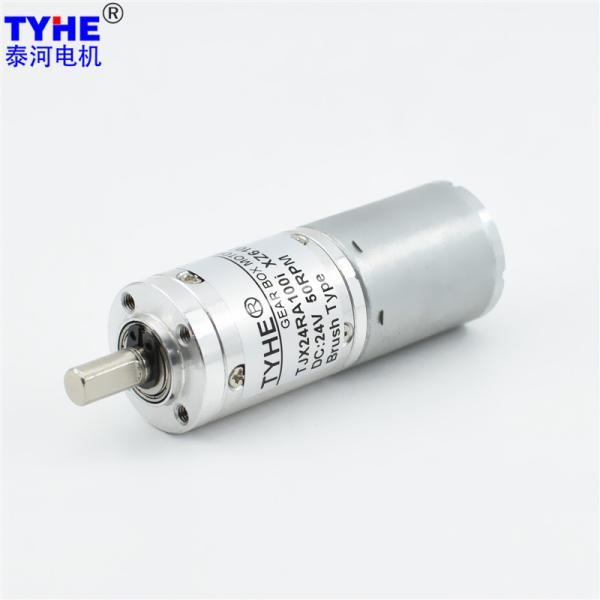

6V 300rpm Micro Planetary Gear Motor 1:100 Ratio 18V DC Motor High Torque 24mm

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJX24RA
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

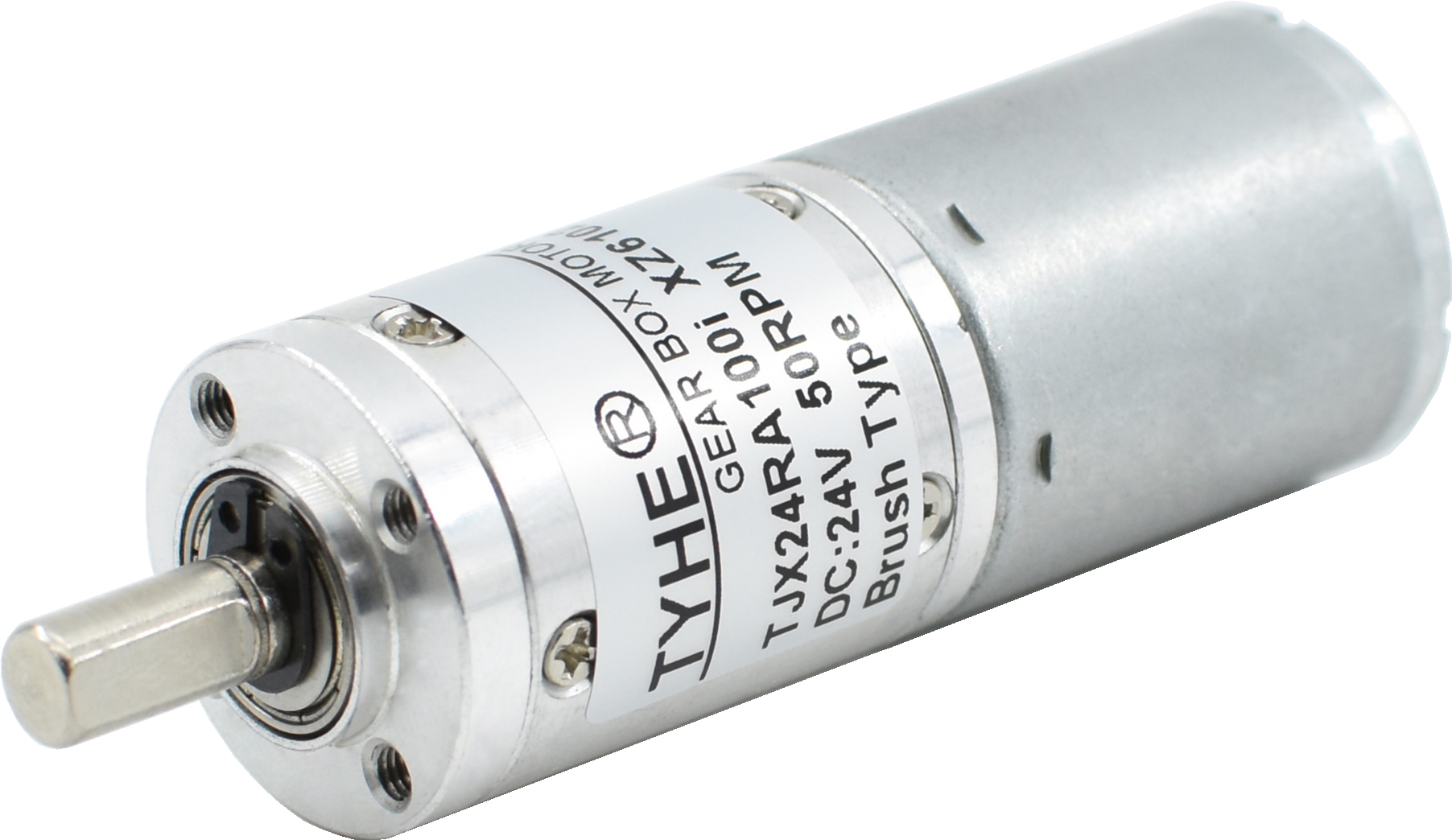

6V 300rpm Micro Planetary Gear Motor 1:100 Ratio 18V DC Motor High Torque 24mm

Products Description

Od 24mm 12 Volt 24v 6v 300rpm 1 100 Gear Ratio 18v High Torque Low Rpm Dc Planetary Gear Motor

2D drawing


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
370	6	10000	130	8000	0.35	1.62	1.36	65.56	4.86	1.80
370	6	12000	140	9600	0.43	1.59	1.60	61.59	4.77	2.67
370	12	6500	30	5200	0.12	1.72	0.94	62.86	5.16	0.95
370	12	11000	70	8800	0.23	1.95	1.80	65.10	5.85	1.50
DC Motor With Gearbox Technical Data (0.4M)
Gearbox parameters			6V-10000RPM Input				6V-12000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
22.4	90	3.7	2162.2	1.22	5.39	16.18	2594.6	1.44	5.29	15.88
22.4	90	5.2	1538.5	1.22	7.58	22.74	1846.2	1.44	7.44	22.32
27.6	81	13.7	583.9	1.10	17.98	53.93	700.7	1.29	17.64	52.93
27.6	81	19.2	416.7	1.10	25.19	75.58	500.0	1.29	24.73	74.18
27.6	81	26.9	297.4	1.10	35.30	105.89	356.9	1.29	34.64	103.93
27.6	81	35.0	228.6	1.10	45.93	137.78	274.3	1.29	45.08	135.23
32.8	73	51.0	156.9	0.99	60.31	180.94	188.2	1.17	59.20	177.59
32.8	73	71.0	112.7	0.99	83.96	251.89	135.2	1.17	82.41	247.23
32.8	73	100.0	80.0	0.99	118.26	354.78	96.0	1.17	116.07	348.21
32.8	73	139.0	57.6	0.99	164.38	493.14	69.1	1.17	161.34	484.01
39	65.6	189.0	42.3	0.89	200.85	602.56	50.8	1.05	197.13	591.40
39	65.6	264.0	30.3	0.89	280.56	841.67	36.4	1.05	275.36	826.09
39	65.6	369.0	21.7	0.89	392.14	1176.43	26.0	1.05	384.88	1154.65
39	65.6	514.0	15.6	0.89	546.24	1638.71	18.7	1.05	536.12	1608.37
39	65.6	721.0	11.1	0.89	766.22	2000.00	13.3	1.05	752.03	2000.00
45.2	59	699.0	11.4	0.80	668.10	2000.00	13.7	0.94	655.73	1967.20
45.2	59	977.0	8.2	0.80	933.82	2000.00	9.8	0.94	916.52	2000.00
45.2	59	1367.0	5.9	0.80	1306.58	2000.00	7.0	0.94	1282.38	2000.00
45.2	59	1911.0	4.2	0.80	1826.53	2000.00	5.0	0.94	1792.71	2000.00
45.2	59	2672.0	3.0	0.80	2000.00	2000.00	3.6	0.94	2000.00	2000.00
45.2	59	3736.0	2.1	0.80	2000.00	2000.00	2.6	0.94	2000.00	2000.00
DC Motor With Gearbox Technical Data (0.4M)
Gearbox parameters			12V-6500RPM Input				12V-11000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
22.4	90	3.7	1405.4	0.84	5.73	17.18	2378.4	1.62	6.49	19.48
22.4	90	5.2	1000.0	0.84	8.05	24.15	1692.3	1.62	9.13	27.38
27.6	81	13.7	379.6	0.76	19.09	57.26	642.3	1.46	21.64	64.92
27.6	81	19.2	270.8	0.76	26.75	80.25	458.3	1.46	30.33	90.98
27.6	81	26.9	193.3	0.76	37.48	112.43	327.1	1.46	42.49	127.47
27.6	81	35.0	148.6	0.76	48.76	146.29	251.4	1.46	55.28	165.85
32.8	73	51.0	102.0	0.68	64.04	192.11	172.5	1.31	72.60	217.80
32.8	73	71.0	73.2	0.68	89.15	267.44	123.9	1.31	101.07	303.21
32.8	73	100.0	52.0	0.68	125.56	376.68	88.0	1.31	142.35	427.05
32.8	73	139.0	37.4	0.68	174.53	523.59	63.3	1.31	197.87	593.60
39	65.6	189.0	27.5	0.61	213.25	639.76	46.6	1.18	241.77	725.31
39	65.6	264.0	19.7	0.61	297.88	893.63	33.3	1.18	337.71	1013.13
39	65.6	369.0	14.1	0.61	416.35	1249.05	23.8	1.18	472.02	1416.07
39	65.6	514.0	10.1	0.61	579.96	1739.87	17.1	1.18	657.51	1972.53
39	65.6	721.0	7.2	0.61	813.52	2000.00	12.2	1.18	922.30	2000.00
45.2	59	699.0	7.4	0.55	709.35	2000.00	12.6	1.06	804.20	2000.00
45.2	59	977.0	5.3	0.55	991.46	2000.00	9.0	1.06	1124.04	2000.00
45.2	59	1367.0	3.8	0.55	1387.23	2000.00	6.4	1.06	1572.73	2000.00
45.2	59	1911.0	2.7	0.55	1939.28	2000.00	4.6	1.06	2000.00	2000.00
45.2	59	2672.0	1.9	0.55	2000.00	2000.00	3.3	1.06	2000.00	2000.00
45.2	59	3736.0	1.4	0.55	2000.00	2000.00	2.4	1.06	2000.00	2000.00

Please let us know your requirements and we will provide you with transmission solutions.
