High Torque 2nm Micro Planetary Gear Motor Low Noise Plastic Gear Motor

Products Description

Custom speed 24mm gearbox 6 volt 12v 24v low noise high torque 1nm 2nm 20kgf 2w dc planetary plastic gear motor ce rohs

Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
F280	12	6800	30	5440	0.10	1.30	0.74	61.71	3.90	0.60
F280	12	8000	60	6400	0.15	1.65	1.11	61.43	4.95	2.00
F280	12	12000	120	9600	0.38	2.82	2.83	62.17	8.46	2.67
F280	24	6800	20	5440	0.05	1.35	0.77	60.46	4.05	0.41
DC Motor With Gearbox Technical Data (0.4M)
Gearbox parameters			12V-6800RPM Input				12V-8000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
22.4	90	3.7	1470.3	0.67	4.33	12.99	1729.7	1.00	5.49	16.48
22.4	90	5.2	1046.2	0.67	6.08	18.25	1230.8	1.00	7.72	23.17
27.6	81	13.7	397.1	0.60	14.43	43.28	467.2	0.90	18.31	54.93
27.6	81	19.2	283.3	0.60	20.22	60.65	333.3	0.90	25.66	76.98
27.6	81	26.9	202.2	0.60	28.33	84.98	237.9	0.90	35.95	107.86
27.6	81	35.0	155.4	0.60	36.86	110.57	182.9	0.90	46.78	140.33
32.8	73	51.0	106.7	0.54	48.40	145.20	125.5	0.81	61.43	184.29
32.8	73	71.0	76.6	0.54	67.38	202.14	90.1	0.81	85.52	256.56
32.8	73	100.0	54.4	0.54	94.90	284.70	64.0	0.81	120.45	361.35
32.8	73	139.0	39.1	0.54	131.91	395.73	46.0	0.81	167.43	502.28
39	65.6	189.0	28.8	0.49	161.18	483.54	33.9	0.73	204.57	613.72
39	65.6	264.0	20.6	0.49	225.14	675.42	24.2	0.73	285.75	857.26
39	65.6	369.0	14.7	0.49	314.68	944.05	17.3	0.73	399.41	1198.22
39	65.6	514.0	10.6	0.49	438.34	1315.02	12.5	0.73	556.35	1669.06
39	65.6	721.0	7.5	0.49	614.87	1844.61	8.9	0.73	780.41	2000.00
45.2	59	699.0	7.8	0.44	536.13	2000.00	9.2	0.65	680.48	2000.00
45.2	59	977.0	5.6	0.44	749.36	2000.00	6.6	0.65	951.11	2000.00
45.2	59	1367.0	4.0	0.44	1048.49	2000.00	4.7	0.65	1330.77	2000.00
45.2	59	1911.0	2.8	0.44	1465.74	2000.00	3.3	0.65	1860.36	2000.00
45.2	59	2672.0	2.0	0.44	2000.00	2000.00	2.4	0.65	2000.00	2000.00
45.2	59	3736.0	1.5	0.44	2000.00	2000.00	1.7	0.65	2000.00	2000.00
DC Motor With Gearbox Technical Data (0.4M)
Gearbox parameters			12V-12000RPM Input				24V-6800RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
22.4	90	3.7	2594.6	2.55	9.39	28.17	1470.3	0.69	4.50	13.49
22.4	90	5.2	1846.2	2.55	13.20	39.59	1046.2	0.69	6.32	18.95
27.6	81	13.7	700.7	2.30	31.29	93.88	397.1	0.62	14.98	44.94
27.6	81	19.2	500.0	2.30	43.86	131.57	283.3	0.62	21.00	62.99
27.6	81	26.9	356.9	2.30	61.44	184.33	202.2	0.62	29.42	88.25
27.6	81	35.0	274.3	2.30	79.95	239.84	155.4	0.62	38.27	114.82
32.8	73	51.0	188.2	2.07	104.99	314.97	106.7	0.56	50.26	150.78
32.8	73	71.0	135.2	2.07	146.16	438.48	76.6	0.56	69.97	209.91
32.8	73	100.0	96.0	2.07	205.86	617.58	54.4	0.56	98.55	295.65
32.8	73	139.0	69.1	2.07	286.15	858.44	39.1	0.56	136.98	410.95
39	65.6	189.0	50.8	1.86	349.63	1048.90	28.8	0.50	167.38	502.14
39	65.6	264.0	36.4	1.86	488.38	1465.14	20.6	0.50	233.80	701.40
39	65.6	369.0	26.0	1.86	682.62	2000.00	14.7	0.50	326.79	980.36
39	65.6	514.0	18.7	1.86	950.86	2000.00	10.6	0.50	455.20	1365.60
39	65.6	721.0	13.3	1.86	1333.79	2000.00	7.5	0.50	638.52	1915.55
45.2	59	699.0	13.7	1.67	1163.00	2000.00	7.8	0.45	556.75	1670.26
45.2	59	977.0	9.8	1.67	1625.53	2000.00	5.6	0.45	778.18	2000.00
45.2	59	1367.0	7.0	1.67	2000.00	2000.00	4.0	0.45	1088.82	2000.00
45.2	59	1911.0	5.0	1.67	2000.00	2000.00	2.8	0.45	1522.11	2000.00
45.2	59	2672.0	3.6	1.67	2000.00	2000.00	2.0	0.45	2000.00	2000.00
45.2	59	3736.0	2.6	1.67	2000.00	2000.00	1.5	0.45	2000.00	2000.00

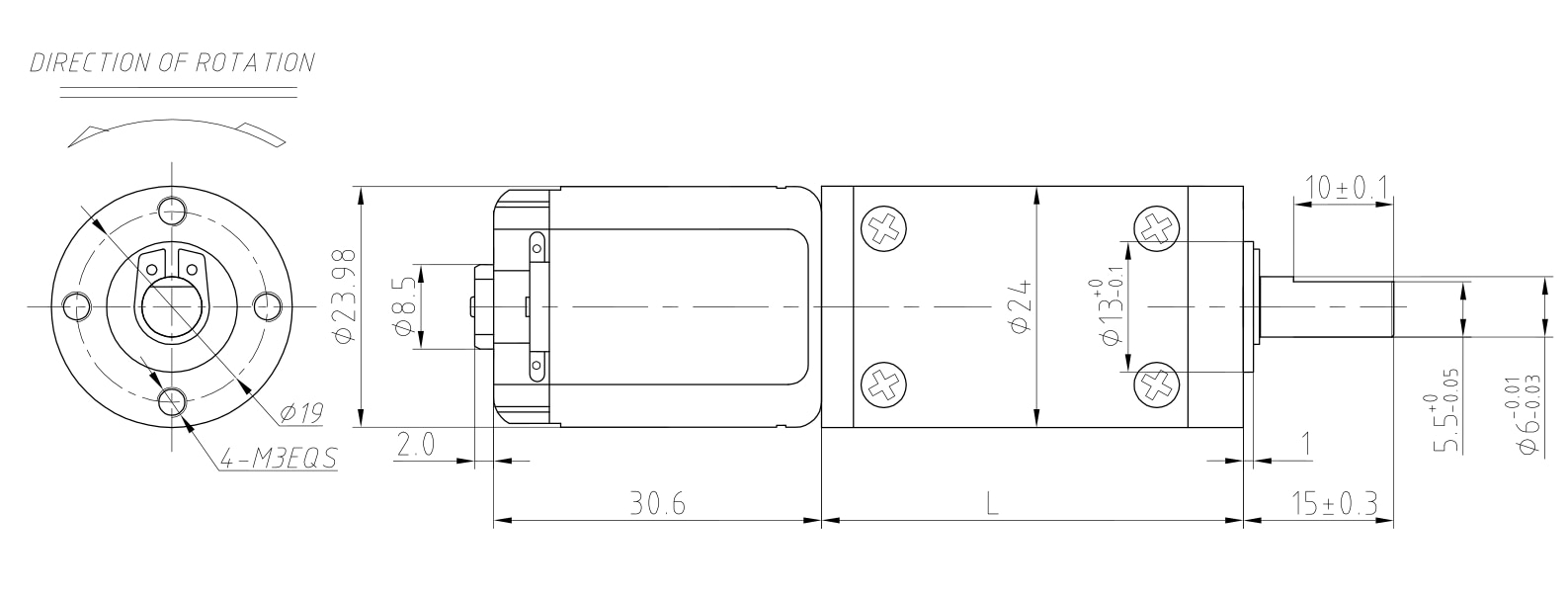

2D drawing


Please let us know your requirements and we will provide you with transmission solutions.
