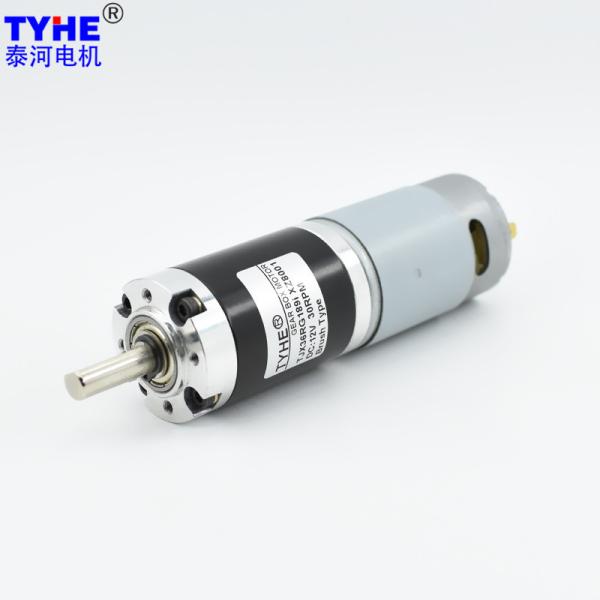

    36mm 24v Micro Planetary Gear Motor 8nm For Paper Shredder

    Ask Lasest Price
    Brand Name : TYHE
    Model Number : TJX36RG
    Certification : CE/ROHS/ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 100000pcs per month
    Delivery Time : 15 working days after payment
    • Product Details
    • Company Profile

    36mm 24v Micro Planetary Gear Motor 8nm For Paper Shredder

    Products Description

    Customizable 36mm gearbox 6v 12v 18v 24v rs 550 PMDC 1 100 gear ratio low rpm 5nm 8nm dc planetary gear motor for paper shredder


    Specifications

    DC Motor Technical Data
    ModelRated Voltage(V)No-Load ParametersRated ParametersStall Parameters
    SpeedCurrentSpeedCurrentTorqueOutputeffTorqueCurrent
    rpmmArpmAmN.mW%mN.mA
    RS55512450015036000.6913.505.0961.3140.505.60
    RS55512500024040000.9316.807.0463.2850.406.80
    DC Motor With Gearbox Technical Data (0.5M)
    Gearbox parameters12V-4500RPM Input12V-5000RPM Input
    Length (mm)Transmission Efficiency (%)Gear RatioRated Output Speed (RPM)Rated Output Power (W)Rated Torque (mN.m)Maximum Instantaneous Torque (mN.m)Rated Output Speed (RPM)Rated Output Power (W)Rated Torque (mN.m)Maximum Instantaneous Torque (mN.m)
    28.2903.7973.04.5844.96134.871081.16.3355.94167.83
    28.2905.2692.34.5863.18189.54769.26.3378.62235.87
    378113.7262.84.12149.81449.43292.05.70186.43559.29
    378119.2187.54.12209.95629.86208.35.70261.27783.82
    378126.9133.84.12294.15882.45148.75.70366.061098.17
    378135.0102.94.12382.731148.18114.35.70476.281428.84
    45.87351.070.63.71502.611507.8278.45.14625.461876.39
    45.87371.050.73.71699.712099.1256.35.14870.742612.23
    45.873100.036.03.71985.502956.5040.05.141226.403679.20
    45.873139.025.93.711369.854109.5428.85.141704.705114.09
    54.765.6189.019.03.341673.785021.3521.24.622082.936248.79
    54.765.6264.013.63.342337.987013.9515.24.622909.498728.47
    54.765.6369.09.83.343267.869803.5910.84.624066.6810000.00
    54.765.6514.07.03.344551.9810000.007.84.625664.6910000.00
    54.765.6721.05.03.346385.1810000.005.54.627946.0010000.00
    6459699.05.23.005567.5410000.005.74.156928.4910000.00
    6459977.03.73.007781.8110000.004.14.159684.0210000.00
    64591367.02.63.0010000.0010000.002.94.1510000.0010000.00
    64591911.01.93.0010000.0010000.002.14.1510000.0010000.00
    64592672.01.33.0010000.0010000.001.54.1510000.0010000.00
    64593736.01.03.0010000.0010000.001.14.1510000.0010000.00

    2D drawing
