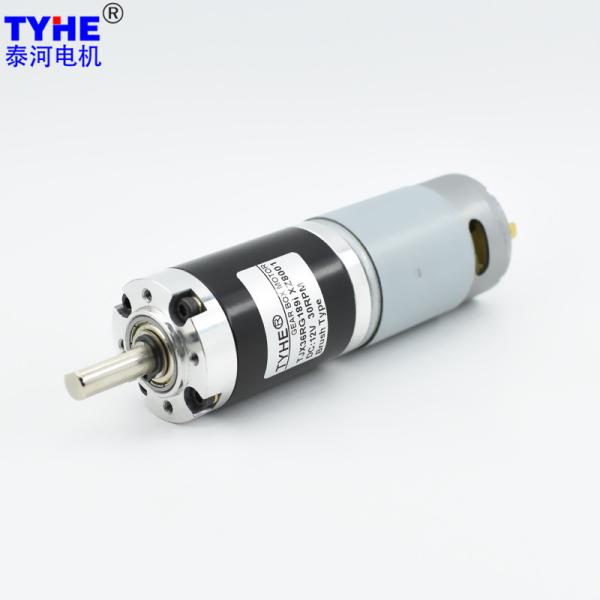

    Full Steel Black 36mm 12V DC Gear Motor Big Torque RS555 DC Planetary Gear Motor

    Ask Lasest Price
    Brand Name : TYHE
    Model Number : TJX36RG
    Certification : CE/ROHS/ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 100000pcs per month
    Delivery Time : 15 working days after payment
    • Product Details
    • Company Profile

    Full Steel Black 36mm 12V DC Gear Motor Big Torque RS555 DC Planetary Gear Motor

    Products Description

    Full Steel Black 36mm 36GX 12v 24v Rs555 Big Torque Dc Planetary Gear Motor For Programming Robot

    2D drawing


    Specifications

    DC Motor Technical Data
    ModelRated Voltage(V)No-Load ParametersRated ParametersStall Parameters
    SpeedCurrentSpeedCurrentTorqueOutputeffTorqueCurrent
    rpmmArpmAmN.mW%mN.mA
    RS55512450015036000.6913.505.0961.3140.505.60
    RS55512500024040000.9316.807.0463.2850.406.80
    DC Motor With Gearbox Technical Data (0.5M)
    Gearbox parameters12V-4500RPM Input12V-5000RPM Input
    Length (mm)Transmission Efficiency (%)Gear RatioRated Output Speed (RPM)Rated Output Power (W)Rated Torque (mN.m)Maximum Instantaneous Torque (mN.m)Rated Output Speed (RPM)Rated Output Power (W)Rated Torque (mN.m)Maximum Instantaneous Torque (mN.m)
    28.2903.7973.04.5844.96134.871081.16.3355.94167.83
    28.2905.2692.34.5863.18189.54769.26.3378.62235.87
    378113.7262.84.12149.81449.43292.05.70186.43559.29
    378119.2187.54.12209.95629.86208.35.70261.27783.82
    378126.9133.84.12294.15882.45148.75.70366.061098.17
    378135.0102.94.12382.731148.18114.35.70476.281428.84
    45.87351.070.63.71502.611507.8278.45.14625.461876.39
    45.87371.050.73.71699.712099.1256.35.14870.742612.23
    45.873100.036.03.71985.502956.5040.05.141226.403679.20
    45.873139.025.93.711369.854109.5428.85.141704.705114.09
    54.765.6189.019.03.341673.785021.3521.24.622082.936248.79
    54.765.6264.013.63.342337.987013.9515.24.622909.498728.47
    54.765.6369.09.83.343267.869803.5910.84.624066.6810000.00
    54.765.6514.07.03.344551.9810000.007.84.625664.6910000.00
    54.765.6721.05.03.346385.1810000.005.54.627946.0010000.00
    6459699.05.23.005567.5410000.005.74.156928.4910000.00
    6459977.03.73.007781.8110000.004.14.159684.0210000.00
    64591367.02.63.0010000.0010000.002.94.1510000.0010000.00
    64591911.01.93.0010000.0010000.002.14.1510000.0010000.00
    64592672.01.33.0010000.0010000.001.54.1510000.0010000.00
    64593736.01.03.0010000.0010000.001.14.1510000.0010000.00

    Please let us know your requirements and we will provide you with transmission solutions.
