50kg Load 40w 50W High Torque 20rpm Rs 775 Dc Metal Gear Motor 12-24V

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJZ42RT
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

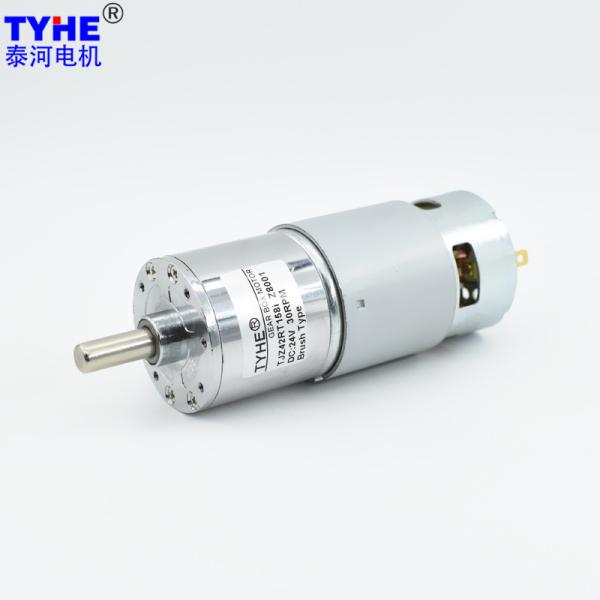

50kg Load 40w 50W High Torque 20rpm Rs 775 Dc Metal Gear Motor 12-24V

Products Description

Factory goods 42mm gear box 12v 14.4v 7.2v 60kg cm 50kg load 40w 50 watt high torque 20rpm rs 775 dc metal gear motor for drill

Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
RS775	12	5000	580	4000	1.77	31.60	13.24	62.31	94.80	10.80
RS775	12	7000	760	5600	2.81	38.00	22.28	66.16	114.00	20.00
RS775	24	3500	160	2800	0.59	29.50	8.65	61.08	88.50	4.20
RS775	24	5000	230	4000	0.84	31.00	12.98	64.15	93.00	5.98
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters			12V-5000RPM Input				12V-7000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.7	81	2.5	1600.0	10.72	63.99	191.97	2240.0	18.05	76.95	230.85
25.7	81	3.1	1290.3	10.72	79.35	238.04	1806.5	18.05	95.42	286.25
25.7	81	3.8	1052.6	10.72	97.26	291.79	1473.7	18.05	116.96	350.89
25.7	81	4.8	833.3	10.72	122.86	368.58	1166.7	18.05	147.74	443.23
25.7	81	6.1	655.7	10.72	156.14	468.41	918.0	18.05	187.76	563.27
25.7	73	6.8	588.2	9.66	156.86	470.59	823.5	16.27	188.63	565.90
25.7	73	8.3	481.9	9.66	191.46	574.39	674.7	16.27	230.24	690.73
25.7	73	10.3	388.3	9.66	237.60	712.80	543.7	16.27	285.72	857.17
25.7	73	12.8	312.5	9.66	295.27	885.81	437.5	16.27	355.07	1065.22
25.7	73	16.4	243.9	9.66	378.32	1134.95	341.5	16.27	454.94	1364.81
25.7	65.6	18.2	219.8	8.68	377.28	1131.84	307.7	14.62	453.69	1361.07
25.7	65.6	22.2	180.2	8.68	460.20	1380.59	252.3	14.62	553.40	1660.20
25.7	65.6	27.4	146.0	8.68	567.99	1703.97	204.4	14.62	683.03	2049.08
25.7	65.6	34.2	117.0	8.68	708.95	2126.86	163.7	14.62	852.54	2557.61
25.7	65.6	43.8	91.3	8.68	907.96	2723.87	127.9	14.62	1091.85	3275.54
29.5	59	48.6	82.3	7.81	906.10	2718.30	115.2	13.15	1089.61	3268.84
29.5	59	59.3	67.5	7.81	1105.59	3316.77	94.4	13.15	1329.51	3988.52
29.5	59	73.0	54.8	7.81	1361.01	4083.04	76.7	13.15	1636.66	4909.98
29.5	59	91.2	43.9	7.81	1700.33	5000.00	61.4	13.15	2044.70	5000.00
29.5	59	117.0	34.2	7.81	2181.35	5000.00	47.9	13.15	2623.14	5000.00
29.5	59	120.0	33.3	7.81	2237.28	5000.00	46.7	13.15	2690.40	5000.00
32.7	53	130.0	30.8	7.01	2177.24	5000.00	43.1	11.81	2618.20	5000.00
32.7	53	158.0	25.3	7.01	2646.18	5000.00	35.4	11.81	3182.12	5000.00
32.7	53	195.0	20.5	7.01	3265.86	5000.00	28.7	11.81	3927.30	5000.00
32.7	53	243.0	16.5	7.01	4069.76	5000.00	23.0	11.81	4894.02	5000.00
32.7	53	311.0	12.9	7.01	5000.00	5000.00	18.0	11.81	5000.00	5000.00
32.7	53	323.0	12.4	7.01	5000.00	5000.00	17.3	11.81	5000.00	5000.00
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters			24V-3500RPM Input				24V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.7	81	2.5	1120.0	7.01	59.74	179.21	1600.0	10.52	62.78	188.33
25.7	81	3.1	903.2	7.01	74.07	222.22	1290.3	10.52	77.84	233.52
25.7	81	3.8	736.8	7.01	90.80	272.40	1052.6	10.52	95.42	286.25
25.7	81	4.8	583.3	7.01	114.70	344.09	833.3	10.52	120.53	361.58
25.7	81	6.1	459.0	7.01	145.76	437.28	655.7	10.52	153.17	459.51
25.7	73	6.8	411.8	6.31	146.44	439.31	588.2	9.48	153.88	461.65
25.7	73	8.3	337.3	6.31	178.74	536.22	481.9	9.48	187.83	563.49
25.7	73	10.3	271.8	6.31	221.81	665.43	388.3	9.48	233.09	699.27
25.7	73	12.8	218.8	6.31	275.65	826.94	312.5	9.48	289.66	868.99
25.7	73	16.4	170.7	6.31	353.17	1059.52	243.9	9.48	371.13	1113.40
25.7	65.6	18.2	153.8	5.67	352.21	1056.62	219.8	8.52	370.12	1110.35
25.7	65.6	22.2	126.1	5.67	429.61	1288.84	180.2	8.52	451.46	1354.38
25.7	65.6	27.4	102.2	5.67	530.24	1590.73	146.0	8.52	557.21	1671.62
25.7	65.6	34.2	81.9	5.67	661.84	1985.52	117.0	8.52	695.49	2086.47
25.7	65.6	43.8	63.9	5.67	847.62	2542.85	91.3	8.52	890.72	2672.15
29.5	59	48.6	57.6	5.10	845.88	2537.65	82.3	7.66	888.89	2666.68
29.5	59	59.3	47.2	5.10	1032.12	3096.35	67.5	7.66	1084.60	3253.79
29.5	59	73.0	38.4	5.10	1270.57	3811.70	54.8	7.66	1335.17	4005.51
29.5	59	91.2	30.7	5.10	1587.34	4762.01	43.9	7.66	1668.05	5000.00
29.5	59	117.0	23.9	5.10	2036.39	5000.00	34.2	7.66	2139.93	5000.00
29.5	59	120.0	23.3	5.10	2088.60	5000.00	33.3	7.66	2194.80	5000.00
32.7	53	130.0	21.5	4.58	2032.55	5000.00	30.8	6.88	2135.90	5000.00
32.7	53	158.0	17.7	4.58	2470.33	5000.00	25.3	6.88	2595.94	5000.00
32.7	53	195.0	14.4	4.58	3048.83	5000.00	20.5	6.88	3203.85	5000.00
32.7	53	243.0	11.5	4.58	3799.31	5000.00	16.5	6.88	3992.49	5000.00
32.7	53	311.0	9.0	4.58	4862.49	5000.00	12.9	6.88	5000.00	5000.00
32.7	53	323.0	8.7	4.58	5000.00	5000.00	12.4	6.88	5000.00	5000.00

2D drawing


Please let us know your requirements and we will provide you with transmission solutions.

16mm Diameter High Torque Low 10 Rpm RF130 Dc Brushed Gear Motor with ce and rohs for Medical Equipment 2

16mm Diameter High Torque Low 10 Rpm RF130 Dc Brushed Gear Motor with ce and rohs for Medical Equipment 3
