Pear Shape Micro DC Gear Motor 12v 300 Rpm 60 Rpm 15kgCm 1nm

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJP65FK
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

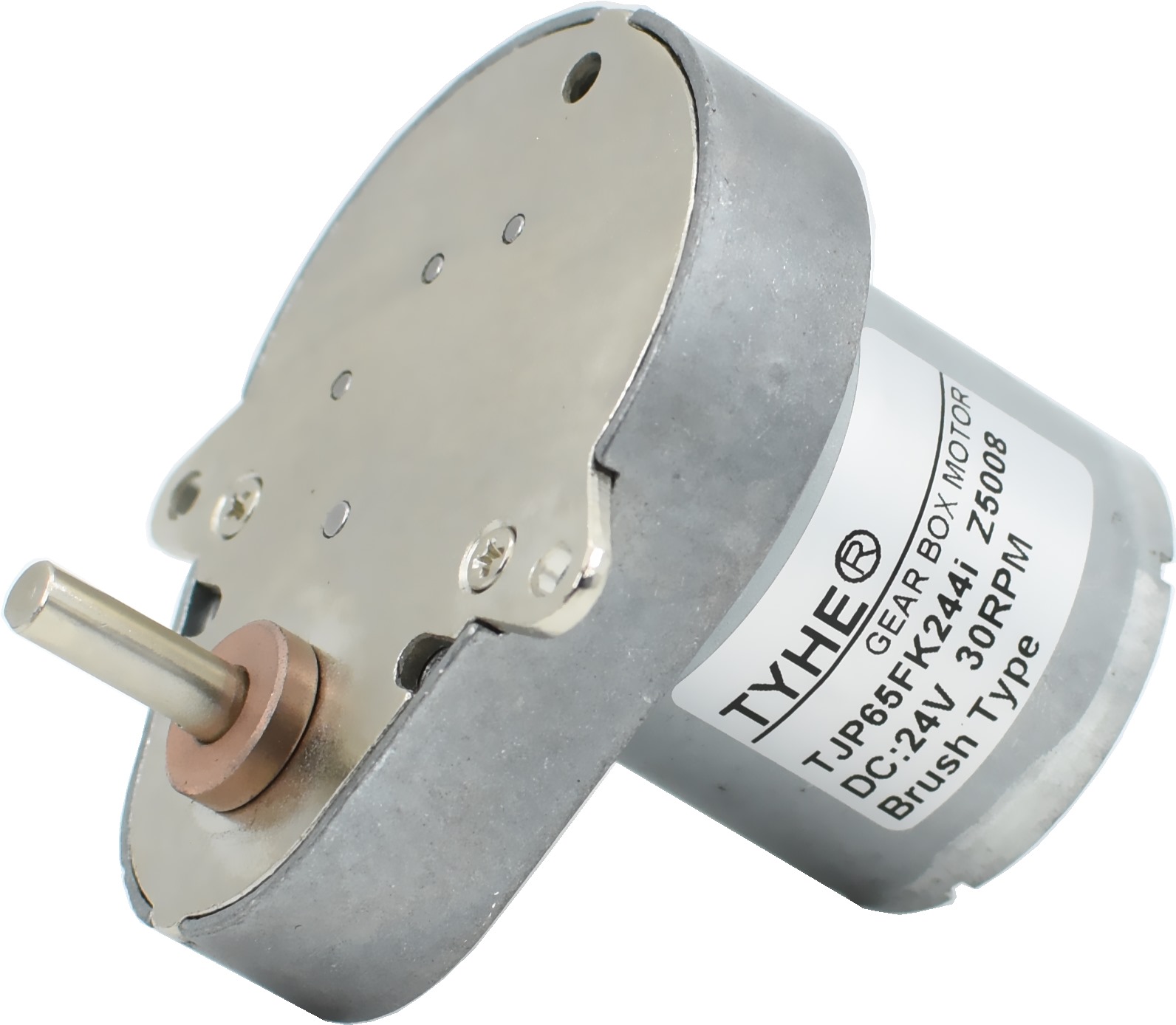

Pear Shape Micro DC Gear Motor 12v 300 Rpm 60 Rpm 15kgCm 1nm

Products Description

Pear Shape 12v 24v 6 10 Rpm 60 300 Rpm 15kg Cm 1nm Pancake Dc Flat Gear Motor With Ce Rohs

2D drawing (Gear ratio≤244)

2D drawing (Gear ratio＞244)


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
ZY3530	12	5500	60	4400	0.23	3.81	1.76	62.69	11.43	1.72
ZY3530	12	6500	65	5200	0.31	4.18	2.28	61.18	12.54	2.00
ZY3530	12	7300	67	5840	0.36	4.35	2.66	61.78	13.05	3.10
ZY3530	12	9000	90	7200	0.43	4.31	3.25	63.47	12.93	3.50
ZY3530	24	3500	14	2800	0.06	3.17	0.93	62.63	9.51	0.49
ZY3530	24	5200	22	4160	0.11	4.01	1.75	63.47	12.03	0.98
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			12V-5500RPM Input				12V-6500RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
65	81	8.3	530.1	1.42	25.61	76.84	626.5	1.84	28.10	84.31
65	81	12.0	366.7	1.42	37.03	111.10	433.3	1.84	40.63	121.89
65	73	15.7	280.3	1.28	43.67	131.00	331.2	1.66	47.91	143.72
65	73	18.2	241.8	1.28	50.62	151.86	285.7	1.66	55.54	166.61
65	73	22.6	194.7	1.28	62.86	188.57	230.1	1.66	68.96	206.88
65	73	32.4	135.8	1.28	90.11	270.34	160.5	1.66	98.87	296.60
65	73	37.0	118.9	1.28	102.91	308.72	140.5	1.66	112.90	338.71
65	65.6	81.3	54.1	1.15	203.20	609.59	64.0	1.49	222.93	668.79
65	65.6	111.0	39.6	1.15	277.43	832.29	46.8	1.49	304.37	913.11
65	59	179.0	24.6	1.04	402.37	1207.12	29.1	1.34	441.45	1324.35
65	59	244.0	18.0	1.04	548.49	1500.00	21.3	1.34	601.75	1500.00
65	53	394.0	11.2	0.93	795.60	1500.00	13.2	1.21	872.87	1500.00
65	53	537.0	8.2	0.93	1084.36	1500.00	9.7	1.21	1189.67	1500.00
65	47.8	866.0	5.1	0.84	1500.00	1500.00	6.0	1.09	1500.00	1500.00
65	47.8	1181.0	3.7	0.84	1500.00	1500.00	4.4	1.09	1500.00	1500.00
65	43	1905.0	2.3	0.75	1500.00	1500.00	2.7	0.98	1500.00	1500.00
65	43	2597.0	1.7	0.75	1500.00	1500.00	2.0	0.98	1500.00	1500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			12V-7300RPM Input				12V-9000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
65	81	8.3	703.6	2.15	29.25	87.74	867.5	2.63	28.98	86.93
65	81	12.0	486.7	2.15	42.28	126.85	600.0	2.63	41.89	125.68
65	73	15.7	372.0	1.94	49.86	149.57	458.6	2.37	49.40	148.19
65	73	18.2	320.9	1.94	57.79	173.38	395.6	2.37	57.26	171.79
65	73	22.6	258.4	1.94	71.77	215.30	318.6	2.37	71.11	213.32
65	73	32.4	180.2	1.94	102.89	308.66	222.2	2.37	101.94	305.82
65	73	37.0	157.8	1.94	117.49	352.48	194.6	2.37	116.41	349.24
65	65.6	81.3	71.8	1.75	232.00	695.99	88.6	2.13	229.86	689.59
65	65.6	111.0	52.6	1.75	316.75	950.25	64.9	2.13	313.84	941.51
65	59	179.0	32.6	1.57	459.40	1378.21	40.2	1.92	455.18	1365.54
65	59	244.0	23.9	1.57	626.23	1500.00	29.5	1.92	620.47	1500.00
65	53	394.0	14.8	1.41	908.37	1500.00	18.3	1.72	900.01	1500.00
65	53	537.0	10.9	1.41	1238.05	1500.00	13.4	1.72	1226.67	1500.00
65	47.8	866.0	6.7	1.27	1500.00	1500.00	8.3	1.55	1500.00	1500.00
65	47.8	1181.0	4.9	1.27	1500.00	1500.00	6.1	1.55	1500.00	1500.00
65	43	1905.0	3.1	1.14	1500.00	1500.00	3.8	1.40	1500.00	1500.00
65	43	2597.0	2.2	1.14	1500.00	1500.00	2.8	1.40	1500.00	1500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			24V-3500RPM Input				24V-5200RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
65	81	8.3	337.3	0.75	21.31	63.94	501.2	1.41	26.96	80.88
65	81	12.0	233.3	0.75	30.81	92.44	346.7	1.41	38.98	116.93
65	73	15.7	178.3	0.68	36.33	108.99	265.0	1.28	45.96	137.88
65	73	18.2	153.8	0.68	42.12	126.35	228.6	1.28	53.28	159.83
65	73	22.6	123.9	0.68	52.30	156.90	184.1	1.28	66.16	198.47
65	73	32.4	86.4	0.68	74.98	224.93	128.4	1.28	94.84	284.53
65	73	37.0	75.7	0.68	85.62	256.87	112.4	1.28	108.31	324.93
65	65.6	81.3	34.4	0.61	169.06	507.19	51.2	1.15	213.86	641.59
65	65.6	111.0	25.2	0.61	230.83	692.48	37.5	1.15	291.99	875.98
65	59	179.0	15.6	0.55	334.78	1004.35	23.2	1.03	423.50	1270.49
65	59	244.0	11.5	0.55	456.35	1369.06	17.0	1.03	577.28	1500.00
65	53	394.0	7.1	0.49	661.96	1500.00	10.6	0.93	837.37	1500.00
65	53	537.0	5.2	0.49	902.21	1500.00	7.7	0.93	1141.29	1500.00
65	47.8	866.0	3.2	0.44	1312.22	1500.00	4.8	0.83	1500.00	1500.00
65	47.8	1181.0	2.4	0.44	1500.00	1500.00	3.5	0.83	1500.00	1500.00
65	43	1905.0	1.5	0.40	1500.00	1500.00	2.2	0.75	1500.00	1500.00
65	43	2597.0	1.1	0.40	1500.00	1500.00	1.6	0.75	1500.00	1500.00

Please let us know your requirements and we will provide you with transmission solutions.
