Speed Adjustable Micro Dc Gear Motor 6V-24V 42mm 10rpm 20rpm 30kgcm 2nm

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJZ42FGa
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

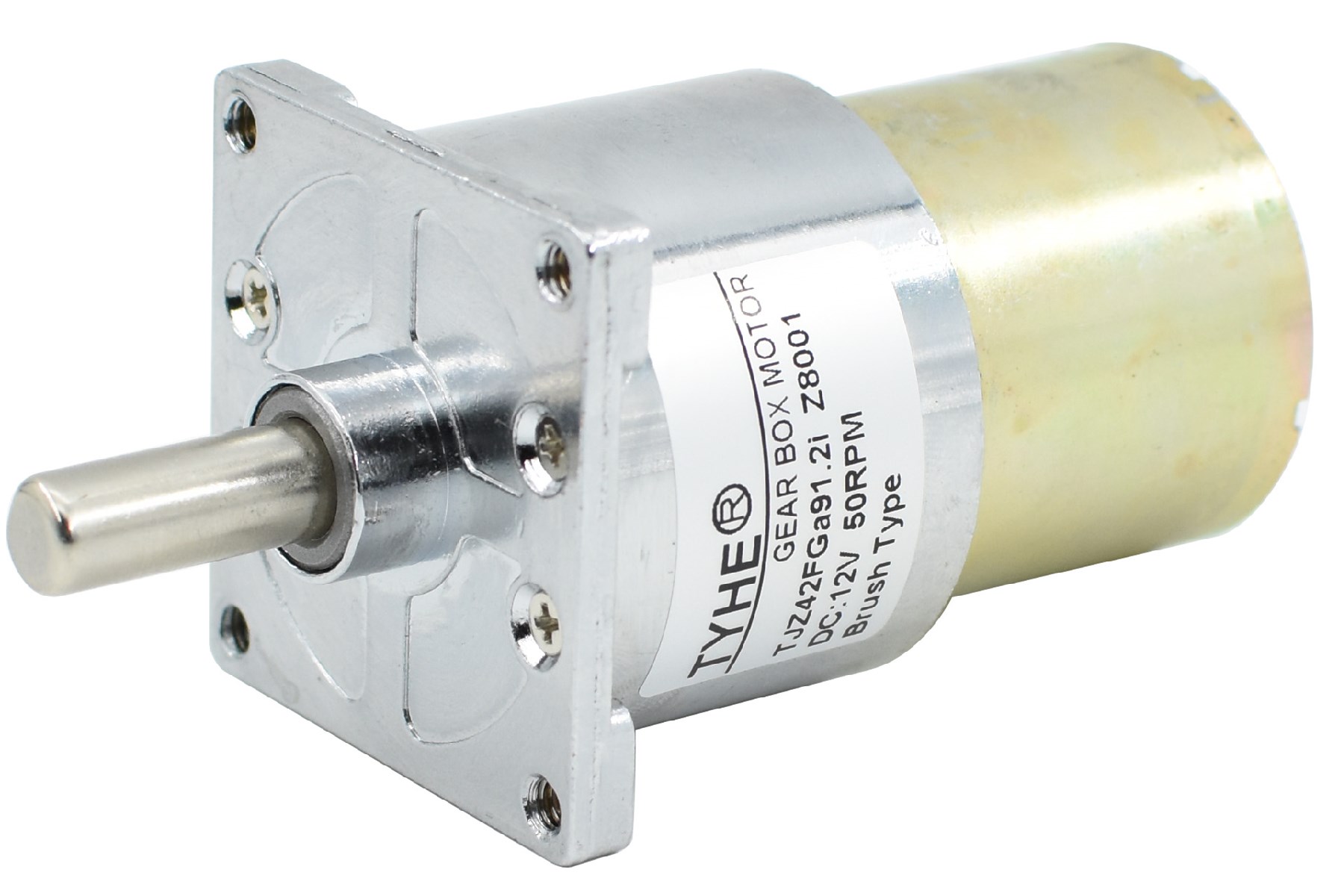

Speed Adjustable Micro Dc Gear Motor 6V-24V 42mm 10rpm 20rpm 30kgcm 2nm

Speed Adjustable 42mm Gearbox 12v 24v 7.2v 10v 16v 18 V 10 Rpm 20rpm 5 Watt 7w 30kgcm 2nm Brush Micro Dc Gear Motor

Products Description

Speed adjustable 42mm gearbox 12v 24v 7.2v 10v 16v 18 v 10 rpm 20rpm 5 watt 7w 30kgcm 2nm brush micro dc gear reduction motor

Model	End cover dimensions	Motor type	Regular Shaft	Weight
TJZ42FGa	φ42mm	RS50	8mm-D cut	380g

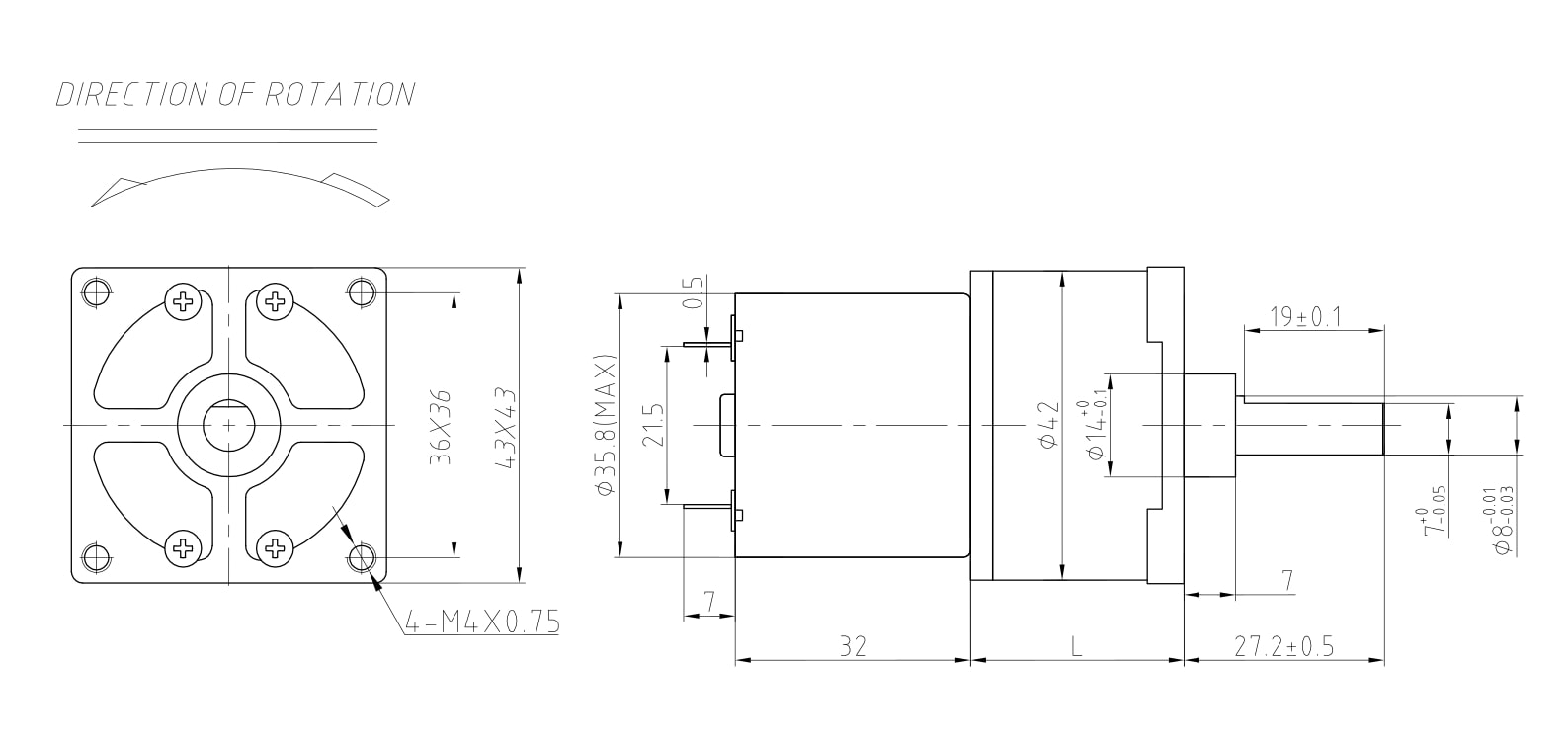

2D drawing


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
RS530	12	3500	60	2800	0.21	5.30	1.55	61.91	15.90	1.43
RS530	12	5000	160	4000	0.49	8.90	3.73	62.86	26.70	3.05
RS530	24	5000	80	4000	0.25	9.12	3.82	62.83	27.36	1.60
RS530	24	7500	72	6000	0.37	9.25	5.81	64.63	27.75	3.20
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters			12V-3500RPM Input				12V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.7	81	2.5	1120.0	1.26	10.73	32.20	1600.0	3.02	18.02	54.07
25.7	81	3.1	903.2	1.26	13.31	39.92	1290.3	3.02	22.35	67.04
25.7	81	3.8	736.8	1.26	16.31	48.94	1052.6	3.02	27.39	82.18
25.7	81	4.8	583.3	1.26	20.61	61.82	833.3	3.02	34.60	103.81
25.7	81	6.1	459.0	1.26	26.19	78.56	655.7	3.02	43.97	131.92
25.7	73	6.8	411.8	1.13	26.31	78.93	588.2	2.72	44.18	132.54
25.7	73	8.3	337.3	1.13	32.11	96.34	481.9	2.72	53.93	161.78
25.7	73	10.3	271.8	1.13	39.85	119.55	388.3	2.72	66.92	200.76
25.7	73	12.8	218.8	1.13	49.52	148.57	312.5	2.72	83.16	249.48
25.7	73	16.4	170.7	1.13	63.45	190.35	243.9	2.72	106.55	319.65
25.7	65.6	18.2	153.8	1.02	63.28	189.83	219.8	2.45	106.26	318.78
25.7	65.6	22.2	126.1	1.02	77.18	231.55	180.2	2.45	129.61	388.84
25.7	65.6	27.4	102.2	1.02	95.26	285.79	146.0	2.45	159.97	479.92
25.7	65.6	34.2	81.9	1.02	118.91	356.72	117.0	2.45	199.67	599.02
25.7	65.6	43.8	63.9	1.02	152.28	456.85	91.3	2.45	255.72	767.17
29.5	59	48.6	57.6	0.92	151.97	455.92	82.3	2.20	255.20	765.60
29.5	59	59.3	47.2	0.92	185.43	556.29	67.5	2.20	311.38	934.15
29.5	59	73.0	38.4	0.92	228.27	684.81	54.8	2.20	383.32	1149.97
29.5	59	91.2	30.7	0.92	285.18	855.55	43.9	2.20	478.89	1436.67
29.5	59	117.0	23.9	0.92	365.86	1097.58	34.2	2.20	614.37	1843.10
29.5	59	120.0	23.3	0.92	375.24	1125.72	33.3	2.20	630.12	1890.36
32.7	53	130.0	21.5	0.82	365.17	1095.51	30.8	1.98	613.21	1839.63
32.7	53	158.0	17.7	0.82	443.82	1331.47	25.3	1.98	745.29	2235.86
32.7	53	195.0	14.4	0.82	547.76	1643.27	20.5	1.98	919.82	2759.45
32.7	53	243.0	11.5	0.82	682.59	2047.76	16.5	1.98	1146.23	3438.69
32.7	53	311.0	9.0	0.82	873.60	2620.80	12.9	1.98	1466.99	4400.96
32.7	53	323.0	8.7	0.82	907.31	2721.92	12.4	1.98	1523.59	4570.77
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters			24V-5000RPM Input				24V-7500RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.7	81	2.5	1600.0	3.09	18.47	55.40	2400.0	4.71	18.73	56.19
25.7	81	3.1	1290.3	3.09	22.90	68.70	1935.5	4.71	23.23	69.68
25.7	81	3.8	1052.6	3.09	28.07	84.21	1578.9	4.71	28.47	85.41
25.7	81	4.8	833.3	3.09	35.46	106.38	1250.0	4.71	35.96	107.89
25.7	81	6.1	655.7	3.09	45.06	135.19	983.6	4.71	45.70	137.11
25.7	73	6.8	588.2	2.79	45.27	135.82	882.4	4.24	45.92	137.75
25.7	73	8.3	481.9	2.79	55.26	165.77	722.9	4.24	56.05	168.14
25.7	73	10.3	388.3	2.79	68.57	205.72	582.5	4.24	69.55	208.65
25.7	73	12.8	312.5	2.79	85.22	255.65	468.8	4.24	86.43	259.30
25.7	73	16.4	243.9	2.79	109.18	327.55	365.9	4.24	110.74	332.22
25.7	65.6	18.2	219.8	2.51	108.89	326.66	329.7	3.81	110.44	331.31
25.7	65.6	22.2	180.2	2.51	132.82	398.45	270.3	3.81	134.71	404.13
25.7	65.6	27.4	146.0	2.51	163.93	491.78	219.0	3.81	166.26	498.79
25.7	65.6	34.2	117.0	2.51	204.61	613.83	175.4	3.81	207.53	622.58
25.7	65.6	43.8	91.3	2.51	262.04	786.13	137.0	3.81	265.78	797.34
29.5	59	48.6	82.3	2.25	261.51	784.52	123.5	3.43	265.23	795.70
29.5	59	59.3	67.5	2.25	319.08	957.24	101.2	3.43	323.63	970.89
29.5	59	73.0	54.8	2.25	392.80	1178.40	82.2	3.43	398.40	1195.19
29.5	59	91.2	43.9	2.25	490.73	1472.19	65.8	3.43	497.72	1493.17
29.5	59	117.0	34.2	2.25	629.55	1888.66	51.3	3.43	638.53	1915.58
29.5	59	120.0	33.3	2.25	645.70	1937.09	50.0	3.43	654.90	1964.70
32.7	53	130.0	30.8	2.02	628.37	1885.10	46.2	3.08	637.33	1911.98
32.7	53	158.0	25.3	2.02	763.71	2291.13	38.0	3.08	774.60	2323.79
32.7	53	195.0	20.5	2.02	942.55	2827.66	30.8	3.08	955.99	2867.96
32.7	53	243.0	16.5	2.02	1174.56	3523.69	24.7	3.08	1191.31	3573.92
32.7	53	311.0	12.9	2.02	1503.25	4509.75	19.3	3.08	1524.68	4574.03
32.7	53	323.0	12.4	2.02	1561.25	4683.76	18.6	3.08	1583.51	4750.52

Please let us know your requirements and we will provide you with transmission solutions.
