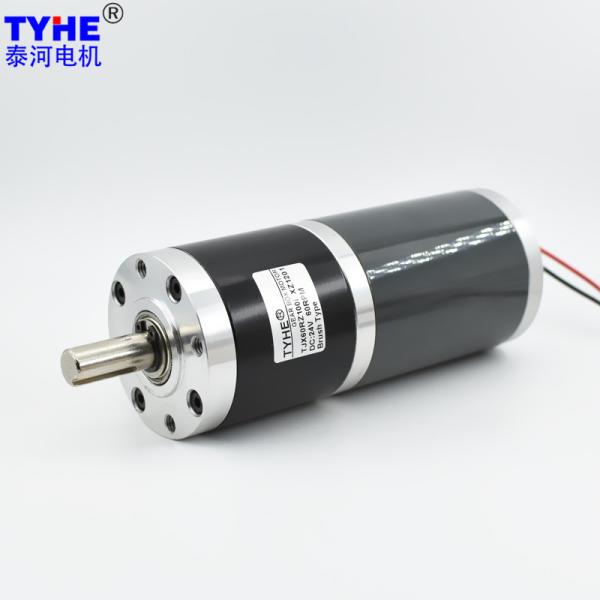

60mm Permanent Magnet DC Gear Motor With Brake 100 Kg Cm Torque 90w 30nm

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJX60RZ
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

60mm Permanent Magnet DC Gear Motor With Brake 100 Kg Cm Torque 90w 30nm

Products Description

Permanent Magnet 60mm 12v 24v 90w 30nm High Torque 100kg Dc Planetary Gear Motor With Brake

2D drawing


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
ZY6095	24	5000	700	4000	3.80	138.53	58.02	63.62	415.59	33.00
ZY6095	24	6000	1000	4800	5.42	158.52	79.67	61.29	475.56	47.00
ZY6095	24	7000	1300	5600	7.03	175.85	103.12	61.09	527.55	61.00
ZY6095	24	10000	1800	8000	9.37	170.52	142.84	63.54	511.56	80.00
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters			24V-5000RPM Input				24V-6000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
38.3	90	3.7	1081.1	52.22	461.30	1383.91	1297.3	71.71	527.87	1583.61
38.3	90	5.2	769.2	52.22	648.32	1944.96	923.1	71.71	741.87	2225.62
51.4	81	13.7	292.0	47.00	1537.27	4611.80	350.4	64.54	1759.10	5277.29
51.4	81	19.2	208.3	47.00	2154.42	6463.26	250.0	64.54	2465.30	7395.91
51.4	81	26.9	148.7	47.00	3018.43	9055.29	178.4	64.54	3453.99	10361.98
51.4	81	35.0	114.3	47.00	3927.33	11781.98	137.1	64.54	4494.04	13482.13
64.6	73	51.0	78.4	42.36	5157.47	15472.42	94.1	58.16	5901.70	17705.10
64.6	73	71.0	56.3	42.36	7180.01	21540.03	67.6	58.16	8216.09	24648.27
64.6	73	100.0	40.0	42.36	10112.69	30338.07	48.0	58.16	11571.96	34715.88
64.6	73	139.0	28.8	42.36	14056.64	42169.92	34.5	58.16	16085.02	48255.07
80	65.6	189.0	21.2	38.06	17175.50	50000.00	25.4	52.27	19653.94	50000.00
80	65.6	264.0	15.2	38.06	23991.18	50000.00	18.2	52.27	27453.13	50000.00
80	65.6	369.0	10.8	38.06	33533.13	50000.00	13.0	52.27	38371.99	50000.00
80	65.6	514.0	7.8	38.06	46710.10	50000.00	9.3	52.27	50000.00	50000.00
80	65.6	721.0	5.5	38.06	50000.00	50000.00	6.7	52.27	50000.00	50000.00
95	59	699.0	5.7	34.23	50000.00	50000.00	6.9	47.01	50000.00	50000.00
95	59	977.0	4.1	34.23	50000.00	50000.00	4.9	47.01	50000.00	50000.00
95	59	1367.0	2.9	34.23	50000.00	50000.00	3.5	47.01	50000.00	50000.00
95	59	1911.0	2.1	34.23	50000.00	50000.00	2.5	47.01	50000.00	50000.00
95	59	2672.0	1.5	34.23	50000.00	50000.00	1.8	47.01	50000.00	50000.00
95	59	3736.0	1.1	34.23	50000.00	50000.00	1.3	47.01	50000.00	50000.00
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters			24V-7000RPM Input				24V-10000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
38.3	90	3.7	1513.5	92.80	585.58	1756.74	2162.2	128.56	567.83	1703.49
38.3	90	5.2	1076.9	92.80	822.98	2468.93	1538.5	128.56	798.03	2394.10
51.4	81	13.7	408.8	83.52	1951.41	5854.22	583.9	115.70	1892.26	5676.78
51.4	81	19.2	291.7	83.52	2734.82	8204.46	416.7	115.70	2651.93	7955.78
51.4	81	26.9	208.2	83.52	3831.60	11494.79	297.4	115.70	3715.46	11146.38
51.4	81	35.0	160.0	83.52	4985.35	14956.04	228.6	115.70	4834.24	14502.73
64.6	73	51.0	109.8	75.27	6546.90	19640.69	156.9	104.28	6348.46	19045.38
64.6	73	71.0	78.9	75.27	9114.31	27342.92	112.7	104.28	8838.05	26514.15
64.6	73	100.0	56.0	75.27	12837.05	38511.15	80.0	104.28	12447.96	37343.88
64.6	73	139.0	40.3	75.27	17843.50	50000.00	57.6	104.28	17302.66	50000.00
80	65.6	189.0	29.6	67.64	21802.59	50000.00	42.3	93.71	21141.75	50000.00
80	65.6	264.0	21.2	67.64	30454.41	50000.00	30.3	93.71	29531.34	50000.00
80	65.6	369.0	15.2	67.64	42566.95	50000.00	21.7	93.71	41276.75	50000.00
80	65.6	514.0	10.9	67.64	50000.00	50000.00	15.6	93.71	50000.00	50000.00
80	65.6	721.0	7.8	67.64	50000.00	50000.00	11.1	93.71	50000.00	50000.00
95	59	699.0	8.0	60.84	50000.00	50000.00	11.4	84.28	50000.00	50000.00
95	59	977.0	5.7	60.84	50000.00	50000.00	8.2	84.28	50000.00	50000.00
95	59	1367.0	4.1	60.84	50000.00	50000.00	5.9	84.28	50000.00	50000.00
95	59	1911.0	2.9	60.84	50000.00	50000.00	4.2	84.28	50000.00	50000.00
95	59	2672.0	2.1	60.84	50000.00	50000.00	3.0	84.28	50000.00	50000.00
95	59	3736.0	1.5	60.84	50000.00	50000.00	2.1	84.28	50000.00	50000.00

Please let us know your requirements and we will provide you with transmission solutions.
