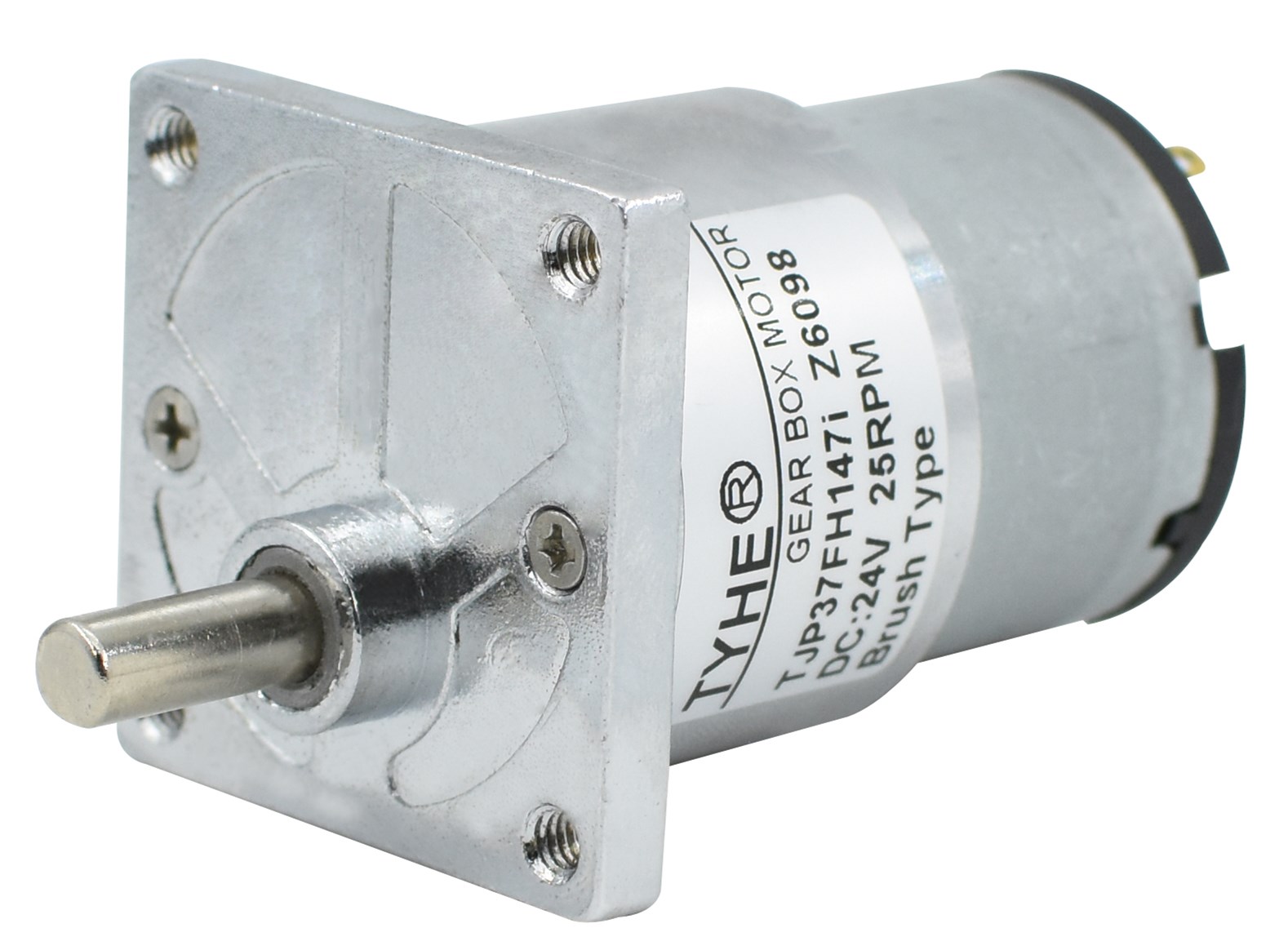

Od 37mm Gearmotor 12v Dc Geared Motor 30rpm 50Rpm High Torque 10kg Cm

Products Description

Od 37mm gearmotor 1.5v 3v 6v 12v 24v 10kg cm 30rpm 50 rpm 2 watt high torque low speed micro 520 dc metal geared motor

Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
ZY3324	6	7000	80	5600	0.37	2.35	1.38	62.78	7.05	2.95
ZY3324	12	5000	32	4000	0.12	2.12	0.89	64.07	6.36	0.81
ZY3324	24	3500	12	2800	0.03	1.78	0.52	62.73	5.34	0.20
ZY3324	24	5000	17	4000	0.06	2.27	0.95	63.73	6.81	0.44
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			6V-7000RPM Input				12V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.5	81	8.2	682.9	1.12	15.61	46.83	487.8	0.72	14.08	42.24
25.5	81	9.5	589.5	1.12	18.08	54.25	421.1	0.72	16.31	48.94
25.5	73	14.7	381.0	1.01	25.22	75.65	272.1	0.65	22.75	68.25
25.5	73	22.3	251.1	1.01	38.26	114.77	179.4	0.65	34.51	103.53
25.5	73	24.5	228.6	1.01	42.03	126.09	163.3	0.65	37.92	113.75
27.5	65.6	27.2	205.9	0.90	41.93	125.79	147.1	0.58	37.83	113.48
27.5	65.6	34.4	162.8	0.90	53.03	159.09	116.3	0.58	47.84	143.52
27.5	65.6	44.5	125.8	0.90	68.60	205.80	89.9	0.58	61.89	185.66
27.5	65.6	52.0	107.7	0.90	80.16	240.49	76.9	0.58	72.32	216.95
27.5	65.6	57.0	98.2	0.90	87.87	263.61	70.2	0.58	79.27	237.81
27.5	65.6	63.0	88.9	0.90	97.12	291.36	63.5	0.58	87.62	262.85
29.5	59	80.3	69.7	0.81	111.34	334.01	49.8	0.52	100.44	301.32
29.5	59	104.0	53.8	0.81	144.20	432.59	38.5	0.52	130.08	390.25
29.5	59	121.0	46.3	0.81	167.77	503.30	33.1	0.52	151.35	454.04
29.5	59	134.0	41.8	0.81	185.79	557.37	29.9	0.52	167.61	502.82
29.5	59	147.0	38.1	0.81	203.82	611.45	27.2	0.52	183.87	551.60
29.5	59	162.0	34.6	0.81	224.61	673.84	24.7	0.52	202.63	607.89
32.5	53	187.0	29.9	0.73	232.91	698.73	21.4	0.47	210.11	630.34
32.5	53	242.0	23.1	0.73	301.41	904.23	16.5	0.47	271.91	815.73
32.5	53	283.0	19.8	0.73	352.48	1057.43	14.1	0.47	317.98	953.94
32.5	53	312.0	17.9	0.73	388.60	1165.79	12.8	0.47	350.56	1051.69
32.5	53	344.0	16.3	0.73	428.45	1285.36	11.6	0.47	386.52	1159.56
32.5	53	379.0	14.8	0.73	472.04	1416.13	10.6	0.47	425.84	1277.53
32.5	53	417.0	13.4	0.73	519.37	1558.12	9.6	0.47	468.54	1405.62
35.5	47.8	437.0	12.8	0.66	490.88	1472.65	9.2	0.42	442.84	1328.51
35.5	47.8	565.0	9.9	0.66	634.66	1903.99	7.1	0.42	572.55	1717.65
35.5	47.8	660.0	8.5	0.66	741.38	2224.13	6.1	0.42	668.82	2006.45
35.5	47.8	728.0	7.7	0.66	817.76	2453.29	5.5	0.42	737.73	2213.18
35.5	47.8	802.0	7.0	0.66	900.89	2500.00	5.0	0.42	812.71	2438.14
35.5	47.8	884.0	6.3	0.66	993.00	2500.00	4.5	0.42	895.81	2500.00
35.5	47.8	974.0	5.7	0.66	1094.09	2500.00	4.1	0.42	987.01	2500.00
35.5	47.8	1073.0	5.2	0.66	1205.30	2500.00	3.7	0.42	1087.34	2500.00
32.5	43	1540.0	3.6	0.59	1556.17	2500.00	2.6	0.38	1403.86	2500.00
32.5	43	1698.0	3.3	0.59	1715.83	2500.00	2.4	0.38	1547.90	2500.00
32.5	43	1871.0	3.0	0.59	1890.65	2500.00	2.1	0.38	1705.60	2500.00
32.5	43	2062.0	2.7	0.59	2083.65	2500.00	1.9	0.38	1879.72	2500.00
32.5	43	2272.0	2.5	0.59	2295.86	2500.00	1.8	0.38	2071.16	2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			24V-3500RPM Input				24V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.5	81	8.2	341.5	0.42	11.82	35.47	487.8	0.77	15.08	45.23
25.5	81	9.5	294.7	0.42	13.70	41.09	421.1	0.77	17.47	52.40
25.5	73	14.7	190.5	0.38	19.10	57.30	272.1	0.69	24.36	73.08
25.5	73	22.3	125.6	0.38	28.98	86.93	179.4	0.69	36.95	110.86
25.5	73	24.5	114.3	0.38	31.84	95.51	163.3	0.69	40.60	121.80
27.5	65.6	27.2	102.9	0.34	31.76	95.28	147.1	0.62	40.50	121.51
27.5	65.6	34.4	81.4	0.34	40.17	120.50	116.3	0.62	51.23	153.68
27.5	65.6	44.5	62.9	0.34	51.96	155.89	89.9	0.62	66.27	198.80
27.5	65.6	52.0	53.8	0.34	60.72	182.16	76.9	0.62	77.43	232.30
27.5	65.6	57.0	49.1	0.34	66.56	199.67	70.2	0.62	84.88	254.64
27.5	65.6	63.0	44.4	0.34	73.56	220.69	63.5	0.62	93.81	281.44
29.5	59	80.3	34.9	0.31	84.33	252.99	49.8	0.56	107.55	322.64
29.5	59	104.0	26.9	0.31	109.22	327.66	38.5	0.56	139.29	417.86
29.5	59	121.0	23.1	0.31	127.07	381.22	33.1	0.56	162.06	486.17
29.5	59	134.0	20.9	0.31	140.73	422.18	29.9	0.56	179.47	538.40
29.5	59	147.0	19.0	0.31	154.38	463.14	27.2	0.56	196.88	590.63
29.5	59	162.0	17.3	0.31	170.13	510.40	24.7	0.56	216.97	650.90
32.5	53	187.0	15.0	0.28	176.42	529.25	21.4	0.50	224.98	674.94
32.5	53	242.0	11.6	0.28	228.30	684.91	16.5	0.50	291.15	873.45
32.5	53	283.0	9.9	0.28	266.98	800.95	14.1	0.50	340.48	1021.43
32.5	53	312.0	9.0	0.28	294.34	883.02	12.8	0.50	375.37	1126.10
32.5	53	344.0	8.1	0.28	324.53	973.59	11.6	0.50	413.87	1241.60
32.5	53	379.0	7.4	0.28	357.55	1072.65	10.6	0.50	455.97	1367.92
32.5	53	417.0	6.7	0.28	393.40	1180.19	9.6	0.50	501.69	1505.08
35.5	47.8	437.0	6.4	0.25	371.82	1115.45	9.2	0.45	474.17	1422.51
35.5	47.8	565.0	5.0	0.25	480.72	1442.17	7.1	0.45	613.06	1839.18
35.5	47.8	660.0	4.2	0.25	561.55	1684.66	6.1	0.45	716.14	2148.42
35.5	47.8	728.0	3.8	0.25	619.41	1858.23	5.5	0.45	789.92	2369.77
35.5	47.8	802.0	3.5	0.25	682.37	2047.12	5.0	0.45	870.22	2500.00
35.5	47.8	884.0	3.2	0.25	752.14	2256.43	4.5	0.45	959.19	2500.00
35.5	47.8	974.0	2.9	0.25	828.72	2486.15	4.1	0.45	1056.85	2500.00
35.5	47.8	1073.0	2.6	0.25	912.95	2500.00	3.7	0.45	1164.27	2500.00
32.5	43	1540.0	1.8	0.22	1178.72	2500.00	2.6	0.41	1503.19	2500.00
32.5	43	1698.0	1.6	0.22	1299.65	2500.00	2.4	0.41	1657.42	2500.00
32.5	43	1871.0	1.5	0.22	1432.06	2500.00	2.1	0.41	1826.28	2500.00
32.5	43	2062.0	1.4	0.22	1578.25	2500.00	1.9	0.41	2012.72	2500.00
32.5	43	2272.0	1.2	0.22	1738.99	2500.00	1.8	0.41	2217.70	2500.00

2D drawing


Please let us know your requirements and we will provide you with transmission solutions.
