Reversible 5 Rpm 120 Rpm Micro 775 Dc Motor Torque 42mm 12V 24V

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJP42FT
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

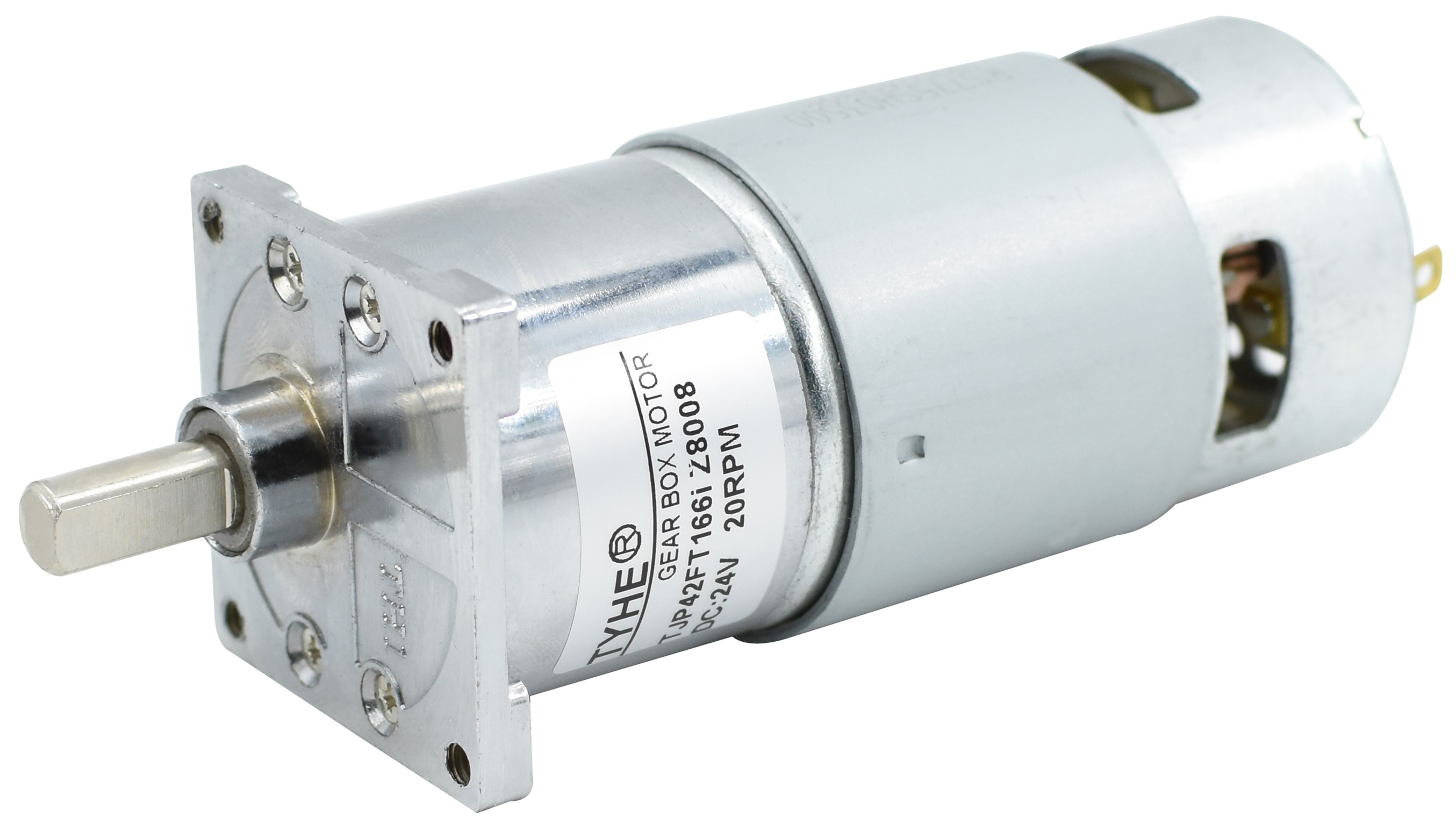

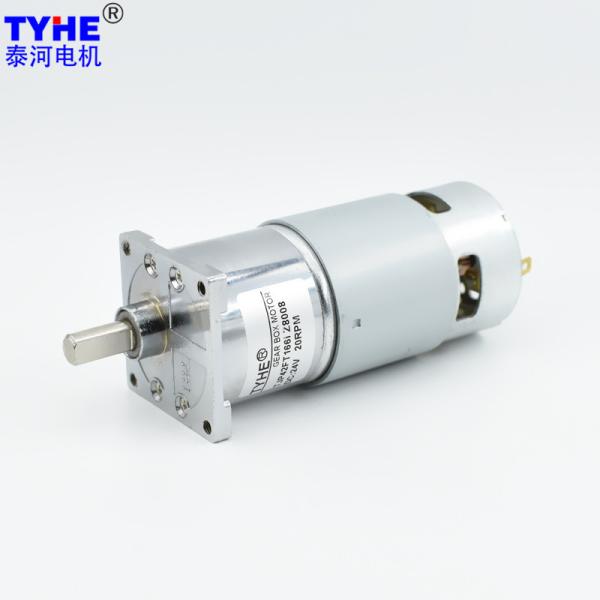

Reversible 5 Rpm 120 Rpm Micro 775 Dc Motor Torque 42mm 12V 24V

Reversible 42mm Gear Box 6 Volt 12v 24 V High Torque Low Speed 5 Rpm 120 Rpm 10kgcm 20kgcm Micro 775 Dc Metal Gear Motor

Products Description

Reversible 42mm gear box 6 volt 12v 24 v high torque low speed 5 rpm 120 rpm 10kgcm 20kgcm micro 775 dc metal gear housing motor

2D drawing

Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
RS775	12	5000	580	4000	1.77	31.60	13.24	62.31	94.80	10.80
RS775	12	7000	760	5600	2.81	38.00	22.28	66.16	114.00	20.00
RS775	24	3500	160	2800	0.59	29.50	8.65	61.08	88.50	4.20
RS775	24	5000	230	4000	0.84	31.00	12.98	64.15	93.00	5.98
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters			12V-5000RPM Input				12V-7000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.7	81	3.6	1111.1	10.72	92.15	276.44	1555.6	18.05	110.81	332.42
25.7	81	4.4	909.1	10.72	112.62	337.87	1272.7	18.05	135.43	406.30
25.7	81	5.4	740.7	10.72	138.22	414.66	1037.0	18.05	166.21	498.64
25.7	81	6.8	588.2	10.72	174.05	522.16	823.5	18.05	209.30	627.91
25.7	81	8.6	465.1	10.72	220.13	660.38	651.2	18.05	264.71	794.12
29.3	73	9.7	412.4	9.66	223.76	671.28	577.3	16.27	269.08	807.23
29.3	73	11.8	339.0	9.66	272.20	816.61	474.6	16.27	327.33	982.00
29.3	73	14.6	274.0	9.66	336.79	1010.38	383.6	16.27	405.00	1215.01
29.3	73	18.2	219.8	9.66	419.84	1259.51	307.7	16.27	504.87	1514.60
29.3	73	23.3	171.7	9.66	537.48	1612.45	240.3	16.27	646.34	1939.03
29.3	65.6	25.9	154.4	8.68	536.90	1610.69	216.2	14.62	645.64	1936.91
29.3	65.6	31.6	126.6	8.68	655.06	1965.17	177.2	14.62	787.72	2363.17
29.3	65.6	38.9	102.8	8.68	806.38	2419.14	144.0	14.62	969.70	2909.10
29.3	65.6	48.6	82.3	8.68	1007.46	3022.38	115.2	14.62	1211.50	3634.50
29.3	65.6	62.2	64.3	8.68	1289.38	3868.14	90.0	14.62	1550.52	4651.56
32.6	59	69.1	57.9	7.81	1288.30	3864.90	81.0	13.15	1549.22	4647.67
32.6	59	84.2	47.5	7.81	1569.82	4709.47	66.5	13.15	1887.76	5000.00
32.6	59	104	38.5	7.81	1938.98	5000.00	53.8	13.15	2331.68	5000.00
32.6	59	130	30.8	7.81	2423.72	5000.00	43.1	13.15	2914.60	5000.00
32.6	59	164	24.4	7.81	3057.62	5000.00	34.1	13.15	3676.88	5000.00
32.6	59	170	23.5	7.81	3169.48	5000.00	32.9	13.15	3811.40	5000.00
36	53	184	21.7	7.01	3081.63	5000.00	30.4	11.81	3705.76	5000.00
36	53	225	17.8	7.01	3768.30	5000.00	24.9	11.81	4531.50	5000.00
36	53	276	14.5	7.01	4622.45	5000.00	20.3	11.81	5000.00	5000.00
36	53	346	11.6	7.01	5000.00	5000.00	16.2	11.81	5000.00	5000.00
36	53	442	9.0	7.01	5000.00	5000.00	12.7	11.81	5000.00	5000.00
36	53	459	8.7	7.01	5000.00	5000.00	12.2	11.81	5000.00	5000.00
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters			24V-3500RPM Input				24V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.7	81	3.6	777.8	7.01	86.02	258.07	1111.1	10.52	90.40	271.19
25.7	81	4.4	636.4	7.01	105.14	315.41	909.1	10.52	110.48	331.45
25.7	81	5.4	518.5	7.01	129.03	387.10	740.7	10.52	135.59	406.78
25.7	81	6.8	411.8	7.01	162.49	487.46	588.2	10.52	170.75	512.24
25.7	81	8.6	325.6	7.01	205.50	616.49	465.1	10.52	215.95	647.84
29.3	73	9.7	288.7	6.31	208.89	626.67	412.4	9.48	219.51	658.53
29.3	73	11.8	237.3	6.31	254.11	762.34	339.0	9.48	267.03	801.10
29.3	73	14.6	191.8	6.31	314.41	943.23	274.0	9.48	330.40	991.19
29.3	73	18.2	153.8	6.31	391.94	1175.81	219.8	9.48	411.87	1235.60
29.3	73	23.3	120.2	6.31	501.77	1505.30	171.7	9.48	527.28	1581.84
29.3	65.6	25.9	108.1	5.67	501.22	1503.65	154.4	8.52	526.70	1580.11
29.3	65.6	31.6	88.6	5.67	611.52	1834.57	126.6	8.52	642.62	1927.85
29.3	65.6	38.9	72.0	5.67	752.79	2258.38	102.8	8.52	791.07	2373.21
29.3	65.6	48.6	57.6	5.67	940.51	2821.52	82.3	8.52	988.33	2964.99
29.3	65.6	62.2	45.0	5.67	1203.69	3611.08	64.3	8.52	1264.90	3794.70
32.6	59	69.1	40.5	5.10	1202.69	3608.06	57.9	7.66	1263.84	3791.52
32.6	59	84.2	33.3	5.10	1465.50	4396.50	47.5	7.66	1540.02	4620.05
32.6	59	104	26.9	5.10	1810.12	5000.00	38.5	7.66	1902.16	5000.00
32.6	59	130	21.5	5.10	2262.65	5000.00	30.8	7.66	2377.70	5000.00
32.6	59	164	17.1	5.10	2854.42	5000.00	24.4	7.66	2999.56	5000.00
32.6	59	170	16.5	5.10	2958.85	5000.00	23.5	7.66	3109.30	5000.00
36	53	184	15.2	4.58	2876.84	5000.00	21.7	6.88	3023.12	5000.00
36	53	225	12.4	4.58	3517.88	5000.00	17.8	6.88	3696.75	5000.00
36	53	276	10.1	4.58	4315.26	5000.00	14.5	6.88	4534.68	5000.00
36	53	346	8.1	4.58	5000.00	5000.00	11.6	6.88	5000.00	5000.00
36	53	442	6.3	4.58	5000.00	5000.00	9.0	6.88	5000.00	5000.00
36	53	459	6.1	4.58	5000.00	5000.00	8.7	6.88	5000.00	5000.00


Please let us know your requirements and we will provide you with transmission solutions.
