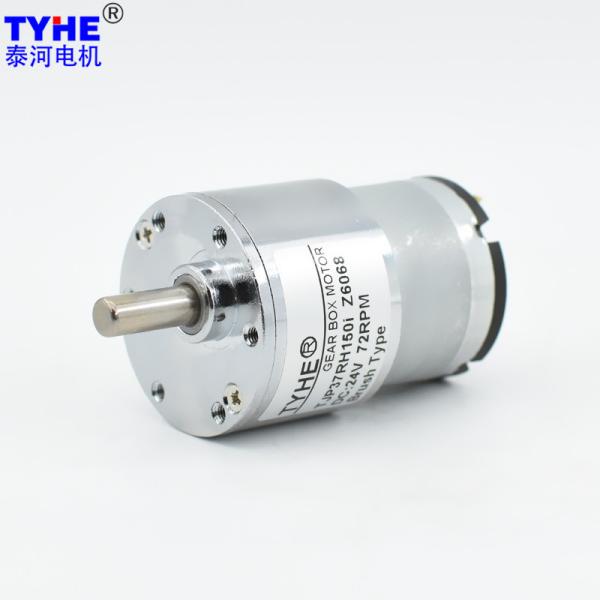

2W PMDC 12v 24v Gear Reduction Motor Dia 37mm 90rpm High Torque

Product Categories

Wenzhou Tyhe Motor Co., Ltd.

Contact Now

2W PMDC 12v 24v Gear Reduction Motor Dia 37mm 90rpm High Torque

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJP37RH
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

2W PMDC 12v 24v Gear Reduction Motor Dia 37mm 90rpm High Torque

Products Description

Hot Selling Dia 37mm 6v 12v 24 Volt 08kgcm 90rpm High Torque 2kg.Cm 1w 2 Watt PMDC Dc Spur Gear Reduction Motor CE

Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
ZY3324	6	7000	80	5600	0.37	2.35	1.38	62.78	7.05	2.95
ZY3324	7	4000	30	3200	0.14	1.79	0.60	62.70	5.37	1.10
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			6V-7000RPM Input				7V-4000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
22.5	81	6.5	861.5	1.12	12.37	37.12	492.3	0.49	9.42	28.27
22.5	81	7.6	736.8	1.12	14.47	43.40	421.1	0.49	11.02	33.06
22.5	73	9.3	602.2	1.01	15.95	47.86	344.1	0.44	12.15	36.46
22.5	73	11.8	474.6	1.01	20.24	60.73	271.2	0.44	15.42	46.26
22.5	73	15.2	368.4	1.01	26.08	78.23	210.5	0.44	19.86	59.59
22.5	73	20.4	274.5	1.01	35.00	104.99	156.9	0.44	26.66	79.97
24.5	65.6	27.5	203.6	0.90	42.39	127.18	116.4	0.39	32.29	96.87
24.5	65.6	35.6	157.3	0.90	54.88	164.64	89.9	0.39	41.80	125.41
24.5	65.6	41.6	134.6	0.90	64.13	192.39	76.9	0.39	48.85	146.55
24.5	65.6	57.7	97.1	0.90	88.95	266.85	55.5	0.39	67.75	203.26
26.5	59	73.4	76.3	0.81	101.77	305.31	43.6	0.35	77.52	232.55
26.5	59	83	67.5	0.81	115.08	345.24	38.6	0.35	87.66	262.97
26.5	59	97	57.7	0.81	134.49	403.47	33.0	0.35	102.44	307.33
26.5	59	111	50.5	0.81	153.90	461.70	28.8	0.35	117.23	351.68
26.5	59	119	47.1	0.81	164.99	494.98	26.9	0.35	125.68	377.03
26.5	59	130	43.1	0.81	180.25	540.74	24.6	0.35	137.29	411.88
29.5	53	194	28.9	0.73	241.63	724.88	16.5	0.32	184.05	552.14
29.5	53	226	24.8	0.73	281.48	844.45	14.2	0.32	214.41	643.22
29.5	53	259	21.6	0.73	322.58	967.75	12.4	0.32	245.71	737.14
29.5	53	277	20.2	0.73	345.00	1035.01	11.6	0.32	262.79	788.37
29.5	53	303	18.5	0.73	377.39	1132.16	10.6	0.32	287.46	862.37
29.5	53	316	17.7	0.73	393.58	1180.73	10.1	0.32	299.79	899.37
29.5	53	346	16.2	0.73	430.94	1292.83	9.2	0.32	328.25	984.75
29.5	53	382	14.7	0.73	475.78	1427.34	8.4	0.32	362.40	1087.21
32.5	47.8	452	12.4	0.66	507.73	1523.19	7.1	0.29	386.74	1160.22
32.5	47.8	528	10.6	0.66	593.10	1779.31	6.1	0.29	451.77	1355.30
32.5	47.8	604	9.3	0.66	678.47	2035.42	5.3	0.29	516.79	1550.38
32.5	47.8	665	8.4	0.66	746.99	2240.98	4.8	0.29	568.99	1706.96
32.5	47.8	733	7.6	0.66	823.38	2470.14	4.4	0.29	627.17	1881.51
32.5	47.8	808	6.9	0.66	907.63	2500.00	4.0	0.29	691.34	2074.02
32.5	47.8	890	6.3	0.66	999.74	2500.00	3.6	0.29	761.50	2284.51
32.5	43	1232	4.5	0.59	1244.94	2500.00	2.6	0.26	948.27	2500.00
32.5	43	1408	4.0	0.59	1422.78	2500.00	2.3	0.26	1083.74	2500.00
32.5	43	1552	3.6	0.59	1568.30	2500.00	2.1	0.26	1194.57	2500.00
32.5	43	1711	3.3	0.59	1728.97	2500.00	1.9	0.26	1316.96	2500.00
32.5	43	2077	2.7	0.59	2098.81	2500.00	1.5	0.26	1598.67	2500.00

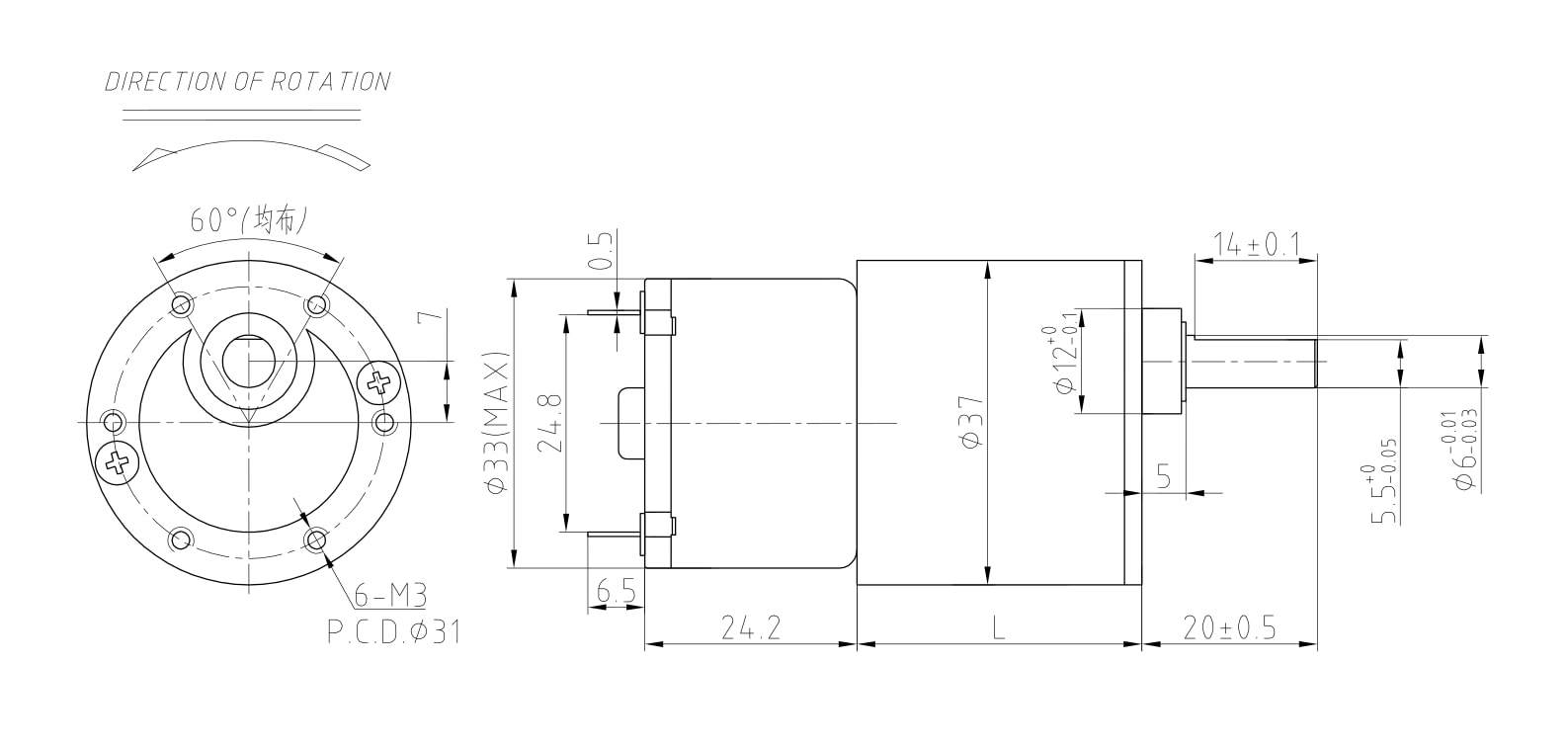

2D drawing


Please let us know your requirements and we will provide you with transmission solutions.
