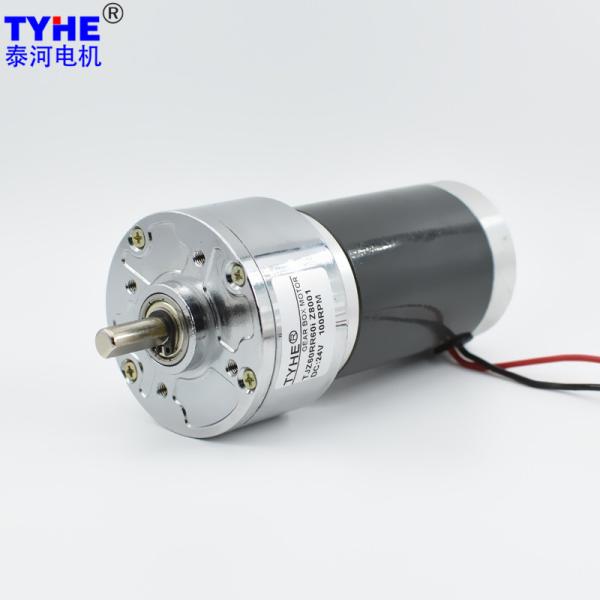

Speed Adjustable 12v 24v Brushed Dc Metal Gear Motor 100Rpm 60w 50w

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJZ60RR
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

Speed Adjustable 12v 24v Brushed Dc Metal Gear Motor 100Rpm 60w 50w

Speed Adjustable 60MM Gear Box 12v 24v 24 V 100 Rpm 50 Rpm 70rpm 75watt 60w 50w 80kgf 100kgf Brushed Dc Metal Gear Motor

Products Description

Speed adjustable 60MM gear box 12v 24v 24 v 100 rpm 50 rpm 70rpm 75 watt 60w 50w 80kgf 100kgf brushed dc metal gear motor

Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
ZY5078	12	6000	1030	4800	4.00	60.19	30.25	63.11	180.57	29.40
ZY5078	12	6500	1300	5200	4.98	69.52	37.85	63.30	208.56	36.40
ZY5078	24	5000	470	4000	1.68	60.35	25.28	62.54	181.05	11.75
ZY5078	24	6000	610	4800	2.19	67.39	33.87	64.57	202.17	15.25
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters			12V-6000RPM Input				12V-6500RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
28.5	81	5.8	827.6	24.50	282.77	848.32	896.6	30.66	326.60	979.81
28.5	81	6.8	705.9	24.50	331.53	994.58	764.7	30.66	382.92	1148.75
28.5	81	7.9	607.6	24.50	385.16	1155.47	658.2	30.66	444.86	1334.58
28.5	81	8.8	545.5	24.50	429.03	1287.10	590.9	30.66	495.54	1486.62
28.5	81	9.8	489.8	24.50	477.79	1433.36	530.6	30.66	551.85	1655.55
28.5	81	10.5	457.1	24.50	511.92	1535.75	495.2	30.66	591.27	1773.80
28.5	81	11.6	413.8	24.50	565.55	1696.64	448.3	30.66	653.21	1959.63
33.5	73	18.6	258.1	22.08	817.26	2451.78	279.6	27.63	943.94	2831.83
33.5	73	24.0	200.0	22.08	1054.53	3163.59	216.7	27.63	1217.99	3653.97
33.5	73	28.0	171.4	22.08	1230.28	3690.85	185.7	27.63	1420.99	4262.97
33.5	73	33.6	142.9	22.08	1476.34	4429.02	154.8	27.63	1705.19	5115.56
36	65.6	60.0	80.0	19.85	2369.08	7107.24	86.7	24.83	2736.31	8208.92
36	65.6	71.0	67.6	19.85	2803.41	8410.23	73.2	24.83	3237.96	9713.89
36	65.6	83.0	57.8	19.85	3277.23	9831.68	62.7	24.83	3785.22	11355.67
36	65.6	91.0	52.7	19.85	3593.10	10779.31	57.1	24.83	4150.07	12450.20
36	65.6	100.0	48.0	19.85	3948.46	11845.39	52.0	24.83	4560.51	13681.54
36	65.6	108.0	44.4	19.85	4264.34	12793.02	48.1	24.83	4925.35	14776.06
36	65.6	118.0	40.7	19.85	4659.19	13977.56	44.1	24.83	5381.40	15000.00
40	59	191.0	25.1	17.85	6782.81	15000.00	27.2	22.33	7834.21	15000.00
40	59	226.0	21.2	17.85	8025.73	15000.00	23.0	22.33	9269.80	15000.00
40	59	265.0	18.1	17.85	9410.71	15000.00	19.6	22.33	10869.45	15000.00
40	59	288.0	16.7	17.85	10227.48	15000.00	18.1	22.33	11812.84	15000.00
40	59	345.0	13.9	17.85	12251.67	15000.00	15.1	22.33	14150.80	15000.00
40	59	379.0	12.7	17.85	13459.09	15000.00	13.7	22.33	15000.00	15000.00
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters			24V-5000RPM Input				24V-6000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
28.5	81	5.8	689.7	20.47	283.52	850.57	827.6	27.44	316.60	949.79
28.5	81	6.8	588.2	20.47	332.41	997.22	705.9	27.44	371.18	1113.55
28.5	81	7.9	506.3	20.47	386.18	1158.54	607.6	27.44	431.23	1293.69
28.5	81	8.8	454.5	20.47	430.17	1290.52	545.5	27.44	480.36	1441.07
28.5	81	9.8	408.2	20.47	479.06	1437.17	489.8	27.44	534.94	1604.83
28.5	81	10.5	381.0	20.47	513.28	1539.83	457.1	27.44	573.15	1719.46
28.5	81	11.6	344.8	20.47	567.05	1701.15	413.8	27.44	633.20	1899.59
33.5	73	18.6	215.1	18.45	819.43	2458.30	258.1	24.73	915.02	2745.06
33.5	73	24.0	166.7	18.45	1057.33	3172.00	200.0	24.73	1180.67	3542.02
33.5	73	28.0	142.9	18.45	1233.55	3700.66	171.4	24.73	1377.45	4132.35
33.5	73	33.6	119.0	18.45	1480.26	4440.79	142.9	24.73	1652.94	4958.83
36	65.6	60.0	66.7	16.58	2375.38	7126.13	80.0	22.22	2652.47	7957.41
36	65.6	71.0	56.3	16.58	2810.86	8432.58	67.6	22.22	3138.76	9416.27
36	65.6	83.0	48.2	16.58	3285.94	9857.81	57.8	22.22	3669.25	11007.75
36	65.6	91.0	44.0	16.58	3602.65	10807.96	52.7	22.22	4022.91	12068.74
36	65.6	100.0	40.0	16.58	3958.96	11876.88	48.0	22.22	4420.78	13262.35
36	65.6	108.0	37.0	16.58	4275.68	12827.03	44.4	22.22	4774.45	14323.34
36	65.6	118.0	33.9	16.58	4671.57	14014.72	40.7	22.22	5216.53	15000.00
40	59	191.0	20.9	14.91	6800.84	15000.00	25.1	19.98	7594.18	15000.00
40	59	226.0	17.7	14.91	8047.07	15000.00	21.2	19.98	8985.78	15000.00
40	59	265.0	15.1	14.91	9435.72	15000.00	18.1	19.98	10536.43	15000.00
40	59	288.0	13.9	14.91	10254.67	15000.00	16.7	19.98	11450.91	15000.00
40	59	345.0	11.6	14.91	12284.24	15000.00	13.9	19.98	13717.23	15000.00
40	59	379.0	10.6	14.91	13494.86	15000.00	12.7	19.98	15000.00	15000.00

2D drawing


Please let us know your requirements and we will provide you with transmission solutions.
