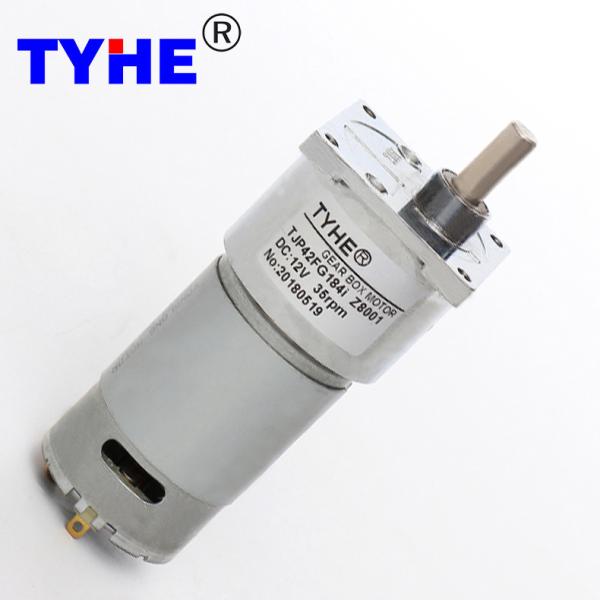

Mini Brushed DC Motor Steel Gearbox 200 Rpm Low Rpm Powder Metallurgy

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJP42FG
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

Mini Brushed DC Motor Steel Gearbox 200 Rpm Low Rpm Powder Metallurgy

Products Description

Manufacturer mini 12v 24v 18v 6 volt 100 rpm 200 rpm low rpm high torque 15w 14w 20kg cm 2.5nm rs 550 dc gear motor with encoder

Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
RS555	6	6000	560	4800	1.92	14.20	7.14	61.85	42.60	13.00
RS555	12	5000	240	4000	0.93	16.80	7.04	63.28	50.40	6.80
RS555	24	3500	70	2800	0.31	15.80	4.63	61.60	47.40	2.50
RS555	24	7600	220	6080	1.01	23.20	14.77	61.24	69.60	8.10
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters			6V-6000RPM Input				12V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.7	81	3.6	1333.3	5.78	41.41	124.22	1111.1	5.70	48.99	146.97
25.7	81	4.4	1090.9	5.78	50.61	151.83	909.1	5.70	59.88	179.63
25.7	81	5.4	888.9	5.78	62.11	186.33	740.7	5.70	73.48	220.45
25.7	81	6.8	705.9	5.78	78.21	234.64	588.2	5.70	92.53	277.60
25.7	81	8.6	558.1	5.78	98.92	296.75	465.1	5.70	117.03	351.09
29.3	73	9.7	494.8	5.21	100.55	301.65	412.4	5.14	118.96	356.88
29.3	73	11.8	406.8	5.21	122.32	366.96	339.0	5.14	144.72	434.15
29.3	73	14.6	328.8	5.21	151.34	454.03	274.0	5.14	179.05	537.16
29.3	73	18.2	263.7	5.21	188.66	565.98	219.8	5.14	223.20	669.61
29.3	73	23.3	206.0	5.21	241.53	724.58	171.7	5.14	285.75	857.25
29.3	65.6	25.9	185.3	4.68	241.26	723.79	154.4	4.62	285.44	856.32
29.3	65.6	31.6	151.9	4.68	294.36	883.08	126.6	4.62	348.26	1044.77
29.3	65.6	38.9	123.4	4.68	362.36	1087.08	102.8	4.62	428.71	1286.13
29.3	65.6	48.6	98.8	4.68	452.72	1358.16	82.3	4.62	535.61	1606.83
29.3	65.6	62.2	77.2	4.68	579.41	1738.22	64.3	4.62	685.49	2056.48
32.6	59	69.1	69.5	4.21	578.92	1736.76	57.9	4.15	684.92	2054.76
32.6	59	84.2	57.0	4.21	705.43	2116.28	47.5	4.15	834.59	2503.77
32.6	59	104	46.2	4.21	871.31	2613.94	38.5	4.15	1030.85	3092.54
32.6	59	130	36.9	4.21	1089.14	3267.42	30.8	4.15	1288.56	3865.68
32.6	59	164	29.3	4.21	1373.99	4121.98	24.4	4.15	1625.57	4876.70
32.6	59	170	28.2	4.21	1424.26	4272.78	23.5	4.15	1685.04	5000.00
36	53	184	26.1	3.78	1384.78	4154.35	21.7	3.73	1638.34	4915.01
36	53	225	21.3	3.78	1693.35	5000.00	17.8	3.73	2003.40	5000.00
36	53	276	17.4	3.78	2077.18	5000.00	14.5	3.73	2457.50	5000.00
36	53	346	13.9	3.78	2604.00	5000.00	11.6	3.73	3080.78	5000.00
36	53	442	10.9	3.78	3326.49	5000.00	9.0	3.73	3935.57	5000.00
36	53	459	10.5	3.78	3454.43	5000.00	8.7	3.73	4086.94	5000.00
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters			24V-3500RPM Input				24V-7600RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.7	81	3.6	777.8	3.75	46.07	138.22	1688.9	11.96	67.65	202.95
25.7	81	4.4	636.4	3.75	56.31	168.93	1381.8	11.96	82.68	248.05
25.7	81	5.4	518.5	3.75	69.11	207.33	1125.9	11.96	101.48	304.43
25.7	81	6.8	411.8	3.75	87.03	261.08	894.1	11.96	127.79	383.36
25.7	81	8.6	325.6	3.75	110.06	330.19	707.0	11.96	161.61	484.83
29.3	73	9.7	288.7	3.38	111.88	335.64	626.8	10.78	164.28	492.84
29.3	73	11.8	237.3	3.38	136.10	408.30	515.3	10.78	199.84	599.53
29.3	73	14.6	191.8	3.38	168.40	505.19	416.4	10.78	247.27	741.80
29.3	73	18.2	153.8	3.38	209.92	629.76	334.1	10.78	308.24	924.71
29.3	73	23.3	120.2	3.38	268.74	806.23	260.9	10.78	394.61	1183.83
29.3	65.6	25.9	108.1	3.04	268.45	805.34	234.7	9.69	394.18	1182.53
29.3	65.6	31.6	88.6	3.04	327.53	982.58	192.4	9.69	480.93	1442.78
29.3	65.6	38.9	72.0	3.04	403.19	1209.57	156.3	9.69	592.03	1776.08
29.3	65.6	48.6	57.6	3.04	503.73	1511.19	125.1	9.69	739.65	2218.96
29.3	65.6	62.2	45.0	3.04	644.69	1934.07	97.7	9.69	946.63	2839.90
32.6	59	69.1	40.5	2.73	644.15	1932.45	88.0	8.71	945.84	2837.52
32.6	59	84.2	33.3	2.73	784.91	2354.74	72.2	8.71	1152.53	3457.59
32.6	59	104	26.9	2.73	969.49	2908.46	58.5	8.71	1423.55	4270.66
32.6	59	130	21.5	2.73	1211.86	3635.58	46.8	8.71	1779.44	5000.00
32.6	59	164	17.1	2.73	1528.81	4586.42	37.1	8.71	2244.83	5000.00
32.6	59	170	16.5	2.73	1584.74	4754.22	35.8	8.71	2326.96	5000.00
36	53	184	15.2	2.46	1540.82	4622.45	33.0	7.83	2262.46	5000.00
36	53	225	12.4	2.46	1884.15	5000.00	27.0	7.83	2766.60	5000.00
36	53	276	10.1	2.46	2311.22	5000.00	22.0	7.83	3393.70	5000.00
36	53	346	8.1	2.46	2897.40	5000.00	17.6	7.83	4254.42	5000.00
36	53	442	6.3	2.46	3701.31	5000.00	13.8	7.83	5434.83	5000.00
36	53	459	6.1	2.46	3843.67	5000.00	13.2	7.83	5643.86	5000.00

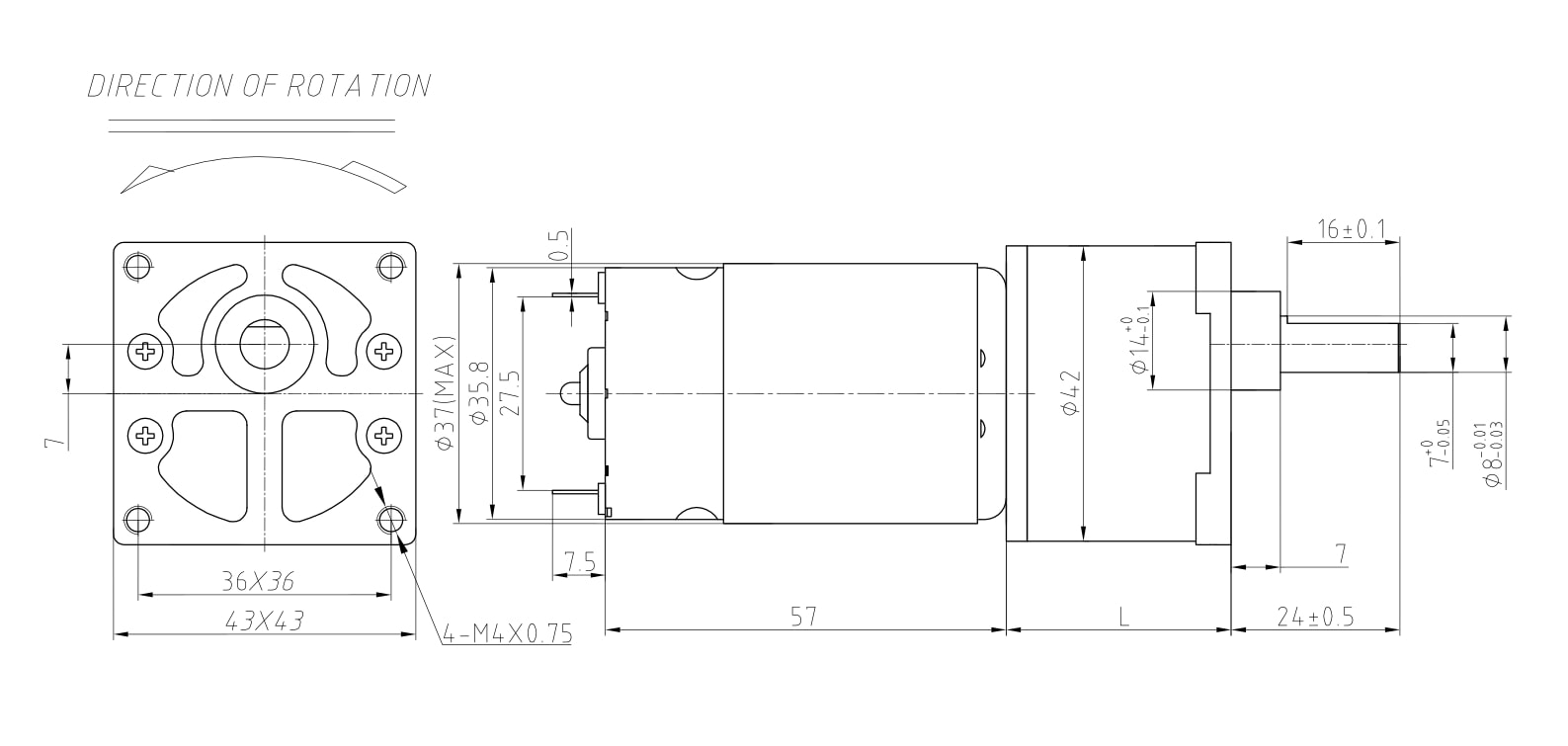

2D drawing


Please let us know your requirements and we will provide you with transmission solutions.

16mm Diameter High Torque Low 10 Rpm RF130 Dc Brushed Gear Motor with ce and rohs for Medical Equipment 2

16mm Diameter High Torque Low 10 Rpm RF130 Dc Brushed Gear Motor with ce and rohs for Medical Equipment 3
