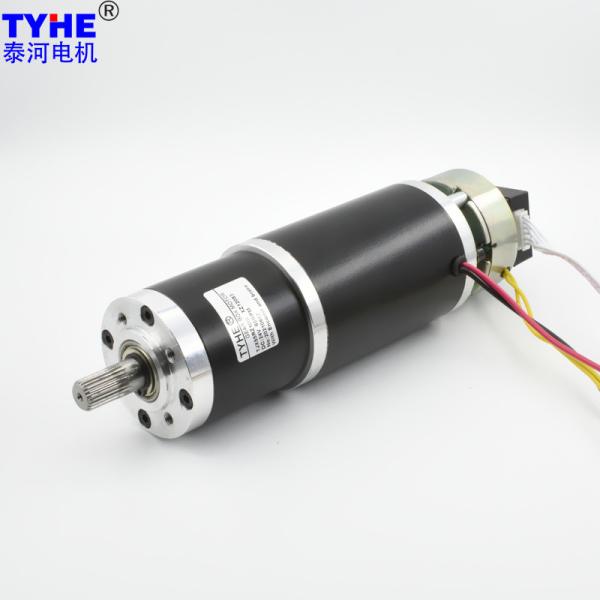

    55mm 100kg 30 Nm DC Planetary Gear Motor With Brake Steel Gear

    Ask Lasest Price
    Brand Name : TYHE
    Model Number : TJX55RZ
    Certification : CE/ROHS/ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 100000pcs per month
    Delivery Time : 15 working days after payment
    • Product Details
    • Company Profile

    55mm 100kg 30 Nm DC Planetary Gear Motor With Brake Steel Gear

    Products Description

    High Precision 55mm 24v 12v high torque 100kg 30 nm dc planetary gear motor for Armarium with brake

    2D drawing


    Specifications

    DC Motor Technical Data
    ModelRated Voltage(V)No-Load ParametersRated ParametersStall Parameters
    SpeedCurrentSpeedCurrentTorqueOutputeffTorqueCurrent
    rpmmArpmAmN.mW%mN.mA
    ZY6095246000100048005.42158.5279.6761.29475.5647.00
    ZY6095247000130056007.03175.85103.1261.09527.5561.00
    DC Motor With Gearbox Technical Data (0.8M)
    Gearbox parameters24V-6000RPM Input24V-7000RPM Input
    Length (mm)Transmission Efficiency (%)Gear RatioRated Output Speed (RPM)Rated Output Power (W)Rated Torque (mN.m)Maximum Instantaneous Torque (mN.m)Rated Output Speed (RPM)Rated Output Power (W)Rated Torque (mN.m)Maximum Instantaneous Torque (mN.m)
    31.8903.71297.371.71527.871583.611513.592.80585.581756.74
    31.8905.2923.171.71741.872225.621076.992.80822.982468.93
    448113.7350.464.541759.105277.29408.883.521951.415854.22
    448119.2250.064.542465.307395.91291.783.522734.828204.46
    448126.9178.464.543453.9910361.98208.283.523831.6011494.79
    448135.0137.164.544494.0413482.13160.083.524985.3514956.04
    57.57351.094.158.165901.7017705.10109.875.276546.9019640.69
    57.57371.067.658.168216.0924648.2778.975.279114.3127342.92
    57.573100.048.058.1611571.9634715.8856.075.2712837.0538511.15
    57.573139.034.558.1616085.0248000.0040.375.2717843.5048000.00
    72.565.6189.025.452.2719653.9448000.0029.667.6421802.5948000.00
    72.565.6264.018.252.2727453.1348000.0021.267.6430454.4148000.00
    72.565.6369.013.052.2738371.9948000.0015.267.6442566.9548000.00
    72.565.6514.09.352.2748000.0048000.0010.967.6448000.0048000.00
    72.565.6721.06.752.2748000.0048000.007.867.6448000.0048000.00
    85.759699.06.947.0148000.0048000.008.060.8448000.0048000.00
    85.759977.04.947.0148000.0048000.005.760.8448000.0048000.00
    85.7591367.03.547.0148000.0048000.004.160.8448000.0048000.00
    85.7591911.02.547.0148000.0048000.002.960.8448000.0048000.00
    85.7592672.01.847.0148000.0048000.002.160.8448000.0048000.00
    85.7593736.01.347.0148000.0048000.001.560.8448000.0048000.00

    Please let us know your requirements and we will provide you with transmission solutions.
