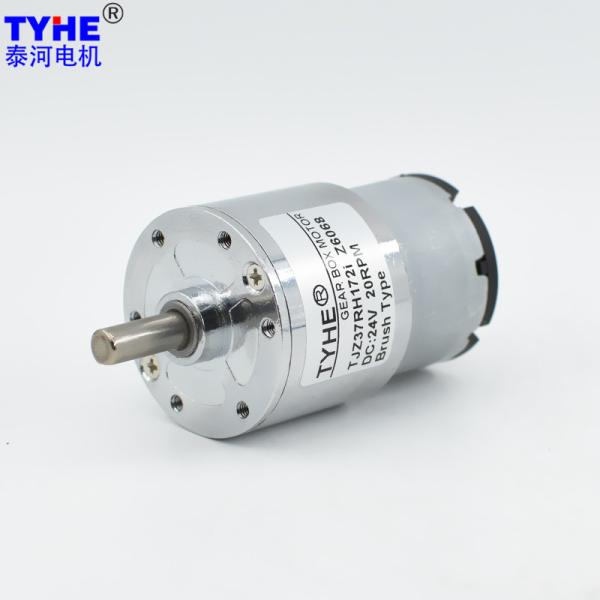

37mm Gearbox 2 Watt 2nm Dc Spur Gear Motor 3v 6v 12v Low Rpm 2rpm 5rpm

Products Description

Customizable 37mm Gearbox 3v 6v 7.2v 12v 14.4v High Torque Low Rpm 2 Watt 2rpm 5rpm 2nm 3500rpm Micro Dc Spur Gear Motor

2D drawing

Model	End cover dimensions	Motor type	Regular Shaft	Weight
TJZ37RH	φ37mm	ZY3324	6mm-D cut	170g

Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
ZY3324	6	7000	80	5600	0.37	2.35	1.38	62.78	7.05	2.95
ZY3324	7	4000	30	3200	0.14	1.79	0.60	62.70	5.37	1.10
ZY3324	12	4000	18	3200	0.08	1.75	0.59	62.12	5.25	0.62
ZY3324	12	5000	32	4000	0.12	2.12	0.89	64.07	6.36	0.81
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			6V-7000RPM Input				7V-4000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
22.5	81	4.6	1217.4	1.12	8.76	26.27	695.7	0.49	6.67	20.01
22.5	81	5.9	949.2	1.12	11.23	33.69	542.4	0.49	8.55	25.66
22.5	81	6.9	811.6	1.12	13.13	39.40	463.8	0.49	10.00	30.01
22.5	73	8.4	666.7	1.01	14.41	43.23	381.0	0.44	10.98	32.93
22.5	73	10.6	528.3	1.01	18.18	54.55	301.9	0.44	13.85	41.55
22.5	73	13.5	414.8	1.01	23.16	69.48	237.0	0.44	17.64	52.92
22.5	73	16.0	350.0	1.01	27.45	82.34	200.0	0.44	20.91	62.72
24.5	65.6	19.3	290.2	0.90	29.75	89.26	165.8	0.39	22.66	67.99
24.5	65.6	24.4	229.5	0.90	37.62	112.85	131.1	0.39	28.65	85.95
24.5	65.6	31.6	177.2	0.90	48.71	146.14	101.3	0.39	37.11	111.32
24.5	65.6	37.0	151.4	0.90	57.04	171.12	86.5	0.39	43.45	130.34
26.5	59	45.0	124.4	0.81	62.39	187.18	71.1	0.35	47.52	142.57
26.5	59	57.0	98.2	0.81	79.03	237.09	56.1	0.35	60.20	180.59
26.5	59	73.6	76.1	0.81	102.05	306.14	43.5	0.35	77.73	233.19
26.5	59	86.0	65.1	0.81	119.24	357.72	37.2	0.35	90.82	272.47
26.5	59	95.0	58.9	0.81	131.72	395.15	33.7	0.35	100.33	300.99
29.5	53	105.0	53.3	0.73	130.78	392.33	30.5	0.32	99.61	298.84
29.5	53	133.0	42.1	0.73	165.65	496.95	24.1	0.32	126.18	378.53
29.5	53	172.0	32.6	0.73	214.23	642.68	18.6	0.32	163.18	489.53
29.5	53	201.0	27.9	0.73	250.35	751.04	15.9	0.32	190.69	572.07
29.5	53	221.0	25.3	0.73	275.26	825.77	14.5	0.32	209.66	628.99
29.5	53	244.0	23.0	0.73	303.90	911.71	13.1	0.32	231.48	694.45
32.5	47.8	245.0	22.9	0.66	275.21	825.63	13.1	0.29	209.63	628.88
32.5	47.8	310.0	18.1	0.66	348.22	1044.67	10.3	0.29	265.24	795.73
32.5	47.8	401.0	14.0	0.66	450.44	1351.33	8.0	0.29	343.10	1029.31
32.5	47.8	469.0	11.9	0.66	526.83	1580.48	6.8	0.29	401.29	1203.86
32.5	47.8	516.0	10.9	0.66	579.62	1738.87	6.2	0.29	441.50	1324.50
32.5	47.8	569.0	9.8	0.66	639.16	1917.47	5.6	0.29	486.85	1460.54
32.5	47.8	627.0	8.9	0.66	704.31	2112.93	5.1	0.29	536.47	1609.42
32.5	43	1093.0	5.1	0.59	1104.48	2500.00	2.9	0.26	841.28	2500.00
32.5	43	1205.0	4.6	0.59	1217.65	2500.00	2.7	0.26	927.49	2500.00
32.5	43	1328.0	4.2	0.59	1341.94	2500.00	2.4	0.26	1022.16	2500.00
32.5	43	1463.0	3.8	0.59	1478.36	2500.00	2.2	0.26	1126.07	2500.00
32.5	43	1613.0	3.5	0.59	1629.94	2500.00	2.0	0.26	1241.53	2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			12V-4000RPM Input				12V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
22.5	81	4.6	695.7	0.47	6.52	19.56	869.6	0.72	7.90	23.70
22.5	81	5.9	542.4	0.47	8.36	25.09	678.0	0.72	10.13	30.39
22.5	81	6.9	463.8	0.47	9.78	29.34	579.7	0.72	11.85	35.55
22.5	73	8.4	381.0	0.43	10.73	32.19	476.2	0.65	13.00	39.00
22.5	73	10.6	301.9	0.43	13.54	40.62	377.4	0.65	16.40	49.21
22.5	73	13.5	237.0	0.43	17.25	51.74	296.3	0.65	20.89	62.68
22.5	73	16.0	200.0	0.43	20.44	61.32	250.0	0.65	24.76	74.28
24.5	65.6	19.3	165.8	0.38	22.16	66.47	207.3	0.58	26.84	80.52
24.5	65.6	24.4	131.1	0.38	28.01	84.03	163.9	0.58	33.93	101.80
24.5	65.6	31.6	101.3	0.38	36.28	108.83	126.6	0.58	43.95	131.84
24.5	65.6	37.0	86.5	0.38	42.48	127.43	108.1	0.58	51.46	154.37
26.5	59	45.0	71.1	0.35	46.46	139.39	88.9	0.52	56.29	168.86
26.5	59	57.0	56.1	0.35	58.85	176.56	70.2	0.52	71.30	213.89
26.5	59	73.6	43.5	0.35	75.99	227.98	54.3	0.52	92.06	276.18
26.5	59	86.0	37.2	0.35	88.80	266.39	46.5	0.52	107.57	322.71
26.5	59	95.0	33.7	0.35	98.09	294.26	42.1	0.52	118.83	356.48
29.5	53	105.0	30.5	0.31	97.39	292.16	38.1	0.47	117.98	353.93
29.5	53	133.0	24.1	0.31	123.36	370.07	30.1	0.47	149.44	448.32
29.5	53	172.0	18.6	0.31	159.53	478.59	23.3	0.47	193.26	579.78
29.5	53	201.0	15.9	0.31	186.43	559.28	19.9	0.47	225.84	677.53
29.5	53	221.0	14.5	0.31	204.98	614.93	18.1	0.47	248.32	744.95
29.5	53	244.0	13.1	0.31	226.31	678.93	16.4	0.47	274.16	822.48
32.5	47.8	245.0	13.1	0.28	204.94	614.83	16.3	0.42	248.27	744.82
32.5	47.8	310.0	10.3	0.28	259.32	777.95	12.9	0.42	314.14	942.42
32.5	47.8	401.0	8.0	0.28	335.44	1006.31	10.0	0.42	406.36	1219.07
32.5	47.8	469.0	6.8	0.28	392.32	1176.96	8.5	0.42	475.27	1425.80
32.5	47.8	516.0	6.2	0.28	431.63	1294.90	7.8	0.42	522.89	1568.68
32.5	47.8	569.0	5.6	0.28	475.97	1427.91	7.0	0.42	576.60	1729.81
32.5	47.8	627.0	5.1	0.28	524.49	1573.46	6.4	0.42	635.38	1906.13
32.5	43	1093.0	2.9	0.25	822.48	2467.45	3.7	0.38	996.38	2500.00
32.5	43	1205.0	2.7	0.25	906.76	2500.00	3.3	0.38	1098.48	2500.00
32.5	43	1328.0	2.4	0.25	999.32	2500.00	3.0	0.38	1210.60	2500.00
32.5	43	1463.0	2.2	0.25	1100.91	2500.00	2.7	0.38	1333.67	2500.00
32.5	43	1613.0	2.0	0.25	1213.78	2500.00	2.5	0.38	1470.41	2500.00


Please let us know your requirements and we will provide you with transmission solutions.
