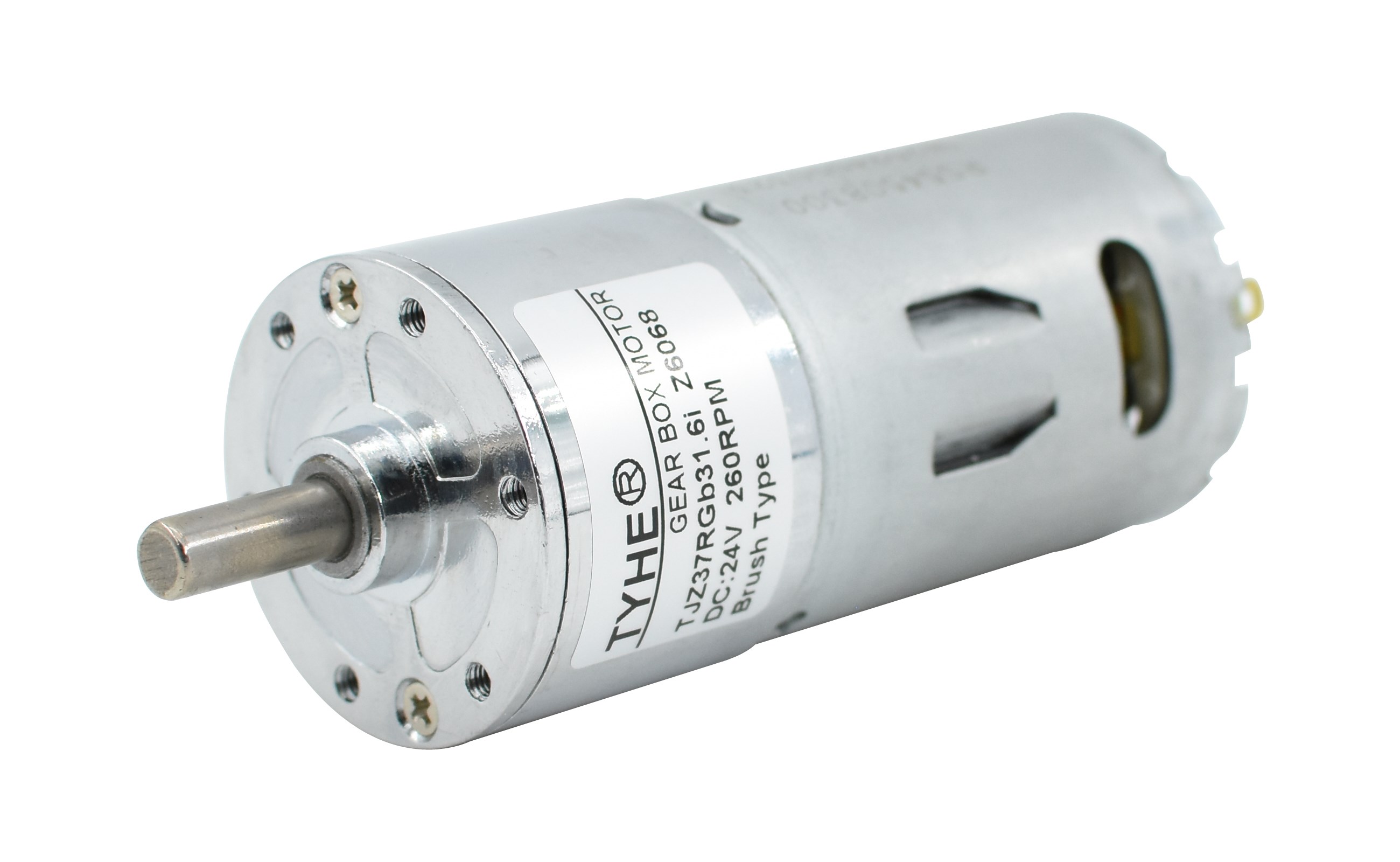

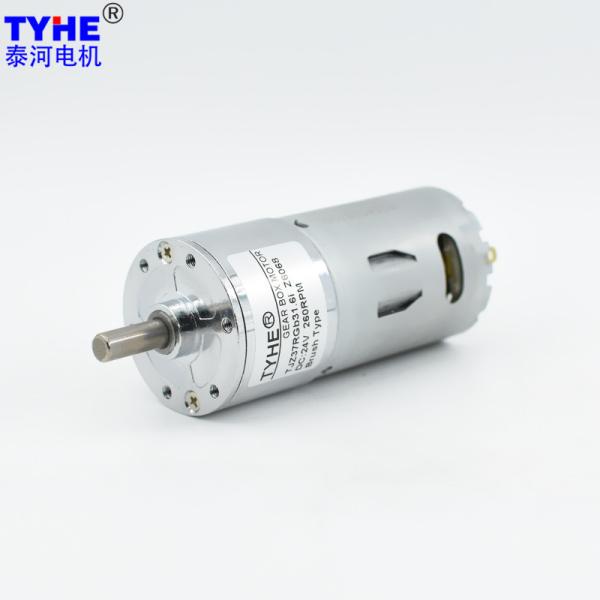

12v High Torque Dc Geared Motor 1000 Rpm 100 Rpm 2.5nm 12w 15 Watt

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJZ37RGb
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

12v High Torque Dc Geared Motor 1000 Rpm 100 Rpm 2.5nm 12w 15 Watt

Custom Speed 37mm Gearbox 6v 12 V 24 Volt 12v 1000rpm 100 Rpm High Torque 2.5nm 25kgcm 12w 15 Watt Small Dc Geared Motor

Products Description

Custom Speed 37mm Gearbox 6v 24 Volt 12v 1000rpm 100 Rpm High Torque 2.5nm 25kgcm 12w 15 Watt Small Dc Geared Motor

2D drawing

Model	End cover dimensions	Motor type	Regular Shaft	Weight
TJZ37RGb	φ37mm	RS545	6mm-D cut	305g

Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
RS545	6	3200	280	2560	0.81	11.20	3.00	61.65	33.60	4.70
RS545	12	2000	70	1600	0.20	8.95	1.50	63.54	26.85	1.10
RS545	24	6000	160	4800	0.60	17.50	8.80	61.25	52.50	4.30
RS545	24	8300	200	6640	0.88	19.30	13.42	63.90	57.90	6.90
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			6V-3200RPM Input				12V-2000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
22.5	81	4.6	556.5	2.43	41.73	125.19	347.8	1.21	33.35	100.04
22.5	81	5.9	433.9	2.43	53.52	160.57	271.2	1.21	42.77	128.32
22.5	73	8.4	304.8	2.19	68.68	206.04	190.5	1.09	54.88	164.64
22.5	73	10.6	241.5	2.19	86.67	260.00	150.9	1.09	69.26	207.77
22.5	73	13.5	189.6	2.19	110.38	331.13	118.5	1.09	88.20	264.61
24.5	65.6	19.3	132.6	1.97	141.80	425.40	82.9	0.98	113.31	339.94
24.5	65.6	24.4	104.9	1.97	179.27	537.82	65.6	0.98	143.26	429.77
24.5	65.6	31.6	81.0	1.97	232.17	696.51	50.6	0.98	185.53	556.59
26.5	59	45.0	56.9	1.77	297.36	892.08	35.6	0.88	237.62	712.87
26.5	59	57.0	44.9	1.77	376.66	1129.97	28.1	0.88	300.99	902.97
26.5	59	73.6	34.8	1.77	486.35	1459.05	21.7	0.88	388.64	1165.93
29.5	53	105.0	24.4	1.59	623.28	1869.84	15.2	0.79	498.07	1494.20
29.5	53	133.0	19.2	1.59	789.49	2368.46	12.0	0.79	630.89	1892.66
29.5	53	172.0	14.9	1.59	1020.99	2500.00	9.3	0.79	815.88	2447.65
32.5	47.8	245.0	10.4	1.44	1311.63	2500.00	6.5	0.72	1048.13	2500.00
32.5	47.8	310.0	8.3	1.44	1659.62	2500.00	5.2	0.72	1326.21	2500.00
32.5	47.8	401.0	6.4	1.44	2146.79	2500.00	4.0	0.72	1715.52	2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			24V-6000RPM Input				24V-8300RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
22.5	81	4.6	1043.5	7.12	65.21	195.62	1443.5	10.87	71.91	215.74
22.5	81	5.9	813.6	7.12	83.63	250.90	1125.4	10.87	92.23	276.70
22.5	73	8.4	571.4	6.42	107.31	321.93	790.5	9.80	118.35	355.04
22.5	73	10.6	452.8	6.42	135.42	406.25	626.4	9.80	149.34	448.03
22.5	73	13.5	355.6	6.42	172.46	517.39	491.9	9.80	190.20	570.60
24.5	65.6	19.3	248.7	5.77	221.56	664.69	344.0	8.80	244.35	733.06
24.5	65.6	24.4	196.7	5.77	280.11	840.34	272.1	8.80	308.92	926.77
24.5	65.6	31.6	151.9	5.77	362.77	1088.30	210.1	8.80	400.08	1200.24
26.5	59	45.0	106.7	5.19	464.63	1393.88	147.6	7.92	512.42	1537.25
26.5	59	57.0	84.2	5.19	588.53	1765.58	116.5	7.92	649.06	1947.18
26.5	59	73.6	65.2	5.19	759.92	2279.76	90.2	7.92	838.08	2500.00
29.5	53	105.0	45.7	4.66	973.88	2500.00	63.2	7.11	1074.05	2500.00
29.5	53	133.0	36.1	4.66	1233.58	2500.00	49.9	7.11	1360.46	2500.00
29.5	53	172.0	27.9	4.66	1595.30	2500.00	38.6	7.11	1759.39	2500.00
32.5	47.8	245.0	19.6	4.20	2049.43	2500.00	27.1	6.41	2260.22	2500.00
32.5	47.8	310.0	15.5	4.20	2500.00	2500.00	21.4	6.41	2500.00	2500.00
32.5	47.8	401.0	12.0	4.20	2500.00	2500.00	16.6	6.41	2500.00	2500.00


Please let us know your requirements and we will provide you with transmission solutions.
