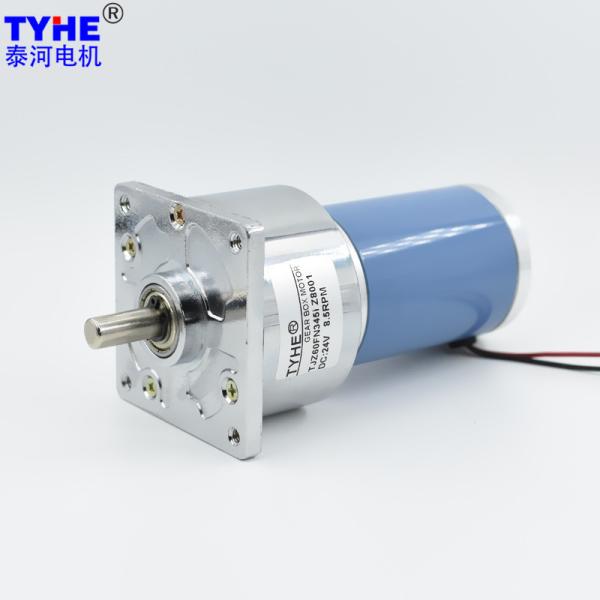

60mm Gearmotor 12v 24v 1500rpm 5nm Dc Metal Gear Motor 50kgcm 10nm

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJZ60FN
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

60mm Gearmotor 12v 24v 1500rpm 5nm Dc Metal Gear Motor 50kgcm 10nm

Products Description

Custom speed 60mm gearmotor 12v 24v 1500rpm 5nm high torque 50kgcm 80kgcm 10nm 35w 40w brushed dc metal geared motor with ce

Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
ZY4564	12	3500	300	2800	1.08	27.50	8.06	62.50	82.50	7.50
ZY4564	12	5100	610	4080	2.19	38.00	16.23	61.89	114.00	15.25
ZY4564	24	6000	500	4800	1.92	59.80	30.06	65.34	179.40	14.00
ZY4564	24	7000	570	5600	2.23	57.00	33.42	62.38	171.00	16.53
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters			12V-3500RPM Input				12V-5100RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
28.5	81	5.8	482.8	6.53	129.20	387.59	703.4	13.15	178.52	535.57
28.5	81	6.8	411.8	6.53	151.47	454.41	600.0	13.15	209.30	627.91
28.5	81	7.9	354.4	6.53	175.97	527.92	516.5	13.15	243.16	729.49
28.5	81	8.8	318.2	6.53	196.02	588.06	463.6	13.15	270.86	812.59
28.5	81	9.8	285.7	6.53	218.30	654.89	416.3	13.15	301.64	904.93
28.5	81	10.5	266.7	6.53	233.89	701.66	388.6	13.15	323.19	969.57
28.5	81	11.6	241.4	6.53	258.39	775.17	351.7	13.15	357.05	1071.14
33.5	73	18.6	150.5	5.89	373.40	1120.19	219.4	11.85	515.96	1547.89
33.5	73	24.0	116.7	5.89	481.80	1445.40	170.0	11.85	665.76	1997.28
33.5	73	28.0	100.0	5.89	562.10	1686.30	145.7	11.85	776.72	2330.16
33.5	73	33.6	83.3	5.89	674.52	2023.56	121.4	11.85	932.06	2796.19
36	65.6	60.0	46.7	5.29	1082.40	3247.20	68.0	10.65	1495.68	4487.04
36	65.6	71.0	39.4	5.29	1280.84	3842.52	57.5	10.65	1769.89	5309.66
36	65.6	83.0	33.7	5.29	1497.32	4491.96	49.2	10.65	2069.02	6207.07
36	65.6	91.0	30.8	5.29	1641.64	4924.92	44.8	10.65	2268.45	6805.34
36	65.6	100.0	28.0	5.29	1804.00	5412.00	40.8	10.65	2492.80	7478.40
36	65.6	108.0	25.9	5.29	1948.32	5844.96	37.8	10.65	2692.22	8076.67
36	65.6	118.0	23.7	5.29	2128.72	6386.16	34.6	10.65	2941.50	8824.51
40	59	191.0	14.7	4.76	3098.98	9296.93	21.4	9.58	4282.22	12846.66
40	59	226.0	12.4	4.76	3666.85	11000.55	18.1	9.58	5066.92	15000.00
40	59	265.0	10.6	4.76	4299.63	12898.88	15.4	9.58	5941.30	15000.00
40	59	288.0	9.7	4.76	4672.80	14018.40	14.2	9.58	6456.96	15000.00
40	59	345.0	8.1	4.76	5597.63	15000.00	11.8	9.58	7734.90	15000.00
40	59	379.0	7.4	4.76	6149.28	15000.00	10.8	9.58	8497.18	15000.00
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters			24V-6000RPM Input				24V-7000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
28.5	81	5.8	827.6	24.35	280.94	842.82	965.5	27.07	267.79	803.36
28.5	81	6.8	705.9	24.35	329.38	988.14	823.5	27.07	313.96	941.87
28.5	81	7.9	607.6	24.35	382.66	1147.98	708.9	27.07	364.74	1094.23
28.5	81	8.8	545.5	24.35	426.25	1278.76	636.4	27.07	406.30	1218.89
28.5	81	9.8	489.8	24.35	474.69	1424.08	571.4	27.07	452.47	1357.40
28.5	81	10.5	457.1	24.35	508.60	1525.80	533.3	27.07	484.79	1454.36
28.5	81	11.6	413.8	24.35	561.88	1685.64	482.8	27.07	535.57	1606.72
33.5	73	18.6	258.1	21.94	811.96	2435.89	301.1	24.40	773.95	2321.84
33.5	73	24.0	200.0	21.94	1047.70	3143.09	233.3	24.40	998.64	2995.92
33.5	73	28.0	171.4	21.94	1222.31	3666.94	200.0	24.40	1165.08	3495.24
33.5	73	33.6	142.9	21.94	1466.77	4400.32	166.7	24.40	1398.10	4194.29
36	65.6	60.0	80.0	19.72	2353.73	7061.18	93.3	21.93	2243.52	6730.56
36	65.6	71.0	67.6	19.72	2785.24	8355.73	78.9	21.93	2654.83	7964.50
36	65.6	83.0	57.8	19.72	3255.99	9767.97	67.5	21.93	3103.54	9310.61
36	65.6	91.0	52.7	19.72	3569.82	10709.46	61.5	21.93	3402.67	10208.02
36	65.6	100.0	48.0	19.72	3922.88	11768.64	56.0	21.93	3739.20	11217.60
36	65.6	108.0	44.4	19.72	4236.71	12710.13	51.9	21.93	4038.34	12115.01
36	65.6	118.0	40.7	19.72	4629.00	13887.00	47.5	21.93	4412.26	13236.77
40	59	191.0	25.1	17.73	6738.86	15000.00	29.3	19.72	6423.33	15000.00
40	59	226.0	21.2	17.73	7973.73	15000.00	24.8	19.72	7600.38	15000.00
40	59	265.0	18.1	17.73	9349.73	15000.00	21.1	19.72	8911.95	15000.00
40	59	288.0	16.7	17.73	10161.22	15000.00	19.4	19.72	9685.44	15000.00
40	59	345.0	13.9	17.73	12172.29	15000.00	16.2	19.72	11602.35	15000.00
40	59	379.0	12.7	17.73	13371.88	15000.00	14.8	19.72	12745.77	15000.00

2D drawing


Please let us know your requirements and we will provide you with transmission solutions.

16mm Diameter High Torque Low 10 Rpm RF130 Dc Brushed Gear Motor with ce and rohs for Medical Equipment 2

16mm Diameter High Torque Low 10 Rpm RF130 Dc Brushed Gear Motor with ce and rohs for Medical Equipment 3

Product Tags:

5nm Dc Metal Gear Motor

1500rpm Dc Metal Gear Motor

1500rpm DC Spur Gear Motor

60mm Gearmotor 12v 24v 1500rpm 5nm Dc Metal Gear Motor 50kgcm 10nm
