CE 60rpm RS385 DC Planetary Gear Motor 6V 7.4V 5W Low Noise

Products Description

TYHE Low Noise 28mm Rs385 6v 7.4v 12v 24v 100rpm 60rpm 5w Dc Planetary Gear Motor For Automatic Feeder Machine

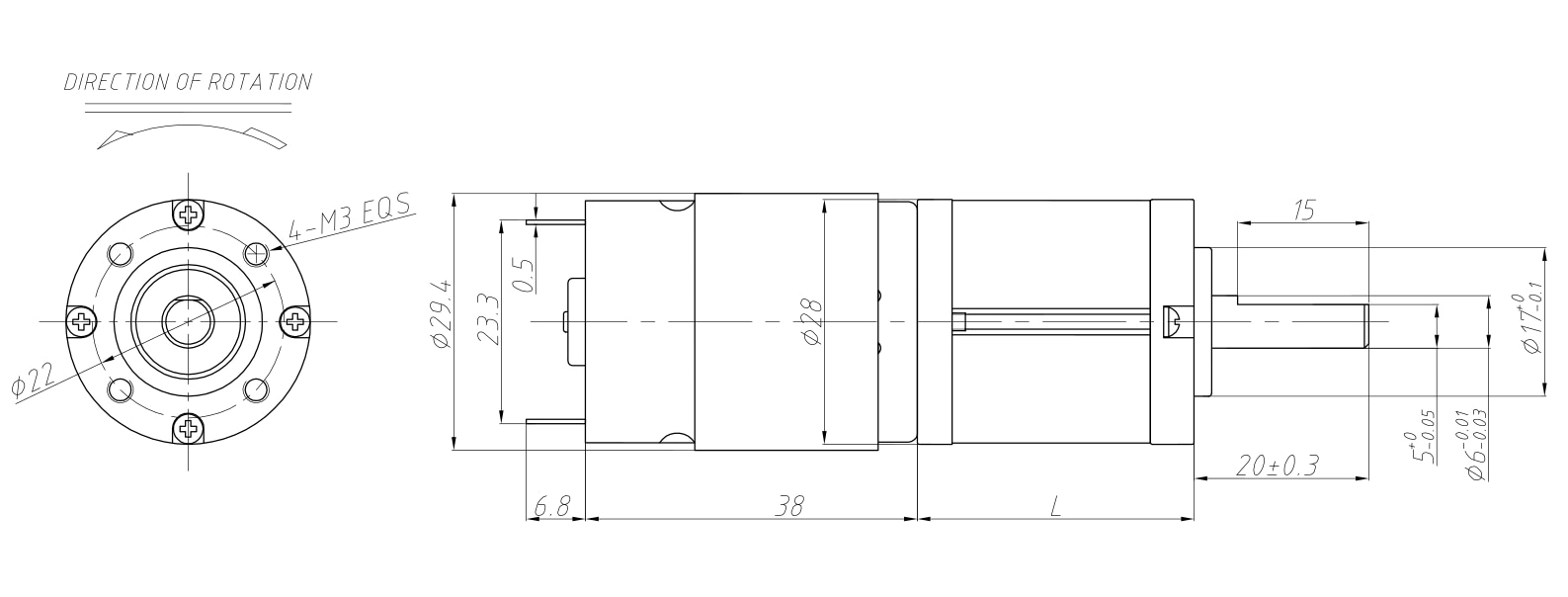

2D drawing


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
RS385	12	5500	140	4400	0.30	5.03	2.32	64.37	15.09	1.08
RS385	12	8800	205	7040	0.64	6.50	4.79	62.31	19.50	4.00
RS385	12	20000	320	16000	1.73	8.10	13.57	65.37	24.30	15.00
RS385	24	5500	55	4400	0.15	5.10	2.35	64.20	15.30	0.84
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			12V-5500RPM Input				12V-8800RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
20.2	90	3.4	1294.1	2.09	15.39	46.18	2070.6	4.31	19.89	59.67
20.2	90	4.6	956.5	2.09	20.82	62.47	1530.4	4.31	26.91	80.73
25.9	81	11.2	392.9	1.88	45.63	136.90	628.6	3.88	58.97	176.90
25.9	81	15.5	283.9	1.88	63.15	189.45	454.2	3.88	81.61	244.82
25.9	81	21.5	204.7	1.88	87.60	262.79	327.4	3.88	113.20	339.59
31.7	73	38.0	115.8	1.69	139.53	418.60	185.3	3.50	180.31	540.93
31.7	73	52.0	84.6	1.69	190.94	572.82	135.4	3.50	246.74	740.22
31.7	73	72.0	61.1	1.69	264.38	793.13	97.8	3.50	341.64	1024.92
31.7	73	100.0	44.0	1.69	367.19	1101.57	70.4	3.50	474.50	1423.50
37.5	65.6	126.0	34.9	1.52	415.76	1247.28	55.9	3.14	537.26	1611.79
37.5	65.6	175.0	25.1	1.52	577.44	1732.33	40.2	3.14	746.20	2238.60
37.5	65.6	242.0	18.2	1.52	798.52	2395.57	29.1	3.14	1031.89	3095.66
37.5	65.6	334.0	13.2	1.52	1102.09	3306.28	21.1	3.14	1424.18	4272.53
37.5	65.6	462.0	9.5	1.52	1524.45	4573.36	15.2	3.14	1969.97	5000.00
43.3	59	424.0	10.4	1.37	1258.30	5000.00	16.6	2.83	1626.04	4878.12
43.3	59	586.0	7.5	1.37	1739.07	5000.00	12.0	2.83	2247.31	5000.00
43.3	59	810.0	5.4	1.37	2403.84	5000.00	8.7	2.83	3106.35	5000.00
43.3	59	1120.0	3.9	1.37	3323.82	5000.00	6.3	2.83	4295.20	5000.00
43.3	59	1549.0	2.8	1.37	4596.97	5000.00	4.5	2.83	5000.00	5000.00
43.3	59	2142.0	2.1	1.37	5000.00	5000.00	3.3	2.83	5000.00	5000.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			12V-20000RPM Input				24V-5500RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
20.2	90	3.4	4705.9	12.21	24.79	74.36	1294.1	2.11	15.61	46.82
20.2	90	4.6	3478.3	12.21	33.53	100.60	956.5	2.11	21.11	63.34
25.9	81	11.2	1428.6	10.99	73.48	220.45	392.9	1.90	46.27	138.80
25.9	81	15.5	1032.3	10.99	101.70	305.09	283.9	1.90	64.03	192.09
25.9	81	21.5	744.2	10.99	141.06	423.18	204.7	1.90	88.82	266.45
31.7	73	38.0	421.1	9.91	224.69	674.08	115.8	1.72	141.47	424.42
31.7	73	52.0	307.7	9.91	307.48	922.43	84.6	1.72	193.60	580.79
31.7	73	72.0	222.2	9.91	425.74	1277.21	61.1	1.72	268.06	804.17
31.7	73	100.0	160.0	9.91	591.30	1773.90	44.0	1.72	372.30	1116.90
37.5	65.6	126.0	127.0	8.90	669.51	2008.54	34.9	1.54	421.55	1264.64
37.5	65.6	175.0	91.4	8.90	929.88	2789.64	25.1	1.54	585.48	1756.44
37.5	65.6	242.0	66.1	8.90	1285.89	3857.67	18.2	1.54	809.64	2428.91
37.5	65.6	334.0	47.9	8.90	1774.74	5000.00	13.2	1.54	1117.43	3352.29
37.5	65.6	462.0	34.6	8.90	2454.88	5000.00	9.5	1.54	1545.67	4637.00
43.3	59	424.0	37.7	8.01	2026.30	5000.00	10.4	1.39	1275.82	3827.45
43.3	59	586.0	27.3	8.01	2800.49	5000.00	7.5	1.39	1763.27	5000.00
43.3	59	810.0	19.8	8.01	3870.99	5000.00	5.4	1.39	2437.29	5000.00
43.3	59	1120.0	14.3	8.01	5000.00	5000.00	3.9	1.39	3370.08	5000.00
43.3	59	1549.0	10.3	8.01	5000.00	5000.00	2.8	1.39	4660.94	5000.00
43.3	59	2142.0	7.5	8.01	5000.00	5000.00	2.1	1.39	5000.00	5000.00

Please let us know your requirements and we will provide you with transmission solutions.
