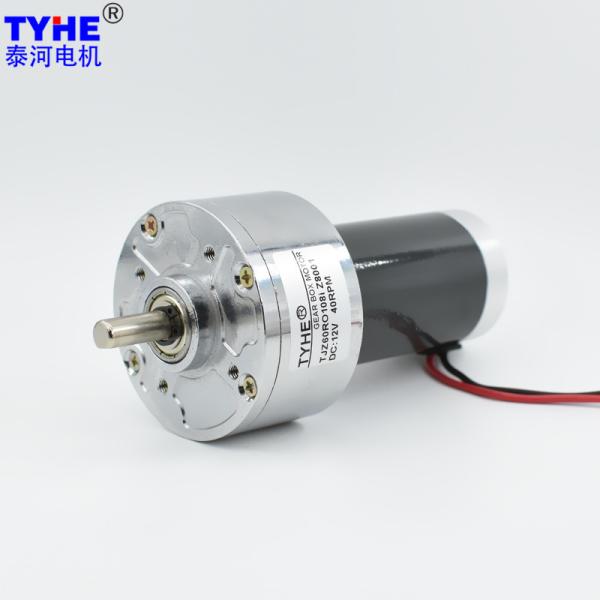

OEM ODM 6V Low Rpm High Torque DC Gear Motor 60mm 3000rpm 5000rpm 10nm

Product Categories

Wenzhou Tyhe Motor Co., Ltd.

Contact Now

OEM ODM 6V Low Rpm High Torque DC Gear Motor 60mm 3000rpm 5000rpm 10nm

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJZ60RO
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

OEM ODM 6V Low Rpm High Torque DC Gear Motor 60mm 3000rpm 5000rpm 10nm

Products Description

Custom OD60mm 6v 12v 1000rpm 3000rpm 5000rpm 40w 10nm Low Rpm Dc 12v Gear Motor High Torque

2D drawing


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
ZY3864	12	5700	340	4560	1.22	19.80	9.45	64.37	59.40	7.14
ZY3864	12	6000	380	4800	1.37	20.30	10.20	62.15	60.90	7.98
ZY3864	24	4500	130	3600	0.46	18.20	6.86	62.83	54.60	2.60
ZY3864	24	5000	160	4000	0.55	19.50	8.17	61.88	58.50	3.10
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters			12V-5700RPM Input				12V-6000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
28.5	81	5.8	786.2	7.66	93.02	279.06	827.6	8.26	95.37	286.11
28.5	81	6.8	670.6	7.66	109.06	327.18	705.9	8.26	111.81	335.44
28.5	81	7.9	577.2	7.66	126.70	380.10	607.6	8.26	129.90	389.70
28.5	81	8.8	518.2	7.66	141.13	423.40	545.5	8.26	144.70	434.10
28.5	81	9.8	465.3	7.66	157.17	471.52	489.8	8.26	161.14	483.42
28.5	81	10.5	434.3	7.66	168.40	505.20	457.1	8.26	172.65	517.95
28.5	81	11.6	393.1	7.66	186.04	558.12	413.8	8.26	190.74	572.22
33.5	73	18.6	245.2	6.90	268.84	806.53	258.1	7.45	275.63	826.90
33.5	73	24.0	190.0	6.90	346.90	1040.69	200.0	7.45	355.66	1066.97
33.5	73	28.0	162.9	6.90	404.71	1214.14	171.4	7.45	414.93	1244.80
33.5	73	33.6	135.7	6.90	485.65	1456.96	142.9	7.45	497.92	1493.76
36	65.6	60.0	76.0	6.20	779.33	2337.98	80.0	6.69	799.01	2397.02
36	65.6	71.0	64.2	6.20	922.20	2766.61	67.6	6.69	945.49	2836.48
36	65.6	83.0	54.9	6.20	1078.07	3234.21	57.8	6.69	1105.29	3315.88
36	65.6	91.0	50.1	6.20	1181.98	3545.94	52.7	6.69	1211.83	3635.49
36	65.6	100.0	45.6	6.20	1298.88	3896.64	48.0	6.69	1331.68	3995.04
36	65.6	108.0	42.2	6.20	1402.79	4208.37	44.4	6.69	1438.21	4314.64
36	65.6	118.0	38.6	6.20	1532.68	4598.04	40.7	6.69	1571.38	4714.15
40	59	191.0	23.9	5.58	2231.26	6693.79	25.1	6.02	2287.61	6862.82
40	59	226.0	20.2	5.58	2640.13	7920.40	21.2	6.02	2706.80	8120.41
40	59	265.0	17.2	5.58	3095.73	9287.19	18.1	6.02	3173.91	9521.72
40	59	288.0	15.8	5.58	3364.42	10093.25	16.7	6.02	3449.38	10348.13
40	59	345.0	13.2	5.58	4030.29	12090.87	13.9	6.02	4132.07	12396.20
40	59	379.0	12.0	5.58	4427.48	13282.43	12.7	6.02	4539.28	13617.85
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters			24V-4500RPM Input				24V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
28.5	81	5.8	620.7	5.56	85.50	256.51	689.7	6.62	91.61	274.83
28.5	81	6.8	529.4	5.56	100.25	300.74	588.2	6.62	107.41	322.22
28.5	81	7.9	455.7	5.56	116.46	349.39	506.3	6.62	124.78	374.34
28.5	81	8.8	409.1	5.56	129.73	389.19	454.5	6.62	139.00	416.99
28.5	81	9.8	367.3	5.56	144.47	433.41	408.2	6.62	154.79	464.37
28.5	81	10.5	342.9	5.56	154.79	464.37	381.0	6.62	165.85	497.54
28.5	81	11.6	310.3	5.56	171.01	513.02	344.8	6.62	183.22	549.67
33.5	73	18.6	193.5	5.01	247.12	741.36	215.1	5.96	264.77	794.31
33.5	73	24.0	150.0	5.01	318.86	956.59	166.7	5.96	341.64	1024.92
33.5	73	28.0	128.6	5.01	372.01	1116.02	142.9	5.96	398.58	1195.74
33.5	73	33.6	107.1	5.01	446.41	1339.23	119.0	5.96	478.30	1434.89
36	65.6	60.0	60.0	4.50	716.35	2149.06	66.7	5.36	767.52	2302.56
36	65.6	71.0	50.7	4.50	847.68	2543.05	56.3	5.36	908.23	2724.70
36	65.6	83.0	43.4	4.50	990.95	2972.86	48.2	5.36	1061.74	3185.21
36	65.6	91.0	39.6	4.50	1086.47	3259.40	44.0	5.36	1164.07	3492.22
36	65.6	100.0	36.0	4.50	1193.92	3581.76	40.0	5.36	1279.20	3837.60
36	65.6	108.0	33.3	4.50	1289.43	3868.30	37.0	5.36	1381.54	4144.61
36	65.6	118.0	30.5	4.50	1408.83	4226.48	33.9	5.36	1509.46	4528.37
40	59	191.0	18.8	4.05	2050.96	6152.87	20.9	4.82	2197.46	6592.37
40	59	226.0	15.9	4.05	2426.79	7280.36	17.7	4.82	2600.13	7800.39
40	59	265.0	13.6	4.05	2845.57	8536.71	15.1	4.82	3048.83	9146.48
40	59	288.0	12.5	4.05	3092.54	9277.63	13.9	4.82	3313.44	9940.32
40	59	345.0	10.4	4.05	3704.61	11113.83	11.6	4.82	3969.23	11907.68
40	59	379.0	9.5	4.05	4069.70	12209.11	10.6	4.82	4360.40	13081.19

Please let us know your requirements and we will provide you with transmission solutions.
