    PMDC 42mm 24V High Speed High Torque DC Gear Motor ISO9001

    Ask Lasest Price
    Brand Name : TYHE
    Model Number : TJX42RT
    Certification : CE/ROHS/ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 100000pcs per month
    Delivery Time : 15 working days after payment
    • Product Details
    • Company Profile

    PMDC 42mm 24V High Speed High Torque DC Gear Motor ISO9001

    Products Description

    42mm 12v 24v 24 Volt High Torque High Speed Brush Pm Dc Planetary Gear Motor For Pool Robot Cleaner

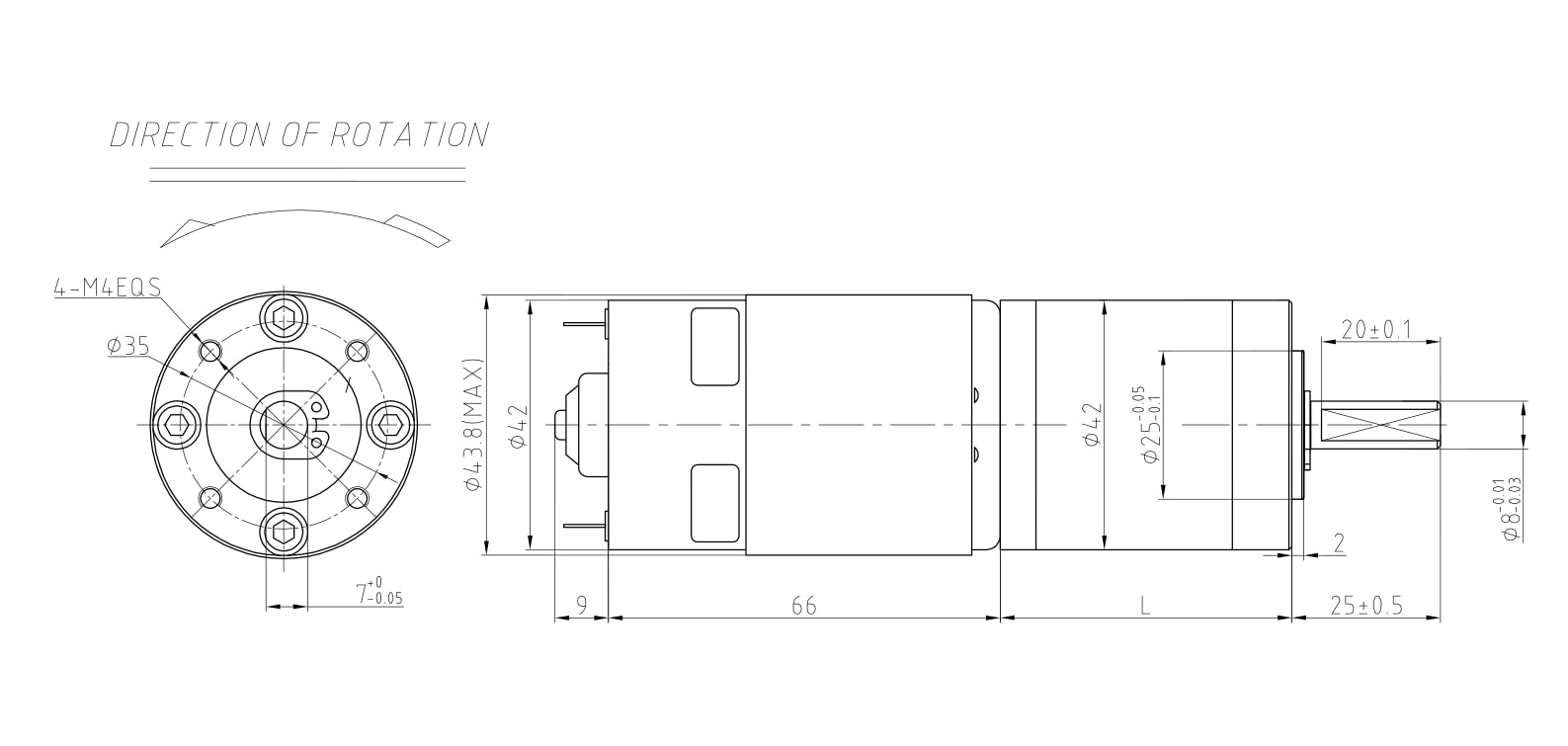

    2D drawing


    Specifications

    DC Motor Technical Data
    ModelRated Voltage(V)No-Load ParametersRated ParametersStall Parameters
    SpeedCurrentSpeedCurrentTorqueOutputeffTorqueCurrent
    rpmmArpmAmN.mW%mN.mA
    RS7751210000112080003.7634.0028.4863.07102.0025.00
    RS7752420007016000.2623.003.8561.9569.001.85
    RS77524350016028000.5929.508.6561.0888.504.20
    RS77524500023040000.8431.0012.9864.1593.005.98
    DC Motor With Gearbox Technical Data (0.6M)
    Gearbox parameters12V-10000RPM Input24V-2000RPM Input
    Length (mm)Transmission Efficiency (%)Gear RatioRated Output Speed (RPM)Rated Output Power (W)Rated Torque (mN.m)Maximum Instantaneous Torque (mN.m)Rated Output Speed (RPM)Rated Output Power (W)Rated Torque (mN.m)Maximum Instantaneous Torque (mN.m)
    28.2903.72162.225.63113.22339.66432.43.4776.59229.77
    28.2905.21538.525.63159.12477.36307.73.47107.64322.92
    378113.7583.923.07377.301131.89116.83.12255.23765.69
    378119.2416.723.07528.771586.3083.33.12357.701073.09
    378126.9297.423.07740.832222.4859.53.12501.151503.44
    378135.0228.623.07963.902891.7045.73.12652.051956.15
    45.87351.0156.920.791265.823797.4631.42.81856.292568.87
    45.87371.0112.720.791762.225286.6622.52.811192.093576.27
    45.873100.080.020.792482.007446.0016.02.811679.005037.00
    45.873139.057.620.793449.9810349.9411.52.812333.817001.43
    54.765.6189.042.318.684215.4612646.378.52.532851.638554.90
    54.765.6264.030.318.685888.2617664.776.12.533983.2311949.70
    54.765.6369.021.718.688230.1824690.534.32.535567.4716702.42
    54.765.6514.015.618.6811464.2625000.003.12.537755.2323265.70
    54.765.6721.011.118.6816081.1825000.002.22.5310878.4525000.00
    6459699.011.416.8014021.9425000.002.32.279485.4325000.00
    6459977.08.216.8019598.6225000.001.62.2713257.8925000.00
    64591367.05.916.8025000.0025000.001.22.2718550.1925000.00
    64591911.04.216.8025000.0025000.000.82.2725000.0025000.00
    64592672.03.016.8025000.0025000.000.62.2725000.0025000.00
    64593736.02.116.8025000.0025000.000.42.2725000.0025000.00
    DC Motor With Gearbox Technical Data (0.6M)
    Gearbox parameters24V-3500RPM Input24V-5000RPM Input
    Length (mm)Transmission Efficiency (%)Gear RatioRated Output Speed (RPM)Rated Output Power (W)Rated Torque (mN.m)Maximum Instantaneous Torque (mN.m)Rated Output Speed (RPM)Rated Output Power (W)Rated Torque (mN.m)Maximum Instantaneous Torque (mN.m)
    28.2903.7756.87.7898.24294.711081.111.69103.23309.69
    28.2905.2538.57.78138.06414.18769.211.69145.08435.24
    378113.7204.47.01327.36982.08292.010.52344.011032.02
    378119.2145.87.01458.781376.35208.310.52482.111446.34
    378126.9104.17.01642.781928.33148.710.52675.462026.38
    378135.080.07.01836.332508.98114.310.52878.852636.55
    45.87351.054.96.311098.293294.8678.49.481154.133462.39
    45.87371.039.46.311528.994586.9656.39.481606.734820.19
    45.873100.028.06.312153.506460.5040.09.482263.006789.00
    45.873139.020.16.312993.378980.1028.89.483145.579436.71
    54.765.6189.014.85.673657.5310972.5821.28.523843.5011530.51
    54.765.6264.010.65.675108.9315326.7815.28.525368.7016106.11
    54.765.6369.07.65.677140.8921422.6610.88.527503.9822511.95
    54.765.6514.05.45.679946.9325000.007.88.5210452.7025000.00
    54.765.6721.03.95.6713952.7925000.005.58.5214662.2625000.00
    6459699.04.05.1012166.1025000.005.77.6612784.7125000.00
    6459977.02.95.1017004.6925000.004.17.6617869.3325000.00
    64591367.02.05.1023792.6425000.002.97.6625000.0025000.00
    64591911.01.55.1025000.0025000.002.17.6625000.0025000.00
    64592672.01.05.1025000.0025000.001.57.6625000.0025000.00
    64593736.00.75.1025000.0025000.001.17.6625000.0025000.00

    Please let us know your requirements and we will provide you with transmission solutions.
