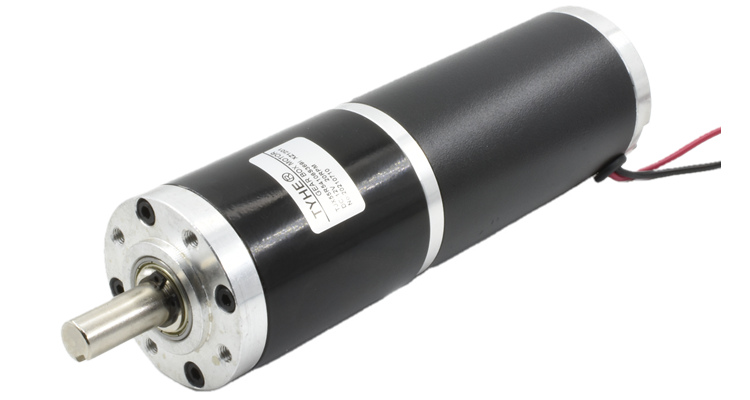

56mm 50nm 200kg.Cm High Torque DC Gear Motor 24V 250w 30Amp For Rolling Door

Products Description

Factory Direct Sale 56mm 12v 24v 50nm 250w 30 Amp 7n 200kgcm High Torque Dc Planetary Geared Motor For Rolling Door

2D drawing


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
ZY54106	12	7000	1950	5600	9.08	125.67	73.69	67.67	377.01	37.50
ZY54106	24	7000	980	5600	4.89	129.64	76.02	64.74	388.92	21.50
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters			12V-7000RPM Input				24V-7000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
31.8	90	3.7	1513.5	66.32	418.48	1255.44	1513.5	68.42	431.70	1295.10
31.8	90	5.2	1076.9	66.32	588.14	1764.41	1076.9	68.42	606.72	1820.15
44	81	13.7	408.8	59.69	1394.56	4183.68	408.8	61.58	1438.62	4315.85
44	81	19.2	291.7	59.69	1954.42	5863.26	291.7	61.58	2016.16	6048.48
44	81	26.9	208.2	59.69	2738.22	8214.67	208.2	61.58	2824.73	8474.18
44	81	35.0	160.0	59.69	3562.74	10688.23	160.0	61.58	3675.29	11025.88
57.5	73	51.0	109.8	53.79	4678.69	14036.08	109.8	55.49	4826.50	14479.49
57.5	73	71.0	78.9	53.79	6513.48	19540.43	78.9	55.49	6719.24	20157.72
57.5	73	100.0	56.0	53.79	9173.91	27521.73	56.0	55.49	9463.72	28391.16
57.5	73	139.0	40.3	53.79	12751.73	38255.20	40.3	55.49	13154.57	39463.71
72.5	65.6	189.0	29.6	48.34	15581.07	46743.21	29.6	49.87	16073.29	48000.00
72.5	65.6	264.0	21.2	48.34	21764.03	48000.00	21.2	49.87	22451.57	48000.00
72.5	65.6	369.0	15.2	48.34	30420.18	48000.00	15.2	49.87	31381.18	48000.00
72.5	65.6	514.0	10.9	48.34	42373.91	48000.00	10.9	49.87	43712.53	48000.00
72.5	65.6	721.0	7.8	48.34	48000.00	48000.00	7.8	49.87	48000.00	48000.00
85.7	59	699.0	8.0	43.48	48000.00	48000.00	8.0	44.85	48000.00	48000.00
85.7	59	977.0	5.7	43.48	48000.00	48000.00	5.7	44.85	48000.00	48000.00
85.7	59	1367.0	4.1	43.48	48000.00	48000.00	4.1	44.85	48000.00	48000.00
85.7	59	1911.0	2.9	43.48	48000.00	48000.00	2.9	44.85	48000.00	48000.00
85.7	59	2672.0	2.1	43.48	48000.00	48000.00	2.1	44.85	48000.00	48000.00
85.7	59	3736.0	1.5	43.48	48000.00	48000.00	1.5	44.85	48000.00	48000.00

Please let us know your requirements and we will provide you with transmission solutions.
