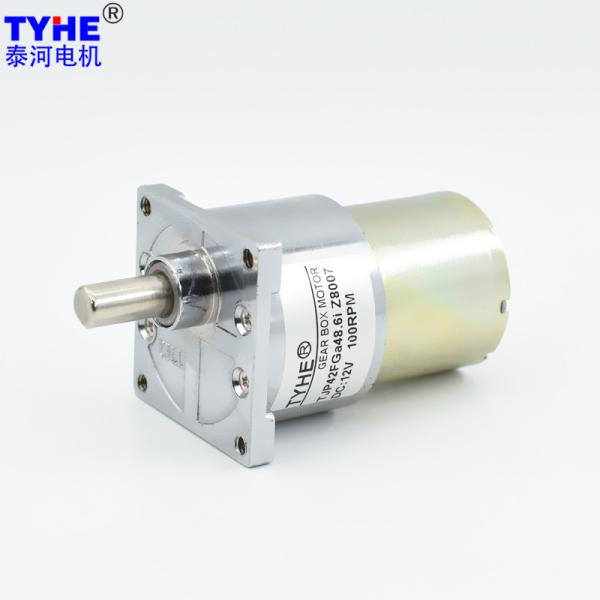

7w 5nm Micro Dc Gear Motor For Home Appliance 12v 24v 6v High Torque 5000rpm

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJP42FGa
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

7w 5nm Micro Dc Gear Motor For Home Appliance 12v 24v 6v High Torque 5000rpm

Products Description

High Torque 12v 24v 6v 5000rpm High Power 7w 200rpm 300rpm 5nm 35kg Cm Micro Dc Gear Motor For Home Appliance

2D drawing

Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
RS530	12	3500	60	2800	0.21	5.30	1.55	61.91	15.90	1.43
RS530	12	7500	160	6000	0.80	9.50	5.97	62.30	28.50	6.70
RS530	24	3500	35	2800	0.12	5.90	1.73	62.68	17.70	0.75
RS530	24	5000	80	4000	0.25	9.12	3.82	62.83	27.36	1.60
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters			12V-3500RPM Input				12V-7500RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.7	81	3.6	777.8	1.26	15.45	46.36	1666.7	4.83	27.70	83.11
25.7	81	4.4	636.4	1.26	18.89	56.67	1363.6	4.83	33.86	101.57
25.7	81	5.4	518.5	1.26	23.18	69.55	1111.1	4.83	41.55	124.66
25.7	81	6.8	411.8	1.26	29.19	87.58	882.4	4.83	52.33	156.98
25.7	81	8.6	325.6	1.26	36.92	110.76	697.7	4.83	66.18	198.53
29.3	73	9.7	288.7	1.13	37.53	112.59	618.6	4.36	67.27	201.81
29.3	73	11.8	237.3	1.13	45.65	136.96	508.5	4.36	81.83	245.50
29.3	73	14.6	191.8	1.13	56.49	169.46	411.0	4.36	101.25	303.75
29.3	73	18.2	153.8	1.13	70.42	211.25	329.7	4.36	126.22	378.65
29.3	73	23.3	120.2	1.13	90.15	270.44	257.5	4.36	161.59	484.76
29.3	65.6	25.9	108.1	1.02	90.05	270.15	231.7	3.92	161.41	484.23
29.3	65.6	31.6	88.6	1.02	109.87	329.60	189.9	3.92	196.93	590.79
29.3	65.6	38.9	72.0	1.02	135.25	405.74	154.2	3.92	242.42	727.27
29.3	65.6	48.6	57.6	1.02	168.97	506.92	123.5	3.92	302.88	908.63
29.3	65.6	62.2	45.0	1.02	216.26	648.77	96.5	3.92	387.63	1162.89
32.6	59	69.1	40.5	0.92	216.08	648.23	86.8	3.52	387.31	1161.92
32.6	59	84.2	33.3	0.92	263.29	789.88	71.3	3.52	471.94	1415.82
32.6	59	104	26.9	0.92	325.21	975.62	57.7	3.52	582.92	1748.76
32.6	59	130	21.5	0.92	406.51	1219.53	46.2	3.52	728.65	2185.95
32.6	59	164	17.1	0.92	512.83	1538.48	36.6	3.52	919.22	2757.66
32.6	59	170	16.5	0.92	531.59	1594.77	35.3	3.52	952.85	2858.55
36	53	184	15.2	0.82	516.86	1550.57	32.6	3.16	926.44	2779.32
36	53	225	12.4	0.82	632.03	1896.08	26.7	3.16	1132.88	3398.63
36	53	276	10.1	0.82	775.28	2325.85	21.7	3.16	1389.66	4168.98
36	53	346	8.1	0.82	971.91	2915.74	17.3	3.16	1742.11	5000.00
36	53	442	6.3	0.82	1241.58	3724.73	13.6	3.16	2225.47	5000.00
36	53	459	6.1	0.82	1289.33	3867.99	13.1	3.16	2311.07	5000.00
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters			24V-3500RPM Input				24V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.7	81	3.6	777.8	1.40	17.20	51.61	1111.1	3.09	26.59	79.78
25.7	81	4.4	636.4	1.40	21.03	63.08	909.1	3.09	32.50	97.51
25.7	81	5.4	518.5	1.40	25.81	77.42	740.7	3.09	39.89	119.67
25.7	81	6.8	411.8	1.40	32.50	97.49	588.2	3.09	50.23	150.70
25.7	81	8.6	325.6	1.40	41.10	123.30	465.1	3.09	63.53	190.59
29.3	73	9.7	288.7	1.26	41.78	125.33	412.4	2.79	64.58	193.74
29.3	73	11.8	237.3	1.26	50.82	152.47	339.0	2.79	78.56	235.68
29.3	73	14.6	191.8	1.26	62.88	188.65	274.0	2.79	97.20	291.60
29.3	73	18.2	153.8	1.26	78.39	235.16	219.8	2.79	121.17	363.50
29.3	73	23.3	120.2	1.26	100.35	301.06	171.7	2.79	155.12	465.37
29.3	65.6	25.9	108.1	1.13	100.24	300.73	154.4	2.51	154.95	464.86
29.3	65.6	31.6	88.6	1.13	122.30	366.91	126.6	2.51	189.05	567.16
29.3	65.6	38.9	72.0	1.13	150.56	451.68	102.8	2.51	232.73	698.18
29.3	65.6	48.6	57.6	1.13	188.10	564.30	82.3	2.51	290.76	872.28
29.3	65.6	62.2	45.0	1.13	240.74	722.22	64.3	2.51	372.13	1116.38
32.6	59	69.1	40.5	1.02	240.54	721.61	57.9	2.25	371.81	1115.44
32.6	59	84.2	33.3	1.02	293.10	879.30	47.5	2.25	453.06	1359.19
32.6	59	104	26.9	1.02	362.02	1086.07	38.5	2.25	559.60	1678.81
32.6	59	130	21.5	1.02	452.53	1357.59	30.8	2.25	699.50	2098.51
32.6	59	164	17.1	1.02	570.88	1712.65	24.4	2.25	882.45	2647.35
32.6	59	170	16.5	1.02	591.77	1775.31	23.5	2.25	914.74	2744.21
36	53	184	15.2	0.92	575.37	1726.10	21.7	2.02	889.38	2668.15
36	53	225	12.4	0.92	703.58	2110.73	17.8	2.02	1087.56	3262.68
36	53	276	10.1	0.92	863.05	2589.16	14.5	2.02	1334.07	4002.22
36	53	346	8.1	0.92	1081.94	3245.83	11.6	2.02	1672.43	5000.00
36	53	442	6.3	0.92	1382.13	4146.40	9.0	2.02	2136.45	5000.00
36	53	459	6.1	0.92	1435.29	4305.88	8.7	2.02	2218.62	5000.00


Please let us know your requirements and we will provide you with transmission solutions.
