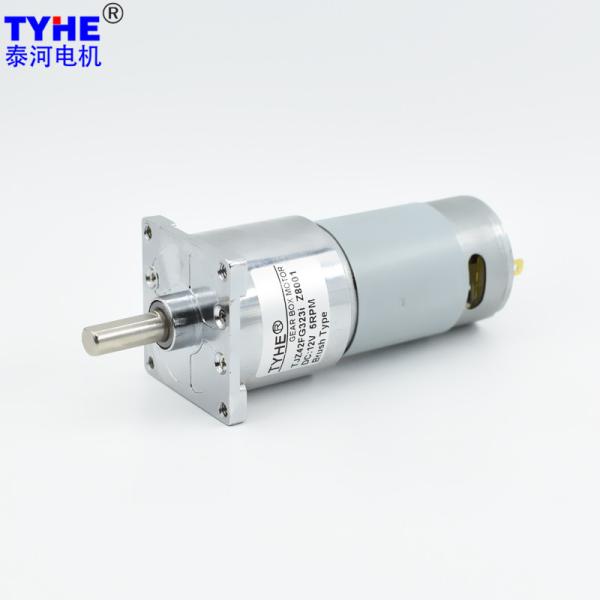

    42mm Gearmotor High Torque DC Gear Motor 80Rpm 12-24V 50kgcm 1nm 2nm

    Ask Lasest Price
    Brand Name : TYHE
    Model Number : TJZ42FG
    Certification : CE/ROHS/ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 100000pcs per month
    Delivery Time : 15 working days after payment
    • Product Details
    • Company Profile

    42mm Gearmotor High Torque DC Gear Motor 80Rpm 12-24V 50kgcm 1nm 2nm

    Products Description

    Manufacturer 42mm gearmotor 12v 24v 14.4v high torque 50kg cm 80 rpm 45kgcm 50kgcm 1nm 2nm 15w 20 watt dc gear motor for bbq


    Specifications

    DC Motor Technical Data
    ModelRated Voltage(V)No-Load ParametersRated ParametersStall Parameters
    SpeedCurrentSpeedCurrentTorqueOutputeffTorqueCurrent
    rpmmArpmAmN.mW%mN.mA
    RS55512570029045601.0717.208.2163.8151.607.65
    RS55512650031052001.4219.5010.6262.2458.5011.48
    RS55524500015040000.4917.507.3362.1252.503.20
    RS55524600016048000.5316.808.4466.1850.403.50
    DC Motor With Gearbox Technical Data (0.7M)
    Gearbox parameters12V-5700RPM Input12V-6500RPM Input
    Length (mm)Transmission Efficiency (%)Gear RatioRated Output Speed (RPM)Rated Output Power (W)Rated Torque (mN.m)Maximum Instantaneous Torque (mN.m)Rated Output Speed (RPM)Rated Output Power (W)Rated Torque (mN.m)Maximum Instantaneous Torque (mN.m)
    25.7812.51824.06.6534.83104.492080.08.6039.49118.46
    25.7813.11471.06.6543.19129.571677.48.6048.96146.89
    25.7813.81200.06.6552.94158.821368.48.6060.02180.06
    25.7814.8950.06.6566.87200.621083.38.6075.82227.45
    25.7816.1747.56.6584.99254.96852.58.6096.35289.05
    25.7736.8670.66.0085.38256.14764.77.7596.80290.39
    25.7738.3549.46.00104.21312.64626.57.75118.15354.45
    25.77310.3442.76.00129.33387.98504.97.75146.62439.86
    25.77312.8356.36.00160.72482.15406.37.75182.21546.62
    25.77316.4278.06.00205.92617.76317.17.75233.45700.36
    25.765.618.2250.55.39205.35616.06285.76.97232.81698.44
    25.765.622.2205.45.39250.49751.46234.26.97283.98851.95
    25.765.627.4166.45.39309.16927.48189.86.97350.501051.50
    25.765.634.2133.35.39385.891157.66152.06.97437.491312.46
    25.765.643.8104.15.39494.201482.61118.76.97560.291680.87
    29.55948.693.84.85493.191479.58107.06.26559.141677.43
    29.55959.376.94.85601.781805.3387.76.26682.252046.74
    29.55973.062.54.85740.802222.4171.26.26839.872519.60
    29.55991.250.04.85925.502776.4957.06.261049.263147.77
    29.559117.039.04.851187.323561.9544.46.261346.094038.26
    29.559120.038.04.851217.763653.2843.36.261380.604141.80
    32.753130.035.14.351185.083555.2440.05.631343.554030.65
    32.753158.028.94.351440.334320.9832.95.631632.934898.79
    32.753195.023.44.351777.625000.0026.75.632015.335000.00
    32.753243.018.84.352215.195000.0021.45.632511.415000.00
    32.753311.014.74.352835.085000.0016.75.633214.195000.00
    32.753323.014.14.352944.475000.0016.15.633338.215000.00
    DC Motor With Gearbox Technical Data (0.7M)
    Gearbox parameters24V-5000RPM Input24V-6000RPM Input
    Length (mm)Transmission Efficiency (%)Gear RatioRated Output Speed (RPM)Rated Output Power (W)Rated Torque (mN.m)Maximum Instantaneous Torque (mN.m)Rated Output Speed (RPM)Rated Output Power (W)Rated Torque (mN.m)Maximum Instantaneous Torque (mN.m)
    25.7812.51600.05.9435.44106.311920.06.8434.02102.06
    25.7813.11290.35.9443.94131.831548.46.8442.18126.55
    25.7813.81052.65.9453.87161.601263.26.8451.71155.13
    25.7814.8833.35.9468.04204.121000.06.8465.32195.96
    25.7816.1655.75.9486.47259.40786.96.8483.01249.03
    25.7736.8588.25.3586.87260.61705.96.1683.40250.19
    25.7738.3481.95.35106.03318.10578.36.16101.79305.37
    25.77310.3388.35.35131.58394.75466.06.16126.32378.96
    25.77312.8312.55.35163.52490.56375.06.16156.98470.94
    25.77316.4243.95.35209.51628.53292.76.16201.13603.39
    25.765.618.2219.84.81208.94626.81263.75.54200.58601.74
    25.765.622.2180.24.81254.86764.57216.25.54244.66733.99
    25.765.627.4146.04.81314.55943.66175.25.54301.97905.91
    25.765.634.2117.04.81392.621177.85140.45.54376.911130.73
    25.765.643.891.34.81502.821508.47109.65.54482.711448.13
    29.55948.682.34.32501.801505.3998.84.98481.721445.17
    29.55959.367.54.32612.271836.8280.94.98587.781763.34
    29.55973.054.84.32753.732261.1865.84.98723.582170.73
    29.55991.243.94.32941.642824.9252.64.98903.972711.92
    29.559117.034.24.321208.033624.0841.04.981159.703479.11
    29.559120.033.34.321239.003717.0040.04.981189.443568.32
    32.753130.030.83.881205.753617.2536.94.481157.523472.56
    32.753158.025.33.881465.454396.3530.44.481406.834220.50
    32.753195.020.53.881808.635000.0024.64.481736.285000.00
    32.753243.016.53.882253.835000.0019.84.482163.675000.00
    32.753311.012.93.882884.535000.0015.44.482769.145000.00
    32.753323.012.43.882995.835000.0014.94.482875.995000.00

    2D drawing



    Please let us know your requirements and we will provide you with transmission solutions.
