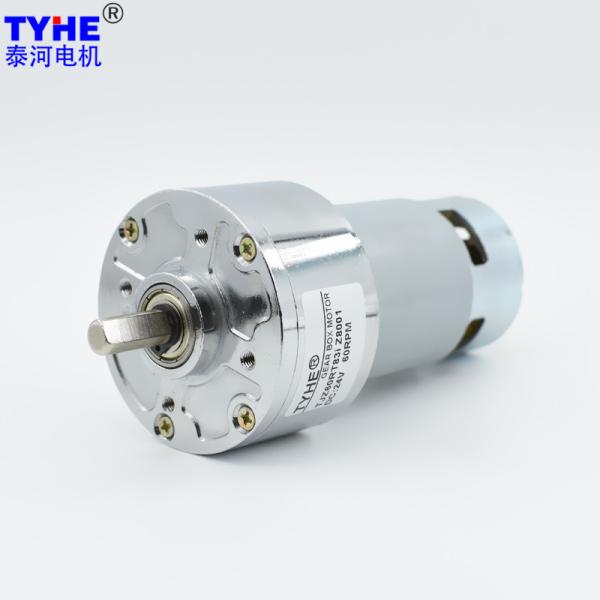

12v 24v 60MM High Torque DC Gear Motor 30w 960Rpm 30rpm Low Speed

Product Categories

Wenzhou Tyhe Motor Co., Ltd.

Contact Now

12v 24v 60MM High Torque DC Gear Motor 30w 960Rpm 30rpm Low Speed

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJZ60RT
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

12v 24v 60MM High Torque DC Gear Motor 30w 960Rpm 30rpm Low Speed

Products Description

Bulk Sale 60MM gearmotor 12v 24v 18 volt 50w 40w 30w 960 rpm 30rpm low speed high torque 60kgf dc metal gear motor with ce rohs

Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
RS775	12	5000	580	4000	1.77	31.60	13.24	62.31	94.80	10.80
RS775	12	7000	760	5600	2.81	38.00	22.28	66.16	114.00	20.00
RS775	24	3500	160	2800	0.59	29.50	8.65	61.08	88.50	4.20
RS775	24	5000	230	4000	0.84	31.00	12.98	64.15	93.00	5.98
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters			12V-5000RPM Input				12V-7000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
28.5	81	5.8	689.7	10.72	148.46	445.37	965.5	18.05	178.52	535.57
28.5	81	6.8	588.2	10.72	174.05	522.16	823.5	18.05	209.30	627.91
28.5	81	7.9	506.3	10.72	202.21	606.63	708.9	18.05	243.16	729.49
28.5	81	8.8	454.5	10.72	225.24	675.73	636.4	18.05	270.86	812.59
28.5	81	9.8	408.2	10.72	250.84	752.52	571.4	18.05	301.64	904.93
28.5	81	10.5	381.0	10.72	268.76	806.27	533.3	18.05	323.19	969.57
28.5	81	11.6	344.8	10.72	296.91	890.74	482.8	18.05	357.05	1071.14
33.5	73	18.6	215.1	9.66	429.06	1287.19	301.1	16.27	515.96	1547.89
33.5	73	24.0	166.7	9.66	553.63	1660.90	233.3	16.27	665.76	1997.28
33.5	73	28.0	142.9	9.66	645.90	1937.71	200.0	16.27	776.72	2330.16
33.5	73	33.6	119.0	9.66	775.08	2325.25	166.7	16.27	932.06	2796.19
36	65.6	60.0	66.7	8.68	1243.78	3731.33	93.3	14.62	1495.68	4487.04
36	65.6	71.0	56.3	8.68	1471.80	4415.40	78.9	14.62	1769.89	5309.66
36	65.6	83.0	48.2	8.68	1720.56	5161.67	67.5	14.62	2069.02	6207.07
36	65.6	91.0	44.0	8.68	1886.39	5659.18	61.5	14.62	2268.45	6805.34
36	65.6	100.0	40.0	8.68	2072.96	6218.88	56.0	14.62	2492.80	7478.40
36	65.6	108.0	37.0	8.68	2238.80	6716.39	51.9	14.62	2692.22	8076.67
36	65.6	118.0	33.9	8.68	2446.09	7338.28	47.5	14.62	2941.50	8824.51
40	59	191.0	20.9	7.81	3561.00	10683.01	29.3	13.15	4282.22	12846.66
40	59	226.0	17.7	7.81	4213.54	12640.63	24.8	13.15	5066.92	15000.00
40	59	265.0	15.1	7.81	4940.66	14821.98	21.1	13.15	5941.30	15000.00
40	59	288.0	13.9	7.81	5369.47	15000.00	19.4	13.15	6456.96	15000.00
40	59	345.0	11.6	7.81	6432.18	15000.00	16.2	13.15	7734.90	15000.00
40	59	379.0	10.6	7.81	7066.08	15000.00	14.8	13.15	8497.18	15000.00
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters			24V-3500RPM Input				24V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
28.5	81	5.8	482.8	7.01	138.59	415.77	689.7	10.52	145.64	436.91
28.5	81	6.8	411.8	7.01	162.49	487.46	588.2	10.52	170.75	512.24
28.5	81	7.9	354.4	7.01	188.77	566.31	506.3	10.52	198.37	595.11
28.5	81	8.8	318.2	7.01	210.28	630.83	454.5	10.52	220.97	662.90
28.5	81	9.8	285.7	7.01	234.17	702.51	408.2	10.52	246.08	738.23
28.5	81	10.5	266.7	7.01	250.90	752.69	381.0	10.52	263.66	790.97
28.5	81	11.6	241.4	7.01	277.18	831.55	344.8	10.52	291.28	873.83
33.5	73	18.6	150.5	6.31	400.55	1201.65	215.1	9.48	420.92	1262.75
33.5	73	24.0	116.7	6.31	516.84	1550.52	166.7	9.48	543.12	1629.36
33.5	73	28.0	100.0	6.31	602.98	1808.94	142.9	9.48	633.64	1900.92
33.5	73	33.6	83.3	6.31	723.58	2170.73	119.0	9.48	760.37	2281.10
36	65.6	60.0	46.7	5.67	1161.12	3483.36	66.7	8.52	1220.16	3660.48
36	65.6	71.0	39.4	5.67	1373.99	4121.98	56.3	8.52	1443.86	4331.57
36	65.6	83.0	33.7	5.67	1606.22	4818.65	48.2	8.52	1687.89	5063.66
36	65.6	91.0	30.8	5.67	1761.03	5283.10	44.0	8.52	1850.58	5551.73
36	65.6	100.0	28.0	5.67	1935.20	5805.60	40.0	8.52	2033.60	6100.80
36	65.6	108.0	25.9	5.67	2090.02	6270.05	37.0	8.52	2196.29	6588.86
36	65.6	118.0	23.7	5.67	2283.54	6850.61	33.9	8.52	2399.65	7198.94
40	59	191.0	14.7	5.10	3324.36	9973.07	20.9	7.66	3493.39	10480.17
40	59	226.0	12.4	5.10	3933.53	11800.59	17.7	7.66	4133.54	12400.62
40	59	265.0	10.6	5.10	4612.33	13836.98	15.1	7.66	4846.85	14540.55
40	59	288.0	9.7	5.10	5012.64	15000.00	13.9	7.66	5267.52	15000.00
40	59	345.0	8.1	5.10	6004.73	15000.00	11.6	7.66	6310.05	15000.00
40	59	379.0	7.4	5.10	6596.50	15000.00	10.6	7.66	6931.91	15000.00

2D drawing


Please let us know your requirements and we will provide you with transmission solutions.

16mm Diameter High Torque Low 10 Rpm RF130 Dc Brushed Gear Motor with ce and rohs for Medical Equipment 2

16mm Diameter High Torque Low 10 Rpm RF130 Dc Brushed Gear Motor with ce and rohs for Medical Equipment 3

Product Tags:

60kgf High Torque DC Gear Motor

30rpm High Torque DC Gear Motor

960Rpm High Torque DC Gear Motor

12v 24v 60MM High Torque DC Gear Motor 30w 960Rpm 30rpm Low Speed
