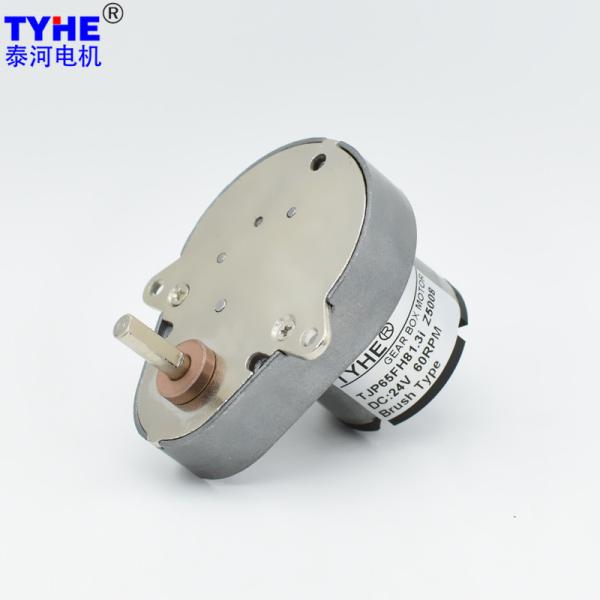

Anti Interference 7.5V 14.4V DC Spur Gear Motor 65*48mm 1 Rpm 80 Rpm

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJP65FH
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

Anti Interference 7.5V 14.4V DC Spur Gear Motor 65*48mm 1 Rpm 80 Rpm

Products Description

Anti-Interference 65*48mm Miniature Size 7.5v 12v 14.4v 24v 1 Rpm 80 Rpm Dc Spur Gear Motor For Flowmeter

2D drawing (Gear ratio≤244)

2D drawing (Gear ratio＞244)


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
ZY3324	6	7000	80	5600	0.37	2.35	1.38	62.78	7.05	2.95
ZY3324	7	4000	30	3200	0.14	1.79	0.60	62.70	5.37	1.10
ZY3324	12	5500	38	4400	0.13	2.13	0.98	64.82	6.39	0.83
ZY3324	12	7300	64	5840	0.27	3.24	1.98	61.30	9.72	2.08
ZY3324	24	4000	15	3200	0.04	1.87	0.63	62.66	5.61	0.23
ZY3324	24	5000	17	4000	0.06	2.27	0.95	63.73	6.81	0.44
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			6V-7000RPM Input				7V-4000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
65	81	8.3	674.7	1.12	15.80	47.40	385.5	0.49	12.03	36.10
65	81	12.0	466.7	1.12	22.84	68.53	266.7	0.49	17.40	52.20
65	73	15.7	356.7	1.01	26.93	80.80	203.8	0.44	20.52	61.55
65	73	18.2	307.7	1.01	31.22	93.67	175.8	0.44	23.78	71.35
65	73	22.6	247.8	1.01	38.77	116.31	141.6	0.44	29.53	88.59
65	73	32.4	172.8	1.01	55.58	166.75	98.8	0.44	42.34	127.01
65	73	37.0	151.4	1.01	63.47	190.42	86.5	0.44	48.35	145.04
65	65.6	81.3	68.9	0.90	125.33	376.00	39.4	0.39	95.47	286.40
65	65.6	111.0	50.5	0.90	171.12	513.35	28.8	0.39	130.34	391.02
65	59	179.0	31.3	0.81	248.18	744.55	17.9	0.35	189.04	567.13
65	59	244.0	23.0	0.81	338.31	1014.92	13.1	0.35	257.69	773.07
65	53	394.0	14.2	0.73	490.73	1472.18	8.1	0.32	373.79	1121.36
65	53	537.0	10.4	0.73	668.83	1500.00	6.0	0.32	509.45	1500.00
65	47.8	866.0	6.5	0.66	972.78	1500.00	3.7	0.29	740.97	1500.00
65	47.8	1181.0	4.7	0.66	1326.62	1500.00	2.7	0.29	1010.49	1500.00
65	43	1905.0	2.9	0.59	1500.00	1500.00	1.7	0.26	1466.28	1500.00
65	43	2597.0	2.2	0.59	1500.00	1500.00	1.2	0.26	1500.00	1500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			12V-5500RPM Input				12V-7300RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
65	81	8.3	530.1	0.79	14.32	42.96	703.6	1.60	21.78	65.35
65	81	12.0	366.7	0.79	20.70	62.11	486.7	1.60	31.49	94.48
65	73	15.7	280.3	0.72	24.41	73.24	372.0	1.45	37.13	111.40
65	73	18.2	241.8	0.72	28.30	84.90	320.9	1.45	43.05	129.14
65	73	22.6	194.7	0.72	35.14	105.42	258.4	1.45	53.45	160.36
65	73	32.4	135.8	0.72	50.38	151.14	180.2	1.45	76.63	229.90
65	73	37.0	118.9	0.72	57.53	172.59	157.8	1.45	87.51	262.54
65	65.6	81.3	54.1	0.64	113.60	340.80	71.8	1.30	172.80	518.39
65	65.6	111.0	39.6	0.64	155.10	465.29	52.6	1.30	235.92	707.77
65	59	179.0	24.6	0.58	224.95	674.85	32.6	1.17	342.18	1026.53
65	59	244.0	18.0	0.58	306.63	919.90	23.9	1.17	466.43	1399.29
65	53	394.0	11.2	0.52	444.79	1334.36	14.8	1.05	676.58	1500.00
65	53	537.0	8.2	0.52	606.22	1500.00	10.9	1.05	922.14	1500.00
65	47.8	866.0	5.1	0.47	881.71	1500.00	6.7	0.95	1341.19	1500.00
65	47.8	1181.0	3.7	0.47	1202.42	1500.00	4.9	0.95	1500.00	1500.00
65	43	1905.0	2.3	0.42	1500.00	1500.00	3.1	0.85	1500.00	1500.00
65	43	2597.0	1.7	0.42	1500.00	1500.00	2.2	0.85	1500.00	1500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			24V-4000RPM Input				24V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
65	81	8.3	385.5	0.51	12.57	37.72	481.9	0.77	15.26	45.78
65	81	12.0	266.7	0.51	18.18	54.53	333.3	0.77	22.06	66.19
65	73	15.7	203.8	0.46	21.43	64.30	254.8	0.69	26.02	78.05
65	73	18.2	175.8	0.46	24.84	74.53	219.8	0.69	30.16	90.48
65	73	22.6	141.6	0.46	30.85	92.55	177.0	0.69	37.45	112.35
65	73	32.4	98.8	0.46	44.23	132.69	123.5	0.69	53.69	161.07
65	73	37.0	86.5	0.46	50.51	151.53	108.1	0.69	61.31	183.94
65	65.6	81.3	39.4	0.41	99.73	299.20	49.2	0.62	121.07	363.20
65	65.6	111.0	28.8	0.41	136.17	408.50	36.0	0.62	165.29	495.88
65	59	179.0	17.9	0.37	197.49	592.47	22.3	0.56	239.73	719.20
65	59	244.0	13.1	0.37	269.21	807.62	16.4	0.56	326.79	980.37
65	53	394.0	8.1	0.33	390.49	1171.48	10.2	0.50	474.02	1422.06
65	53	537.0	6.0	0.33	532.22	1500.00	7.4	0.50	646.06	1500.00
65	47.8	866.0	3.7	0.30	774.08	1500.00	4.6	0.45	939.66	1500.00
65	47.8	1181.0	2.7	0.30	1055.65	1500.00	3.4	0.45	1281.46	1500.00
65	43	1905.0	1.7	0.27	1500.00	1500.00	2.1	0.41	1500.00	1500.00
65	43	2597.0	1.2	0.27	1500.00	1500.00	1.5	0.41	1500.00	1500.00

Please let us know your requirements and we will provide you with transmission solutions.
