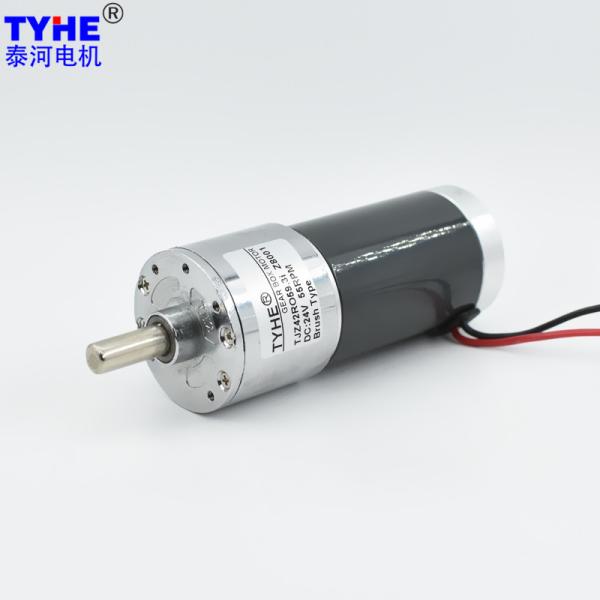

High Strength Zinc Alloy Housing 42mm size dc 24 12 volt gear reduction motor 100 rpm 40 rpm

Product Categories

Wenzhou Tyhe Motor Co., Ltd.

Contact Now

High Strength Zinc Alloy Housing 42mm size dc 24 12 volt gear reduction motor 100 rpm 40 rpm

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJZ42RO
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

High Strength Zinc Alloy Housing 42mm size dc 24 12 volt gear reduction motor 100 rpm 40 rpm

Products Description

Automatic Vending Machine 42mm Size 12v 24v 5v Mini Dc Gear Motor 150rpm 3N.M Ce Rohs

2D drawing


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
ZY3864	12	5700	340	4560	1.22	19.80	9.45	64.37	59.40	7.14
ZY3864	12	6000	380	4800	1.37	20.30	10.20	62.15	60.90	7.98
ZY3864	24	3200	80	2560	0.25	14.30	3.83	63.89	42.90	1.30
ZY3864	24	4000	120	3200	0.40	17.90	6.00	62.48	53.70	2.20
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters			12V-5700RPM Input				12V-6000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.7	81	2.5	1824.0	7.66	40.10	120.29	1920.0	8.26	41.11	123.32
25.7	81	3.1	1471.0	7.66	49.72	149.15	1548.4	8.26	50.97	152.92
25.7	81	3.8	1200.0	7.66	60.94	182.83	1263.2	8.26	62.48	187.45
25.7	81	4.8	950.0	7.66	76.98	230.95	1000.0	8.26	78.93	236.78
25.7	81	6.1	747.5	7.66	97.83	293.50	786.9	8.26	100.30	300.91
25.7	73	6.8	670.6	6.90	98.29	294.86	705.9	7.45	100.77	302.31
25.7	73	8.3	549.4	6.90	119.97	359.90	578.3	7.45	123.00	368.99
25.7	73	10.3	442.7	6.90	148.88	446.63	466.0	7.45	152.64	457.91
25.7	73	12.8	356.3	6.90	185.01	555.03	375.0	7.45	189.68	569.05
25.7	73	16.4	278.0	6.90	237.05	711.14	292.7	7.45	243.03	729.09
25.7	65.6	18.2	250.5	6.20	236.40	709.19	263.7	6.69	242.37	727.10
25.7	65.6	22.2	205.4	6.20	288.35	865.05	216.2	6.69	295.63	886.90
25.7	65.6	27.4	166.4	6.20	355.89	1067.68	175.2	6.69	364.88	1094.64
25.7	65.6	34.2	133.3	6.20	444.22	1332.65	140.4	6.69	455.43	1366.30
25.7	65.6	43.8	104.1	6.20	568.91	1706.73	109.6	6.69	583.28	1749.83
29.5	59	48.6	93.8	5.58	567.75	1703.24	98.8	6.02	582.08	1746.25
29.5	59	59.3	76.9	5.58	692.74	2078.23	80.9	6.02	710.24	2130.71
29.5	59	73.0	62.5	5.58	852.79	2558.36	65.8	6.02	874.32	2622.96
29.5	59	91.2	50.0	5.58	1065.40	3196.20	52.6	6.02	1092.30	3276.91
29.5	59	117.0	39.0	5.58	1366.79	4100.38	41.0	6.02	1401.31	4203.93
29.5	59	120.0	38.0	5.58	1401.84	4205.52	40.0	6.02	1437.24	4311.72
32.7	53	130.0	35.1	5.01	1364.22	4092.66	36.9	5.41	1398.67	4196.01
32.7	53	158.0	28.9	5.01	1658.05	4974.16	30.4	5.41	1699.92	5000.00
32.7	53	195.0	23.4	5.01	2046.33	5000.00	24.6	5.41	2098.01	5000.00
32.7	53	243.0	18.8	5.01	2550.04	5000.00	19.8	5.41	2614.44	5000.00
32.7	53	311.0	14.7	5.01	3263.63	5000.00	15.4	5.41	3346.05	5000.00
32.7	53	323.0	14.1	5.01	3389.56	5000.00	14.9	5.41	3475.16	5000.00
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters			24V-3200RPM Input				24V-4000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.7	81	2.5	1024.0	3.10	28.96	86.87	1280.0	4.86	36.25	108.74
25.7	81	3.1	825.8	3.10	35.91	107.72	1032.3	4.86	44.95	134.84
25.7	81	3.8	673.7	3.10	44.02	132.05	842.1	4.86	55.10	165.29
25.7	81	4.8	533.3	3.10	55.60	166.80	666.7	4.86	69.60	208.79
25.7	81	6.1	419.7	3.10	70.66	211.97	524.6	4.86	88.44	265.33
25.7	73	6.8	376.5	2.80	70.99	212.96	470.6	4.38	88.86	266.57
25.7	73	8.3	308.4	2.80	86.64	259.93	385.5	4.38	108.46	325.37
25.7	73	10.3	248.5	2.80	107.52	322.57	310.7	4.38	134.59	403.77
25.7	73	12.8	200.0	2.80	133.62	400.86	250.0	4.38	167.26	501.77
25.7	73	16.4	156.1	2.80	171.20	513.60	195.1	4.38	214.30	642.90
25.7	65.6	18.2	140.7	2.51	170.73	512.19	175.8	3.93	213.71	641.14
25.7	65.6	22.2	115.3	2.51	208.25	624.76	144.1	3.93	260.68	782.04
25.7	65.6	27.4	93.4	2.51	257.03	771.10	116.8	3.93	321.74	965.23
25.7	65.6	34.2	74.9	2.51	320.82	962.47	93.6	3.93	401.59	1204.77
25.7	65.6	43.8	58.4	2.51	410.88	1232.64	73.1	3.93	514.32	1542.95
29.5	59	48.6	52.7	2.26	410.04	1230.11	65.8	3.54	513.26	1539.79
29.5	59	59.3	43.2	2.26	500.31	1500.94	54.0	3.54	626.27	1878.80
29.5	59	73.0	35.1	2.26	615.90	1847.70	43.8	3.54	770.95	2312.86
29.5	59	91.2	28.1	2.26	769.45	2308.36	35.1	3.54	963.16	2889.49
29.5	59	117.0	21.9	2.26	987.13	2961.39	27.4	3.54	1235.64	3706.91
29.5	59	120.0	21.3	2.26	1012.44	3037.32	26.7	3.54	1267.32	3801.96
32.7	53	130.0	19.7	2.03	985.27	2955.81	24.6	3.18	1233.31	3699.93
32.7	53	158.0	16.2	2.03	1197.48	3592.45	20.3	3.18	1498.95	4496.84
32.7	53	195.0	13.1	2.03	1477.91	4433.72	16.4	3.18	1849.97	5000.00
32.7	53	243.0	10.5	2.03	1841.70	5000.00	13.2	3.18	2305.34	5000.00
32.7	53	311.0	8.2	2.03	2357.07	5000.00	10.3	3.18	2950.46	5000.00
32.7	53	323.0	7.9	2.03	2448.02	5000.00	9.9	3.18	3064.30	5000.00

Please let us know your requirements and we will provide you with transmission solutions.
