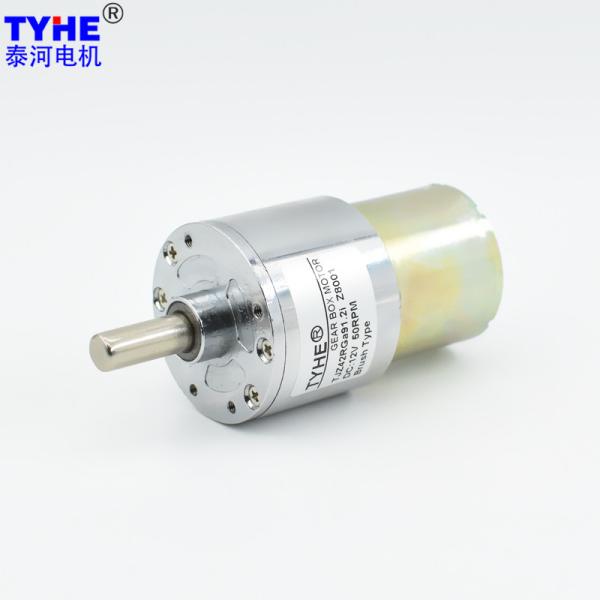

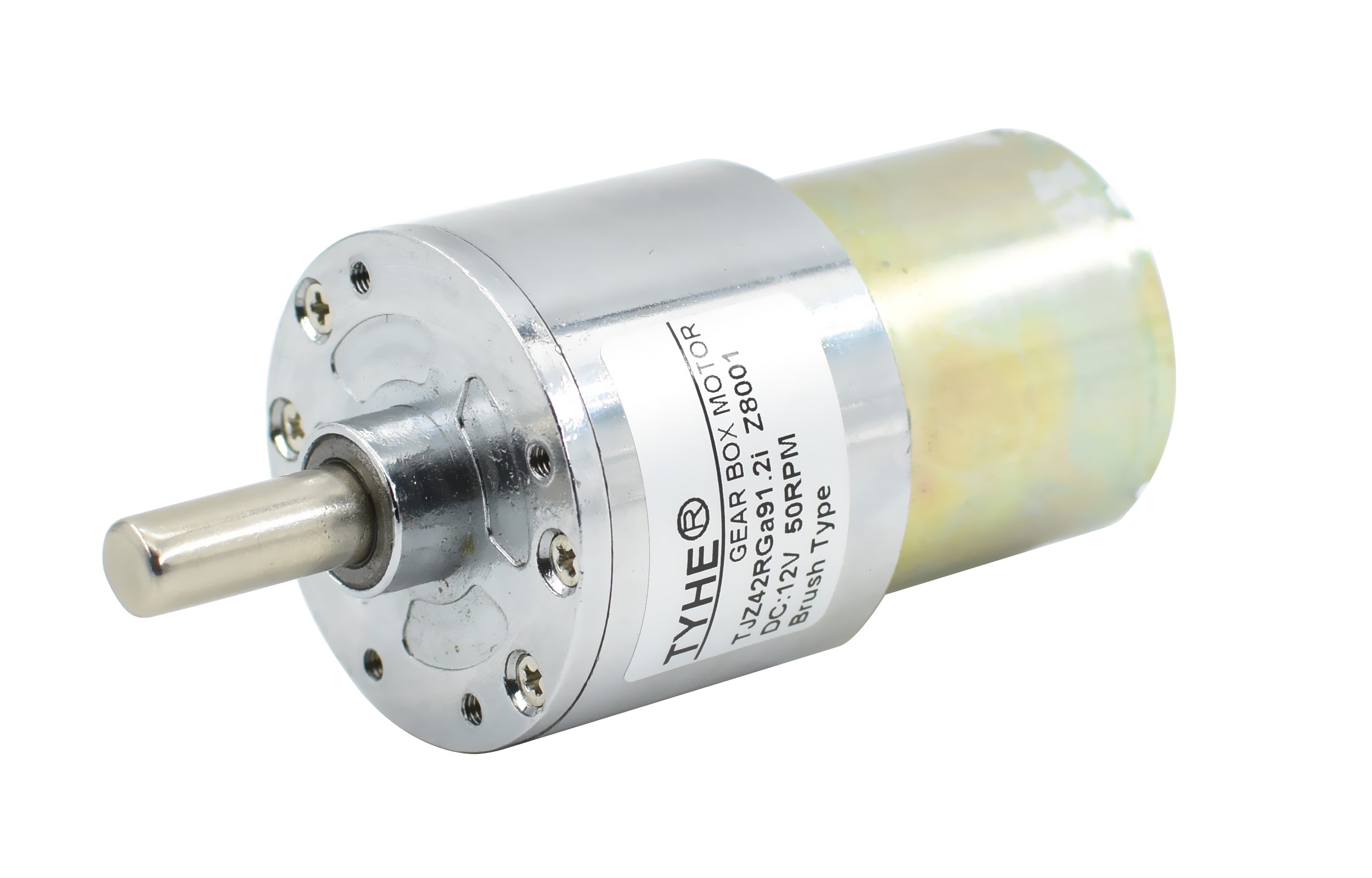

Medical Robot rs530/520 high torque high speed dc motor with 42mm steel spur gearbox

Product Categories

Wenzhou Tyhe Motor Co., Ltd.

Contact Now

Medical Robot rs530/520 high torque high speed dc motor with 42mm steel spur gearbox

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJZ42RGa
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

Medical Robot rs530/520 high torque high speed dc motor with 42mm steel spur gearbox

Products Description

Medical Robot Rs530/520 High Torque High Speed Dc Motor With 42mm Steel Spur Gearbox

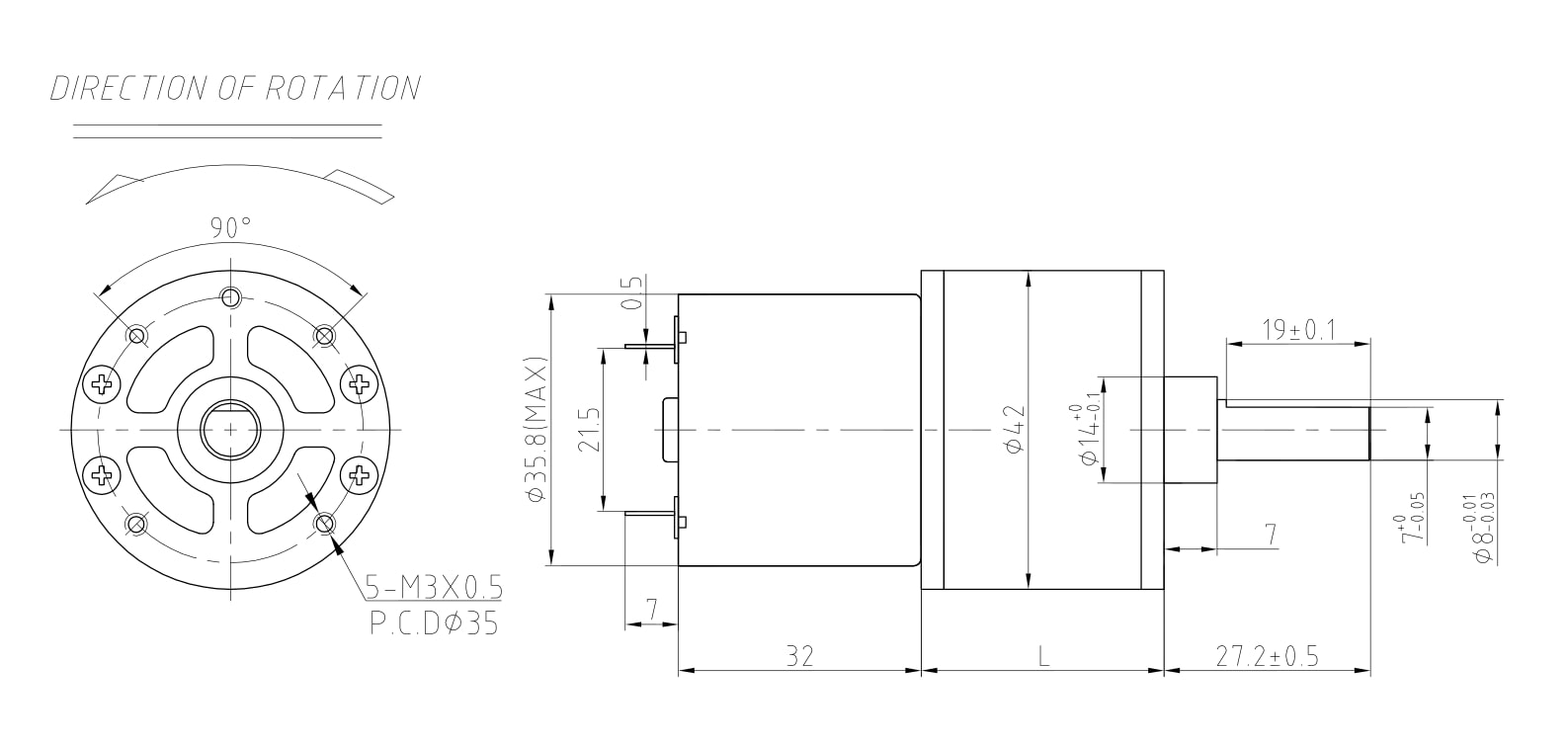

2D drawing


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
RS530	12	3500	60	2800	0.21	5.30	1.55	61.91	15.90	1.43
RS530	12	5000	160	4000	0.49	8.90	3.73	62.86	26.70	3.05
RS530	24	5000	80	4000	0.25	9.12	3.82	62.83	27.36	1.60
RS530	24	7500	72	6000	0.37	9.25	5.81	64.63	27.75	3.20
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters			12V-3500RPM Input				12V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.7	81	2.5	1120.0	1.26	10.73	32.20	1600.0	3.02	18.02	54.07
25.7	81	3.1	903.2	1.26	13.31	39.92	1290.3	3.02	22.35	67.04
25.7	81	3.8	736.8	1.26	16.31	48.94	1052.6	3.02	27.39	82.18
25.7	81	4.8	583.3	1.26	20.61	61.82	833.3	3.02	34.60	103.81
25.7	81	6.1	459.0	1.26	26.19	78.56	655.7	3.02	43.97	131.92
25.7	73	6.8	411.8	1.13	26.31	78.93	588.2	2.72	44.18	132.54
25.7	73	8.3	337.3	1.13	32.11	96.34	481.9	2.72	53.93	161.78
25.7	73	10.3	271.8	1.13	39.85	119.55	388.3	2.72	66.92	200.76
25.7	73	12.8	218.8	1.13	49.52	148.57	312.5	2.72	83.16	249.48
25.7	73	16.4	170.7	1.13	63.45	190.35	243.9	2.72	106.55	319.65
25.7	65.6	18.2	153.8	1.02	63.28	189.83	219.8	2.45	106.26	318.78
25.7	65.6	22.2	126.1	1.02	77.18	231.55	180.2	2.45	129.61	388.84
25.7	65.6	27.4	102.2	1.02	95.26	285.79	146.0	2.45	159.97	479.92
25.7	65.6	34.2	81.9	1.02	118.91	356.72	117.0	2.45	199.67	599.02
25.7	65.6	43.8	63.9	1.02	152.28	456.85	91.3	2.45	255.72	767.17
29.5	59	48.6	57.6	0.92	151.97	455.92	82.3	2.20	255.20	765.60
29.5	59	59.3	47.2	0.92	185.43	556.29	67.5	2.20	311.38	934.15
29.5	59	73.0	38.4	0.92	228.27	684.81	54.8	2.20	383.32	1149.97
29.5	59	91.2	30.7	0.92	285.18	855.55	43.9	2.20	478.89	1436.67
29.5	59	117.0	23.9	0.92	365.86	1097.58	34.2	2.20	614.37	1843.10
29.5	59	120.0	23.3	0.92	375.24	1125.72	33.3	2.20	630.12	1890.36
32.7	53	130.0	21.5	0.82	365.17	1095.51	30.8	1.98	613.21	1839.63
32.7	53	158.0	17.7	0.82	443.82	1331.47	25.3	1.98	745.29	2235.86
32.7	53	195.0	14.4	0.82	547.76	1643.27	20.5	1.98	919.82	2759.45
32.7	53	243.0	11.5	0.82	682.59	2047.76	16.5	1.98	1146.23	3438.69
32.7	53	311.0	9.0	0.82	873.60	2620.80	12.9	1.98	1466.99	4400.96
32.7	53	323.0	8.7	0.82	907.31	2721.92	12.4	1.98	1523.59	4570.77
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters			24V-5000RPM Input				24V-7500RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.7	81	2.5	1600.0	3.09	18.47	55.40	2400.0	4.71	18.73	56.19
25.7	81	3.1	1290.3	3.09	22.90	68.70	1935.5	4.71	23.23	69.68
25.7	81	3.8	1052.6	3.09	28.07	84.21	1578.9	4.71	28.47	85.41
25.7	81	4.8	833.3	3.09	35.46	106.38	1250.0	4.71	35.96	107.89
25.7	81	6.1	655.7	3.09	45.06	135.19	983.6	4.71	45.70	137.11
25.7	73	6.8	588.2	2.79	45.27	135.82	882.4	4.24	45.92	137.75
25.7	73	8.3	481.9	2.79	55.26	165.77	722.9	4.24	56.05	168.14
25.7	73	10.3	388.3	2.79	68.57	205.72	582.5	4.24	69.55	208.65
25.7	73	12.8	312.5	2.79	85.22	255.65	468.8	4.24	86.43	259.30
25.7	73	16.4	243.9	2.79	109.18	327.55	365.9	4.24	110.74	332.22
25.7	65.6	18.2	219.8	2.51	108.89	326.66	329.7	3.81	110.44	331.31
25.7	65.6	22.2	180.2	2.51	132.82	398.45	270.3	3.81	134.71	404.13
25.7	65.6	27.4	146.0	2.51	163.93	491.78	219.0	3.81	166.26	498.79
25.7	65.6	34.2	117.0	2.51	204.61	613.83	175.4	3.81	207.53	622.58
25.7	65.6	43.8	91.3	2.51	262.04	786.13	137.0	3.81	265.78	797.34
29.5	59	48.6	82.3	2.25	261.51	784.52	123.5	3.43	265.23	795.70
29.5	59	59.3	67.5	2.25	319.08	957.24	101.2	3.43	323.63	970.89
29.5	59	73.0	54.8	2.25	392.80	1178.40	82.2	3.43	398.40	1195.19
29.5	59	91.2	43.9	2.25	490.73	1472.19	65.8	3.43	497.72	1493.17
29.5	59	117.0	34.2	2.25	629.55	1888.66	51.3	3.43	638.53	1915.58
29.5	59	120.0	33.3	2.25	645.70	1937.09	50.0	3.43	654.90	1964.70
32.7	53	130.0	30.8	2.02	628.37	1885.10	46.2	3.08	637.33	1911.98
32.7	53	158.0	25.3	2.02	763.71	2291.13	38.0	3.08	774.60	2323.79
32.7	53	195.0	20.5	2.02	942.55	2827.66	30.8	3.08	955.99	2867.96
32.7	53	243.0	16.5	2.02	1174.56	3523.69	24.7	3.08	1191.31	3573.92
32.7	53	311.0	12.9	2.02	1503.25	4509.75	19.3	3.08	1524.68	4574.03
32.7	53	323.0	12.4	2.02	1561.25	4683.76	18.6	3.08	1583.51	4750.52

Please let us know your requirements and we will provide you with transmission solutions.
