16mm Diameter High Torque Low 10 Rpm RF130 Dc Brushed Gear Motor with ce and rohs for Medical Equipment

Products Description

16mm Diameter High Torque Low 10 Rpm RF130 Dc Brushed Gear Motor With Ce And Rohs For Medical Equipment

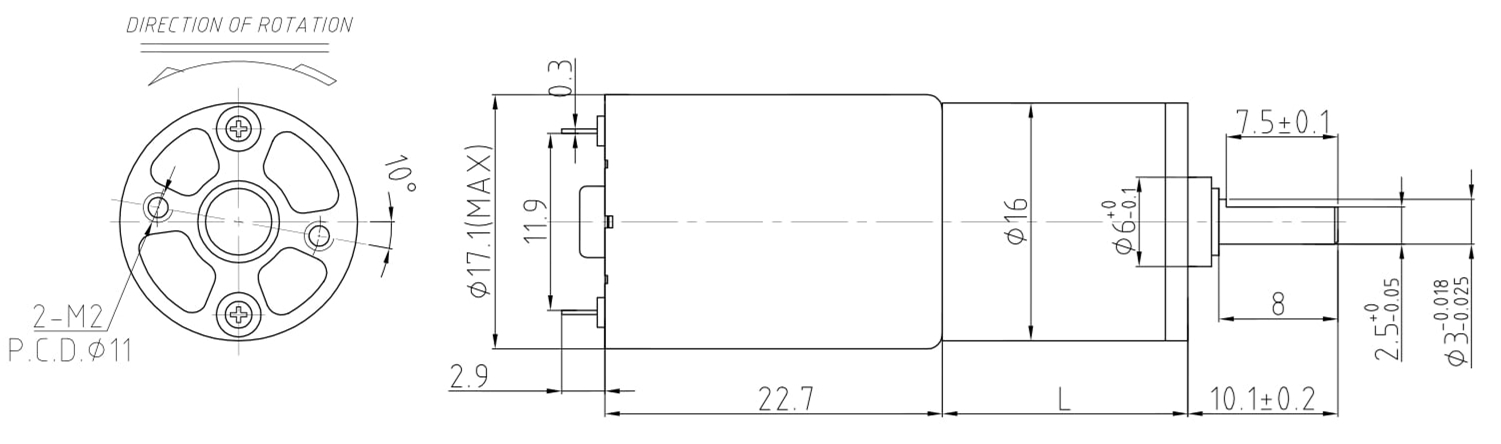

2D drawing

Model	End cover dimensions	Motor type	Regular Shaft	Weight
TJZ16RW	φ16mm	RF130	3mm-D cut	65g


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
RF130	6	4200	20	3360	0.07	0.75	0.26	62.83	2.25	0.43
RF130	6	6500	31	5200	0.11	0.77	0.42	63.53	2.31	0.64
RF130	6	10000	100	8000	0.25	1.10	0.92	61.43	3.30	1.50
RF130	12	5500	12	4400	0.03	0.52	0.24	62.39	1.56	0.19
DC Motor With Gearbox Technical Data (0.25M)
Gearbox parameters			6V-4200RPM Input				6V-6500RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
16.5	81	4.4	763.6	0.21	2.67	8.02	1181.8	0.34	2.74	8.23
16.5	73	8.8	381.8	0.19	4.82	14.45	590.9	0.31	4.95	14.84
16.5	73	9.7	346.4	0.19	5.31	15.93	536.1	0.31	5.45	16.36
16.5	65.6	17.6	190.9	0.17	8.66	25.98	295.5	0.28	8.89	26.67
16.5	65.6	19.4	173.2	0.17	9.54	28.63	268.0	0.28	9.80	29.40
16.5	65.6	21.3	157.7	0.17	10.48	31.44	244.1	0.28	10.76	32.28
16.5	59	35.2	95.5	0.16	15.58	46.73	147.7	0.25	15.99	47.97
16.5	59	38.7	86.8	0.16	17.12	51.37	134.4	0.25	17.58	52.74
16.5	59	42.6	78.9	0.16	18.85	56.55	122.1	0.25	19.35	58.06
16.5	59	46.9	71.6	0.16	20.75	62.26	110.9	0.25	21.31	63.92
18.5	53	70.0	48.0	0.14	27.83	83.48	74.3	0.22	28.57	85.70
18.5	53	77.0	43.6	0.14	30.61	91.82	67.5	0.22	31.42	94.27
18.5	53	85.0	39.5	0.14	33.79	101.36	61.2	0.22	34.69	104.07
18.5	53	94.0	35.7	0.14	37.37	112.10	55.3	0.22	38.36	115.08
18.5	53	103.0	32.6	0.14	40.94	122.83	50.5	0.22	42.03	126.10
20.5	47.8	141.0	23.8	0.13	50.55	151.65	36.9	0.20	51.90	155.69
20.5	47.8	155.0	21.7	0.13	55.57	166.70	33.5	0.20	57.05	171.15
20.5	47.8	170.0	19.8	0.13	60.95	182.84	30.6	0.20	62.57	187.71
20.5	47.8	187.0	18.0	0.13	67.04	201.12	27.8	0.20	68.83	206.48
20.5	47.8	206.0	16.3	0.13	73.85	221.55	25.2	0.20	75.82	227.46
20.5	47.8	227.0	14.8	0.13	81.38	244.14	22.9	0.20	83.55	250.65
22.5	43	282.0	11.9	0.11	90.95	272.84	18.4	0.18	93.37	280.11
22.5	43	310.0	10.8	0.11	99.98	299.93	16.8	0.18	102.64	307.92
22.5	43	341.0	9.9	0.11	109.97	329.92	15.2	0.18	112.91	338.72
22.5	43	375.0	9.0	0.11	120.94	362.81	13.9	0.18	124.16	372.49
22.5	43	412.0	8.2	0.11	132.87	398.61	12.6	0.18	136.41	409.24
22.5	43	454.0	7.4	0.11	146.42	439.25	11.5	0.18	150.32	450.96
22.5	43	499.0	6.7	0.11	160.93	482.78	10.4	0.18	165.22	495.66
DC Motor With Gearbox Technical Data (0.25M)
Gearbox parameters			6V-10000RPM Input				12V-5500RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
16.5	81	4.4	1818.2	0.75	3.92	11.76	1000.0	0.19	1.85	5.56
16.5	73	8.8	909.1	0.67	7.07	21.20	500.0	0.17	3.34	10.02
16.5	73	9.7	824.7	0.67	7.79	23.37	453.6	0.17	3.68	11.05
16.5	65.6	17.6	454.5	0.60	12.70	38.10	250.0	0.16	6.00	18.01
16.5	65.6	19.4	412.4	0.60	14.00	42.00	226.8	0.16	6.62	19.85
16.5	65.6	21.3	375.6	0.60	15.37	46.11	206.6	0.16	7.27	21.80
16.5	59	35.2	227.3	0.54	22.84	68.53	125.0	0.14	10.80	32.40
16.5	59	38.7	206.7	0.54	25.12	75.35	113.7	0.14	11.87	35.62
16.5	59	42.6	187.8	0.54	27.65	82.94	103.3	0.14	13.07	39.21
16.5	59	46.9	170.6	0.54	30.44	91.31	93.8	0.14	14.39	43.17
18.5	53	70.0	114.3	0.49	40.81	122.43	62.9	0.13	19.29	57.88
18.5	53	77.0	103.9	0.49	44.89	134.67	57.1	0.13	21.22	63.66
18.5	53	85.0	94.1	0.49	49.56	148.67	51.8	0.13	23.43	70.28
18.5	53	94.0	85.1	0.49	54.80	164.41	46.8	0.13	25.91	77.72
18.5	53	103.0	77.7	0.49	60.05	180.15	42.7	0.13	28.39	85.16
20.5	47.8	141.0	56.7	0.44	74.14	222.41	31.2	0.11	35.05	105.14
20.5	47.8	155.0	51.6	0.44	81.50	244.50	28.4	0.11	38.53	115.58
20.5	47.8	170.0	47.1	0.44	89.39	268.16	25.9	0.11	42.26	126.77
20.5	47.8	187.0	42.8	0.44	98.32	294.97	23.5	0.11	46.48	139.44
20.5	47.8	206.0	38.8	0.44	108.31	324.94	21.4	0.11	51.20	153.61
20.5	47.8	227.0	35.2	0.44	119.36	358.07	19.4	0.11	56.42	169.27
22.5	43	282.0	28.4	0.40	133.39	400.16	15.6	0.10	63.06	189.17
22.5	43	310.0	25.8	0.40	146.63	439.89	14.2	0.10	69.32	207.95
22.5	43	341.0	23.5	0.40	161.29	483.88	12.9	0.10	76.25	228.74
22.5	43	375.0	21.3	0.40	177.38	532.13	11.7	0.10	83.85	251.55
22.5	43	412.0	19.4	0.40	194.88	584.63	10.7	0.10	92.12	276.37
22.5	43	454.0	17.6	0.40	214.74	644.23	9.7	0.10	101.51	304.54
22.5	43	499.0	16.0	0.40	236.03	708.08	8.8	0.10	111.58	334.73

Please let us know your requirements and we will provide you with transmission solutions.
