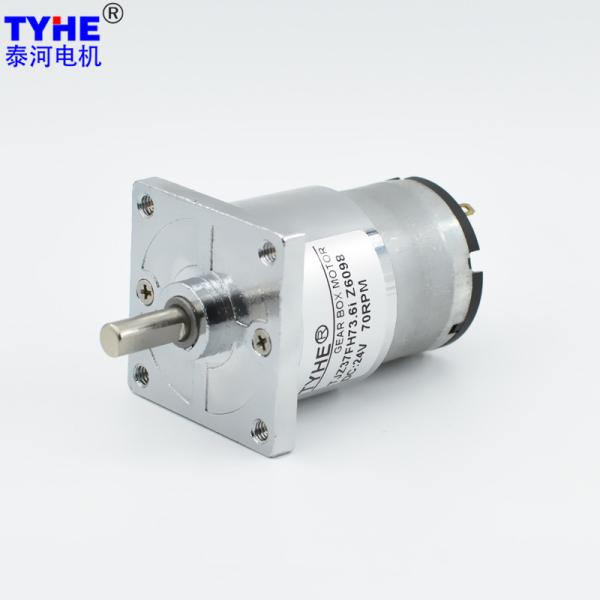

IE2 Reversible 37mm Diameter 520 Brush 3v 15rpm Dc Geared Motor For Auto Cooker

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJZ37FH
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

IE2 Reversible 37mm Diameter 520 Brush 3v 15rpm Dc Geared Motor For Auto Cooker

Products Description

IE2 Reversible 37mm Diameter 520 Brush 3v 15rpm Dc Geared Motor For Auto Cooker

2D drawing

Model	End cover dimensions	Motor type	Regular Shaft	Weight
TJZ37FH	φ37mm	32-C	6mm-D cut	170g


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
ZY3324	6	7000	80	5600	0.37	2.35	1.38	62.78	7.05	2.95
ZY3324	7	4000	30	3200	0.14	1.79	0.60	62.70	5.37	1.10
ZY3324	12	4000	18	3200	0.08	1.75	0.59	62.12	5.25	0.62
ZY3324	12	5000	32	4000	0.12	2.12	0.89	64.07	6.36	0.81
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			6V-7000RPM Input				7V-4000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
22.5	81	4.6	1217.4	1.12	8.76	26.27	695.7	0.49	6.67	20.01
22.5	81	5.9	949.2	1.12	11.23	33.69	542.4	0.49	8.55	25.66
22.5	81	6.9	811.6	1.12	13.13	39.40	463.8	0.49	10.00	30.01
22.5	73	8.4	666.7	1.01	14.41	43.23	381.0	0.44	10.98	32.93
22.5	73	10.6	528.3	1.01	18.18	54.55	301.9	0.44	13.85	41.55
22.5	73	13.5	414.8	1.01	23.16	69.48	237.0	0.44	17.64	52.92
22.5	73	16.0	350.0	1.01	27.45	82.34	200.0	0.44	20.91	62.72
24.5	65.6	19.3	290.2	0.90	29.75	89.26	165.8	0.39	22.66	67.99
24.5	65.6	24.4	229.5	0.90	37.62	112.85	131.1	0.39	28.65	85.95
24.5	65.6	31.6	177.2	0.90	48.71	146.14	101.3	0.39	37.11	111.32
24.5	65.6	37.0	151.4	0.90	57.04	171.12	86.5	0.39	43.45	130.34
26.5	59	45.0	124.4	0.81	62.39	187.18	71.1	0.35	47.52	142.57
26.5	59	57.0	98.2	0.81	79.03	237.09	56.1	0.35	60.20	180.59
26.5	59	73.6	76.1	0.81	102.05	306.14	43.5	0.35	77.73	233.19
26.5	59	86.0	65.1	0.81	119.24	357.72	37.2	0.35	90.82	272.47
26.5	59	95.0	58.9	0.81	131.72	395.15	33.7	0.35	100.33	300.99
29.5	53	105.0	53.3	0.73	130.78	392.33	30.5	0.32	99.61	298.84
29.5	53	133.0	42.1	0.73	165.65	496.95	24.1	0.32	126.18	378.53
29.5	53	172.0	32.6	0.73	214.23	642.68	18.6	0.32	163.18	489.53
29.5	53	201.0	27.9	0.73	250.35	751.04	15.9	0.32	190.69	572.07
29.5	53	221.0	25.3	0.73	275.26	825.77	14.5	0.32	209.66	628.99
29.5	53	244.0	23.0	0.73	303.90	911.71	13.1	0.32	231.48	694.45
32.5	47.8	245.0	22.9	0.66	275.21	825.63	13.1	0.29	209.63	628.88
32.5	47.8	310.0	18.1	0.66	348.22	1044.67	10.3	0.29	265.24	795.73
32.5	47.8	401.0	14.0	0.66	450.44	1351.33	8.0	0.29	343.10	1029.31
32.5	47.8	469.0	11.9	0.66	526.83	1580.48	6.8	0.29	401.29	1203.86
32.5	47.8	516.0	10.9	0.66	579.62	1738.87	6.2	0.29	441.50	1324.50
32.5	47.8	569.0	9.8	0.66	639.16	1917.47	5.6	0.29	486.85	1460.54
32.5	47.8	627.0	8.9	0.66	704.31	2112.93	5.1	0.29	536.47	1609.42
32.5	43	1093.0	5.1	0.59	1104.48	2500.00	2.9	0.26	841.28	2500.00
32.5	43	1205.0	4.6	0.59	1217.65	2500.00	2.7	0.26	927.49	2500.00
32.5	43	1328.0	4.2	0.59	1341.94	2500.00	2.4	0.26	1022.16	2500.00
32.5	43	1463.0	3.8	0.59	1478.36	2500.00	2.2	0.26	1126.07	2500.00
32.5	43	1613.0	3.5	0.59	1629.94	2500.00	2.0	0.26	1241.53	2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			12V-4000RPM Input				12V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
22.5	81	4.6	695.7	0.47	6.52	19.56	869.6	0.72	7.90	23.70
22.5	81	5.9	542.4	0.47	8.36	25.09	678.0	0.72	10.13	30.39
22.5	81	6.9	463.8	0.47	9.78	29.34	579.7	0.72	11.85	35.55
22.5	73	8.4	381.0	0.43	10.73	32.19	476.2	0.65	13.00	39.00
22.5	73	10.6	301.9	0.43	13.54	40.62	377.4	0.65	16.40	49.21
22.5	73	13.5	237.0	0.43	17.25	51.74	296.3	0.65	20.89	62.68
22.5	73	16.0	200.0	0.43	20.44	61.32	250.0	0.65	24.76	74.28
24.5	65.6	19.3	165.8	0.38	22.16	66.47	207.3	0.58	26.84	80.52
24.5	65.6	24.4	131.1	0.38	28.01	84.03	163.9	0.58	33.93	101.80
24.5	65.6	31.6	101.3	0.38	36.28	108.83	126.6	0.58	43.95	131.84
24.5	65.6	37.0	86.5	0.38	42.48	127.43	108.1	0.58	51.46	154.37
26.5	59	45.0	71.1	0.35	46.46	139.39	88.9	0.52	56.29	168.86
26.5	59	57.0	56.1	0.35	58.85	176.56	70.2	0.52	71.30	213.89
26.5	59	73.6	43.5	0.35	75.99	227.98	54.3	0.52	92.06	276.18
26.5	59	86.0	37.2	0.35	88.80	266.39	46.5	0.52	107.57	322.71
26.5	59	95.0	33.7	0.35	98.09	294.26	42.1	0.52	118.83	356.48
29.5	53	105.0	30.5	0.31	97.39	292.16	38.1	0.47	117.98	353.93
29.5	53	133.0	24.1	0.31	123.36	370.07	30.1	0.47	149.44	448.32
29.5	53	172.0	18.6	0.31	159.53	478.59	23.3	0.47	193.26	579.78
29.5	53	201.0	15.9	0.31	186.43	559.28	19.9	0.47	225.84	677.53
29.5	53	221.0	14.5	0.31	204.98	614.93	18.1	0.47	248.32	744.95
29.5	53	244.0	13.1	0.31	226.31	678.93	16.4	0.47	274.16	822.48
32.5	47.8	245.0	13.1	0.28	204.94	614.83	16.3	0.42	248.27	744.82
32.5	47.8	310.0	10.3	0.28	259.32	777.95	12.9	0.42	314.14	942.42
32.5	47.8	401.0	8.0	0.28	335.44	1006.31	10.0	0.42	406.36	1219.07
32.5	47.8	469.0	6.8	0.28	392.32	1176.96	8.5	0.42	475.27	1425.80
32.5	47.8	516.0	6.2	0.28	431.63	1294.90	7.8	0.42	522.89	1568.68
32.5	47.8	569.0	5.6	0.28	475.97	1427.91	7.0	0.42	576.60	1729.81
32.5	47.8	627.0	5.1	0.28	524.49	1573.46	6.4	0.42	635.38	1906.13
32.5	43	1093.0	2.9	0.25	822.48	2467.45	3.7	0.38	996.38	2500.00
32.5	43	1205.0	2.7	0.25	906.76	2500.00	3.3	0.38	1098.48	2500.00
32.5	43	1328.0	2.4	0.25	999.32	2500.00	3.0	0.38	1210.60	2500.00
32.5	43	1463.0	2.2	0.25	1100.91	2500.00	2.7	0.38	1333.67	2500.00
32.5	43	1613.0	2.0	0.25	1213.78	2500.00	2.5	0.38	1470.41	2500.00

Please let us know your requirements and we will provide you with transmission solutions.
