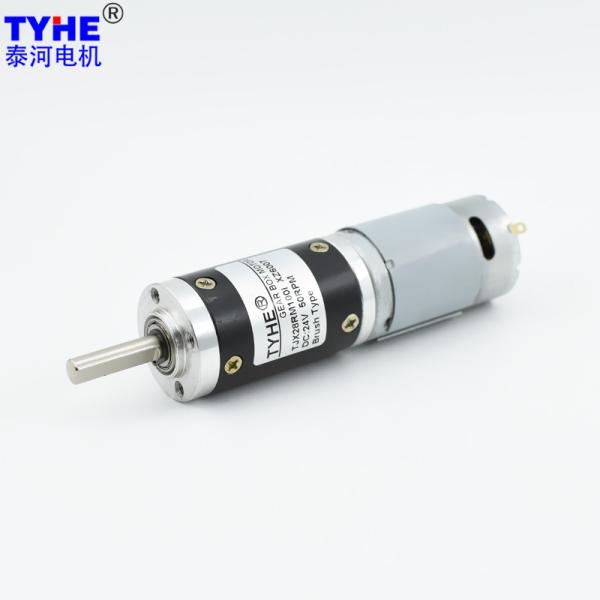

Steel Gear 12V PMDC DC Planetary Gear Motor 100rpm 5400rpm

Products Description

Bulk Sale D28mm 12v 100rpm 5400rpm Micro PMDC Dc Planetary Steel Gear Motor For Machine Design

2D drawing


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
RS395	12	4500	100	3600	0.29	5.90	2.22	63.55	17.70	1.70
RS395	12	7500	160	6000	0.62	7.30	4.59	62.15	21.90	4.50
RS395	24	5000	50	4000	0.17	6.30	2.64	64.68	18.90	1.14
RS395	24	5300	60	4240	0.20	6.70	2.97	62.49	20.10	1.30
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			12V-4500RPM Input				12V-7500RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
31.2	90	3.7	973.0	2.00	19.65	58.94	1621.6	4.13	24.31	72.93
31.2	90	5.2	692.3	2.00	27.61	82.84	1153.8	4.13	34.16	102.49
40	81	13.7	262.8	1.80	65.47	196.42	438.0	3.71	81.01	243.02
40	81	19.2	187.5	1.80	91.76	275.27	312.5	3.71	113.53	340.59
40	81	26.9	133.8	1.80	128.56	385.67	223.0	3.71	159.06	477.18
40	81	35.0	102.9	1.80	167.27	501.80	171.4	3.71	206.96	620.87
48.8	73	51.0	70.6	1.62	219.66	658.97	117.6	3.35	271.78	815.34
48.8	73	71.0	50.7	1.62	305.80	917.39	84.5	3.35	378.36	1135.08
48.8	73	100.0	36.0	1.62	430.70	1292.10	60.0	3.35	532.90	1598.70
48.8	73	139.0	25.9	1.62	598.67	1796.02	43.2	3.35	740.73	2222.19
57.6	65.6	189.0	19.0	1.46	731.51	2194.52	31.7	3.01	905.08	2715.25
57.6	65.6	264.0	13.6	1.46	1021.79	3065.36	22.7	3.01	1264.24	3792.73
57.6	65.6	369.0	9.8	1.46	1428.18	4284.53	16.3	3.01	1767.07	5000.00
57.6	65.6	514.0	7.0	1.46	1989.39	5000.00	11.7	3.01	2461.44	5000.00
57.6	65.6	721.0	5.0	1.46	2790.56	5000.00	8.3	3.01	3452.72	5000.00
66.4	59	699.0	5.2	1.31	2433.22	5000.00	8.6	2.71	3010.59	5000.00
66.4	59	977.0	3.7	1.31	3400.94	5000.00	6.1	2.71	4207.94	5000.00
66.4	59	1367.0	2.6	1.31	4758.53	5000.00	4.4	2.71	5000.00	5000.00
66.4	59	1911.0	1.9	1.31	5000.00	5000.00	3.1	2.71	5000.00	5000.00
66.4	59	2672.0	1.3	1.31	5000.00	5000.00	2.2	2.71	5000.00	5000.00
66.4	59	3736.0	1.0	1.31	5000.00	5000.00	1.6	2.71	5000.00	5000.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			24V-5000RPM Input				24V-5300RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
31.2	90	3.7	1081.1	2.37	20.98	62.94	1145.9	2.68	22.31	66.93
31.2	90	5.2	769.2	2.37	29.48	88.45	815.4	2.68	31.36	94.07
40	81	13.7	292.0	2.14	69.91	209.73	309.5	2.41	74.35	223.05
40	81	19.2	208.3	2.14	97.98	293.93	220.8	2.41	104.20	312.60
40	81	26.9	148.7	2.14	137.27	411.81	157.6	2.41	145.99	437.96
40	81	35.0	114.3	2.14	178.61	535.82	121.1	2.41	189.95	569.84
48.8	73	51.0	78.4	1.93	234.55	703.65	83.1	2.17	249.44	748.32
48.8	73	71.0	56.3	1.93	326.53	979.59	59.7	2.17	347.26	1041.78
48.8	73	100.0	40.0	1.93	459.90	1379.70	42.4	2.17	489.10	1467.30
48.8	73	139.0	28.8	1.93	639.26	1917.78	30.5	2.17	679.85	2039.55
57.6	65.6	189.0	21.2	1.73	781.10	2343.30	22.4	1.95	830.69	2492.08
57.6	65.6	264.0	15.2	1.73	1091.06	3273.18	16.1	1.95	1160.33	3481.00
57.6	65.6	369.0	10.8	1.73	1525.00	4575.01	11.5	1.95	1621.83	4865.49
57.6	65.6	514.0	7.8	1.73	2124.26	5000.00	8.2	1.95	2259.13	5000.00
57.6	65.6	721.0	5.5	1.73	2979.75	5000.00	5.9	1.95	3168.94	5000.00
66.4	59	699.0	5.7	1.56	2598.18	5000.00	6.1	1.76	2763.15	5000.00
66.4	59	977.0	4.1	1.56	3631.51	5000.00	4.3	1.76	3862.08	5000.00
66.4	59	1367.0	2.9	1.56	5000.00	5000.00	3.1	1.76	5000.00	5000.00
66.4	59	1911.0	2.1	1.56	5000.00	5000.00	2.2	1.76	5000.00	5000.00
66.4	59	2672.0	1.5	1.56	5000.00	5000.00	1.6	1.76	5000.00	5000.00
66.4	59	3736.0	1.1	1.56	5000.00	5000.00	1.1	1.76	5000.00	5000.00

Please let us know your requirements and we will provide you with transmission solutions.
