90kg.Cm 24V 12V DC Motor High Torque 3000 Rpm Speed Adjustable

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJX38RGa
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

90kg.Cm 24V 12V DC Motor High Torque 3000 Rpm Speed Adjustable

Products Description

Speed Adjustable 38mm Diameter 12v 24v 90kg Cm Torque 3000rpm Dc Planetary Metal Gear Reducer Motor With Ce Rohs

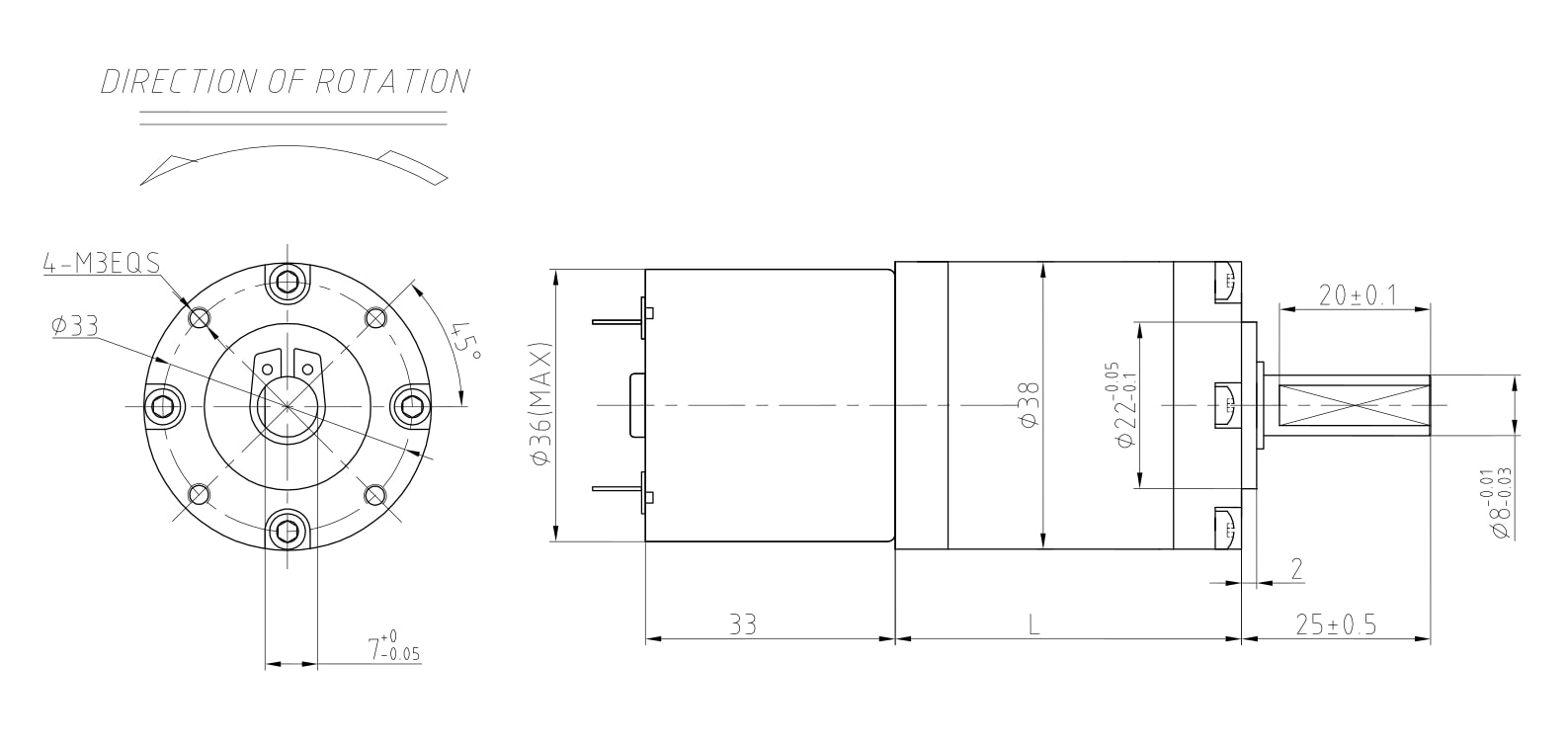

2D drawing


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
RS530	12	6000	135	4800	0.68	9.90	4.98	61.20	29.70	5.70
RS530	12	6500	120	5200	0.70	9.80	5.34	63.83	29.40	6.20
RS530	12	7500	160	6000	0.80	9.50	5.97	62.30	28.50	6.70
RS530	24	3500	35	2800	0.12	5.90	1.73	62.68	17.70	0.75
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			12V-6000RPM Input				12V-6500RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
28.2	90	3.7	1297.3	4.48	32.97	98.90	1405.4	4.80	32.63	97.90
28.2	90	5.2	923.1	4.48	46.33	139.00	1000.0	4.80	45.86	137.59
37	81	13.7	350.4	4.03	109.86	329.58	379.6	4.32	108.75	326.25
37	81	19.2	250.0	4.03	153.96	461.89	270.8	4.32	152.41	457.23
37	81	26.9	178.4	4.03	215.71	647.13	193.3	4.32	213.53	640.60
37	81	35.0	137.1	4.03	280.67	842.00	148.6	4.32	277.83	833.49
45.8	73	51.0	94.1	3.63	368.58	1105.73	102.0	3.90	364.85	1094.56
45.8	73	71.0	67.6	3.63	513.12	1539.35	73.2	3.90	507.93	1523.80
45.8	73	100.0	48.0	3.63	722.70	2168.10	52.0	3.90	715.40	2146.20
45.8	73	139.0	34.5	3.63	1004.55	3013.66	37.4	3.90	994.41	2983.22
54.7	65.6	189.0	25.4	3.26	1227.44	3682.32	27.5	3.50	1215.04	3645.13
54.7	65.6	264.0	18.2	3.26	1714.52	5143.56	19.7	3.50	1697.20	5091.61
54.7	65.6	369.0	13.0	3.26	2396.43	7189.30	14.1	3.50	2372.23	7116.68
54.7	65.6	514.0	9.3	3.26	3338.12	10014.36	10.1	3.50	3304.40	9913.21
54.7	65.6	721.0	6.7	3.26	4682.46	14047.39	7.2	3.50	4635.16	13905.49
64	59	699.0	6.9	2.94	4082.86	12248.58	7.4	3.15	4041.62	12124.85
64	59	977.0	4.9	2.94	5706.66	15000.00	5.3	3.15	5649.01	15000.00
64	59	1367.0	3.5	2.94	7984.65	15000.00	3.8	3.15	7903.99	15000.00
64	59	1911.0	2.5	2.94	11162.15	15000.00	2.7	3.15	11049.40	15000.00
64	59	2672.0	1.8	2.94	15000.00	15000.00	1.9	3.15	15000.00	15000.00
64	59	3736.0	1.3	2.94	15000.00	15000.00	1.4	3.15	15000.00	15000.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			12V-7500RPM Input				24V-3500RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
28.2	90	3.7	1621.6	5.37	31.64	94.91	756.8	1.56	19.65	58.94
28.2	90	5.2	1153.8	5.37	44.46	133.38	538.5	1.56	27.61	82.84
37	81	13.7	438.0	4.83	105.42	316.26	204.4	1.40	65.47	196.42
37	81	19.2	312.5	4.83	147.74	443.23	145.8	1.40	91.76	275.27
37	81	26.9	223.0	4.83	207.00	620.99	104.1	1.40	128.56	385.67
37	81	35.0	171.4	4.83	269.33	807.98	80.0	1.40	167.27	501.80
45.8	73	51.0	117.6	4.36	353.69	1061.06	54.9	1.26	219.66	658.97
45.8	73	71.0	84.5	4.36	492.39	1477.16	39.4	1.26	305.80	917.39
45.8	73	100.0	60.0	4.36	693.50	2080.50	28.0	1.26	430.70	1292.10
45.8	73	139.0	43.2	4.36	963.97	2891.90	20.1	1.26	598.67	1796.02
54.7	65.6	189.0	31.7	3.92	1177.85	3533.54	14.8	1.13	731.51	2194.52
54.7	65.6	264.0	22.7	3.92	1645.25	4935.74	10.6	1.13	1021.79	3065.36
54.7	65.6	369.0	16.3	3.92	2299.61	6898.82	7.6	1.13	1428.18	4284.53
54.7	65.6	514.0	11.7	3.92	3203.25	9609.74	5.4	1.13	1989.39	5968.16
54.7	65.6	721.0	8.3	3.92	4493.27	13479.82	3.9	1.13	2790.56	8371.68
64	59	699.0	8.6	3.52	3917.90	11753.69	4.0	1.02	2433.22	7299.66
64	59	977.0	6.1	3.52	5476.09	15000.00	2.9	1.02	3400.94	10202.81
64	59	1367.0	4.4	3.52	7662.04	15000.00	2.0	1.02	4758.53	14275.58
64	59	1911.0	3.1	3.52	10711.16	15000.00	1.5	1.02	6652.19	15000.00
64	59	2672.0	2.2	3.52	14976.56	15000.00	1.0	1.02	9301.23	15000.00
64	59	3736.0	1.6	3.52	15000.00	15000.00	0.7	1.02	13005.02	15000.00

Please let us know your requirements and we will provide you with transmission solutions.
