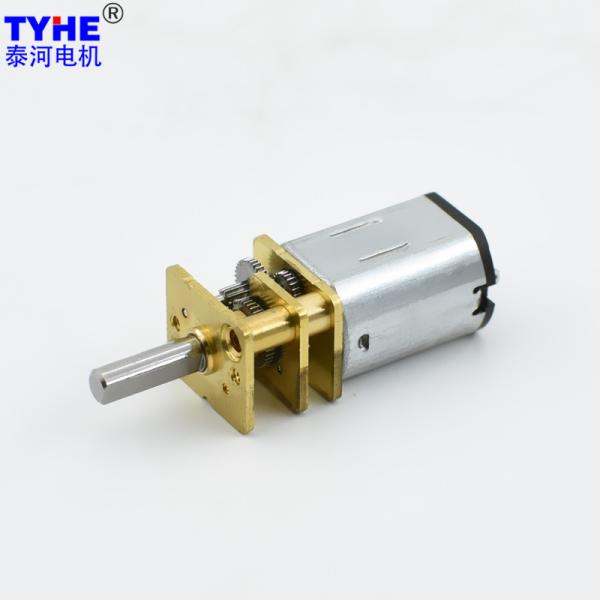

Steel gears 12mm size 3v 6v 12v Micro N20 Dc Gear Motor for Smart lock

Product Categories

Wenzhou Tyhe Motor Co., Ltd.

Contact Now

Steel gears 12mm size 3v 6v 12v Micro N20 Dc Gear Motor for Smart lock

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJZ12FN20
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	200000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

Steel gears 12mm size 3v 6v 12v Micro N20 Dc Gear Motor for Smart lock

Products Description

Steel Gears 12mm Size 3v 6v 12v Micro N20 Dc Gear Motor For Smart Lock

2D drawing

Model	End cover dimensions	Motor type	Regular Shaft	Weight
TJZ12FN20	φ12mm	N20	4mm-D cut	20g


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
N20	3	12000	23	9600	0.11	0.21	0.21	63.60	0.62	0.54
N20	5	14600	25	11680	0.10	0.26	0.31	62.86	0.77	0.45
N20	12	16000	15	12800	0.06	0.35	0.47	64.78	1.04	0.25
N20	3.7	25000	45	20000	0.75	0.82	1.72	61.88	2.46	1.00
DC Motor With Gearbox Technical Data (0.15M)
Gearbox parameters			3V-12000RPM Input				5V-14600RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
9	90	5	1920.0	0.19	0.92	2.77	2336.0	0.28	1.16	3.47
9	87	10	960.0	0.18	1.78	5.35	1168.0	0.27	2.24	6.71
9	84	30	320.0	0.17	5.17	15.50	389.3	0.26	6.48	19.43
9	81	50	192.0	0.17	8.30	24.91	233.6	0.25	10.41	31.23
9	78	75	128.0	0.16	11.99	35.98	155.7	0.25	15.03	45.10
9	75	100	96.0	0.15	15.38	46.13	116.8	0.24	19.28	57.83
9	72	150	64.0	0.15	22.14	66.42	77.9	0.23	27.76	83.27
9	69	210	45.7	0.14	29.70	89.11	55.6	0.22	37.24	111.72
9	66	250	38.4	0.14	33.83	101.48	46.7	0.21	42.41	127.22
9	63	298	32.2	0.13	38.49	115.46	39.2	0.20	48.25	144.75
9	60	380	25.3	0.12	46.74	140.22	30.7	0.19	58.60	175.79
12	50	1000	9.6	0.10	102.50	307.50	11.7	0.16	128.50	385.50
DC Motor With Gearbox Technical Data (0.15M)
Gearbox parameters			12V-16000RPM Input				3.7V-25000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
9	90	5	2560.0	0.42	1.57	4.70	4000.0	1.55	3.69	11.07
9	87	10	1280.0	0.41	3.03	9.08	2000.0	1.49	7.13	21.40
9	84	30	426.7	0.39	8.77	26.31	666.7	1.44	20.66	61.99
9	81	50	256.0	0.38	14.09	42.28	400.0	1.39	33.21	99.63
9	78	75	170.7	0.36	20.36	61.07	266.7	1.34	47.97	143.91
9	75	100	128.0	0.35	26.10	78.30	200.0	1.29	61.50	184.50
9	72	150	85.3	0.34	37.58	112.75	133.3	1.24	88.56	265.68
9	69	210	61.0	0.32	50.43	151.28	95.2	1.18	118.82	356.45
9	66	250	51.2	0.31	57.42	172.26	80.0	1.13	135.30	405.90
9	63	298	43.0	0.29	65.33	196.00	67.1	1.08	153.95	461.84
9	60	380	33.7	0.28	79.34	238.03	52.6	1.03	186.96	560.88
12	50	1000	12.8	0.23	174.00	522.00	20.0	0.86	410.00	1230.00

Please let us know your requirements and we will provide you with transmission solutions.
