    Ie3 Steel Gear Micro 37mm Rs545 Brushed 24v 500rpm 0.5n.M Dc Gear Reduction Motor Ce Rohs

    Ask Lasest Price
    Brand Name : TYHE
    Model Number : TJZ37FGb
    Certification : CE/ROHS/ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 100000pcs per month
    Delivery Time : 15 working days after payment
    • Product Details
    • Company Profile

    Ie3 Steel Gear Micro 37mm Rs545 Brushed 24v 500rpm 0.5n.M Dc Gear Reduction Motor Ce Rohs

    Products Description

    IE3 Steel Gear Micro 37mm Rs545 Brushed 24v 500rpm 0.5N.M Dc Gear Reduction Motor Ce Rohs

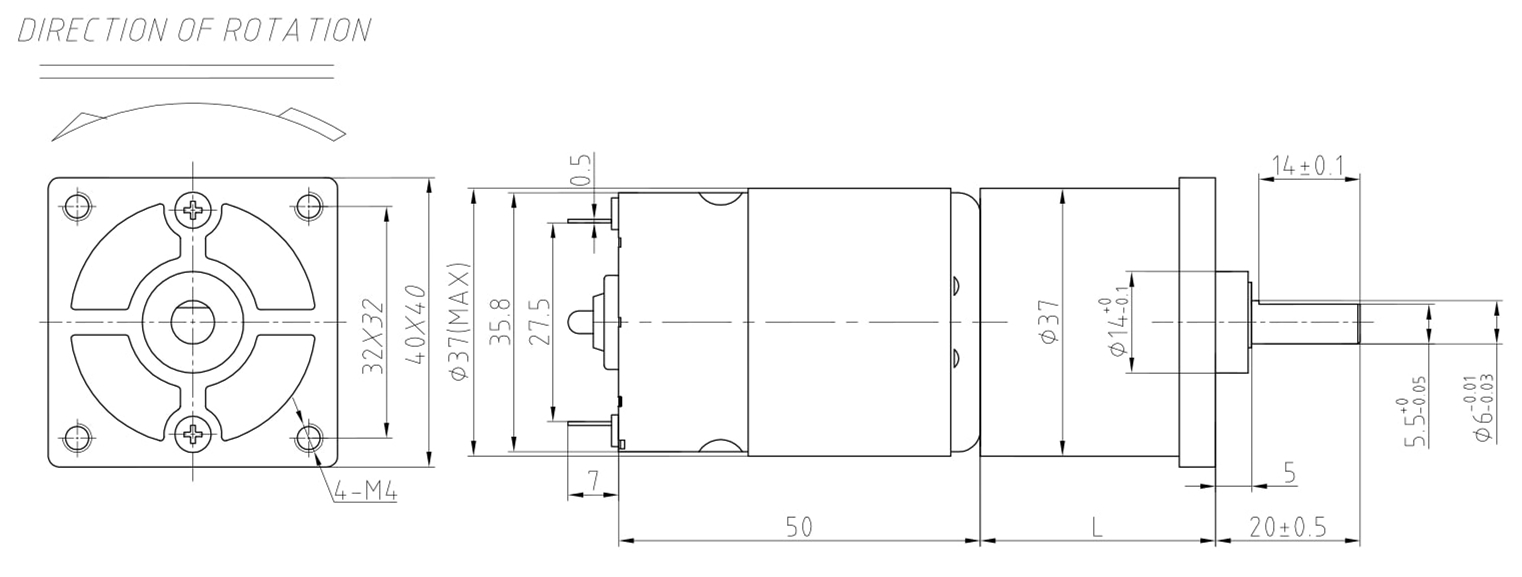

    2D drawing

    ModelEnd cover dimensionsMotor typeRegular ShaftWeight
    TJZ37FGb40*40mmRS5456mm-D cut300g


    Specifications


    DC Motor Technical Data
    ModelRated Voltage(V)No-Load ParametersRated ParametersStall Parameters
    SpeedCurrentSpeedCurrentTorqueOutputeffTorqueCurrent
    rpmmArpmAmN.mW%mN.mA
    RS5456320028025600.8111.203.0061.6533.604.70
    RS5451220007016000.208.951.5063.5426.851.10
    RS54524600016048000.6017.508.8061.2552.504.30
    RS54524830020066400.8819.3013.4263.9057.906.90
    DC Motor With Gearbox Technical Data (0.5M)
    Gearbox parameters6V-3200RPM Input12V-2000RPM Input
    Length (mm)Transmission Efficiency (%)Gear RatioRated Output Speed (RPM)Rated Output Power (W)Rated Torque (mN.m)Maximum Instantaneous Torque (mN.m)Rated Output Speed (RPM)Rated Output Power (W)Rated Torque (mN.m)Maximum Instantaneous Torque (mN.m)
    22.5814.6556.52.4341.73125.19347.81.2133.35100.04
    22.5815.9433.92.4353.52160.57271.21.2142.77128.32
    22.5738.4304.82.1968.68206.04190.51.0954.88164.64
    22.57310.6241.52.1986.67260.00150.91.0969.26207.77
    22.57313.5189.62.19110.38331.13118.51.0988.20264.61
    24.565.619.3132.61.97141.80425.4082.90.98113.31339.94
    24.565.624.4104.91.97179.27537.8265.60.98143.26429.77
    24.565.631.681.01.97232.17696.5150.60.98185.53556.59
    26.55945.056.91.77297.36892.0835.60.88237.62712.87
    26.55957.044.91.77376.661129.9728.10.88300.99902.97
    26.55973.634.81.77486.351459.0521.70.88388.641165.93
    29.553105.024.41.59623.281869.8415.20.79498.071494.20
    29.553133.019.21.59789.492368.4612.00.79630.891892.66
    29.553172.014.91.591020.992500.009.30.79815.882447.65
    32.547.8245.010.41.441311.632500.006.50.721048.132500.00
    32.547.8310.08.31.441659.622500.005.20.721326.212500.00
    32.547.8401.06.41.442146.792500.004.00.721715.522500.00
    DC Motor With Gearbox Technical Data (0.5M)
    Gearbox parameters24V-6000RPM Input24V-8300RPM Input
    Length (mm)Transmission Efficiency (%)Gear RatioRated Output Speed (RPM)Rated Output Power (W)Rated Torque (mN.m)Maximum Instantaneous Torque (mN.m)Rated Output Speed (RPM)Rated Output Power (W)Rated Torque (mN.m)Maximum Instantaneous Torque (mN.m)
    22.5814.61043.57.1265.21195.621443.510.8771.91215.74
    22.5815.9813.67.1283.63250.901125.410.8792.23276.70
    22.5738.4571.46.42107.31321.93790.59.80118.35355.04
    22.57310.6452.86.42135.42406.25626.49.80149.34448.03
    22.57313.5355.66.42172.46517.39491.99.80190.20570.60
    24.565.619.3248.75.77221.56664.69344.08.80244.35733.06
    24.565.624.4196.75.77280.11840.34272.18.80308.92926.77
    24.565.631.6151.95.77362.771088.30210.18.80400.081200.24
    26.55945.0106.75.19464.631393.88147.67.92512.421537.25
    26.55957.084.25.19588.531765.58116.57.92649.061947.18
    26.55973.665.25.19759.922279.7690.27.92838.082500.00
    29.553105.045.74.66973.882500.0063.27.111074.052500.00
    29.553133.036.14.661233.582500.0049.97.111360.462500.00
    29.553172.027.94.661595.302500.0038.67.111759.392500.00
    32.547.8245.019.64.202049.432500.0027.16.412260.222500.00
    32.547.8310.015.54.202500.002500.0021.46.412500.002500.00
    32.547.8401.012.04.202500.002500.0016.66.412500.002500.00

    Please let us know your requirements and we will provide you with transmission solutions.


    Company Profile

    WenZhou TYHE Motor Co.,ltd. was established in May, 2010 and is located in WenZhou, China. TYHE covers an area of 3500㎡. And we have excellent teams who focus on R&D, QC and company operation.

    1. 11 years experiences in dc gear motor industry.
    2. Accept OEM or ODM orders.
    3. 5 days lead time for samples.
    4. Monthly capacity is ≥500000pcs.
    5. Warranty: one year.
    6. 10 R&D engineers offer professional solutions.
    7. Fast delivery time base on different quantities.
    8. CE, ROHS and ISO9001 certificated.
