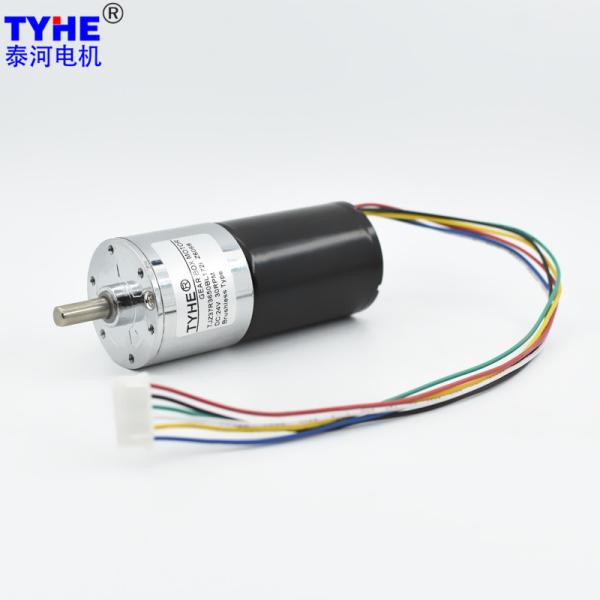

    Long Lifetime Reversible 37mm gearbox 15kgf 30rpm 50rpm 70rpm dc brushless Electric geared motor

    Ask Lasest Price
    Brand Name : TYHE
    Model Number : TJZ37R3650BL
    Certification : CE/ROHS/ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 100000pcs per month
    Delivery Time : 15 working days after payment
    • Product Details
    • Company Profile

    Long Lifetime Reversible 37mm gearbox 15kgf 30rpm 50rpm 70rpm dc brushless Electric geared motor

    Products Description

    Long Lifetime Reversible 37mm Gearbox 15kgf 30rpm 50rpm 70rpm Dc Brushless Electric Geared Motor

    2D drawing

    ModelEnd cover dimensionsMotor typeRegular ShaftWeight
    TJZ37R3650BLφ37mm3650BL6mm-D cut300g


    Specifications


    DC Motor Technical Data
    ModelRated Voltage(V)No-Load ParametersRated ParametersStall Parameters
    SpeedCurrentSpeedCurrentTorqueOutputeffTorqueCurrent
    rpmmArpmAmN.mW%mN.mA
    3650BL12500035040001.0719.208.0462.8357.606.50
    3650BL24500012040000.4717.807.4665.8653.403.50
    DC Motor With Gearbox Technical Data (0.5M)
    Gearbox parameters12V-5000RPM Input24V-5000RPM Input
    Length (mm)Transmission Efficiency (%)Gear RatioRated Output Speed (RPM)Rated Output Power (W)Rated Torque (mN.m)Maximum Instantaneous Torque (mN.m)Rated Output Speed (RPM)Rated Output Power (W)Rated Torque (mN.m)Maximum Instantaneous Torque (mN.m)
    22.5814.6869.66.5171.54214.62869.66.0466.32198.97
    22.5815.9678.06.5191.76275.27678.06.0485.07255.20
    22.5738.4476.25.9117.73353.20476.195.44109.15327.45
    22.57310.6377.45.9148.57445.71377.365.44137.74413.21
    22.57313.5296.35.9189.22567.65296.305.44175.42526.26
    24.565.619.3207.35.28243.09729.26207.34.89225.36676.09
    24.565.624.4163.95.28307.32921.97163.94.89284.91854.74
    24.565.631.6126.65.28398.011194.02126.64.89368.991106.96
    26.55945.088.94.7509.761529.2888.894.40472.591417.77
    26.55957.070.24.7645.701937.0970.184.40598.611795.84
    26.55973.654.34.7833.742500.0054.354.40772.952318.84
    29.553105.038.14.261068.482500.0038.13.95990.572500.00
    29.553133.030.14.261353.412500.0030.13.951254.722500.00
    29.553172.023.34.261750.272500.0023.33.951622.652500.00
    32.547.8245.016.33.82248.512500.0016.333.562084.562500.00
    32.547.8310.012.93.82500.002500.0012.903.562500.002500.00
    32.547.8401.010.03.82500.002500.009.983.562500.002500.00

    Please let us know your requirements and we will provide you with transmission solutions.
