RS555 DC 12 Volt Electric Motors With Gear Reduction 10Rpm 20Rpm

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJP60FG
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

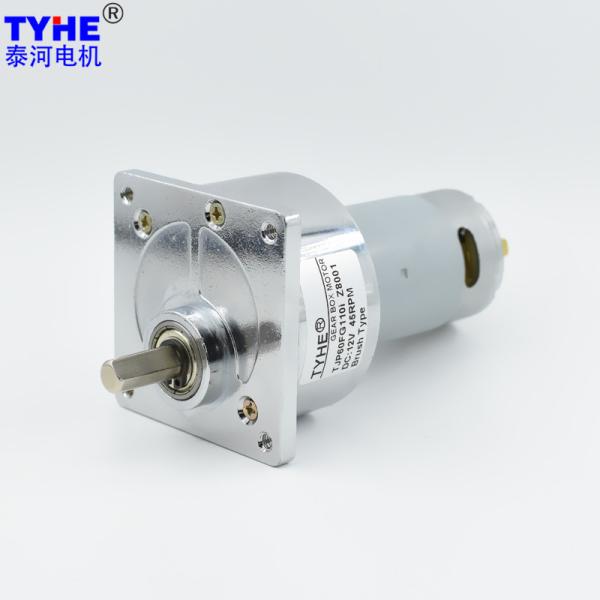

RS555 DC 12 Volt Electric Motors With Gear Reduction 10Rpm 20Rpm

Products Description

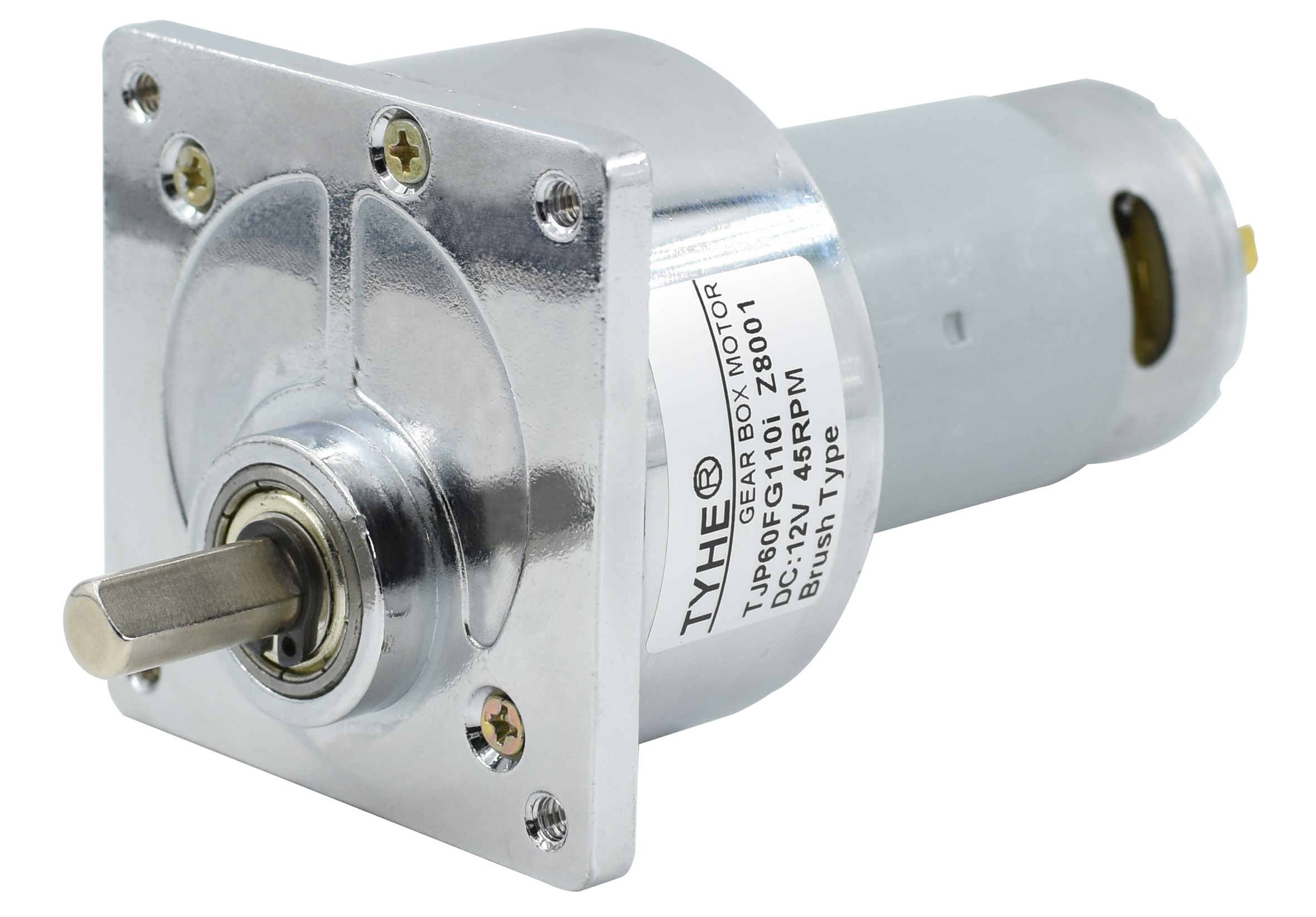

High Precision 60mm Rs555 10 Rpm 20 Rpm Dc 12v Gear Reduction Motor Ce Rohs

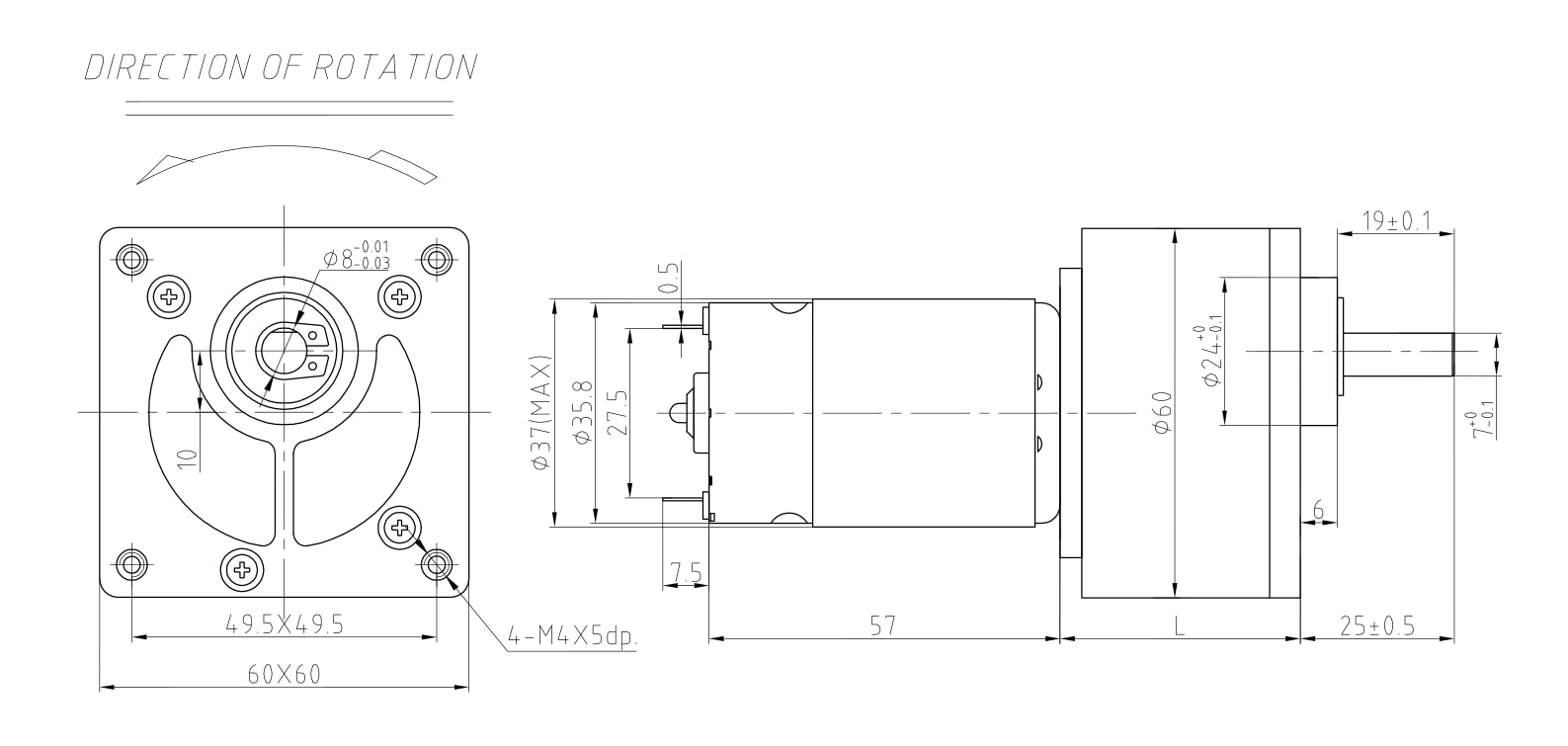

2D drawing


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
RS555	12	4500	150	3600	0.69	13.50	5.09	61.31	40.50	5.60
RS555	12	5000	240	4000	0.93	16.80	7.04	63.28	50.40	6.80
RS555	12	7600	360	6080	1.65	20.10	12.80	64.69	60.30	13.30
RS555	12	9000	390	7200	1.79	18.50	13.95	64.81	55.50	14.50
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters			12V-4500RPM Input				12V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
28.5	81	6.5	553.8	4.12	71.08	213.23	615.4	5.70	88.45	265.36
28.5	81	7.6	473.7	4.12	83.11	249.32	526.3	5.70	103.42	310.26
28.5	81	8.3	433.7	4.12	90.76	272.28	481.9	5.70	112.95	338.84
28.5	81	9.9	363.6	4.12	108.26	324.77	404.0	5.70	134.72	404.16
28.5	81	10.8	333.3	4.12	118.10	354.29	370.4	5.70	146.97	440.90
28.5	81	12.8	281.3	4.12	139.97	419.90	312.5	5.70	174.18	522.55
28.5	81	14.1	255.3	4.12	154.18	462.55	283.7	5.70	191.87	575.62
33.5	73	20.7	173.9	3.71	204.00	612.00	193.2	5.14	253.86	761.59
33.5	73	24.3	148.1	3.71	239.48	718.43	164.6	5.14	298.02	894.05
33.5	73	26.4	136.4	3.71	260.17	780.52	151.5	5.14	323.77	971.31
33.5	73	27	133.3	3.71	266.09	798.26	148.1	5.14	331.13	993.38
33.5	73	31.5	114.3	3.71	310.43	931.30	127.0	5.14	386.32	1158.95
33.5	73	34.3	105.0	3.71	338.03	1014.08	116.6	5.14	420.66	1261.97
33.5	73	34.7	103.7	3.71	341.97	1025.91	115.3	5.14	425.56	1276.68
33.5	73	41	87.8	3.71	404.06	1212.17	97.6	5.14	502.82	1508.47
33.5	73	45	80.0	3.71	443.48	1330.43	88.9	5.14	551.88	1655.64
36	65.6	66.3	54.3	3.34	587.15	1761.46	60.3	4.62	730.68	2192.04
36	65.6	77.7	46.3	3.34	688.11	2064.33	51.5	4.62	856.32	2568.95
36	65.6	86	41.9	3.34	761.62	2284.85	46.5	4.62	947.79	2843.37
36	65.6	101	35.6	3.34	894.46	2683.37	39.6	4.62	1113.10	3339.30
36	65.6	111	32.4	3.34	983.02	2949.05	36.0	4.62	1223.31	3669.93
36	65.6	131	27.5	3.34	1160.14	3480.41	30.5	4.62	1443.72	4331.17
36	65.6	144	25.0	3.34	1275.26	3825.79	27.8	4.62	1587.00	4760.99
40	59	212	17.0	3.00	1688.58	5065.74	18.9	4.15	2101.34	6304.03
40	59	249	14.5	3.00	1983.29	5949.86	16.1	4.15	2468.09	7404.26
40	59	270	13.3	3.00	2150.55	6451.65	14.8	4.15	2676.24	8028.72
40	59	276	13.0	3.00	2198.34	6595.02	14.5	4.15	2735.71	8207.14
40	59	323	11.1	3.00	2572.70	7718.09	12.4	4.15	3201.58	9604.73
40	59	351	10.3	3.00	2795.72	8387.15	11.4	4.15	3479.11	10437.34
40	59	355	10.1	3.00	2827.58	8482.73	11.3	4.15	3518.76	10556.28
40	59	420	8.6	3.00	3345.30	10035.90	9.5	4.15	4163.04	12489.12
40	59	462	7.8	3.00	3679.83	11039.49	8.7	4.15	4579.34	13738.03
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters			12V-7600RPM Input				12V-9000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
28.5	81	6.5	935.4	10.37	105.83	317.48	1107.7	11.30	97.40	292.21
28.5	81	7.6	800.0	10.37	123.74	371.21	947.4	11.30	113.89	341.66
28.5	81	8.3	732.5	10.37	135.13	405.40	867.5	11.30	124.38	373.13
28.5	81	9.9	614.1	10.37	161.18	483.55	727.3	11.30	148.35	445.05
28.5	81	10.8	563.0	10.37	175.83	527.50	666.7	11.30	161.84	485.51
28.5	81	12.8	475.0	10.37	208.40	625.19	562.5	11.30	191.81	575.42
28.5	81	14.1	431.2	10.37	229.56	688.69	510.6	11.30	211.29	633.87
33.5	73	20.7	293.7	9.34	303.73	911.19	347.8	10.18	279.55	838.66
33.5	73	24.3	250.2	9.34	356.55	1069.66	296.3	10.18	328.17	984.51
33.5	73	26.4	230.3	9.34	387.37	1162.10	272.7	10.18	356.53	1069.60
33.5	73	27	225.2	9.34	396.17	1188.51	266.7	10.18	364.64	1093.91
33.5	73	31.5	193.0	9.34	462.20	1386.60	228.6	10.18	425.41	1276.22
33.5	73	34.3	177.3	9.34	503.28	1509.85	209.9	10.18	463.22	1389.66
33.5	73	34.7	175.2	9.34	509.15	1527.46	207.5	10.18	468.62	1405.87
33.5	73	41	148.3	9.34	601.59	1804.78	175.6	10.18	553.71	1661.12
33.5	73	45	135.1	9.34	660.29	1980.86	160.0	10.18	607.73	1823.18
36	65.6	66.3	91.7	8.39	874.21	2622.62	108.6	9.15	804.62	2413.85
36	65.6	77.7	78.2	8.39	1024.52	3073.56	92.7	9.15	942.97	2828.90
36	65.6	86	70.7	8.39	1133.96	3401.88	83.7	9.15	1043.70	3131.09
36	65.6	101	60.2	8.39	1331.75	3995.24	71.3	9.15	1225.74	3677.21
36	65.6	111	54.8	8.39	1463.60	4390.80	64.9	9.15	1347.10	4041.29
36	65.6	131	46.4	8.39	1727.31	5181.94	55.0	9.15	1589.82	4769.45
36	65.6	144	42.2	8.39	1898.73	5696.18	50.0	9.15	1747.58	5242.75
40	59	212	28.7	7.55	2514.11	7542.32	34.0	8.23	2313.98	6941.94
40	59	249	24.4	7.55	2952.89	8858.67	28.9	8.23	2717.84	8153.51
40	59	270	22.5	7.55	3201.93	9605.79	26.7	8.23	2947.05	8841.15
40	59	276	22.0	7.55	3273.08	9819.25	26.1	8.23	3012.54	9037.62
40	59	323	18.8	7.55	3830.46	11491.37	22.3	8.23	3525.55	10576.64
40	59	351	17.3	7.55	4162.51	12487.53	20.5	8.23	3831.17	11493.50
40	59	355	17.1	7.55	4209.95	12629.84	20.3	8.23	3874.83	11624.48
40	59	420	14.5	7.55	4980.78	14942.34	17.1	8.23	4584.30	13752.90
40	59	462	13.2	7.55	5478.86	15000.00	15.6	8.23	5042.73	15000.00

Please let us know your requirements and we will provide you with transmission solutions.
