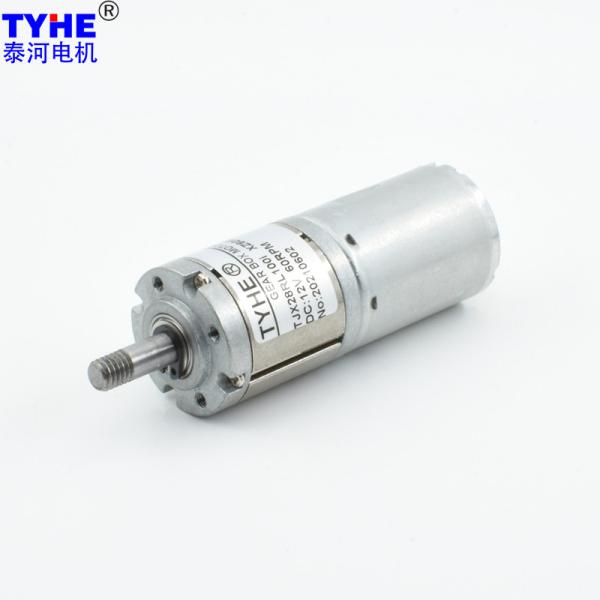

Mini 28mm 12V 24V Micro Planetary Gear Motor 30Rpm 300Rpm High Speed

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJX28ZRL
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

Mini 28mm 12V 24V Micro Planetary Gear Motor 30Rpm 300Rpm High Speed

Products Description

28mm Mini Size 12v 24v 30 Rpm 40 60 300 Rpm High Speed Micro Dc Planetary Geared Motor

2D drawing


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
RS385	12	5500	140	4400	0.30	5.03	2.32	64.37	15.09	1.08
RS385	12	8800	205	7040	0.64	6.50	4.79	62.31	19.50	4.00
RS385	12	20000	320	16000	1.73	8.10	13.57	65.37	24.30	15.00
RS385	24	5500	55	4400	0.15	5.10	2.35	64.20	15.30	0.84
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			12V-5500RPM Input				12V-8800RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
20.2	90	3.4	1294.1	2.09	15.39	46.18	2070.6	4.31	19.89	59.67
20.2	90	4.6	956.5	2.09	20.82	62.47	1530.4	4.31	26.91	80.73
25.9	81	11.2	392.9	1.88	45.63	136.90	628.6	3.88	58.97	176.90
25.9	81	15.5	283.9	1.88	63.15	189.45	454.2	3.88	81.61	244.82
25.9	81	21.5	204.7	1.88	87.60	262.79	327.4	3.88	113.20	339.59
31.7	73	38.0	115.8	1.69	139.53	418.60	185.3	3.50	180.31	540.93
31.7	73	52.0	84.6	1.69	190.94	572.82	135.4	3.50	246.74	740.22
31.7	73	72.0	61.1	1.69	264.38	793.13	97.8	3.50	341.64	1024.92
31.7	73	100.0	44.0	1.69	367.19	1101.57	70.4	3.50	474.50	1423.50
37.5	65.6	126.0	34.9	1.52	415.76	1247.28	55.9	3.14	537.26	1611.79
37.5	65.6	175.0	25.1	1.52	577.44	1732.33	40.2	3.14	746.20	2238.60
37.5	65.6	242.0	18.2	1.52	798.52	2395.57	29.1	3.14	1031.89	3095.66
37.5	65.6	334.0	13.2	1.52	1102.09	3306.28	21.1	3.14	1424.18	4272.53
37.5	65.6	462.0	9.5	1.52	1524.45	4573.36	15.2	3.14	1969.97	5000.00
43.3	59	424.0	10.4	1.37	1258.30	5000.00	16.6	2.83	1626.04	4878.12
43.3	59	586.0	7.5	1.37	1739.07	5000.00	12.0	2.83	2247.31	5000.00
43.3	59	810.0	5.4	1.37	2403.84	5000.00	8.7	2.83	3106.35	5000.00
43.3	59	1120.0	3.9	1.37	3323.82	5000.00	6.3	2.83	4295.20	5000.00
43.3	59	1549.0	2.8	1.37	4596.97	5000.00	4.5	2.83	5000.00	5000.00
43.3	59	2142.0	2.1	1.37	5000.00	5000.00	3.3	2.83	5000.00	5000.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			12V-20000RPM Input				24V-5500RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
20.2	90	3.4	4705.9	12.21	24.79	74.36	1294.1	2.11	15.61	46.82
20.2	90	4.6	3478.3	12.21	33.53	100.60	956.5	2.11	21.11	63.34
25.9	81	11.2	1428.6	10.99	73.48	220.45	392.9	1.90	46.27	138.80
25.9	81	15.5	1032.3	10.99	101.70	305.09	283.9	1.90	64.03	192.09
25.9	81	21.5	744.2	10.99	141.06	423.18	204.7	1.90	88.82	266.45
31.7	73	38.0	421.1	9.91	224.69	674.08	115.8	1.72	141.47	424.42
31.7	73	52.0	307.7	9.91	307.48	922.43	84.6	1.72	193.60	580.79
31.7	73	72.0	222.2	9.91	425.74	1277.21	61.1	1.72	268.06	804.17
31.7	73	100.0	160.0	9.91	591.30	1773.90	44.0	1.72	372.30	1116.90
37.5	65.6	126.0	127.0	8.90	669.51	2008.54	34.9	1.54	421.55	1264.64
37.5	65.6	175.0	91.4	8.90	929.88	2789.64	25.1	1.54	585.48	1756.44
37.5	65.6	242.0	66.1	8.90	1285.89	3857.67	18.2	1.54	809.64	2428.91
37.5	65.6	334.0	47.9	8.90	1774.74	5000.00	13.2	1.54	1117.43	3352.29
37.5	65.6	462.0	34.6	8.90	2454.88	5000.00	9.5	1.54	1545.67	4637.00
43.3	59	424.0	37.7	8.01	2026.30	5000.00	10.4	1.39	1275.82	3827.45
43.3	59	586.0	27.3	8.01	2800.49	5000.00	7.5	1.39	1763.27	5000.00
43.3	59	810.0	19.8	8.01	3870.99	5000.00	5.4	1.39	2437.29	5000.00
43.3	59	1120.0	14.3	8.01	5000.00	5000.00	3.9	1.39	3370.08	5000.00
43.3	59	1549.0	10.3	8.01	5000.00	5000.00	2.8	1.39	4660.94	5000.00
43.3	59	2142.0	7.5	8.01	5000.00	5000.00	2.1	1.39	5000.00	5000.00

Please let us know your requirements and we will provide you with transmission solutions.
