    Low Backlash Steel Gear 42mm DC Motor 4260BL Brushless DC Planetary Gear Motor

    Ask Lasest Price
    Brand Name : TYHE
    Model Number : TJX42R4260BL
    Certification : CE/ROHS/ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 100000pcs per month
    Delivery Time : 15 working days after payment
    • Product Details
    • Company Profile

    Low Backlash Steel Gear 42mm DC Motor 4260BL Brushless DC Planetary Gear Motor

    Products Description

    Low Backlash Steel Gear 42mm Dia 4260BL 12v 24v Brushless Dc Planetary Reducer Gear Motor Rohs

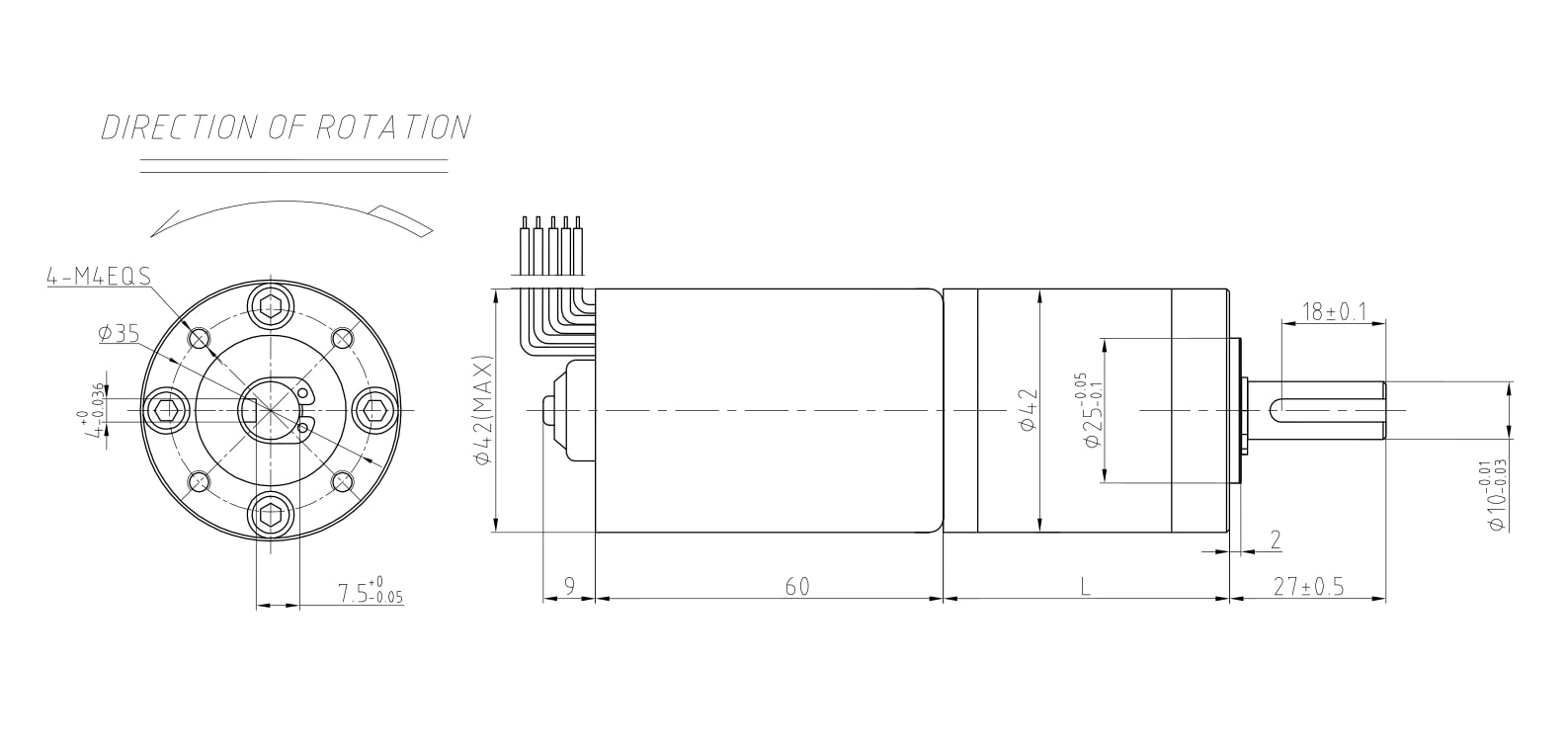

    2D drawing


    Specifications

    DC Motor Technical Data
    ModelRated Voltage(V)No-Load ParametersRated ParametersStall Parameters
    SpeedCurrentSpeedCurrentTorqueOutputeffTorqueCurrent
    rpmmArpmAmN.mW%mN.mA
    4260BL12500062040002.2643.5418.2467.39130.6213.25
    4260BL24500035040001.1845.8819.2267.80137.646.56
    DC Motor With Gearbox Technical Data (0.6M)
    Gearbox parameters12V-5000RPM Input24V-5000RPM Input
    Length (mm)Transmission Efficiency (%)Gear RatioRated Output Speed (RPM)Rated Output Power (W)Rated Torque (mN.m)Maximum Instantaneous Torque (mN.m)Rated Output Speed (RPM)Rated Output Power (W)Rated Torque (mN.m)Maximum Instantaneous Torque (mN.m)
    29.7903.71081.116.41144.99434.961081.117.30152.78458.34
    29.7905.2769.216.41203.77611.30769.217.30214.72644.16
    39.48113.7292.014.77483.161449.49292.015.57509.131527.39
    39.48119.2208.314.77677.132031.40208.315.57713.532140.58
    39.48126.9148.714.77948.692846.08148.715.57999.682999.04
    39.48135.0114.314.771234.363703.08114.315.571300.703902.09
    49.17351.078.413.311620.994862.9878.414.031708.115124.34
    49.17371.056.313.312256.686770.0356.314.032377.967133.88
    49.173100.040.013.313178.429535.2640.014.033349.2410047.72
    49.173139.028.813.314418.0013254.0128.814.034655.4413966.33
    60.365.6189.021.211.965398.2616194.7921.212.615688.3917065.16
    60.365.6264.015.211.967540.4322621.2915.212.617945.6823837.05
    60.365.6369.010.811.9610539.4725000.0010.812.6111105.9025000.00
    60.365.6514.07.811.9614680.9925000.007.812.6115470.0025000.00
    60.365.6721.05.511.9620593.3825000.005.512.6121700.1425000.00
    71.559699.05.710.7617956.3325000.005.711.3418921.3725000.00
    71.559977.04.110.7625000.0025000.004.111.3425000.0025000.00
    71.5591367.02.910.7625000.0025000.002.911.3425000.0025000.00
    71.5591911.02.110.7625000.0025000.002.111.3425000.0025000.00
    71.5592672.01.510.7625000.0025000.001.511.3425000.0025000.00
    71.5593736.01.110.7625000.0025000.001.111.3425000.0025000.00

    Please let us know your requirements and we will provide you with transmission solutions.
