65 Rpm Tubular 12v 5a 60w Dc Metal Gear Motor For Curtain 24v 40w

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJP60FN
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

65 Rpm Tubular 12v 5a 60w Dc Metal Gear Motor For Curtain 24v 40w

Products Description

Speed Adjustable 24v 40w High Power 65 Rpm 12 V Tubular 12v 5a 60w Dc Metal Gear Motor For Curtain

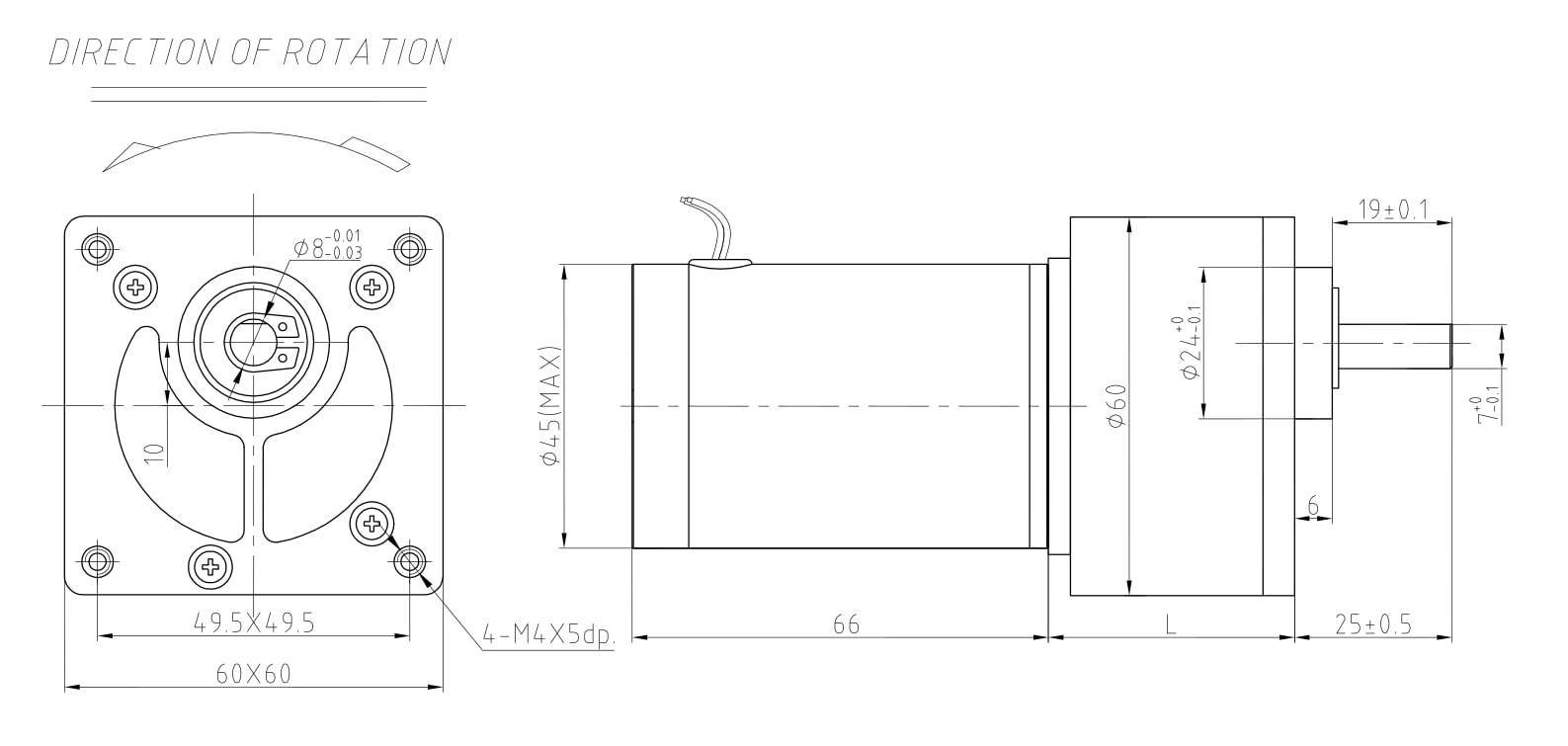

2D drawing

Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
ZY4564	12	6000	1100	4800	3.94	60.00	30.16	63.76	180.00	27.50
ZY4564	24	4500	280	3600	1.00	40.00	15.08	62.62	120.00	7.00
ZY4564	24	6000	500	4800	1.92	59.80	30.06	65.34	179.40	14.00
ZY4564	24	7000	570	5600	2.23	57.00	33.42	62.38	171.00	16.53
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters			12V-6000RPM Input				24V-4500RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
28.5	81	6.5	738.5	24.43	315.90	947.70	553.8	12.21	210.60	631.80
28.5	81	7.6	631.6	24.43	369.36	1108.08	473.7	12.21	246.24	738.72
28.5	81	8.3	578.3	24.43	403.38	1210.14	433.7	12.21	268.92	806.76
28.5	81	9.9	484.8	24.43	481.14	1443.42	363.6	12.21	320.76	962.28
28.5	81	10.8	444.4	24.43	524.88	1574.64	333.3	12.21	349.92	1049.76
28.5	81	12.8	375.0	24.43	622.08	1866.24	281.3	12.21	414.72	1244.16
28.5	81	14.1	340.4	24.43	685.26	2055.78	255.3	12.21	456.84	1370.52
33.5	73	20.7	231.9	22.01	906.66	2719.98	173.9	11.01	604.44	1813.32
33.5	73	24.3	197.5	22.01	1064.34	3193.02	148.1	11.01	709.56	2128.68
33.5	73	26.4	181.8	22.01	1156.32	3468.96	136.4	11.01	770.88	2312.64
33.5	73	27	177.8	22.01	1182.60	3547.80	133.3	11.01	788.40	2365.20
33.5	73	31.5	152.4	22.01	1379.70	4139.10	114.3	11.01	919.80	2759.40
33.5	73	34.3	139.9	22.01	1502.34	4507.02	105.0	11.01	1001.56	3004.68
33.5	73	34.7	138.3	22.01	1519.86	4559.58	103.7	11.01	1013.24	3039.72
33.5	73	41	117.1	22.01	1795.80	5387.40	87.8	11.01	1197.20	3591.60
33.5	73	45	106.7	22.01	1971.00	5913.00	80.0	11.01	1314.00	3942.00
36	65.6	66.3	72.4	19.78	2609.57	7828.70	54.3	9.89	1739.71	5219.14
36	65.6	77.7	61.8	19.78	3058.27	9174.82	46.3	9.89	2038.85	6116.54
36	65.6	86	55.8	19.78	3384.96	10154.88	41.9	9.89	2256.64	6769.92
36	65.6	101	47.5	19.78	3975.36	11926.08	35.6	9.89	2650.24	7950.72
36	65.6	111	43.2	19.78	4368.96	13106.88	32.4	9.89	2912.64	8737.92
36	65.6	131	36.6	19.78	5156.16	15000.00	27.5	9.89	3437.44	10312.32
36	65.6	144	33.3	19.78	5667.84	15000.00	25.0	9.89	3778.56	11335.68
40	59	212	22.6	17.79	7504.80	15000.00	17.0	8.90	5003.20	15000.00
40	59	249	19.3	17.79	8814.60	15000.00	14.5	8.90	5876.40	15000.00
40	59	270	17.8	17.79	9558.00	15000.00	13.3	8.90	6372.00	15000.00
40	59	276	17.4	17.79	9770.40	15000.00	13.0	8.90	6513.60	15000.00
40	59	323	14.9	17.79	11434.20	15000.00	11.1	8.90	7622.80	15000.00
40	59	351	13.7	17.79	12425.40	15000.00	10.3	8.90	8283.60	15000.00
40	59	355	13.5	17.79	12567.00	15000.00	10.1	8.90	8378.00	15000.00
40	59	420	11.4	17.79	14868.00	15000.00	8.6	8.90	9912.00	15000.00
40	59	462	10.4	17.79	15000.00	15000.00	7.8	8.90	10903.20	15000.00
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters			24V-6000RPM Input				24V-7000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
28.5	81	6.5	738.5	24.35	314.85	944.54	861.5	27.07	300.11	900.32
28.5	81	7.6	631.6	24.35	368.13	1104.39	736.8	27.07	350.89	1052.68
28.5	81	8.3	578.3	24.35	402.04	1206.11	674.7	27.07	383.21	1149.63
28.5	81	9.9	484.8	24.35	479.54	1438.61	565.7	27.07	457.08	1371.25
28.5	81	10.8	444.4	24.35	523.13	1569.39	518.5	27.07	498.64	1495.91
28.5	81	12.8	375.0	24.35	620.01	1860.02	437.5	27.07	590.98	1772.93
28.5	81	14.1	340.4	24.35	682.98	2048.93	397.2	27.07	651.00	1952.99
33.5	73	20.7	231.9	21.94	903.64	2710.91	270.5	24.40	861.33	2583.98
33.5	73	24.3	197.5	21.94	1060.79	3182.38	230.5	24.40	1011.12	3033.37
33.5	73	26.4	181.8	21.94	1152.47	3457.40	212.1	24.40	1098.50	3295.51
33.5	73	27	177.8	21.94	1178.66	3535.97	207.4	24.40	1123.47	3370.41
33.5	73	31.5	152.4	21.94	1375.10	4125.30	177.8	24.40	1310.72	3932.15
33.5	73	34.3	139.9	21.94	1497.33	4492.00	163.3	24.40	1427.22	4281.67
33.5	73	34.7	138.3	21.94	1514.79	4544.38	161.4	24.40	1443.87	4331.60
33.5	73	41	117.1	21.94	1789.81	5369.44	136.6	24.40	1706.01	5118.03
33.5	73	45	106.7	21.94	1964.43	5893.29	124.4	24.40	1872.45	5617.35
36	65.6	66.3	72.4	19.72	2600.87	7802.61	84.5	21.93	2479.09	7437.27
36	65.6	77.7	61.8	19.72	3048.08	9144.23	72.1	21.93	2905.36	8716.08
36	65.6	86	55.8	19.72	3373.68	10121.03	65.1	21.93	3215.71	9647.14
36	65.6	101	47.5	19.72	3962.11	11886.33	55.4	21.93	3776.59	11329.78
36	65.6	111	43.2	19.72	4354.40	13063.19	50.5	21.93	4150.51	12451.54
36	65.6	131	36.6	19.72	5138.97	15000.00	42.7	21.93	4898.35	14695.06
36	65.6	144	33.3	19.72	5648.95	15000.00	38.9	21.93	5384.45	15000.00
40	59	212	22.6	17.73	7479.78	15000.00	26.4	19.72	7129.56	15000.00
40	59	249	19.3	17.73	8785.22	15000.00	22.5	19.72	8373.87	15000.00
40	59	270	17.8	17.73	9526.14	15000.00	20.7	19.72	9080.10	15000.00
40	59	276	17.4	17.73	9737.83	15000.00	20.3	19.72	9281.88	15000.00
40	59	323	14.9	17.73	11396.09	15000.00	17.3	19.72	10862.49	15000.00
40	59	351	13.7	17.73	12383.98	15000.00	16.0	19.72	11804.13	15000.00
40	59	355	13.5	17.73	12525.11	15000.00	15.8	19.72	11938.65	15000.00
40	59	420	11.4	17.73	14818.44	15000.00	13.3	19.72	14124.60	15000.00
40	59	462	10.4	17.73	15000.00	15000.00	12.1	19.72	15000.00	15000.00


Please let us know your requirements and we will provide you with transmission solutions.
