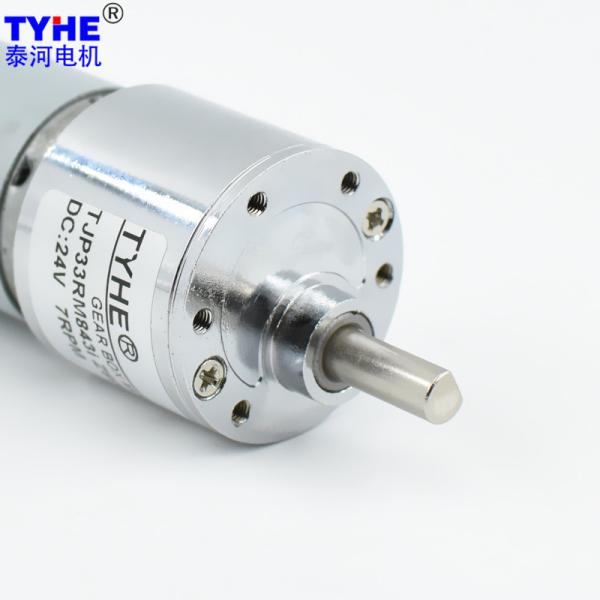

Micro D33mm 14.4v 7.2v 12v 24v Dc Gear Motor For Fish Feeder 1.5nm 60rpm 100rpm

Ask Lasest Price
Brand Name :	TYHE
Model Number :	TJP33RM
Certification :	CE/ROHS/ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	15 working days after payment

Add to Cart

Product Details
Company Profile

Micro D33mm 14.4v 7.2v 12v 24v Dc Gear Motor For Fish Feeder 1.5nm 60rpm 100rpm

Products Description

Wholesale Micro D33mm 12v 24v 14.4v 7.2v 60 Rpm 100rpm 10 Watt 8watts 1.5nm Dc Gear Motor For Fish Feeder

Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
ZY2847	12	4500	100	3600	0.30	5.89	2.22	61.68	17.67	1.70
ZY2847	12	7500	160	6000	0.60	7.17	4.50	62.57	21.51	4.80
ZY2847	24	5000	50	4000	0.20	7.25	3.04	63.26	21.75	1.14
ZY2847	24	5300	60	4240	0.22	7.38	3.28	62.06	22.14	1.30
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			12V-4500RPM Input				12V-7500RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
21.3	81	7.7	467.5	1.80	36.74	110.21	779.2	3.65	44.72	134.16
21.3	81	9.0	400.0	1.80	42.94	128.81	666.7	3.65	52.27	156.81
21.3	73	18.4	195.7	1.62	79.11	237.34	326.1	3.29	96.31	288.92
21.3	73	21.6	166.7	1.62	92.87	278.62	277.8	3.29	113.06	339.17
21.3	73	25.4	141.7	1.62	109.21	327.64	236.2	3.29	132.95	398.84
21.3	65.6	44.2	81.4	1.46	170.78	512.35	135.7	2.96	207.90	623.69
21.3	65.6	51.9	69.4	1.46	200.53	601.60	115.6	2.96	244.11	732.34
21.3	65.6	61.0	59.0	1.46	235.69	707.08	98.4	2.96	286.91	860.74
21.3	65.6	71.6	50.3	1.46	276.65	829.95	83.8	2.96	336.77	1010.32
22.5	59	106.0	34.0	1.31	368.36	1105.08	56.6	2.66	448.41	1345.24
22.5	59	125.0	28.8	1.31	434.39	1303.16	48.0	2.66	528.79	1586.36
22.5	59	146.0	24.7	1.31	507.36	1522.09	41.1	2.66	617.62	1852.87
22.5	59	172.0	20.9	1.31	597.72	1793.15	34.9	2.66	727.61	2000.00
22.5	59	202.0	17.8	1.31	701.97	2000.00	29.7	2.66	854.52	2000.00
24.7	53	255.0	14.1	1.18	796.03	2000.00	23.5	2.39	969.03	2000.00
24.7	53	299.0	12.0	1.18	933.39	2000.00	20.1	2.39	1136.23	2000.00
24.7	53	351.0	10.3	1.18	1095.72	2000.00	17.1	2.39	1333.84	2000.00
24.7	53	413.0	8.7	1.18	1289.26	2000.00	14.5	2.39	1569.44	2000.00
24.7	53	484.0	7.4	1.18	1510.90	2000.00	12.4	2.39	1839.25	2000.00
24.7	53	569.0	6.3	1.18	1776.25	2000.00	10.5	2.39	2000.00	2000.00
27.2	48	612.0	5.9	1.07	1730.25	2000.00	9.8	2.16	2000.00	2000.00
27.2	48	718.0	5.0	1.07	2000.00	2000.00	8.4	2.16	2000.00	2000.00
27.2	48	843.0	4.3	1.07	2000.00	2000.00	7.1	2.16	2000.00	2000.00
27.2	48	990.0	3.6	1.07	2000.00	2000.00	6.1	2.16	2000.00	2000.00
27.2	48	1163.0	3.1	1.07	2000.00	2000.00	5.2	2.16	2000.00	2000.00
27.2	48	1365.0	2.6	1.07	2000.00	2000.00	4.4	2.16	2000.00	2000.00
27.2	48	1603.0	2.2	1.07	2000.00	2000.00	3.7	2.16	2000.00	2000.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			24V-5000RPM Input				24V-5300RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
21.3	81	7.7	519.5	2.46	45.22	135.65	550.6	2.65	46.03	138.09
21.3	81	9.0	444.4	2.46	52.85	158.56	471.1	2.65	53.80	161.40
21.3	73	18.4	217.4	2.22	97.38	292.15	230.4	2.39	99.13	297.38
21.3	73	21.6	185.2	2.22	114.32	342.95	196.3	2.39	116.37	349.10
21.3	73	25.4	157.5	2.22	134.43	403.29	166.9	2.39	136.84	410.52
21.3	65.6	44.2	90.5	1.99	210.22	630.65	95.9	2.15	213.98	641.95
21.3	65.6	51.9	77.1	1.99	246.84	740.51	81.7	2.15	251.26	753.79
21.3	65.6	61.0	65.6	1.99	290.12	870.35	69.5	2.15	295.32	885.95
21.3	65.6	71.6	55.9	1.99	340.53	1021.59	59.2	2.15	346.64	1039.91
22.5	59	106.0	37.7	1.79	453.42	1360.25	40.0	1.93	461.55	1384.64
22.5	59	125.0	32.0	1.79	534.69	1604.06	33.9	1.93	544.28	1632.83
22.5	59	146.0	27.4	1.79	624.52	1873.55	29.0	1.93	635.71	1907.14
22.5	59	172.0	23.3	1.79	735.73	2000.00	24.7	1.93	748.92	2000.00
22.5	59	202.0	19.8	1.79	864.06	2000.00	21.0	1.93	879.55	2000.00
24.7	53	255.0	15.7	1.61	979.84	2000.00	16.6	1.74	997.41	2000.00
24.7	53	299.0	13.4	1.61	1148.91	2000.00	14.2	1.74	1169.51	2000.00
24.7	53	351.0	11.4	1.61	1348.72	2000.00	12.1	1.74	1372.90	2000.00
24.7	53	413.0	9.7	1.61	1586.95	2000.00	10.3	1.74	1615.41	2000.00
24.7	53	484.0	8.3	1.61	1859.77	2000.00	8.8	1.74	1893.12	2000.00
24.7	53	569.0	7.0	1.61	2000.00	2000.00	7.5	1.74	2000.00	2000.00
27.2	48	612.0	6.5	1.46	2000.00	2000.00	6.9	1.57	2000.00	2000.00
27.2	48	718.0	5.6	1.46	2000.00	2000.00	5.9	1.57	2000.00	2000.00
27.2	48	843.0	4.7	1.46	2000.00	2000.00	5.0	1.57	2000.00	2000.00
27.2	48	990.0	4.0	1.46	2000.00	2000.00	4.3	1.57	2000.00	2000.00
27.2	48	1163.0	3.4	1.46	2000.00	2000.00	3.6	1.57	2000.00	2000.00
27.2	48	1365.0	2.9	1.46	2000.00	2000.00	3.1	1.57	2000.00	2000.00
27.2	48	1603.0	2.5	1.46	2000.00	2000.00	2.6	1.57	2000.00	2000.00

2D drawing


Please let us know your requirements and we will provide you with transmission solutions.
