    37mm 12V DC Gear Motor 24v 36V 500 Rpm 800 Rpm High Torque 4w

    Ask Lasest Price
    Brand Name : TYHE
    Model Number : TJP37RK
    Certification : CE/ROHS/ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 150000pcs per month
    Delivery Time : 15 working days after payment
    • Product Details
    • Company Profile

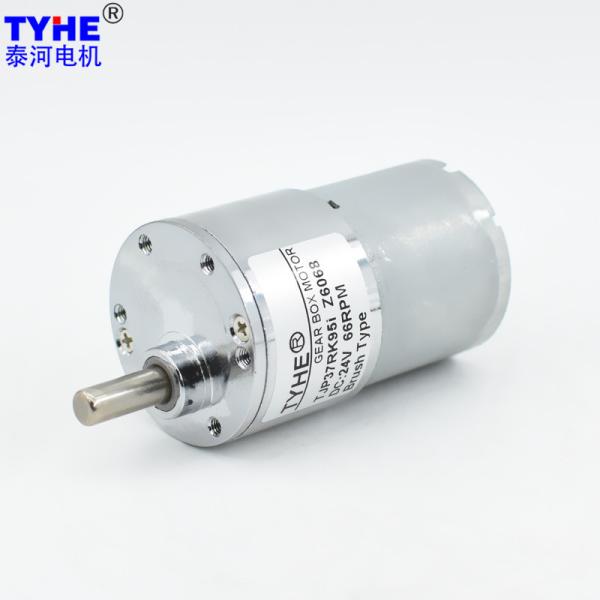

    37mm 12V DC Gear Motor 24v 36V 500 Rpm 800 Rpm High Torque 4w

    Products Description

    Customizable 37mm gearmotor 12v 24v 36 volt low rpm 500 rpm 800 rpm high torque 10kg 15kg 4w 5w 6w dc gear motor


    Specifications

    DC Motor Technical Data
    ModelRated Voltage(V)No-Load ParametersRated ParametersStall Parameters
    SpeedCurrentSpeedCurrentTorqueOutputeffTorqueCurrent
    rpmmArpmAmN.mW%mN.mA
    ZY35301255006044000.233.811.7662.6911.431.72
    ZY35301265006552000.314.182.2861.1812.542.00
    DC Motor With Gearbox Technical Data (0.5M)
    Gearbox parameters12V-5500RPM Input12V-6500RPM Input
    Length (mm)Transmission Efficiency (%)Gear RatioRated Output Speed (RPM)Rated Output Power (W)Rated Torque (mN.m)Maximum Instantaneous Torque (mN.m)Rated Output Speed (RPM)Rated Output Power (W)Rated Torque (mN.m)Maximum Instantaneous Torque (mN.m)
    22.5816.5676.91.4220.0660.18800.01.8422.0166.02
    22.5817.6578.91.4223.4570.36684.21.8425.7377.20
    22.5739.3473.11.2825.8777.60559.11.6628.3885.13
    22.57311.8372.91.2832.8298.46440.71.6636.01108.02
    22.57315.2289.51.2842.28126.83342.11.6646.38139.14
    22.57320.4215.71.2856.74170.22254.91.6662.25186.75
    24.565.627.5160.01.1568.73206.20189.11.4975.41226.22
    24.565.635.6123.61.1588.98266.93146.11.4997.62292.85
    24.565.641.6105.81.15103.97311.92125.01.49114.07342.21
    24.565.657.776.31.15144.21432.6490.11.49158.22474.65
    26.55973.459.91.04165.00494.9970.81.34181.02543.06
    26.5598353.01.04186.58559.7362.71.34204.69614.08
    26.5599745.41.04218.05654.1453.61.34239.22717.66
    26.55911139.61.04249.52748.5546.81.34273.75821.24
    26.55911937.01.04267.50802.5043.71.34293.48880.43
    26.55913033.81.04292.23876.6840.01.34320.61961.82
    29.55319422.70.93391.741175.2326.81.21429.791289.36
    29.55322619.50.93456.361369.0923.01.21500.681502.04
    29.55325917.00.93523.001569.0020.11.21573.791721.37
    29.55327715.90.93559.351678.0418.81.21613.671841.00
    29.55330314.50.93611.851835.5417.21.21671.272013.80
    29.55331613.90.93638.101914.3016.51.21700.072100.20
    29.55334612.70.93698.682096.0315.01.21766.532299.59
    29.55338211.50.93771.372314.1213.61.21846.282500.00
    32.547.84529.70.84823.172469.5211.51.09903.112500.00
    32.547.85288.30.84961.582500.009.81.091054.972500.00
    32.547.86047.30.841099.992500.008.61.091206.822500.00
    32.547.86656.60.841211.082500.007.81.091328.702500.00
    32.547.87336.00.841334.922500.007.11.091464.562500.00
    32.547.88085.40.841471.512500.006.41.091614.422500.00
    32.547.88904.90.841620.852500.005.81.091778.262500.00
    32.54312323.60.752018.392500.004.20.982214.402500.00
    32.54314083.10.752306.732500.003.70.982500.002500.00
    32.54315522.80.752500.002500.003.40.982500.002500.00
    32.54317112.60.752500.002500.003.00.982500.002500.00
    32.54320772.10.752500.002500.002.50.982500.002500.00

    2D drawing


    Please let us know your requirements and we will provide you with transmission solutions.
