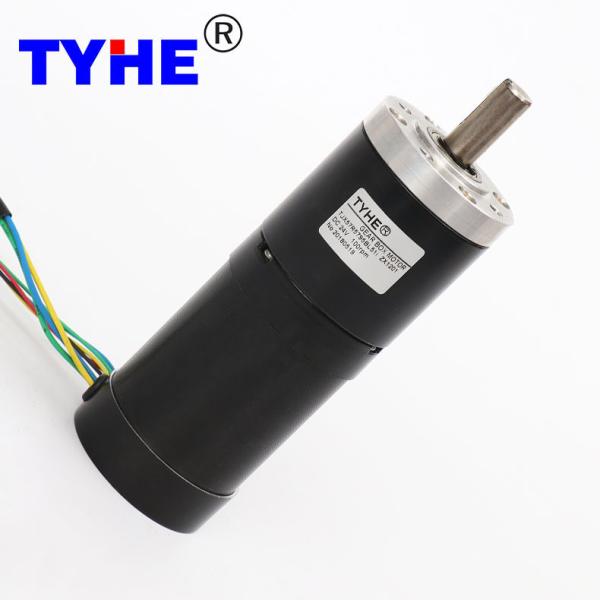

150 Watt 30nm 100rpm Brushless Gear Motor 57mm With Driver

Products Description

Manufacturer 57mm gearbox 12v 24v 36v 48v 50w 95w 120w 150 watt 20nm 30nm 100 rpm brushless dc planetary gear motor with driver

Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
5795BL	24	4000	800	3200	3.95	190.54	63.85	67.35	571.62	33.00
5795BL	24	4500	1000	3600	4.75	200.95	75.75	66.45	602.85	39.00
5795BL	24	5100	1200	4080	5.55	208.32	89.00	66.82	624.96	45.00
5795BL	24	6000	1500	4800	6.33	204.35	102.71	67.57	613.05	49.00
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters			24V-4000RPM Input				24V-4500RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
38.3	90	3.7	864.9	57.46	634.50	1903.49	973.0	68.18	669.16	2007.49
38.3	90	5.2	615.4	57.46	891.73	2675.18	692.3	68.18	940.45	2821.34
51.4	81	13.7	233.6	51.72	2114.42	6343.27	262.8	61.36	2229.94	6689.83
51.4	81	19.2	166.7	51.72	2963.28	8889.83	187.5	61.36	3125.17	9375.52
51.4	81	26.9	119.0	51.72	4151.68	12455.03	133.8	61.36	4378.50	13135.50
51.4	81	35.0	91.4	51.72	5401.81	16205.43	102.9	61.36	5696.93	17090.80
64.6	73	51.0	62.7	46.61	7093.80	21281.41	70.6	55.30	7481.37	22444.11
64.6	73	71.0	45.1	46.61	9875.69	29627.06	50.7	55.30	10415.24	31245.72
64.6	73	100.0	32.0	46.61	13909.42	41728.26	36.0	55.30	14669.35	44008.05
64.6	73	139.0	23.0	46.61	19334.09	48000.00	25.9	55.30	20390.40	48000.00
80	65.6	189.0	16.9	41.88	23623.91	48000.00	19.0	49.69	24914.58	48000.00
80	65.6	264.0	12.1	41.88	32998.48	48000.00	13.6	49.69	34801.32	48000.00
80	65.6	369.0	8.7	41.88	46122.87	48000.00	9.8	49.69	48000.00	48000.00
80	65.6	514.0	6.2	41.88	48000.00	48000.00	7.0	49.69	48000.00	48000.00
80	65.6	721.0	4.4	41.88	48000.00	48000.00	5.0	49.69	48000.00	48000.00
95	59	699.0	4.6	37.67	48000.00	48000.00	5.2	44.69	48000.00	48000.00
95	59	977.0	3.3	37.67	48000.00	48000.00	3.7	44.69	48000.00	48000.00
95	59	1367.0	2.3	37.67	48000.00	48000.00	2.6	44.69	48000.00	48000.00
95	59	1911.0	1.7	37.67	48000.00	48000.00	1.9	44.69	48000.00	48000.00
95	59	2672.0	1.2	37.67	48000.00	48000.00	1.3	44.69	48000.00	48000.00
95	59	3736.0	0.9	37.67	48000.00	48000.00	1.0	44.69	48000.00	48000.00
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters			24V-5100RPM Input				24V-6000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
38.3	90	3.7	1102.7	80.10	693.71	2081.12	1297.3	92.44	680.49	2041.46
38.3	90	5.2	784.6	80.10	974.94	2924.81	923.1	92.44	956.36	2869.07
51.4	81	13.7	297.8	72.09	2311.73	6935.18	350.4	83.20	2267.67	6803.02
51.4	81	19.2	212.5	72.09	3239.79	9719.38	250.0	83.20	3178.05	9534.15
51.4	81	26.9	151.7	72.09	4539.08	13617.25	178.4	83.20	4452.58	13357.75
51.4	81	35.0	116.6	72.09	5905.87	17717.62	137.1	83.20	5793.32	17379.97
64.6	73	51.0	80.0	64.97	7755.75	23267.26	94.1	74.98	7607.95	22823.85
64.6	73	71.0	57.5	64.97	10797.23	32391.68	67.6	74.98	10591.46	31774.38
64.6	73	100.0	40.8	64.97	15207.36	45622.08	48.0	74.98	14917.55	44752.65
64.6	73	139.0	29.4	64.97	21138.23	48000.00	34.5	74.98	20735.39	48000.00
80	65.6	189.0	21.6	58.38	25828.35	48000.00	25.4	67.38	25336.13	48000.00
80	65.6	264.0	15.5	58.38	36077.69	48000.00	18.2	67.38	35390.15	48000.00
80	65.6	369.0	11.1	58.38	48000.00	48000.00	13.0	67.38	48000.00	48000.00
80	65.6	514.0	7.9	58.38	48000.00	48000.00	9.3	67.38	48000.00	48000.00
80	65.6	721.0	5.7	58.38	48000.00	48000.00	6.7	67.38	48000.00	48000.00
95	59	699.0	5.8	52.51	48000.00	48000.00	6.9	60.60	48000.00	48000.00
95	59	977.0	4.2	52.51	48000.00	48000.00	4.9	60.60	48000.00	48000.00
95	59	1367.0	3.0	52.51	48000.00	48000.00	3.5	60.60	48000.00	48000.00
95	59	1911.0	2.1	52.51	48000.00	48000.00	2.5	60.60	48000.00	48000.00
95	59	2672.0	1.5	52.51	48000.00	48000.00	1.8	60.60	48000.00	48000.00
95	59	3736.0	1.1	52.51	48000.00	48000.00	1.3	60.60	48000.00	48000.00

2D drawing


Please let us know your requirements and we will provide you with transmission solutions.
